Összekötő kapocs betonvasalásokhoz

Clamps for connecting reinforcing steel mesh or bar with round and flat conductors

Arrangement:
(II) = parallel
(+) = cross

Details

Figure 1: Diameters of reinforcing steels.
Ref.: Steel for the reinforcement of concrete according to DIN EN 10080:2005.
lorem ipsum
Figure 5: Connecting clamp Part No. 308 035
lorem ipsum
Figure 3: U-bolt clamp Part No. 308 045
lorem ipsum
Figure 3: U-bolt clamp Part No. 308 046
lorem ipsum
Figure 4: U-bolt clamp with cable lug
lorem ipsum

For T, cross and parallel connections

1 Product

Part No. 308025 VK A UNI ST

GTIN 4013364035881, Customs tariff No. (EU): 85359000, Gross weight: 102.00 g, PU: 50.00 db.

Images

Additional information

Connecting clamps for reinforcements, St/tZn
Connecting clamp for connecting reinforcing steel
mesh and bar with round conductors
For T, cross and parallel connections
Material: St/tZn
Clamping range Rd / Rd: (+) 6-10 / 6-10 mm
Clamping range Rd / Fl: (+) 6-10 / 30 mm
Clamping range Fl / Fl: (II) 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 9 kA

Gyártó: DEHN
Típus: VK A UNI ST
Cikksz.: 308025
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Clamping range Rd / Rd (+) 6-10 / 6-10 mm
Clamping range Rd / Fl (+) 6-10 / 30 mm
Clamping range Fl / Fl (II) 30 / 30 mm
Screw di M10 x 25 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 9 kA

Product 308025 was added to Notepad.

Go to Notepad

Product 308025 was added to the cart.

Go to Web-Shop

For T, cross and parallel connections

1 Product

Part No. 308026 VK 6.10 FL30 FL30 BSB STTZN

GTIN 4013364035874, Customs tariff No. (EU): 85359000, Gross weight: 111.00 g, PU: 25.00 db.

Images

Additional information

Connecting clamps for reinforcements, St/tZn
Connecting clamp for connecting reinforcing steel
mesh and bar with flat conductors
For T, cross and parallel connections
Material: St/tZn
Clamping range Rd / Fl: (+) 6-10 / 30 mm
Clamping range Fl / Fl: (+ / II) 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 13 kA

Gyártó: DEHN
Típus: VK 6.10 FL30 FL30 BSB STTZN
Cikksz.: 308026
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Clamping range Rd / Fl (+) 6-10 / 30 mm
Clamping range Fl / Fl (+ / II) 30 / 30 mm
Screw di M10 x 25 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 13 kA

Product 308026 was added to Notepad.

Go to Notepad

Product 308026 was added to the cart.

Go to Web-Shop

For T and cross connections

Note: recommended tightening torque ≥ 10 Nm

1 Product

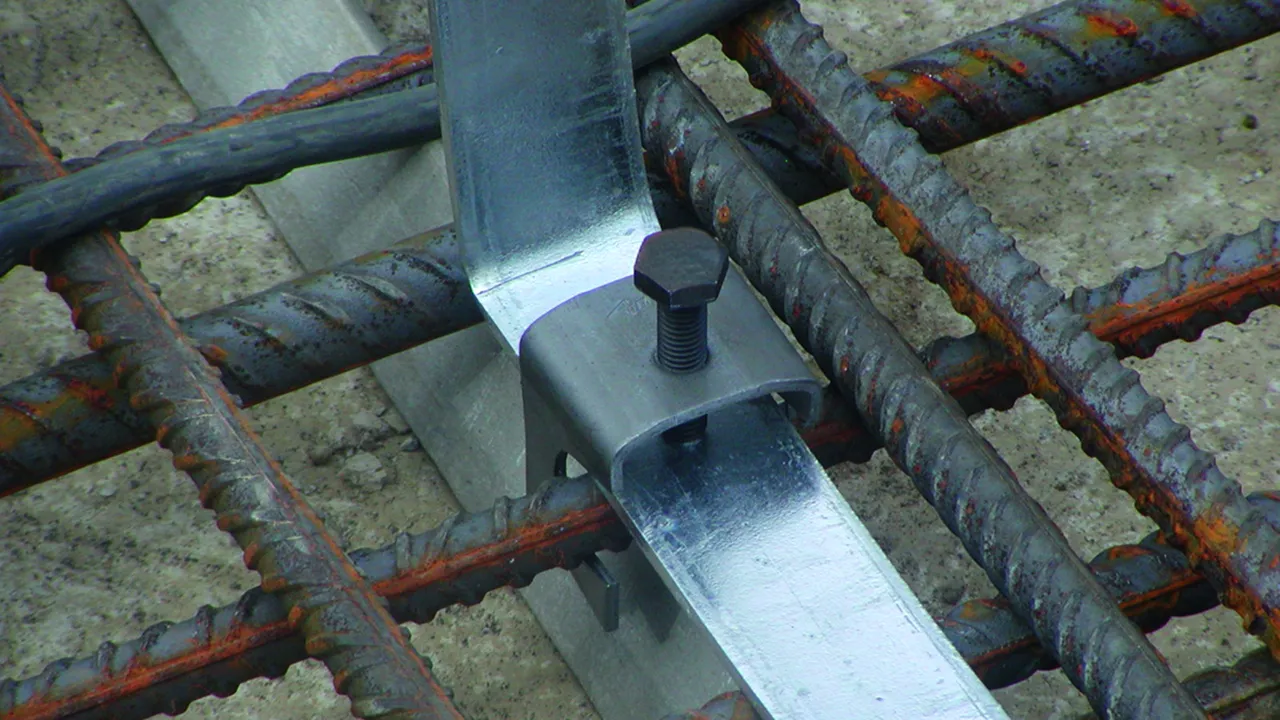

Part No. 308030 VK A R22 F40 STBL

GTIN 4013364030749, Customs tariff No. (EU): 85359000, Gross weight: 130.00 g, PU: 50.00 db.

Images

Additional information

Connecting clamps for reinforcements, St/bare
Connecting clamp for connecting reinforcing steel
mesh and bar with flat conductors
For T and cross connections
Material: St/bare
Clamping range Rd / Fl: (+) 6-22 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 1.0 kA

Gyártó: DEHN
Típus: VK A R22 F40 STBL
Cikksz.: 308030
vagy egyenértékű.

Certificates



Technical data

Material St/bare
Clamping range Rd / Fl (+) 6-22 / 30-40 mm
Screw di M10 x 40 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 1.0 kA

Product 308030 was added to Notepad.

Go to Notepad

Product 308030 was added to the cart.

Go to Web-Shop

For T, cross and parallel connections with clamping frame

For flexible connection of round conductors or for fixed earthing terminals with concomitant fixing in the formwork.

1 Product

Part No. 308035 VK 6.22 FL40 KB6.10 BSB STBL

GTIN 4013364123472, Customs tariff No. (EU): 85359000, Gross weight: 169.60 g, PU: 25.00 db.

Images

Additional information

Connecting clamps for reinforcements, St/bare
Connecting clamp for reinforcements for connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping frame for flexible connection of round conductors or fixed earthing terminals with
concomitant fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl: (+) 6-22 / 40 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 1.0 kA

Gyártó: DEHN
Típus: VK 6.22 FL40 KB6.10 BSB STBL
Cikksz.: 308035
vagy egyenértékű.

Certificates



Technical data

Material St/bare
Clamping range Rd / Rd (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl (+) 6-22 / 40 mm
Screw di M10 x 60 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 1.0 kA

Product 308035 was added to Notepad.

Go to Notepad

Product 308035 was added to the cart.

Go to Web-Shop

U-bolt clamp for large diameters

1 Product

Part No. 308045 BVK 16.48 6.10 FL40 BSB STBL

GTIN 4013364124455, Customs tariff No. (EU): 85359000, Gross weight: 266.50 g, PU: 25.00 db.

Images

Additional information

U-bolt clamp for large diameters, St/bare
U-bolt connecting clamp for reinforcements
of large diameters
For connecting reinforcements with round conductors
For cross, T and parallel connections
Material: St/bare
Clamping range Rd / Rd: (II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 16 kA

Gyártó: DEHN
Típus: BVK 16.48 6.10 FL40 BSB STBL
Cikksz.: 308045
vagy egyenértékű.

Certificates



Technical data

Material St/bare
Clamping range Rd / Rd (II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw stirrup bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 16 kA

Product 308045 was added to Notepad.

Go to Notepad

Product 308045 was added to the cart.

Go to Web-Shop

U-bolt clamp for large diameters with two additional clamping frames

For cross connections of round conductors (6-10 mm) or for the fixing and simultaneous connection of fixed earthing terminals.

1 Product

Part No. 308046 BVK 16.48 FL40 KB6.10 BSB STBL

GTIN 4013364124462, Customs tariff No. (EU): 85359000, Gross weight: 292.40 g, PU: 25.00 db.

Images

Additional information

U-bolt connecting clamps, St/bare
U-bolt connecting clamp for reinforcements
of large diameters
For connecting reinforcements with round conductors
For T, cross and parallel connections
With clamping frame for flexible connection of round conductors or fixed earthing terminals with
concomitant fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 9.9 kA

Gyártó: DEHN
Típus: BVK 16.48 FL40 KB6.10 BSB STBL
Cikksz.: 308046
vagy egyenértékű.

Certificates



Technical data

Material St/bare
Clamping range Rd / Rd (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw stirrup bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 9.9 kA

Product 308046 was added to Notepad.

Go to Notepad

Product 308046 was added to the cart.

Go to Web-Shop

MAXI MV clamps

For T, cross and parallel connections.

1 Product

Part No. 308040 MAMVK 8.16 15.25 STBL

GTIN 4013364055902, Customs tariff No. (EU): 85359000, Gross weight: 462.30 g, PU: 20.00 db.

Images

Additional information

MAXI MV clamps, St/bright
MAXI MV clamps
For connecting reinforcements to round conductors
For cross, T and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 8-16 / 15-25 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 10.2 kA

Gyártó: DEHN
Típus: MAMVK 8.16 15.25 STBL
Cikksz.: 308040
vagy egyenértékű.

Certificates



Technical data

Material St/bare
Clamping range Rd / Rd (+/II) 8-16 / 15-25 mm
Screw di M12 x 65 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 10.2 kA
UL certification UL467B

Product 308040 was added to Notepad.

Go to Notepad

Product 308040 was added to the cart.

Go to Web-Shop

MV clamps with hexagon screw

Threaded base part.

2 Products

Part No. 390050 MVK 8.10 SKM10X30 STTZN

GTIN 4013364095991, Customs tariff No. (EU): 85359000, Gross weight: 101.00 g, PU: 50.00 db.

Images

Additional information

MV clamp with hexagon screw, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 5.5 kA

Gyártó: DEHN
Típus: MVK 8.10 SKM10X30 STTZN
Cikksz.: 390050
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 5.5 kA

Product 390050 was added to Notepad.

Go to Notepad

Product 390050 was added to the cart.

Go to Web-Shop

Part No. 391050 MVK 10 SKM10X35 STTZN

GTIN 4013364087064, Customs tariff No. (EU): 85359000, Gross weight: 103.00 g, PU: 50.00 db.

Images

Additional information

MV clamp with hexagon screw, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material: St/tZn
Clamping range Rd: 10 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: MVK 10 SKM10X35 STTZN
Cikksz.: 391050
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Standard EN 62561-1

Product 391050 was added to Notepad.

Go to Notepad

Product 391050 was added to the cart.

Go to Web-Shop

MV clamps with hexagon screw and spring washer

Threaded base part.

1 Product

Part No. 390550 MVK 8.10 SKM10X30 FSC STTZN

GTIN 4013364096042, Customs tariff No. (EU): 85359000, Gross weight: 103.00 g, PU: 50.00 db.

Images

Additional information

MV clamp with hexagon screw and spring washer, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw, spring washer and threaded base part
Material: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: MVK 8.10 SKM10X30 FSC STTZN
Cikksz.: 390550
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Standard EN 62561-1

Product 390550 was added to Notepad.

Go to Notepad

Product 390550 was added to the cart.

Go to Web-Shop

Parallel connectors with truss head screw

2 Products

Part No. 306121 PV 6.22 FRM10X40 STBLANK

GTIN 4013364284920, Customs tariff No. (EU): 85359000, Gross weight: 163.16 g, PU: 50.00 db.

Images

Additional information

Parallel connector with one screw, St/blank
Parallel connector for connecting two conductors in parallel arrangement
Material: St/bare
Clamping range Rd / Rd: 6-22 / 6-22 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 6.1 kA

Gyártó: DEHN
Típus: PV 6.22 FRM10X40 STBLANK
Cikksz.: 306121
vagy egyenértékű.

Certificates



Technical data

Material St/bare
Clamping range Rd / Rd 6-22 / 6-22 mm
Screw e M10 x 40 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 6.1 kA

Product 306121 was added to Notepad.

Go to Notepad

Product 306121 was added to the cart.

Go to Web-Shop

Part No. 306122 PV 6.22 FRM10X40 STTZN

GTIN 4013364284937, Customs tariff No. (EU): 85359000, Gross weight: 167.12 g, PU: 50.00 db.

Images

Additional information

Parallel connector with one screw, St/tZn
Parallel connector for connecting two conductors in parallel arrangement
Material: St/tZn
Clamping range Rd / Rd: 6-22 / 6-22 mm
Standard: EN 62561-1
Short-circuit current (50 Hz): 6.1 kA

Gyártó: DEHN
Típus: PV 6.22 FRM10X40 STTZN
Cikksz.: 306122
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Clamping range Rd / Rd 6-22 / 6-22 mm
Screw e M10 x 40 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 6.1 kA

Product 306122 was added to Notepad.

Go to Notepad

Product 306122 was added to the cart.

Go to Web-Shop
back to top
