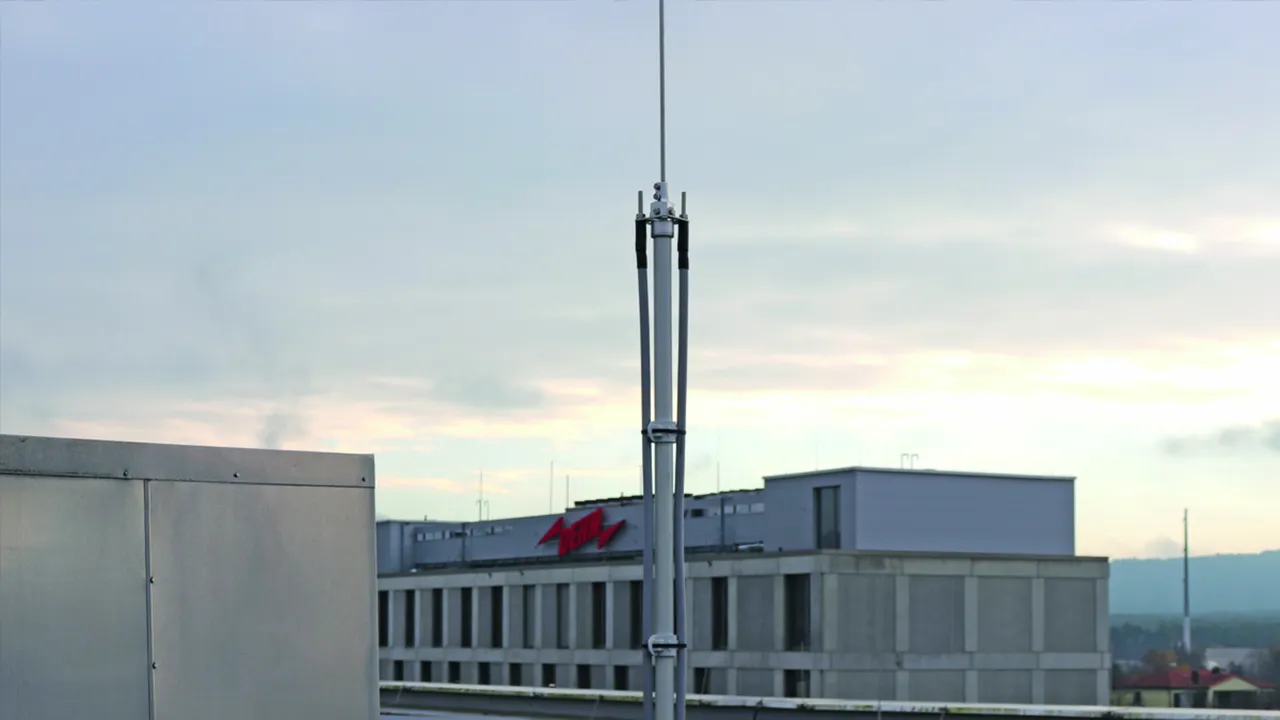

Supporting tube with HVI light plus Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to DIN EN 62305-3 (VDE 0185-305-3). For use up to an equivalent separation distance of s ≤ 60 cm (in air) or s ≤ 120 cm (solid building material).
Discreet supporting tube with pre-assembled, internal HVI light plus Conductor with low wind exposed surface.
Wide choice of lengths, from 6 m to 70 m.
The conductor cannot be returned as it is made to order.

HVI light plus Conductor inside the supporting tube with air-termination tip

Supporting tube with internal sealing end / EB spring element and air-termination tip, StSt, Ø10 mm, length 500 / 1,000 mm.

4 Products

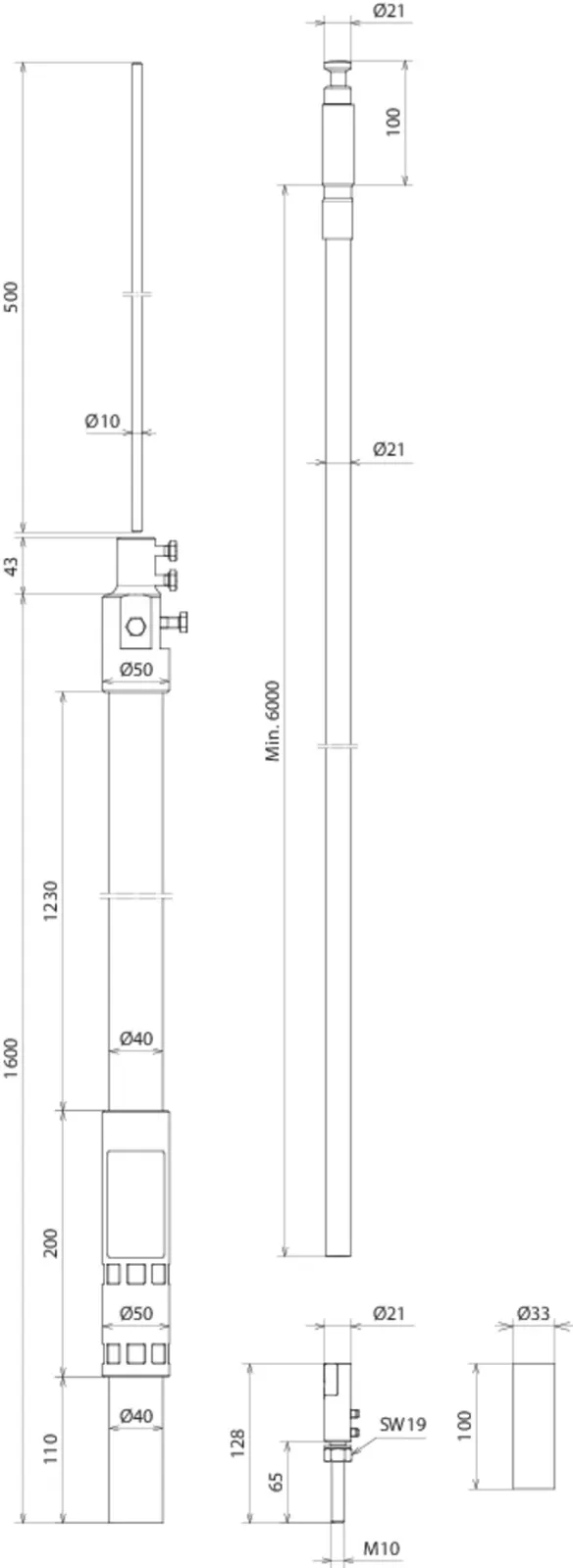

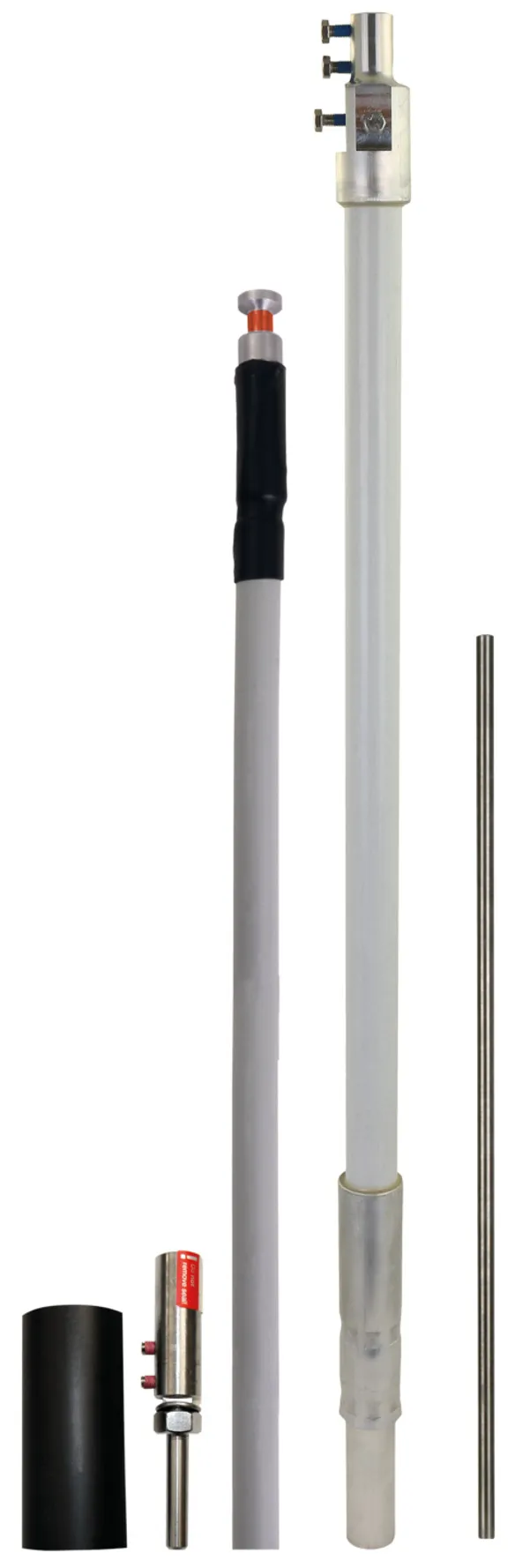

Part No. 819672 HVI LI PL L6M SR1600 FSP500 GFK AL V2A

GTIN 4013364494527, Customs tariff No. (EU): 85389099, Gross weight: 8.10 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor Installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 500 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Diameter Ø conductor: 21 mm
Colour of conductor: grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR1600 FSP500 GFK AL V2A
Part No.: 819672
or equivalent.

Certificates

Technical data

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 819672 was added to Notepad.

Go to Notepad

Product 819672 was added to the cart.

Go to Web-Shop

Part No. 819673 HVI LI PL L6M SR1600 FSP1000 GFK AL V2A

GTIN 4013364494534, Customs tariff No. (EU): 85389099, Gross weight: 8.37 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor Installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 1000 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Diameter Ø conductor: 21 mm
Colour of conductor: Grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR1600 FSP1000 GFK AL V2A
Part No.: 819673
or equivalent.

Certificates

Technical data

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV-stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 819673 was added to Notepad.

Go to Notepad

Product 819673 was added to the cart.

Go to Web-Shop

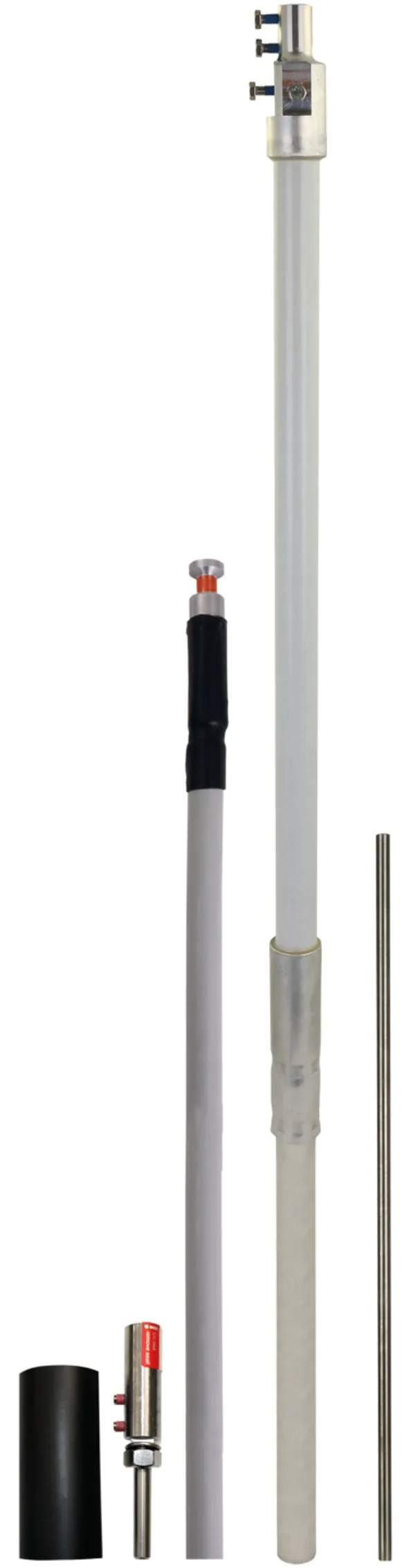

Part No. 819674 HVI LI PL L6M SR2400 FSP500 GFK AL V2A

GTIN 4013364494541, Customs tariff No. (EU): 85389099, Gross weight: 9.10 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor Installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 500 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Diameter Ø conductor: 21 mm
Colour of conductor: Grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR2400 FSP500 GFK AL V2A
Part No.: 819674
or equivalent.

Certificates

Technical data

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV-stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 819674 was added to Notepad.

Go to Notepad

Product 819674 was added to the cart.

Go to Web-Shop

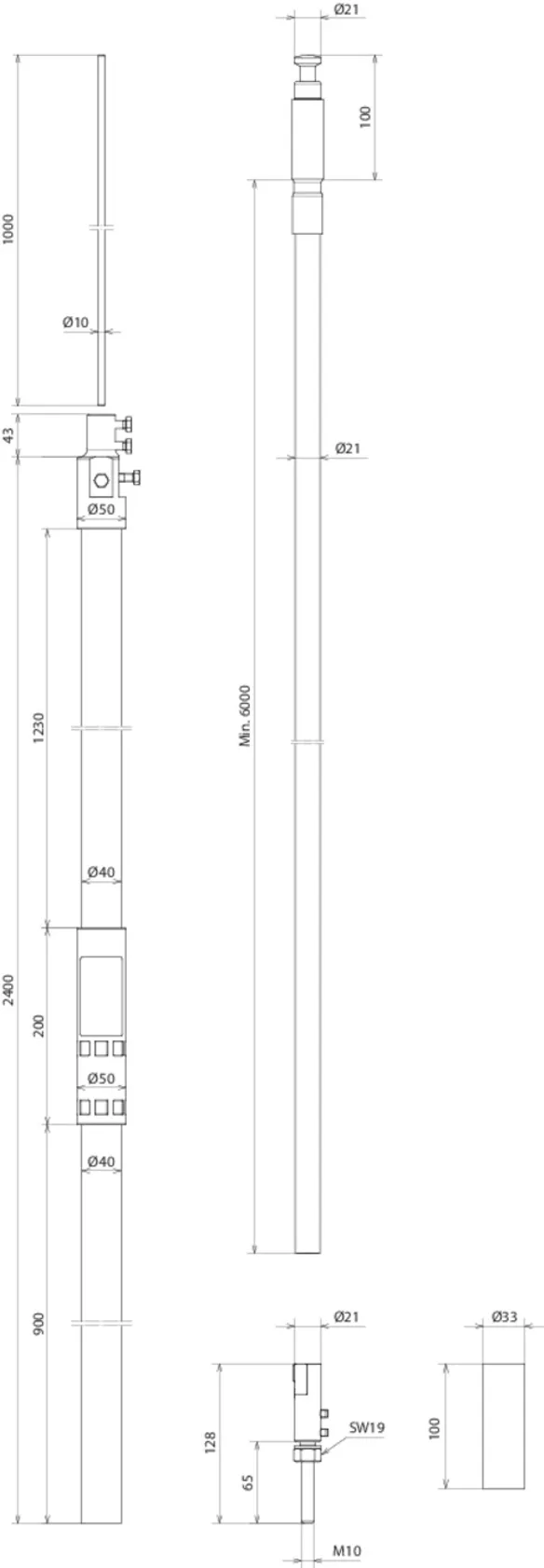

Part No. 819675 HVI LI PL L6M SR2400 FSP1000 GFK AL V2A

GTIN 4013364494558, Customs tariff No. (EU): 85389099, Gross weight: 9.37 kg, PU: 1.00 Stk

Images

Open PDF

Additional information

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 1,000 mm.
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Diameter Ø conductor: 21 mm
Colour of conductor: Grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR2400 FSP1000 GFK AL V2A
Part No.: 819675
or equivalent.

Certificates

Technical data

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV-stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 819675 was added to Notepad.

Go to Notepad

Product 819675 was added to the cart.

Go to Web-Shop
