Punti fissi di terra elvatec

Punti fissi di terra per la connessione all'armatura o al conduttore piatto di terra.

Further information

Similar topics

Con astina

1 Product

Part No. 478211 EFPM M10 V4A L230 STTZN

GTIN 4013364523432, Customs tariff No. (EU): 85359000, Gross weight: 315.20 g, PU: 25.00 pz.

Images

Open PDF

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm
Dimensioni astina di collegamento (Ø / lunghezza)	10 / 180 mm
Lunghezza minima viti M10	35 mm (lunghezza filetto 40 mm)
Corrente di corto circuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5,5 kA

Product 478211 was added to Notepad.

Go to Notepad

Product 478211 was added to the cart.

Go to Web-Shop

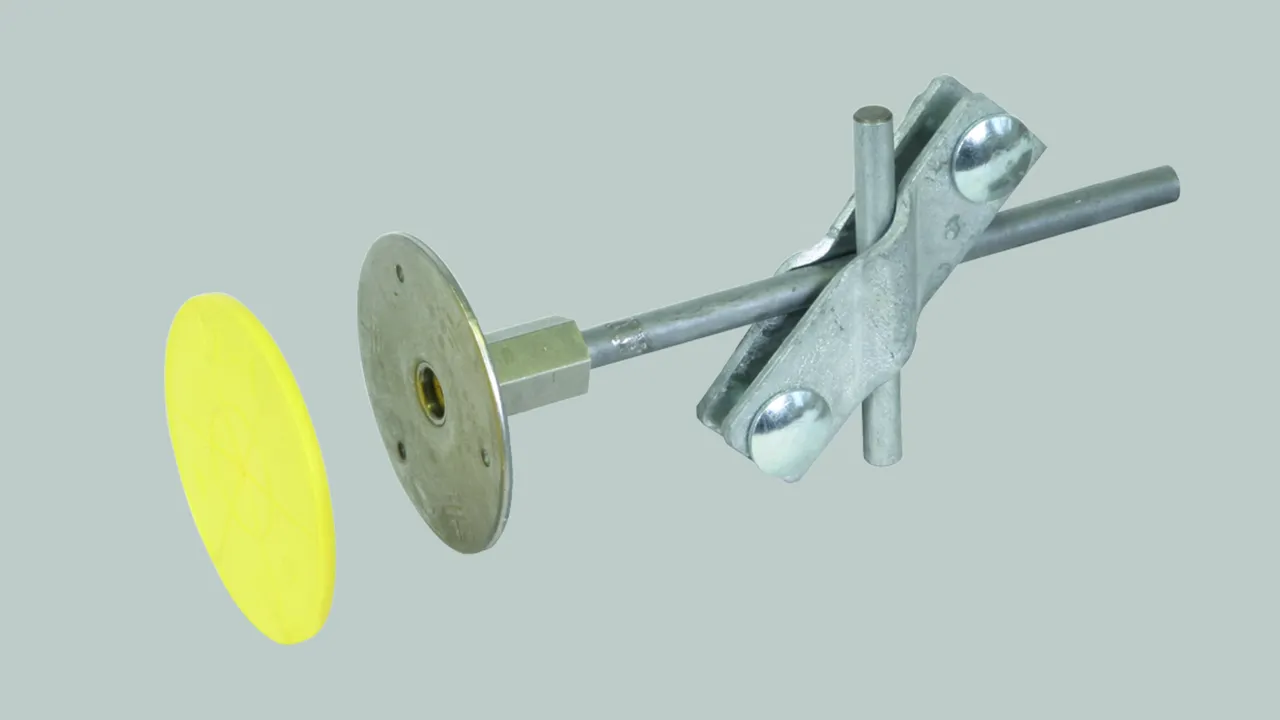

Con astina e morsetto SV

1 Product

Part No. 478212

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Open PDF

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm
Dimensioni astina di collegamento (Ø / lunghezza)	10 / 180 mm
Lunghezza minima viti M10	35 mm (lunghezza filetto 40 mm)
Materiale morsetto	Fe/tZn
Serraggio morsetto Rd / Rd	7-10 / 7-10 mm
Serraggio morsetto Rd / Pt	7-10 / 30-40 mm
Serraggio morsetto Pt / Pt	30-40 / 30-40 mm
Dimensioni morsetto	108 x 30 mm
Spessore materiale morsetto	4 mm
Vite morsetto	e M10 x 30 mm

Product 478212 was added to Notepad.

Go to Notepad

Product 478212 was added to the cart.

Go to Web-Shop

Senza astina, avvitato con cavo a "T"

3 Products

Part No. 478216 EFPM M10 V4A H07V-K 50QMM L1000

GTIN 4013364523487, Customs tariff No. (EU): , Gross weight: 760.00 g, PU: 1.00 pz.

Images

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Collegamento piastra Ø	80 mm
Lunghezza cavo	1000 mm

Product 478216 was added to Notepad.

Go to Notepad

Product 478216 was added to the cart.

Go to Web-Shop

Part No. 478217 EFPM M10 V4A H07V-K 50QMM L350

GTIN 4013364523494, Customs tariff No. (EU): , Gross weight: 420.00 g, PU: 1.00 pz.

Images

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Collegamento piastra Ø	80 mm
Lunghezza cavo	350 mm

Product 478217 was added to Notepad.

Go to Notepad

Product 478217 was added to the cart.

Go to Web-Shop

Part No. 478216 EFPM M10 V4A H07V-K 50QMM L1000

GTIN 4013364523487, Customs tariff No. (EU): , Gross weight: 760.00 g, PU: 1.00 pz.

Images

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Collegamento piastra Ø	80 mm
Lunghezza cavo	1000 mm

Product 478216 was added to Notepad.

Go to Notepad

Product 478216 was added to the cart.

Go to Web-Shop

Senza astina, con morsetto MV

1 Product

Part No. 478214 EFPM M10 V4A MVK 8.10 STTZN

GTIN 4013364523463, Customs tariff No. (EU): 85359000, Gross weight: 291.56 g, PU: 25.00 pz.

Images

Open PDF

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Collegamento piastra Ø	80 mm

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Collegamento piastra Ø	80 mm
Lunghezza minima viti M10	35 mm (lunghezza filetto 40 mm)
Materiale morsetto	Fe/tZn
Serraggio morsetto	Rd 8-10 mm
Dimensioni morsetto	40 x 40 mm
Spessore materiale morsetto	2,5 mm
Vite morsetto	di M10 x 35 mm
Corrente di corto circuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9,3 kA

Product 478214 was added to Notepad.

Go to Notepad

Product 478214 was added to the cart.

Go to Web-Shop

Senza astina, con connettore parallelo e tondo in rame

costituito da:
– 1 punto fisso di terra con morsetto MV
– 1 filo Cu rd 8 mm, lunghezza 0,6 m
– 2 Connettore parallelo (art. n. 306 121)

1 Product

Part No. 478215 EFPM M10 V4A MVK 8.10 STTZN SET

GTIN 4013364523470, Customs tariff No. (EU): , Gross weight: 880.00 g, PU: 1.00 pz.

Images

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Collegamento piastra Ø	80 mm

Product 478215 was added to Notepad.

Go to Notepad

Product 478215 was added to the cart.

Go to Web-Shop

Con astina di collegamento e morsetto a cavallotto a compressione

1 Product

Part No. 478220 EFPM M10 V4A L230 VK DB STBL

GTIN 4013364524231, Customs tariff No. (EU): , Gross weight: 510.00 g, PU: 1.00 pz.

Images

Open PDF

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm
Dimensioni astina di collegamento (Ø / lunghezza)	10 / 180 mm
Lunghezza minima viti M10	35 mm (lunghezza filetto 40 mm)
Materiale morsetto	Fe/non zincato
Serraggio morsetto Rd / Rd	(+/II) 6-20 / 8-10 mm
Serraggio morsetto Rd / Pt	(+/II) 6-20 / 30 x 3-4 mm
Serraggio morsetto Pt / Pt	(+/II) 30 x 3-4 / 30 x 3-4 mm
Dimensioni morsetto	60 x 60 mm
Spessore materiale morsetto	3 mm
Vite morsetto	di M10 x 35 mm

Product 478220 was added to Notepad.

Go to Notepad

Product 478220 was added to the cart.

Go to Web-Shop

Con astina di collegamento e morsetto Maxi MV

1 Product

Part No. 478221 EFPM M10 V4A L230 MAMVK STBL

GTIN 4013364524248, Customs tariff No. (EU): , Gross weight: 730.00 g, PU: 1.00 pz.

Images

Open PDF

Additional information

Technical data

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm

Filetto di connessione	M10
Materiale piastra	INOX (V4A)
Materiale n.	1.4571 / 1.4404 / 1.4401
ASTM / AISI:	316Ti / 316L / 316
Materiale astina collegamento	Fe/tZn
Collegamento piastra Ø	80 mm
Dimensioni astina di collegamento (Ø / lunghezza)	10 / 180 mm
Lunghezza minima viti M10	35 mm (lunghezza filetto 40 mm)
Materiale morsetto	Fe/non zincato
Serraggio morsetto Rd / Rd	(+/II) 8-16 / 15-25 mm
Dimensioni morsetto	75 x 75 mm
Spessore materiale morsetto	3 mm
Vite morsetto	di M12 x 65 mm

Product 478221 was added to Notepad.

Go to Notepad

Product 478221 was added to the cart.

Go to Web-Shop
