Kétsoros földelősínek

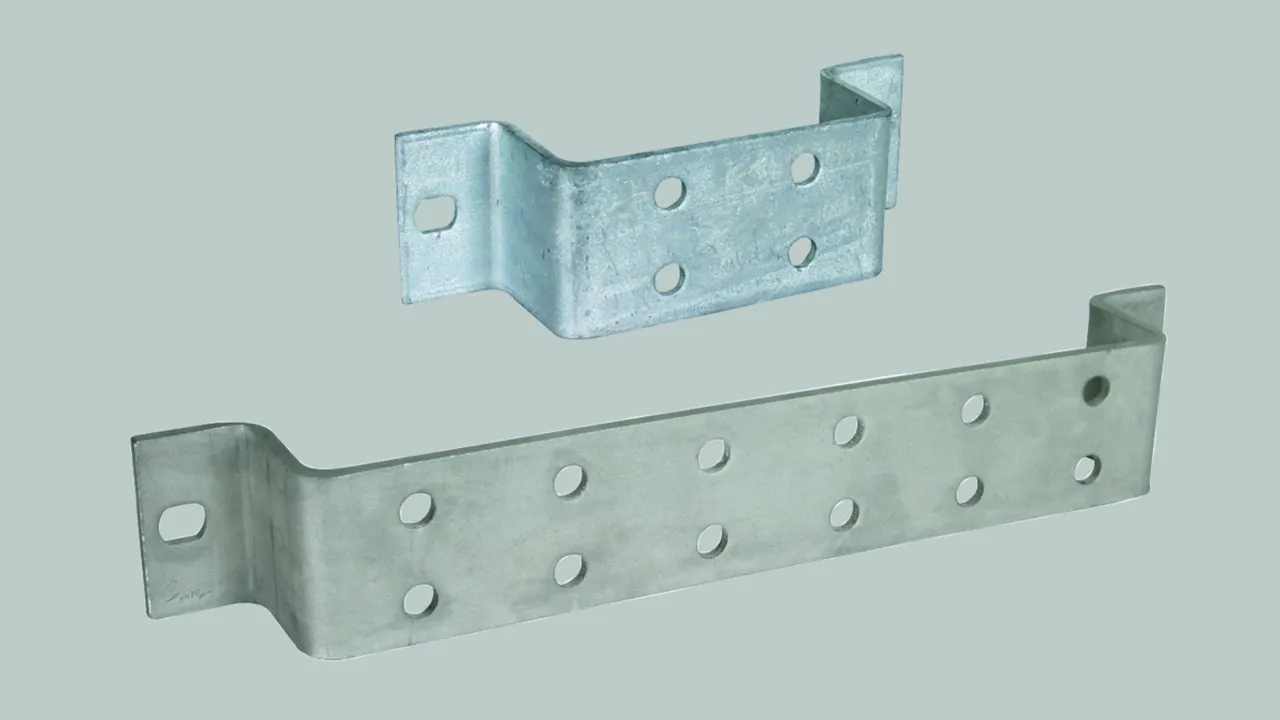

Earthing busbars for screwing or welding on steel constructions, distance of bores 50 mm.

Connection possibilities:
– Flat strip with bore: with hexagon screws M10, nuts and spring washer
– Flat strip (-40 mm) without bore: with cleat of disconnecting clamps e.g. Part No. 454 100
– Round conductor: with KS connector e.g. Part No. 301 000 / 301 019 or with clamping frame e.g. Part No. 390 150

2x 2 terminals

2 Products

Part No. 472023 ES 2X2 ASB11 STTZN

GTIN 4013364030312, Customs tariff No. (EU): 85369010, Gross weight: 517.00 g, PU: 1.00 db.


Images

Additional information

Earthing busbar, two-row, 2x 2 terminals, St/tZn
Earthing busbar to be screwed to steel structures
2x2 Terminals
Material: St/tZn
Cross-section: 240 mm2
Connection bores Ø: 11 mm
Dimension s: 196 x 60 x 4 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X2 ASB11 STTZN
Cikksz.: 472023
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Cross-section 240 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 196 x 60 x 4 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472023 was added to Notepad.

Product 472023 was added to the cart.

Part No. 472109 ES 2X2 ASB11 V2A

GTIN 4013364074477, Customs tariff No. (EU): 85369010, Gross weight: 604.00 g, PU: 1.00 db.


Images

Additional information

Earthing busbar, two-row, 2x 2 terminals, StSt
Earthing busbar to be screwed to steel structures
2x2 Terminals
Material: StSt
Cross-section: 300 mm2
Connection bores Ø: 11 mm
Dimension s: 196 x 60 x 5 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X2 ASB11 V2A
Cikksz.: 472109
vagy egyenértékű.

Certificates



Technical data

Material StSt
Cross-section 300 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 196 x 60 x 5 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472109 was added to Notepad.

Product 472109 was added to the cart.


2x 3 terminals

2 Products

Part No. 472022 ES 2X3 ASB11 STTZN

GTIN 4013364030305, Customs tariff No. (EU): 85369010, Gross weight: 588.00 g, PU: 1.00 db.


Images

Additional information

Earthing busbar, two-row, 2x 3 terminals, St/tZn
Earthing busbar to be screwed to steel structures
2x3 Terminals
Material: St/tZn
Cross-section: 240 mm2
Connection bores Ø: 11 mm
Dimension s: 242 x 60 x 4 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X3 ASB11 STTZN
Cikksz.: 472022
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Cross-section 240 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 242 x 60 x 4 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472022 was added to Notepad.

Product 472022 was added to the cart.

Part No. 472119 ES 2X3 ASB11 V2A

GTIN 4013364074484, Customs tariff No. (EU): 85369010, Gross weight: 740.00 g, PU: 1.00 db.


Images

Additional information

Earthing busbar, two-row, 2x 3 terminals, StSt
Earthing busbar to be screwed to steel structures
2x3 Terminals
Material: StSt
Cross-section: 300 mm2
Connection bores Ø: 11 mm
Dimension s: 242 x 60 x 5 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X3 ASB11 V2A
Cikksz.: 472119
vagy egyenértékű.

Certificates



Technical data

Material StSt
Cross-section 300 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 242 x 60 x 5 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472119 was added to Notepad.

Product 472119 was added to the cart.


2x 4 terminals

2 Products

Part No. 472024 ES 2X4 ASB11 STTZN

GTIN 4013364034495, Customs tariff No. (EU): 85369010, Gross weight: 677.00 g, PU: 1.00 db.


Images

Additional information

Earthing bar, two-row, 2x 4 terminals, St/tZn
Earthing busbar to be screwed to steel structures
2x4 Terminals
Material: St/tZn
Cross-section: 240 mm2
Connection bores Ø: 11 mm
Dimension s: 293 x 60 x 4 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X4 ASB11 STTZN
Cikksz.: 472024
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Cross-section 240 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 293 x 60 x 4 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472024 was added to Notepad.

Product 472024 was added to the cart.

Part No. 472129 ES 2X4 ASB11 V2A

GTIN 4013364074491, Customs tariff No. (EU): 85369010, Gross weight: 841.00 g, PU: 1.00 db.


Images

Additional information

Earthing busbar, two-row, 2x 4 terminals, StSt
Earthing busbar to be screwed to steel structures
2x4 Terminals
Material: StSt
Cross-section: 300 mm2
Connection bores Ø: 11 mm
Dimension s: 293 x 60 x 5 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X4 ASB11 V2A
Cikksz.: 472129
vagy egyenértékű.

Certificates



Technical data

Material StSt
Cross-section 300 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 293 x 60 x 5 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472129 was added to Notepad.

Product 472129 was added to the cart.


2x 6 terminals

2 Products

Part No. 472021 ES 2X6 ASB11 STTZN

GTIN 4013364027879, Customs tariff No. (EU): 85369010, Gross weight: 866.00 g, PU: 1.00 db.


Images

Additional information

Earthing busbar, two-row, 2x 6 terminals, St/tZn
Earthing busbar to be screwed to steel structures
2x6 Terminals
Material: St/tZn
Cross-section: 240 mm2
Connection bores Ø: 11 mm
Dimension s: 393 x 60 x 4 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X6 ASB11 STTZN
Cikksz.: 472021
vagy egyenértékű.

Certificates



Technical data

Material St/tZn
Cross-section 240 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 393 x 60 x 4 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472021 was added to Notepad.

Product 472021 was added to the cart.

Part No. 472139 ES 2X6 ASB11 V2A

GTIN 4013364074507, Customs tariff No. (EU): 85369010, Gross weight: 1.10 kg, PU: 1.00 db.


Images

Additional information

Earthing busbar, two-row, 2x 6 terminals, StSt
Earthing busbar to be screwed to steel structures
2x6 Terminals
Material: StSt
Cross-section: 300 mm2
Connection bores Ø: 11 mm
Dimension s: 393 x 60 x 5 mm
Fixing: [2x] 12 x 15 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: ES 2X6 ASB11 V2A
Cikksz.: 472139
vagy egyenértékű.

Certificates



Technical data

Material StSt
Cross-section 300 mm2
Connection bores Ø 11 mm
Dimension s (l x w x d1) 393 x 60 x 5 mm
Fixing [2x] 12 x 15 mm
Standard EN 62561-1

Product 472139 was added to Notepad.

Product 472139 was added to the cart.
