Cupal hüvelyek

For corrosion-resistant connection between steel or aluminium and copper.

For pushing onto cut conductors

Note: Rd 8 mm = 50 mm2

5 Products

Part No. 562250 CUPAH GL Q25 L29 AL CU

GTIN 4013364019737, Customs tariff No. (EU): 74198090, Gross weight: 2.20 g, PU: 100.00 db.

Images

Additional information

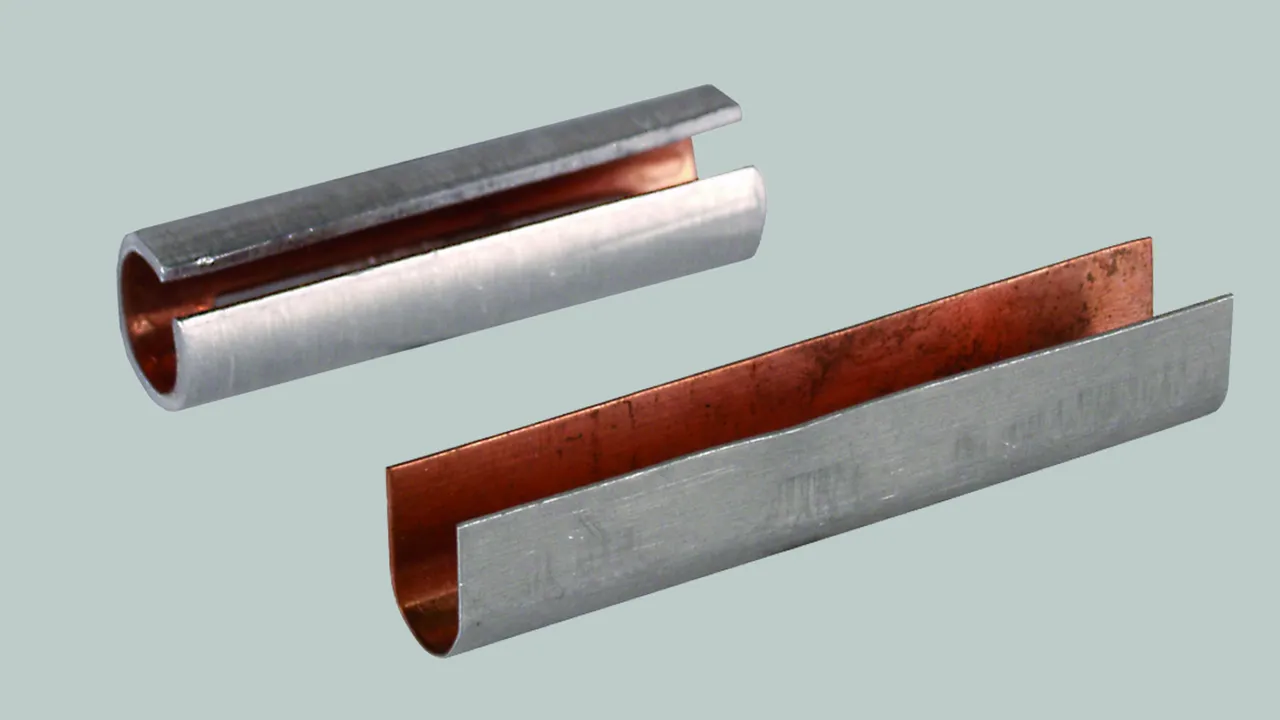

Cupal sleeve for cut lines
Copper-plated aluminium sleeve
For corrosion-resistant connection of steel or
aluminium and copper
Material outside: Al
Material inside: Cu
Cross-section: 25 mm2
Length: 29 mm

Gyártó: DEHN
Típus: CUPAH GL Q25 L29 AL CU
Cikksz.: 562250
vagy egyenértékű.



Technical data

Material outside Al
Material inside Cu
Cross-section 25 mm2
Length 29 mm
Inside diameter Ø 6.3 mm
Outside diameter Ø 8.3 mm
Material thickness 1.0 mm

Product 562250 was added to Notepad.

Go to Notepad

Product 562250 was added to the cart.

Go to Web-Shop

Part No. 562035 CUPAH GL Q35 L32 AL CU

GTIN 4013364019744, Customs tariff No. (EU): 74198090, Gross weight: 2.70 g, PU: 100.00 db.

Images

Additional information

Cupal sleeve for cut lines
Copper-plated aluminium sleeve
For corrosion-resistant connection of steel or
aluminium and copper
Material outside: Al
Material inside: Cu
Cross-section: 35 mm2
Length: 32 mm

Gyártó: DEHN
Típus: CUPAH GL Q35 L32 AL CU
Cikksz.: 562035
vagy egyenértékű.



Technical data

Material outside Al
Material inside Cu
Cross-section 35 mm2
Length 32 mm
Inside diameter Ø 7.5 mm
Outside diameter Ø 9.5 mm
Material thickness 1.0 mm

Product 562035 was added to Notepad.

Go to Notepad

Product 562035 was added to the cart.

Go to Web-Shop

Part No. 562050 CUPAH GL Q50 L40 AL CU

GTIN 4013364019751, Customs tariff No. (EU): 74198090, Gross weight: 5.30 g, PU: 100.00 db.

Images

Additional information

Cupal sleeve for cut lines
Copper-plated aluminium sleeve
For corrosion-resistant connection of steel or
aluminium and copper
Material outside: Al
Material inside: Cu
Cross-section: 50 mm2
Length: 40 mm

Gyártó: DEHN
Típus: CUPAH GL Q50 L40 AL CU
Cikksz.: 562050
vagy egyenértékű.



Technical data

Material outside Al
Material inside Cu
Cross-section 50 mm2
Length 40 mm
Inside diameter Ø 8.2 mm
Outside diameter Ø 10.0 mm
Material thickness 1.0 mm

Product 562050 was added to Notepad.

Go to Notepad

Product 562050 was added to the cart.

Go to Web-Shop

Part No. 562135 CUPAH GL Q35 L32 CU AL

GTIN 4013364019768, Customs tariff No. (EU): 74198090, Gross weight: 2.50 g, PU: 100.00 db.

Images

Additional information

Cupal sleeve for cut lines
Copper-plated aluminium sleeve
For corrosion-resistant connection of steel or
aluminium and copper
Material outside: Cu
Material inside: Al
Cross-section: 35 mm2
Length: 32 mm

Gyártó: DEHN
Típus: CUPAH GL Q35 L32 CU AL
Cikksz.: 562135
vagy egyenértékű.



Technical data

Material outside Cu
Material inside Al
Cross-section 35 mm2
Length 32 mm
Inside diameter Ø 7.5 mm
Outside diameter Ø 9.5 mm
Material thickness 1.0 mm

Product 562135 was added to Notepad.

Go to Notepad

Product 562135 was added to the cart.

Go to Web-Shop

Part No. 562150 CUPAH GL Q50 L40 CU AL

GTIN 4013364019775, Customs tariff No. (EU): 74198090, Gross weight: 5.30 g, PU: 100.00 db.

Images

Additional information

Cupal sleeve for cut conductors
Copper-plated aluminium sleeve
For corrosion-resistant connection of steel or
aluminium and copper
Material outside: Cu
Material inside: Al
Cross-section: 50 mm2
Length: 40 mm

Gyártó: DEHN
Típus: CUPAH GL Q50 L40 CU AL
Cikksz.: 562150
vagy egyenértékű.



Technical data

Material outside Cu
Material inside Al
Cross-section 50 mm2
Length 40 mm
Inside diameter Ø 8.2 mm
Outside diameter Ø 10.0 mm
Material thickness 1.0 mm

Product 562150 was added to Notepad.

Go to Notepad

Product 562150 was added to the cart.

Go to Web-Shop

For attaching to uncut conductors

Note: Rd 8 mm = 50 mm2

2 Products

Part No. 562001 CUPAH UGL Q50 L60 AL CU

GTIN 4013364019782, Customs tariff No. (EU): 74198090, Gross weight: 4.30 g, PU: 100.00 db.

Images

Additional information

Cupal sleeve for uncut lines
Copper-plated aluminium sleeve
For corrosion-resistant connection of steel or
aluminium and copper
Material outside: Al
Material inside: Cu
Cross-section: 50 mm2
Length: 60 mm

Gyártó: DEHN
Típus: CUPAH UGL Q50 L60 AL CU
Cikksz.: 562001
vagy egyenértékű.



Technical data

Material outside Al
Material inside Cu
Cross-section 50 mm2
Length 60 mm
Inside diameter Ø 8.5 mm
Outside diameter Ø 9.5 mm
Material thickness 0.5 mm

Product 562001 was added to Notepad.

Go to Notepad

Product 562001 was added to the cart.

Go to Web-Shop

Part No. 562101 CUPAH UGL Q50 L60 CU AL

GTIN 4013364019799, Customs tariff No. (EU): 74198090, Gross weight: 3.80 g, PU: 100.00 db.

Images

Additional information

Cupal sleeve for uncut lines
Copper-plated aluminium sleeve
For corrosion-resistant connection of steel or
aluminium and copper
Material outside: Cu
Material inside: Al
Cross-section: 50 mm2
Length: 60 mm

Gyártó: DEHN
Típus: CUPAH UGL Q50 L60 CU AL
Cikksz.: 562101
vagy egyenértékű.



Technical data

Material outside Cu
Material inside Al
Cross-section 50 mm2
Length 60 mm
Inside diameter Ø 8.5 mm
Outside diameter Ø 9.5 mm
Material thickness 0.5 mm

Product 562101 was added to Notepad.

Go to Notepad

Product 562101 was added to the cart.

Go to Web-Shop
