MAXI MV Kapcsok

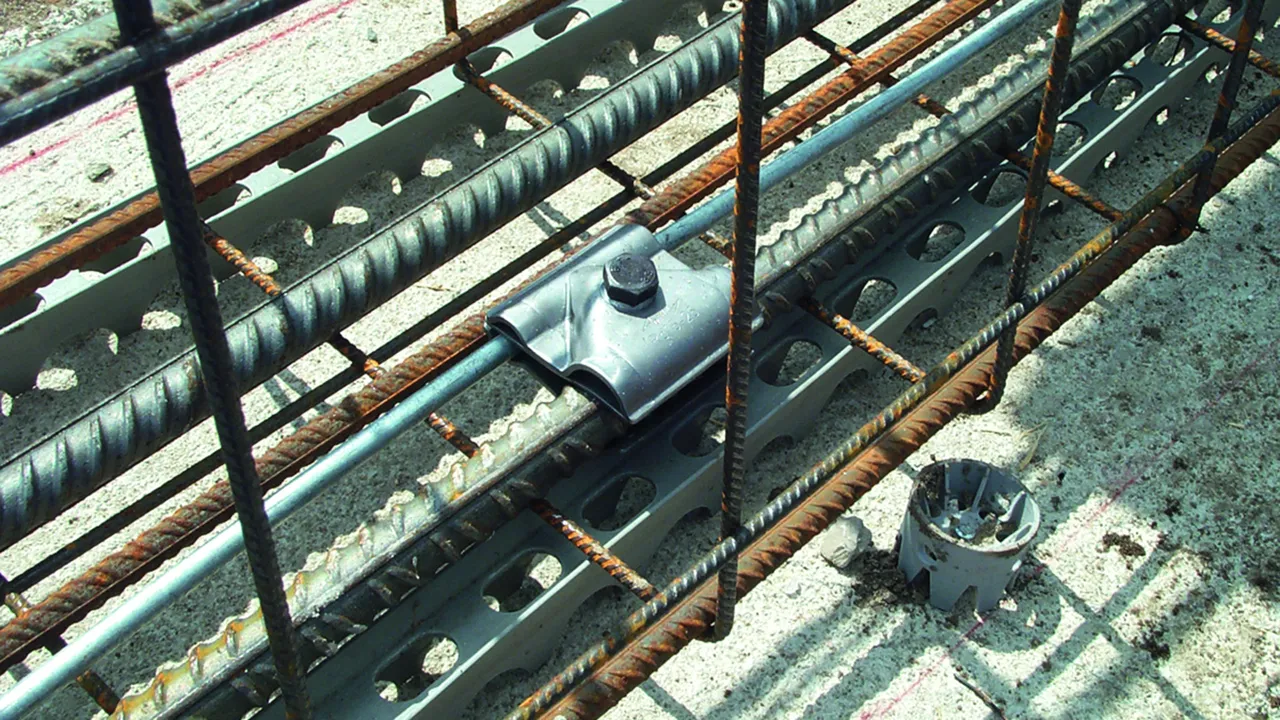

MAXI multipurpose connecting clamp (MAXI-MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp, for connecting earth rods or reinforcing bars; three-piece, with thread in the base part.

With hexagon screw

2 Products

Part No. 308041 MAMVK 8.16 15.25 STTZN

GTIN 4013364056411, Customs tariff No. (EU): 85359000, Gross weight: 483.40 g, PU: 20.00 db.

Images

Additional information

MAXI MV clamps, St/tZn
MAXI MV clamps
For connecting reinforcements to round conductors
For cross, T and parallel connections
Material of clamp: St/tZn
Clamping range Rd: 8-16 / 15-25 mm
Material thickness: 3.0 / 2.0 mm
Material of screw: St/tZn
Standard: EN 62561-1
Short-circuit current (50 Hz): 6.2 kA

Gyártó: DEHN
Típus: MAMVK 8.16 15.25 STTZN
Cikksz.: 308041
vagy egyenértékű.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd 8-16 / 15-25 mm
Material thickness 3.0 / 2.0 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 6.2 kA

Product 308041 was added to Notepad.

Go to Notepad

Product 308041 was added to the cart.

Go to Web-Shop

Part No. 308040 MAMVK 8.16 15.25 STBL

GTIN 4013364055902, Customs tariff No. (EU): 85359000, Gross weight: 462.30 g, PU: 20.00 db.

Images

Additional information

MAXI MV clamps, St/bare
MAXI MV clamps
For connecting reinforcements to round conductors
For cross, T and parallel connections
Material of clamp: St/bare
Clamping range Rd: 8-16 / 15-25 mm
Material thickness: 3.0 / 2.0 mm
Material of screw: St/bare
Standard: EN 62561-1
Short-circuit current (50 Hz): 10.2 kA
Approval: UL467B

Gyártó: DEHN
Típus: MAMVK 8.16 15.25 STBL
Cikksz.: 308040
vagy egyenértékű.

Certificates



Technical data

Material of clamp St/bare
Clamping range Rd 8-16 / 15-25 mm
Material thickness 3.0 / 2.0 mm
Standard EN 62561-1
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 10.2 kA
Approval UL467B

Product 308040 was added to Notepad.

Go to Notepad

Product 308040 was added to the cart.

Go to Web-Shop

With defined tightening torque

Same design as Part No. 308 041, however, with tear off screw StSt (V2A) 35 +/- 3 Nm
– Reliable mounting quality due to constant torque and defined clamping force
– Easy mounting without torque spanner
– Enormously time saving compared to exothermic welding
– No welding fume hazard for the installer
– No environmental risk

1 Product

Part No. 308044 MAMVK 8.16 15.25 STTZN ARS35NM PAR 20P

GTIN 4013364522992, Customs tariff No. (EU): 85359000, Gross weight: 479.50 g, PU: 20.00 db.

Images

Additional information

MAXI MV clamps, St/tZn
MAXI MV clamps
with tear-off screw
For connecting reinforcements to round conductors
For cross, T and parallel connections
Material of clamp: St/tZn
Clamping range Rd: 8-16 / 15-25 mm
Material thickness: 3.0 / 2.0 mm
Material of screw: StSt
Short-circuit current (50 Hz): 6.2 kA

Gyártó: DEHN
Típus: MAMVK 8.16 15.25 STTZN ARS35NM PAR 20P
Cikksz.: 308044
vagy egyenértékű.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd 8-16 / 15-25 mm
Material thickness 3.0 / 2.0 mm
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 6.2 kA
