Tetővezető-tartók fémtetőkhöz

For fixing additional air-termination systems on metal roofs.
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is provided.

For roofs with round standing seam, with clamping piece

2 Products

Part No. 223010 DLH KB 6.10 RSF20.25 V2A

GTIN 4013364092778, Customs tariff No. (EU): 85389099, Gross weight: 186.30 g, PU: 50.00 db.

Images

Additional information

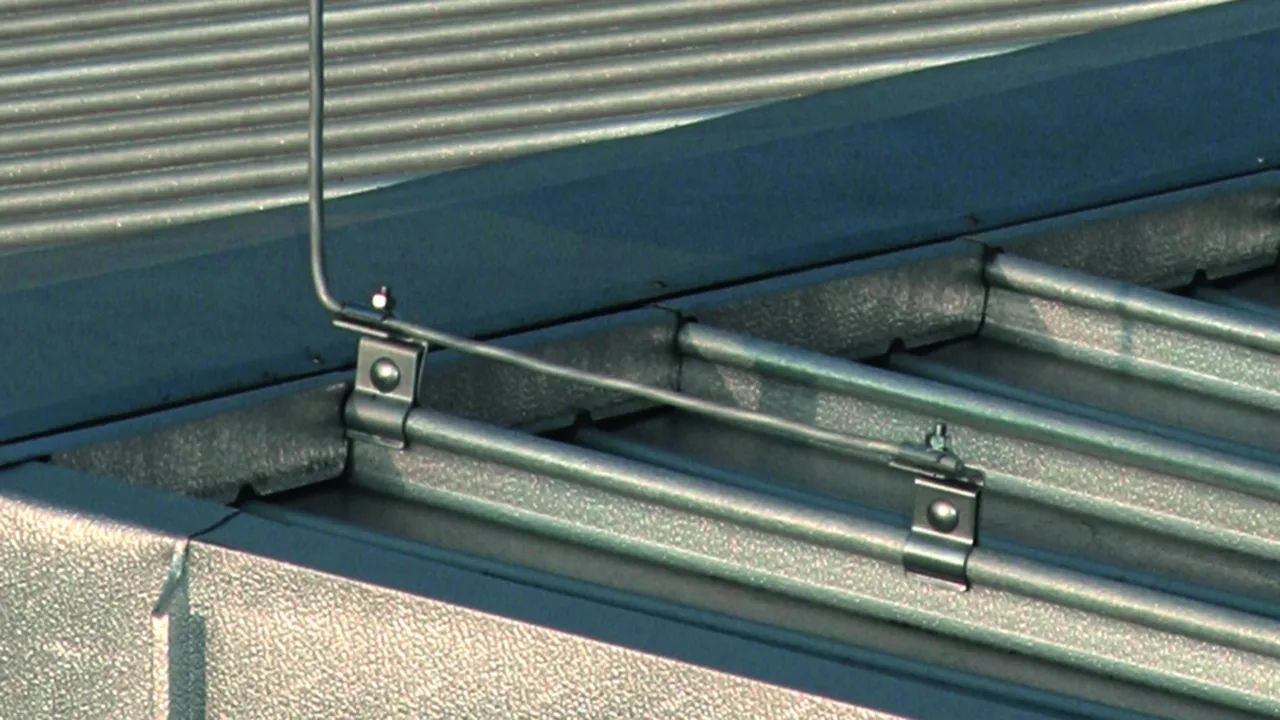

Roof conductor holder for metal roofs with clamping piece StSt (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: clamping frame
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Gyártó: DEHN
Típus: DLH KB 6.10 RSF20.25 V2A
Cikksz.: 223010
vagy egyenértékű.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Product 223010 was added to Notepad.

Go to Notepad

Product 223010 was added to the cart.

Go to Web-Shop

Part No. 223040 DLH KB 6.10 RSF20.25 AL

GTIN 4013364096752, Customs tariff No. (EU): 85389099, Gross weight: 102.30 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with clamping piece Al (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: clamping frame
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Gyártó: DEHN
Típus: DLH KB 6.10 RSF20.25 AL
Cikksz.: 223040
vagy egyenértékű.

Certificates



Technical data

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Product 223040 was added to Notepad.

Go to Notepad

Product 223040 was added to the cart.

Go to Web-Shop

For roofs with round standing seam, with DEHNgrip

2 Products

Part No. 223011 DLH DG 8 RSF20.25 V2A

GTIN 4013364092785, Customs tariff No. (EU): 85389099, Gross weight: 170.02 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with DEHNgrip, StSt (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.


Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH DG 8 RSF20.25 V2A
Cikksz.: 223011
vagy egyenértékű.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Product 223011 was added to Notepad.

Go to Notepad

Product 223011 was added to the cart.

Go to Web-Shop

Part No. 223041 DLH DG 8 RSF20.25 AL

GTIN 4013364096769, Customs tariff No. (EU): 85389099, Gross weight: 99.02 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with DEHNgrip, Al (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.

Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH DG 8 RSF20.25 AL
Cikksz.: 223041
vagy egyenértékű.



Technical data

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Product 223041 was added to Notepad.

Go to Notepad

Product 223041 was added to the cart.

Go to Web-Shop

For roofs with clamping seam, with clamping piece (e.g. RIB ROOF Speed 500 by Zambelli)

1 Product

Part No. 223070 DLH KB 6.10 KF18.22 AL

GTIN 4013364108738, Customs tariff No. (EU): 85389099, Gross weight: 105.62 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with clamping piece, Al (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or conductors on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: clamping frame
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Gyártó: DEHN
Típus: DLH KB 6.10 KF18.22 AL
Cikksz.: 223070
vagy egyenértékű.

Certificates



Technical data

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Product 223070 was added to Notepad.

Go to Notepad

Product 223070 was added to the cart.

Go to Web-Shop

<TRANSLATION_PLACEHOLDER>

1 Product

Part No. 223070 DLH KB 6.10 KF18.22 AL

GTIN 4013364108738, Customs tariff No. (EU): 85389099, Gross weight: 105.62 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with clamping piece, Al (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or conductors on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: clamping frame
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Gyártó: DEHN
Típus: DLH KB 6.10 KF18.22 AL
Cikksz.: 223070
vagy egyenértékű.

Certificates



Technical data

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Product 223070 was added to Notepad.

Go to Notepad

Product 223070 was added to the cart.

Go to Web-Shop

For roofs with standing seam, with clamping piece

1 Product

Part No. 365059 FK KB 6.10 KBF0.7 8 W V2A

GTIN 4013364091856, Customs tariff No. (EU): 85359000, Gross weight: 136.30 g, PU: 50.00 db.

Images

Additional information

Seam clamps with increased connection area (angled), StSt
Seam clamp with enlarged contact surface for fixing additional air-termination systems or air-termination rods on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: clamping frame
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Gyártó: DEHN
Típus: FK KB 6.10 KBF0.7 8 W V2A
Cikksz.: 365059
vagy egyenértékű.

Certificates



Technical data

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Product 365059 was added to Notepad.

Go to Notepad

Product 365059 was added to the cart.

Go to Web-Shop

For roofs with standing seam, with DEHNgrip

1 Product

Part No. 223031 DLH DG 8 SF0.7 8 V2A

GTIN 4013364092815, Customs tariff No. (EU): 85389099, Gross weight: 119.30 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with DEHNgrip, StSt (standing seam)
Roof conductor holder for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH DG 8 SF0.7 8 V2A
Cikksz.: 223031
vagy egyenértékű.



Technical data

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Product 223031 was added to Notepad.

Go to Notepad

Product 223031 was added to the cart.

Go to Web-Shop

For trapezoidal roofs, with clamping piece

Hung into the fixing screws of the roof.

1 Product

Part No. 223020 DLH KB 6.10 TD B8.5 V2A

GTIN 4013364092792, Customs tariff No. (EU): 85389099, Gross weight: 123.30 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with clamping piece, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: clamping frame
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Gyártó: DEHN
Típus: DLH KB 6.10 TD B8.5 V2A
Cikksz.: 223020
vagy egyenértékű.

Certificates



Technical data

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Product 223020 was added to Notepad.

Go to Notepad

Product 223020 was added to the cart.

Go to Web-Shop

For trapezoidal roofs, with DEHNgrip

Hung into the fixing screws of the roof.

1 Product

Part No. 223021 DLH DG 8 TD B8.5 V2A

GTIN 4013364092808, Customs tariff No. (EU): 85389099, Gross weight: 105.30 g, PU: 50.00 db.

Images

Additional information

Roof conductor holder for metal roofs with DEHNgrip, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH DG 8 TD B8.5 V2A
Cikksz.: 223021
vagy egyenértékű.



Technical data

Material of roof conductor holder StSt
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Product 223021 was added to Notepad.

Go to Notepad

Product 223021 was added to the cart.

Go to Web-Shop
