UNI korckapocs

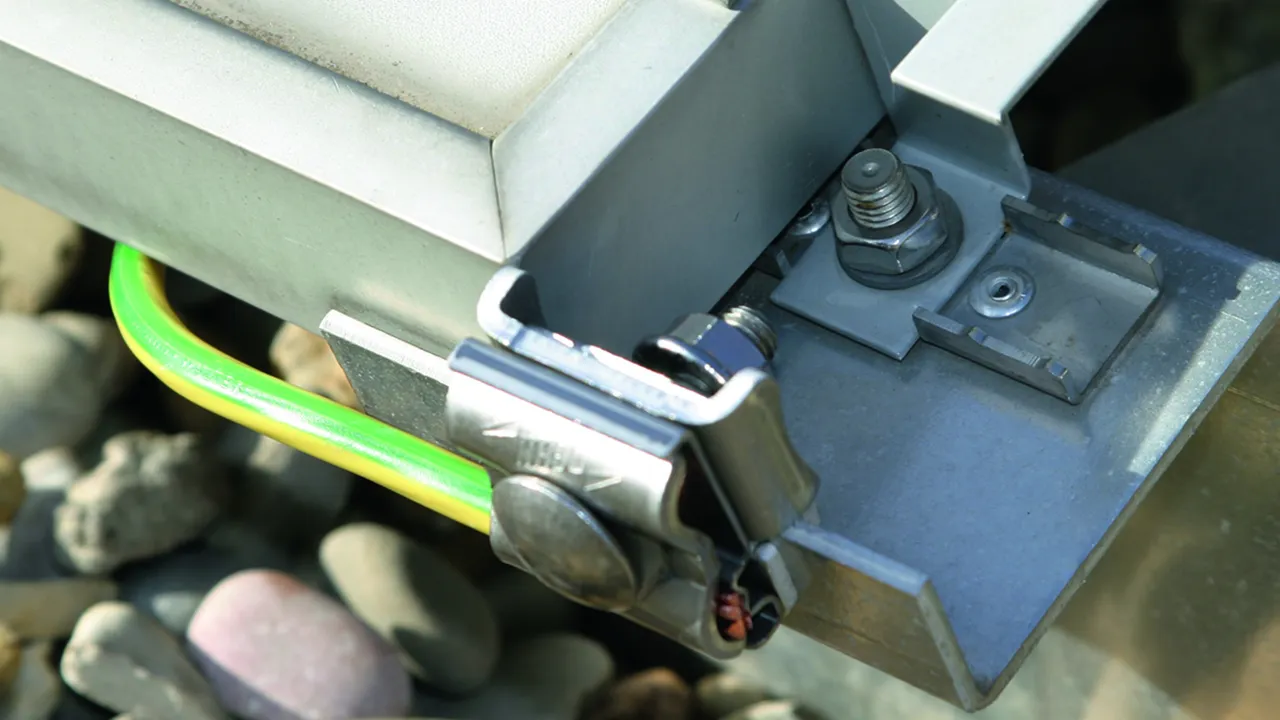

For integrating mounting systems e.g. of PV installations into the functional equipotential bonding / functional earthing (optionally black conductor) and lightning equipotential bonding according to IEC/EN 62305-3.

The StSt contact plate (intermediate element) allows for different materials of conductors (Cu, Al, St/tZn and StSt ) to be connected to the usual mounting systems, e.g. to aluminium, without the risk of contact corrosion.
The double cleat design allows for easy and quick interconnection of the profiles, e.g. by feed-through wiring.

With screw M8 and self-locking nut

1 Product

Part No. 365250 UNI FK 8.10 KBF0.7 8 AL V2A

GTIN 4013364148307, Customs tariff No. (EU): 85359000, Gross weight: 85.00 g, PU: 50.00 db.

Images

Additional information

UNI saddle clamp
Saddle clamps for incorporating the mounting systems e.g. of PV systems into the functional equipotential
bonding/functional earthing and lightning equipotential bonding
With M8 screw and nut
Clamping range of saddle: 0.7-8 mm
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Gyártó: DEHN
Típus: UNI FK 8.10 KBF0.7 8 AL V2A
Cikksz.: 365250
vagy egyenértékű.

Certificates



Technical data

Clamping range of saddle 0.7-8 mm
Material of clamping bracket Al
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Material of double cleat StSt
Standard EN 62561-1
