Pértigas de puesta a tierra para instalaciones de conmutación

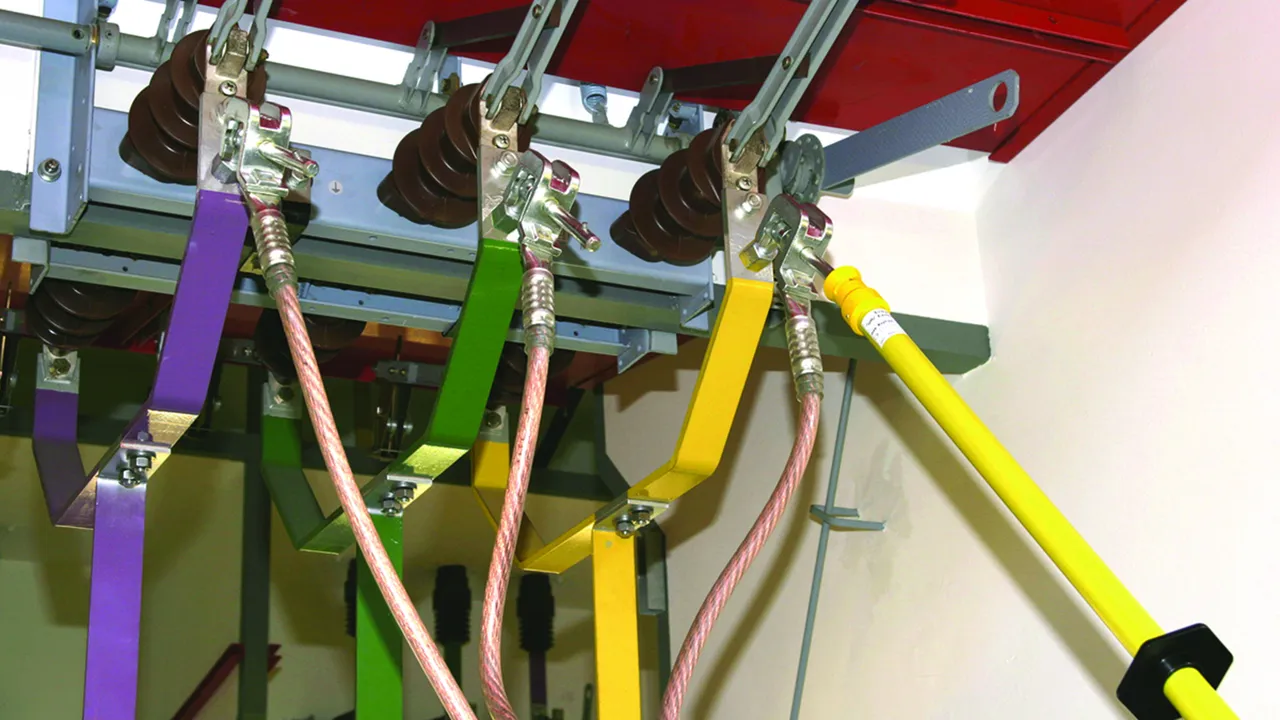

  • Para emplear equipos de puesta a tierra y cortocircuito
  • Longitudes diferentes
  • Desmontable para transporte sencillo
  • Poco peso propio
  • Husillo hexagonal (entre caras 19) o husillo con pasador

Details

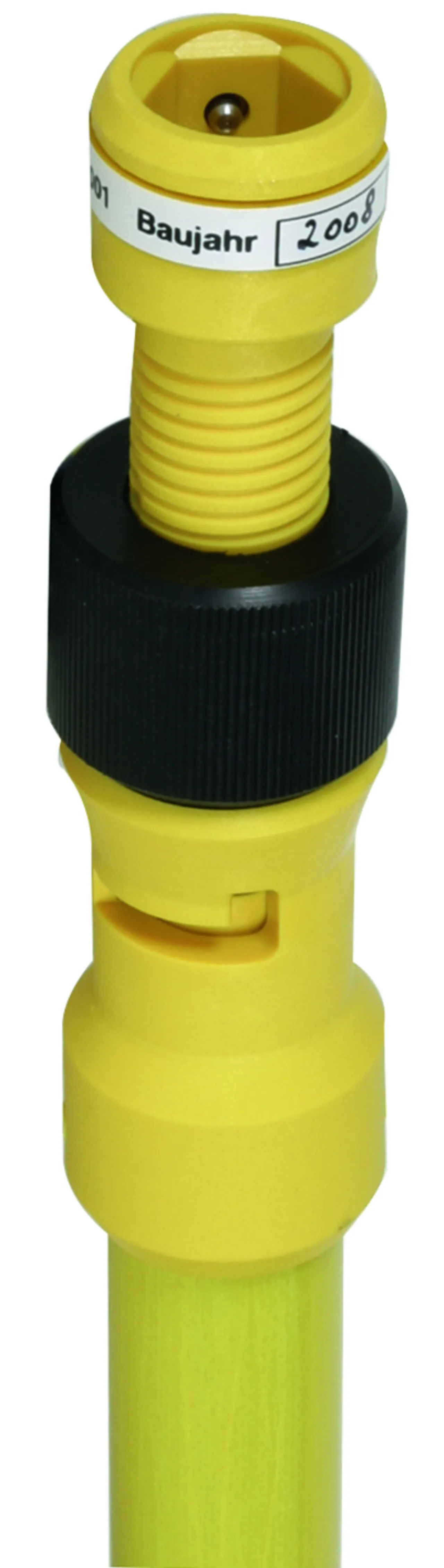

Con el adaptador AES SQ SK puede usarse una pértiga de toma de tierra con enclavamiento bayoneta (husillo con pasador) también para bornas con husillo hexagonal.
lorem ipsum

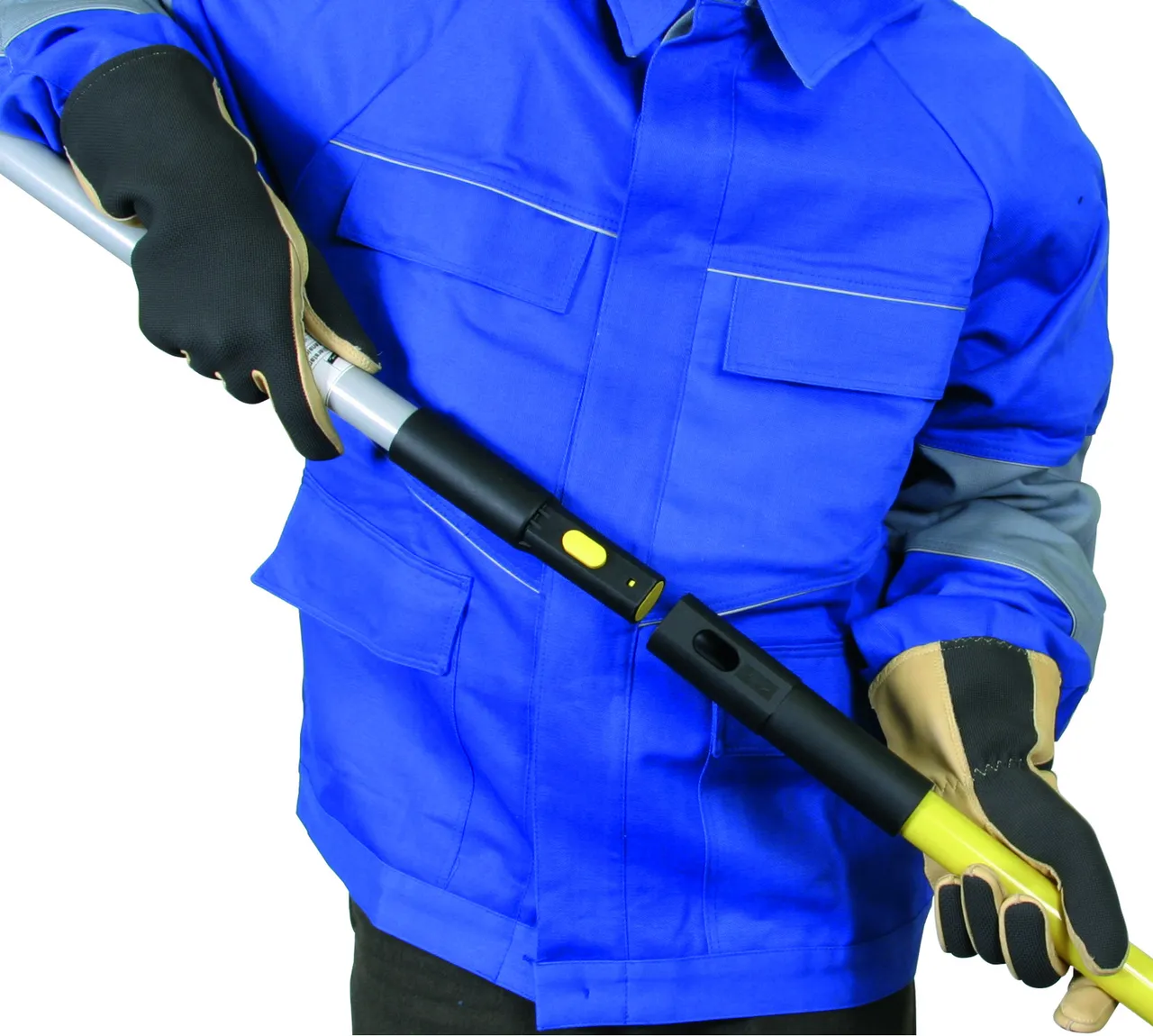

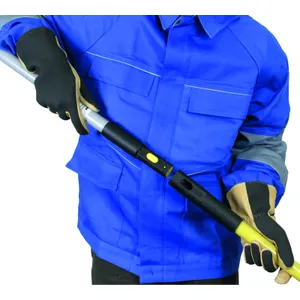

La maneta de pértigas de toma de tierra ES STK puede alargarse simplemente a través de un acoplamiento enchufable.
lorem ipsum

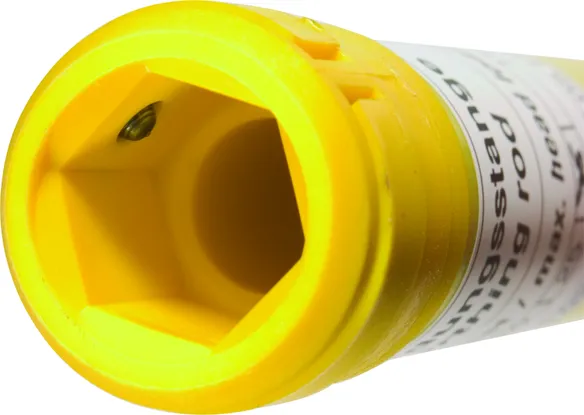

Acoplamiento hexagonal

Caperuza terminal como pieza final de la empuñadura (cierre de resorte)

2 Products

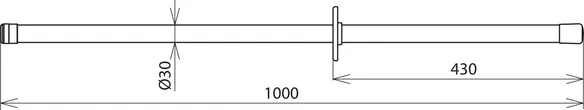

Part No. 761010 ES SK 1000

GTIN 4013364000155, Customs tariff No. (EU): 82055980, Gross weight: 1480.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 1000 mm
Longitud de la maneta (IH ) 430 mm

Product 761010 was added to Notepad.

Go to Notepad

Product 761010 was added to the cart.

Go to Web-Shop

Part No. 761015 ES SK 1500

GTIN 4013364000162, Customs tariff No. (EU): 82055980, Gross weight: 2.15 kg, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 1500 mm
Longitud de la maneta (IH ) 930 mm

Product 761015 was added to Notepad.

Go to Notepad

Product 761015 was added to the cart.

Go to Web-Shop

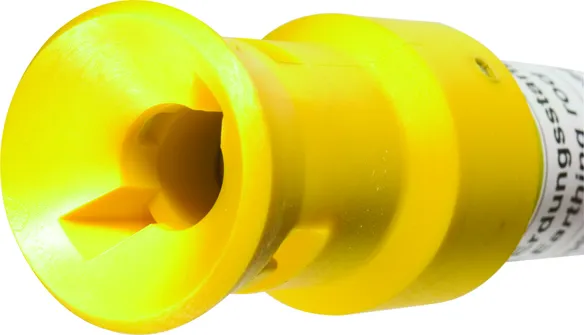

Acoplamiento de pasador

Pieza terminal de la maneta con caperuza terminal (enclavamiento de bayoneta)

2 Products

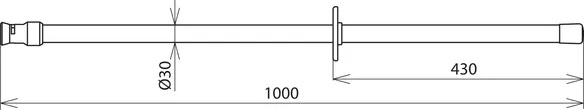

Part No. 761011 ES SQ 1000

GTIN 4013364000230, Customs tariff No. (EU): 82055980, Gross weight: 1.55 kg, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 1000 mm
Longitud de la maneta (IH ) 430 mm

Product 761011 was added to Notepad.

Go to Notepad

Product 761011 was added to the cart.

Go to Web-Shop

Part No. 761016 ES SQ 1500

GTIN 4013364000247, Customs tariff No. (EU): 82055980, Gross weight: 2.16 kg, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 1500 mm
Longitud de la maneta (IH ) 930 mm

Product 761016 was added to Notepad.

Go to Notepad

Product 761016 was added to the cart.

Go to Web-Shop

Acoplamiento hexagonal y acoplamiento enchufable

Pieza terminal de la maneta con acoplamiento enchufable en plástico para alargar la misma (enclavamiento de resorte)

2 Products

Part No. 761001 ES SK STK 1000

GTIN 4013364125179, Customs tariff No. (EU): 82055980, Gross weight: 1058.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 1000 mm
Longitud de la maneta (IH ) 430 mm

Product 761001 was added to Notepad.

Go to Notepad

Product 761001 was added to the cart.

Go to Web-Shop

Part No. 761003 ES SK STK 2000

GTIN 4013364134348, Customs tariff No. (EU): 82055980, Gross weight: 1760.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 2000 mm
Longitud de la maneta (IH ) 1430 mm

Product 761003 was added to Notepad.

Go to Notepad

Product 761003 was added to the cart.

Go to Web-Shop

Acoplamiento de pasador y acoplamiento enchufable

Pieza terminal de la maneta con acoplamiento enchufable en plástico para alargarla (enclavamiento de bayoneta).

2 Products

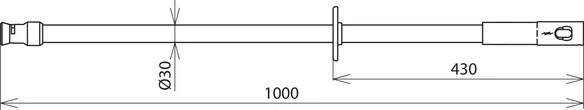

Part No. 761002 ES SQ STK 1000

GTIN 4013364125186, Customs tariff No. (EU): 82055980, Gross weight: 900.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 1000 mm
Longitud de la maneta (IH ) 430 mm

Product 761002 was added to Notepad.

Go to Notepad

Product 761002 was added to the cart.

Go to Web-Shop

Part No. 761004 ES SQ STK 2000

GTIN 4013364134355, Customs tariff No. (EU): 82055980, Gross weight: 1.80 kg, PU: 1.00 unidad(es)

Predecessor

Images

Additional information



Technical data

Longitud total (lG ) 2000 mm
Longitud de la maneta (IH ) 1430 mm

Product 761004 was added to Notepad.

Go to Notepad

Product 761004 was added to the cart.

Go to Web-Shop

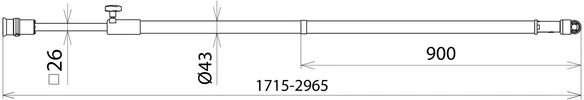

Telescópica con acoplamiento de pasador y acoplamiento enchufable

1 Product

Part No. 769304 ESTC SQ STK SN7562

GTIN 4013364149144, Customs tariff No. (EU): 82055980, Gross weight: 3.00 kg, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG max / IG min ) 3040 / 1790 mm
Longitud de la maneta (IH ) 900 mm

Product 769304 was added to Notepad.

Go to Notepad

Product 769304 was added to the cart.

Go to Web-Shop

Dos piezas, con acoplamiento hexagonal

Pieza terminal de la maneta con acoplamiento enchufable en plástico para alargarla (enclavamiento de resorte)

1 Product

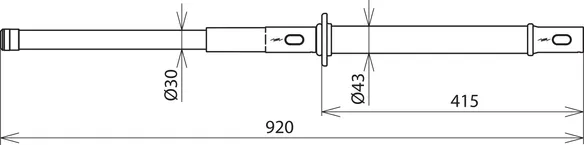

Part No. 761070 EST SK STK 920

GTIN 4013364136212, Customs tariff No. (EU): 82055980, Gross weight: 1300.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 920 mm
Longitud de la maneta (IH ) 415 mm

Product 761070 was added to Notepad.

Go to Notepad

Product 761070 was added to the cart.

Go to Web-Shop

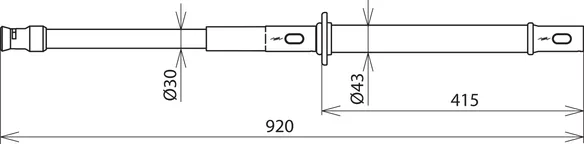

Dos piezas, con acoplamiento de pasador

Pieza terminal de la maneta con acoplamiento enchufable para alargarla (enclavamiento de bayoneta)

1 Product

Part No. 761075 EST SQ STK 920

GTIN 4013364136229, Customs tariff No. (EU): 82055980, Gross weight: 1300.00 g, PU: 1.00 unidad(es)

Images

Additional information



Technical data

Longitud total (lG ) 920 mm
Longitud de la maneta (IH ) 415 mm

Product 761075 was added to Notepad.

Go to Notepad

Product 761075 was added to the cart.

Go to Web-Shop
