Conectores paralelos

Para conexión de dos conductores en paralelo.

Para diámetros iguales con un tornillo

2 Products

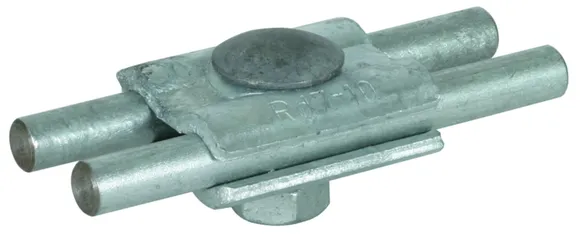

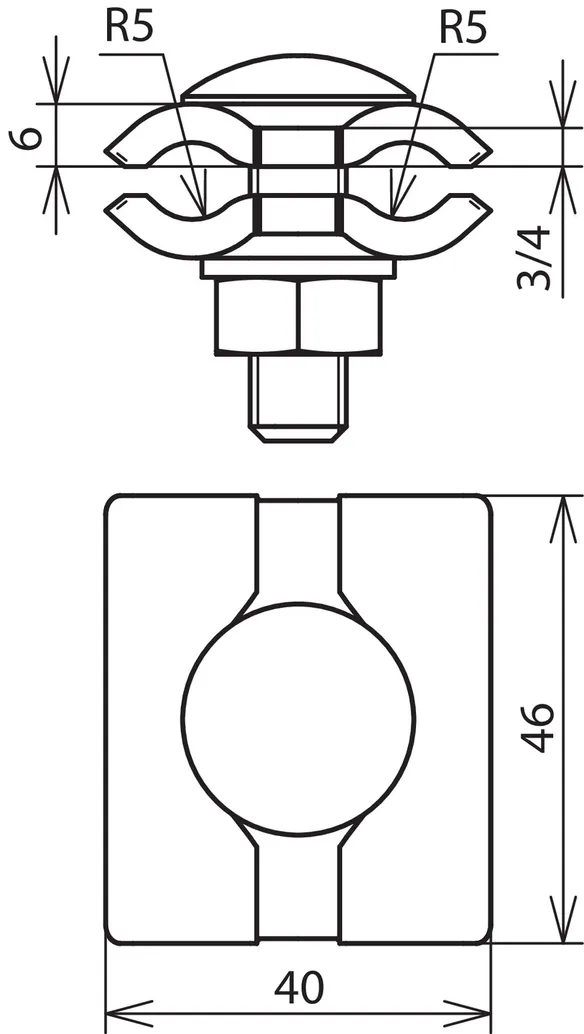

Part No. 306020 PV 7.10 FRM10X35 STTZN

GTIN 4013364096264, Customs tariff No. (EU): 85359000, Gross weight: 147.00 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Material borna: St/tZn
Margen de apriete Rd / Rd: 7-10 mm
Tornillo: M10 x 35 mm
Norma: EN 62561-1

Producto DEHN
Tipo: PV 7.10 FRM10X35 STTZN
art. no.: 306020
o equivalente

Certificates

Technical data

Material borna	St/tZn
Margen de apriete Rd / Rd	7-10 mm
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	4,0 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Material borna	St/tZn
Margen de apriete Rd / Rd	7-10 mm
Tornillo	e M10 x 35 mm
Material tornillo / tuerca	St/tZn
Capacidad de derivar corrientes de rayo (10/350 µs)	& *⁾
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	4,0 kA
Espesor de material	4 mm
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 306020 was added to Notepad.

Go to Notepad

Product 306020 was added to the cart.

Go to Web-Shop

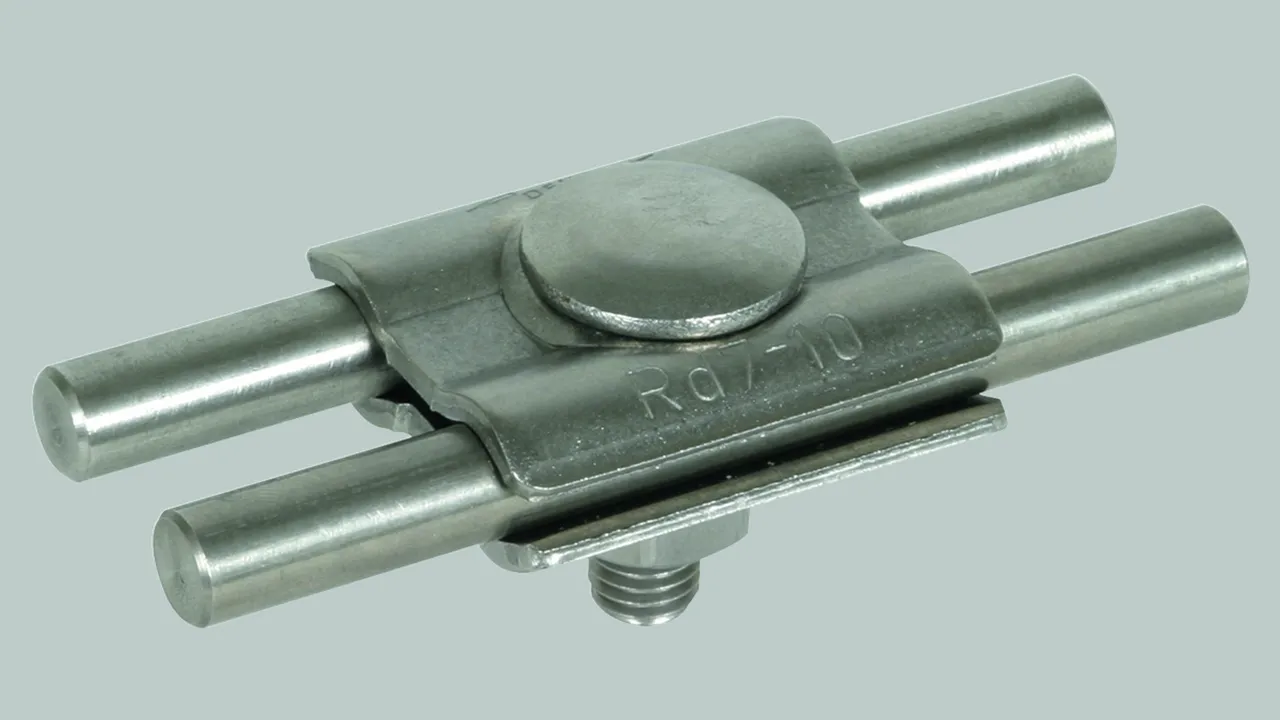

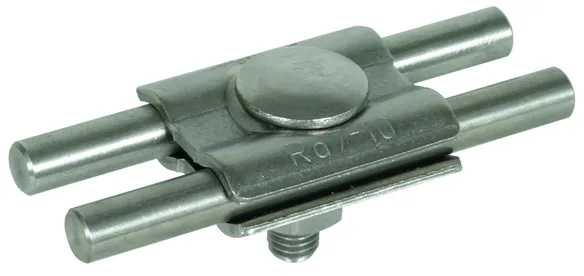

Part No. 306029 PV 7.10 FRM10X35 V4A

GTIN 4013364129467, Customs tariff No. (EU): 85359000, Gross weight: 122.00 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Material borna: INOX (V4A)
Margen de apriete Rd / Rd: 7-10 mm
Margen de apriete (flexible / cable): 25-120 mm2
Tornillo: M10 x 35 mm
Material número: 1.4571 / 1.4404 / 1.4401
Norma: EN 62561-1

Producto DEHN
Tipo: PV 7.10 FRM10X35 V4A
art. no.: 306029
o equivalente

Certificates

Technical data

Material borna	INOX (V4A)
Margen de apriete Rd / Rd	7-10 mm
Margen de apriete (flexible / cable)	25-120 mm²
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2,9 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Material borna	INOX (V4A)
Margen de apriete Rd / Rd	7-10 mm
Margen de apriete (flexible / cable)	25-120 mm²
Tornillo	e M10 x 35 mm
Material tornillo / tuerca	INOX (V4A)
Material número	1.4571 / 1.4404 / 1.4401
Capacidad de derivar corrientes de rayo (10/350 µs)	= *⁾
Norma	EN 62561-1
Versión	también para diferentes aplicaciones
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2,9 kA
Espesor de material	3 mm
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 306029 was added to Notepad.

Go to Notepad

Product 306029 was added to the cart.

Go to Web-Shop

Para diámetros iguales con dos tornillos

2 Products

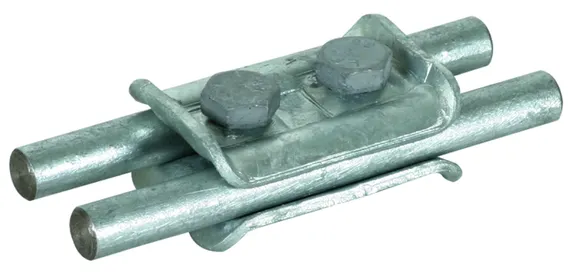

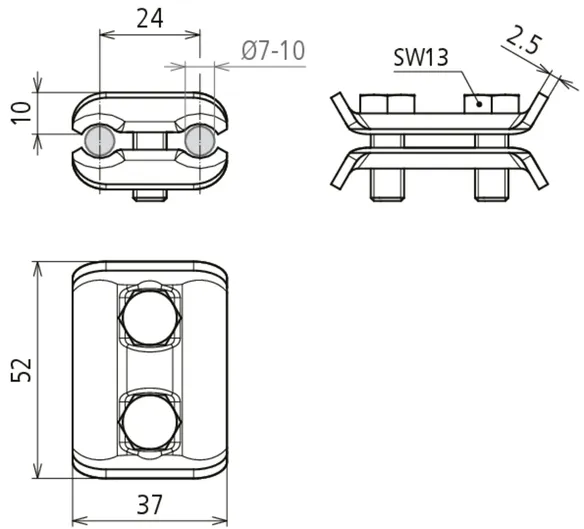

Part No. 307000 PV 7.10 SKM8X20 STTZN

GTIN 4013364024151, Customs tariff No. (EU): 85359000, Gross weight: 107.00 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

Material borna: St/tZn
Margen de apriete Rd / Rd: 7-10 mm
Tornillo: M8 x 20 mm
Norma: EN 62561-1

Producto DEHN
Tipo: PV 7.10 SKM8X20 STTZN
art. no.: 307000
o equivalente

Certificates

Technical data

Material borna	St/tZn
Margen de apriete Rd / Rd	7-10 mm
Norma	EN 62561-1
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 307000 was added to Notepad.

Go to Notepad

Product 307000 was added to the cart.

Go to Web-Shop

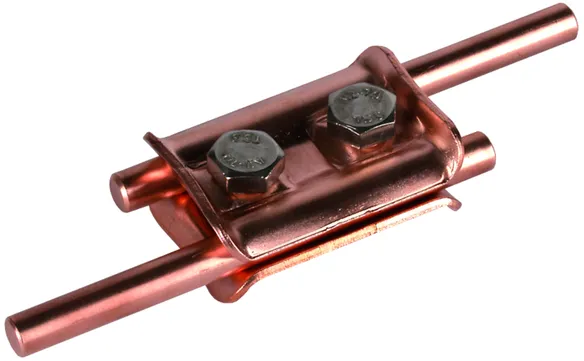

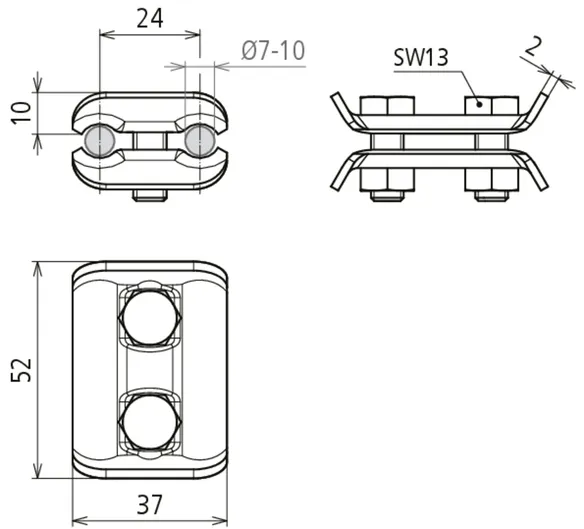

Part No. 307007 PV 7.10 SKM8X20 CU

GTIN 4013364024168, Customs tariff No. (EU): 85359000, Gross weight: 106.00 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

Material borna: Cu
Margen de apriete Rd / Rd: 7-10 mm
Margen de apriete (flexible / cable): 16-95 mm2
Tornillo: M8 x 20 mm
Norma: EN 62561-1

Producto DEHN
Tipo: PV 7.10 SKM8X20 CU
art. no.: 307007
o equivalente

Certificates

Technical data

Material borna	Cu
Margen de apriete Rd / Rd	7-10 mm
Margen de apriete (flexible / cable)	16-95 mm²
Norma	EN 62561-1
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 307007 was added to Notepad.

Go to Notepad

Product 307007 was added to the cart.

Go to Web-Shop

Para diámetros diferentes con un tornillo

2 Products

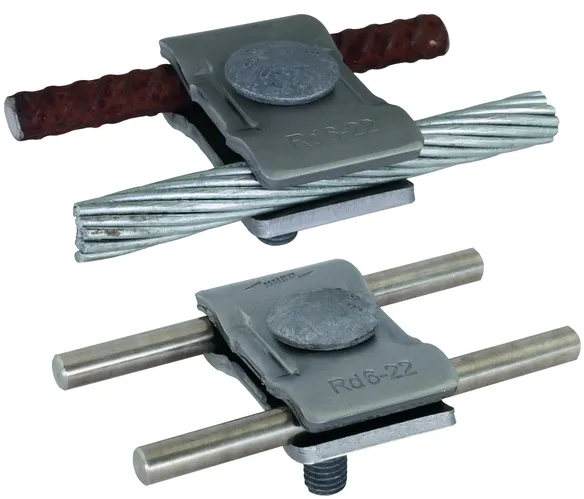

Part No. 306121 PV 6.22 FRM10X40 STBLANK

GTIN 4013364284920, Customs tariff No. (EU): 85359000, Gross weight: 163.16 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Conector paralelo con un tornillo St/desnudo
Conector paralelo para conectar dos conductores en paralelo
Material borna: St/desnudo
Margen de apriete Rd / Rd: 6-22 / 6-22 mm
Tornillo: M10 x 40 mm
Norma: EN 62561-1

Producto DEHN
Tipo: PV 6.22 FRM10X40 STBLANK
art. no.: 306121
o equivalente

Certificates

Technical data

Material borna	St/desnudo
Margen de apriete Rd / Rd	6-22 / 6-22 mm
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Material borna	St/desnudo
Margen de apriete Rd / Rd	6-22 / 6-22 mm
Tornillo	e M10 x 40 mm
Material tornillo / tuerca	St/tZn
Capacidad de derivar corrientes de rayo (10/350 µs)	& *⁾
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
Espesor de material	4 mm
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 306121 was added to Notepad.

Go to Notepad

Product 306121 was added to the cart.

Go to Web-Shop

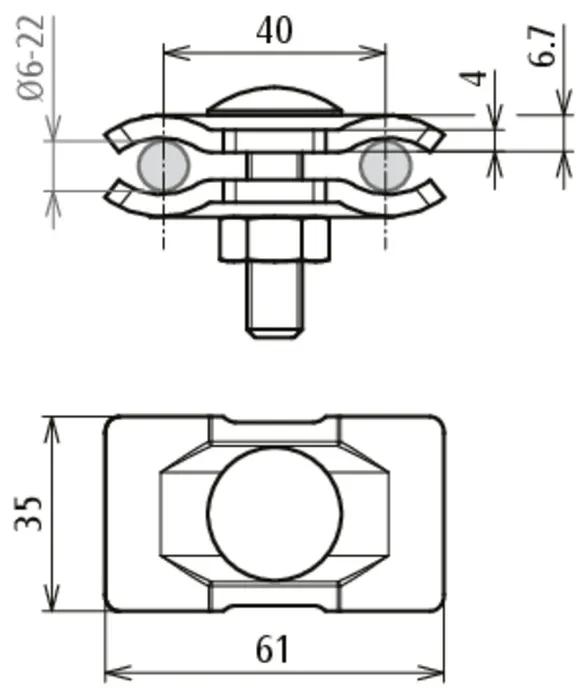

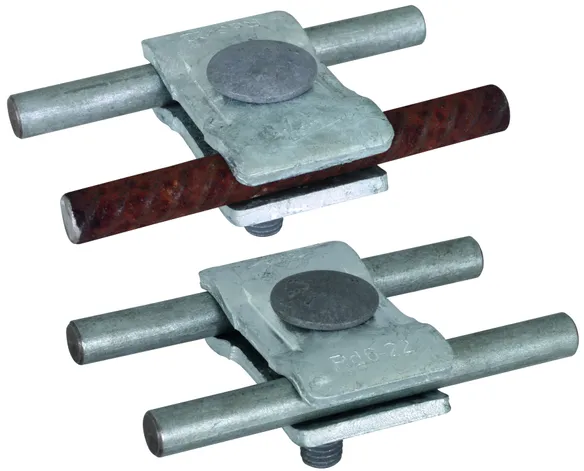

Part No. 306122 PV 6.22 FRM10X40 STTZN

GTIN 4013364284937, Customs tariff No. (EU): 85359000, Gross weight: 167.12 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Conector en paralelo con un tornillo St/tZn
Conector en paralelo para conectar dos conductores en paralelo.
Material borna: St/tZn
Margen de apriete Rd / Rd: 6-22 / 6-22 mm
Tornillo: M10 x 40 mm
Norma: EN 62561-1

Producto DEHN
Tipo: PV 6.22 FRM10X40 STTZN
art. no.: 306122
o equivalente

Certificates

Technical data

Material borna	St/tZn
Margen de apriete Rd / Rd	6-22 / 6-22 mm
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Material borna	St/tZn
Margen de apriete Rd / Rd	6-22 / 6-22 mm
Tornillo	e M10 x 40 mm
Material tornillo / tuerca	St/tZn
Capacidad de derivar corrientes de rayo (10/350 µs)	& *⁾
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
Espesor de material	4 mm
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 306122 was added to Notepad.

Go to Notepad

Product 306122 was added to the cart.

Go to Web-Shop

Para diámetros diferentes 4-10 mm con dos tornillos

2 Products

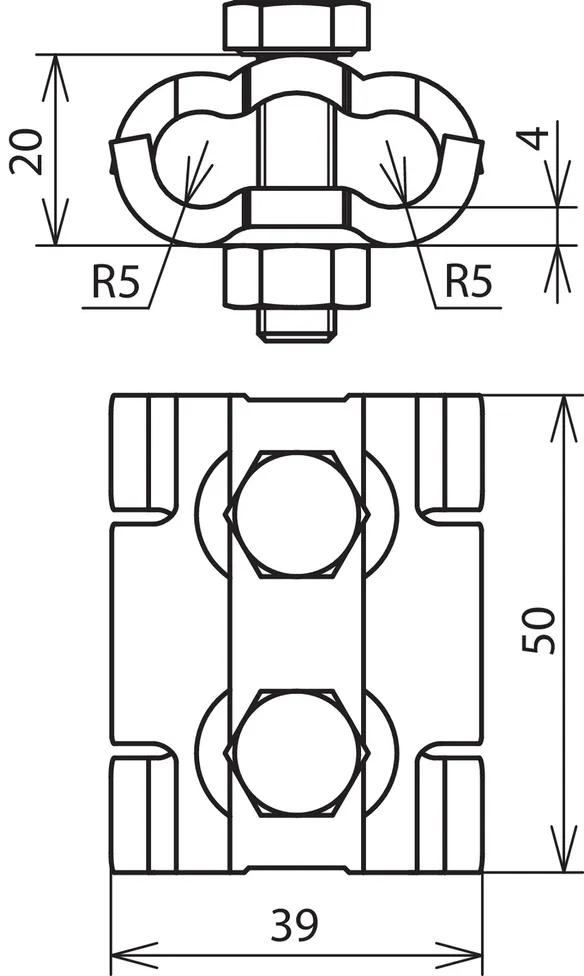

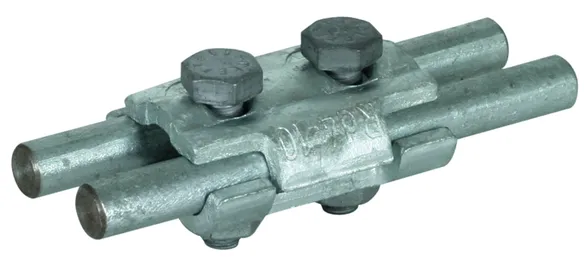

Part No. 305000 PV 4.10 SKM8X30 STTZN

GTIN 4013364041936, Customs tariff No. (EU): 85359000, Gross weight: 148.00 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Material borna: St/tZn
Margen de apriete Rd / Rd: 4-10 mm
Tornillo: M8 x 30 mm
Norma: EN 62561-1

Producto DEHN
Tipo: PV 4.10 SKM8X30 STTZN
art. no.: 305000
o equivalente

Certificates

Technical data

Material borna	St/tZn
Margen de apriete Rd / Rd	4-10 mm
Norma	EN 62561-1
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 305000 was added to Notepad.

Go to Notepad

Product 305000 was added to the cart.

Go to Web-Shop

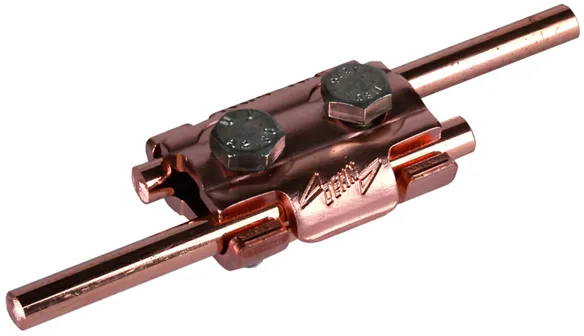

Part No. 305007 PV 4.10 SKM8X30 CU

GTIN 4013364052307, Customs tariff No. (EU): 85369095, Gross weight: 153.00 g, PU: 50.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Material borna: Cu
Margen de apriete Rd / Rd: 4-10 mm
Margen de apriete (flexible / cable): 10-70 mm2
Tornillo: M8 x 30 mm
Material número: 1.4571 / 1.4404 / 1.4401
Norma: EN 62561-1

Producto DEHN
Tipo: PV 4.10 SKM8X30 CU
art. no.: 305007
o equivalente

Certificates

Technical data

Material borna	Cu
Margen de apriete Rd / Rd	4-10 mm
Margen de apriete (flexible / cable)	10-70 mm²
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Material borna	Cu
Margen de apriete Rd / Rd	4-10 mm
Margen de apriete (flexible / cable)	10-70 mm²
Tornillo	di M8 x 30 mm
Material tornillo / tuerca	INOX (V4A)
Material número	1.4571 / 1.4404 / 1.4401
Capacidad de derivar corrientes de rayo (10/350 µs)	= *⁾
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 305007 was added to Notepad.

Go to Notepad

Product 305007 was added to the cart.

Go to Web-Shop

Para diámetros de cable iguales y diferentes, pequeño

Con rosca en la base y tuerca M8.
Corriente de cortocircuito indicada para cable de 70 mm² Cu.

1 Product

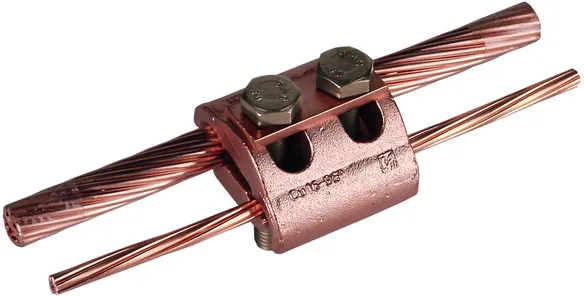

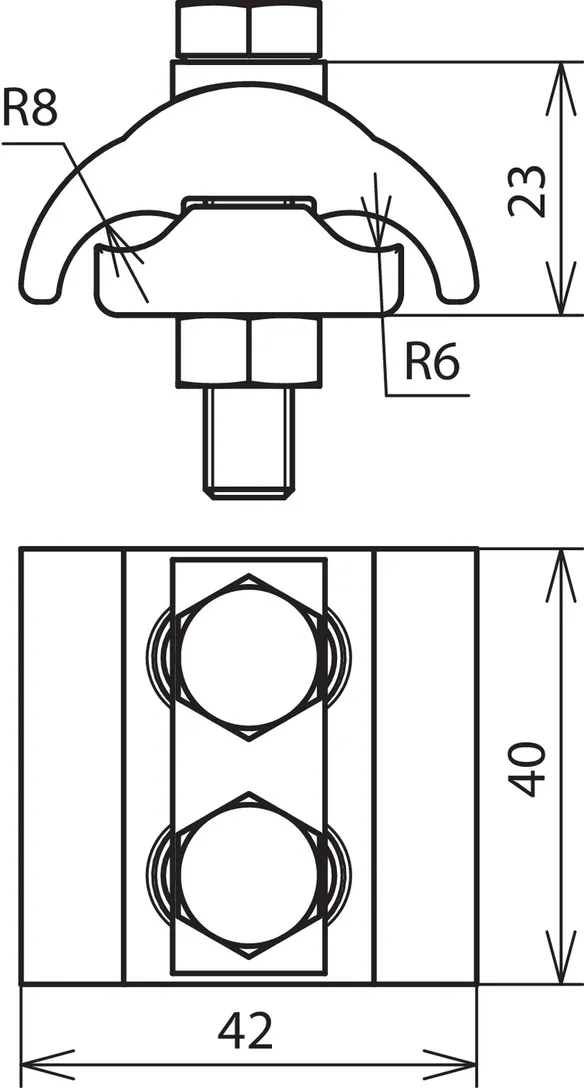

Part No. 306100 PV 5.12.5 SKM8X45 CU

GTIN 4013364024113, Customs tariff No. (EU): 85359000, Gross weight: 238.30 g, PU: 25.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Material borna: Cu
Margen de apriete Rd / Rd: 5-12,5 mm
Margen de apriete (flexible / cable): 16-95 mm2
Tornillo: M8 x 45 mm
Material número: 1.4571 / 1.4404 / 1.4401
Norma: EN 62561-1

Producto DEHN
Tipo: PV 5.12.5 SKM8X45 CU
art. no.: 306100
o equivalente

Certificates

Technical data

Material borna	Cu
Margen de apriete Rd / Rd	5-12,5 mm
Margen de apriete (flexible / cable)	16-95 mm²
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Material borna	Cu
Margen de apriete Rd / Rd	5-12,5 mm
Margen de apriete (flexible / cable)	16-95 mm²
Tornillo	di M8 x 45 mm
Material tornillo / tuerca	INOX (V4A)
Material número	1.4571 / 1.4404 / 1.4401
Capacidad de derivar corrientes de rayo (10/350 µs)	= *⁾
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 306100 was added to Notepad.

Go to Notepad

Product 306100 was added to the cart.

Go to Web-Shop

Para diámetros de cable iguales y diferentes, grande

Con rosca en la base y tuerca M10.
Corriente de cortocircuito indicada para cable de 70 mm² Cu.

1 Product

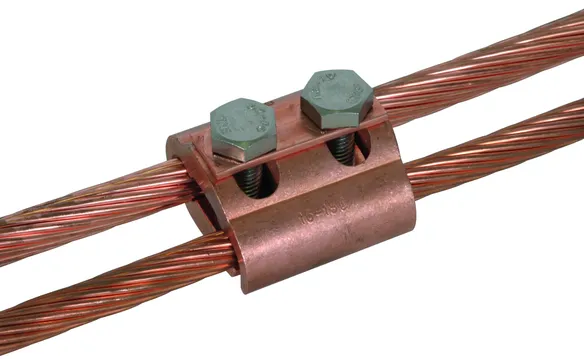

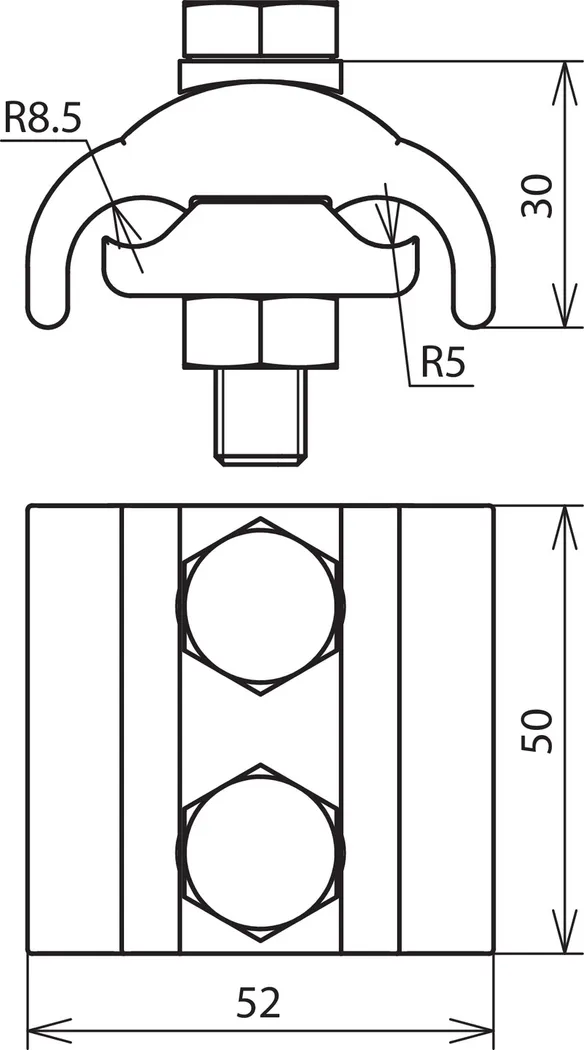

Part No. 306101 PV 5.16 SKM10X50 CU

GTIN 4013364024120, Customs tariff No. (EU): 85359000, Gross weight: 412.00 g, PU: 25.00 unidad(es)

Images

Open PDF

Additional information

CAD files

Material borna: Cu
Margen de apriete Rd / Rd: 5-16 mm
Margen de apriete (flexible / cable): 16-150 mm2
Tornillo: M10 x 50 mm
Material número: 1.4571 / 1.4404 / 1.4401
Norma: EN 62561-1

Producto DEHN
Tipo: PV 5.16 SKM10X50 CU
art. no.: 306101
o equivalente

Certificates

Technical data

Material borna	Cu
Margen de apriete Rd / Rd	5-16 mm
Margen de apriete (flexible / cable)	16-150 mm²
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Material borna	Cu
Margen de apriete Rd / Rd	5-16 mm
Margen de apriete (flexible / cable)	16-150 mm²
Tornillo	di M10 x 50 mm
Material tornillo / tuerca	INOX (V4A)
Material número	1.4571 / 1.4404 / 1.4401
Capacidad de derivar corrientes de rayo (10/350 µs)	= *⁾
Norma	EN 62561-1
Corriente de cortocircuito (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) Para la asignación exacta por favor véase el certificado de prueba.

Product 306101 was added to Notepad.

Go to Notepad

Product 306101 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Conectores paralelos

Para diámetros iguales con un tornillo

Part No. 306020 PV 7.10 FRM10X35 STTZN

Product 306020 was added to Notepad.

Product 306020 was added to the cart.

Part No. 306029 PV 7.10 FRM10X35 V4A

Product 306029 was added to Notepad.

Product 306029 was added to the cart.

Para diámetros iguales con dos tornillos

Part No. 307000 PV 7.10 SKM8X20 STTZN

Product 307000 was added to Notepad.

Product 307000 was added to the cart.

Part No. 307007 PV 7.10 SKM8X20 CU

Product 307007 was added to Notepad.

Product 307007 was added to the cart.

Para diámetros diferentes con un tornillo

Part No. 306121 PV 6.22 FRM10X40 STBLANK

Product 306121 was added to Notepad.

Product 306121 was added to the cart.

Part No. 306122 PV 6.22 FRM10X40 STTZN

Product 306122 was added to Notepad.

Product 306122 was added to the cart.

Para diámetros diferentes 4-10 mm con dos tornillos

Part No. 305000 PV 4.10 SKM8X30 STTZN

Product 305000 was added to Notepad.

Product 305000 was added to the cart.

Part No. 305007 PV 4.10 SKM8X30 CU

Product 305007 was added to Notepad.

Product 305007 was added to the cart.

Para diámetros de cable iguales y diferentes, pequeño

Part No. 306100 PV 5.12.5 SKM8X45 CU

Product 306100 was added to Notepad.

Product 306100 was added to the cart.

Para diámetros de cable iguales y diferentes, grande

Part No. 306101 PV 5.16 SKM10X50 CU

Product 306101 was added to Notepad.

Product 306101 was added to the cart.

Conectores paralelos

Para diámetros iguales con un tornillo

Part No. 306020 PV 7.10 FRM10X35 STTZN

You are not authorized to download 306020.stp

You are not authorized to download 306020.igs

You are not authorized to download 306020.jt

You are not authorized to download 306020.dwg

You are not authorized to download 306020m_D.dxf

Product 306020 was added to Notepad.

Product 306020 was added to the cart.

Part No. 306029 PV 7.10 FRM10X35 V4A

You are not authorized to download 306020.stp

You are not authorized to download 306020.igs

You are not authorized to download 306020.jt

You are not authorized to download 306020.dwg

You are not authorized to download 306020m_D.dxf

Product 306029 was added to Notepad.

Product 306029 was added to the cart.

Para diámetros iguales con dos tornillos

Part No. 307000 PV 7.10 SKM8X20 STTZN

You are not authorized to download 307000m_D.dxf

Product 307000 was added to Notepad.

Product 307000 was added to the cart.

Part No. 307007 PV 7.10 SKM8X20 CU

You are not authorized to download 307007m_D.dxf

Product 307007 was added to Notepad.

Product 307007 was added to the cart.

Para diámetros diferentes con un tornillo

Part No. 306121 PV 6.22 FRM10X40 STBLANK

You are not authorized to download 306121.stp

You are not authorized to download 306121.igs

You are not authorized to download 306121.jt

You are not authorized to download 306121.dwg

You are not authorized to download 306121_306122m_D.dxf

Product 306121 was added to Notepad.

Product 306121 was added to the cart.

Part No. 306122 PV 6.22 FRM10X40 STTZN

You are not authorized to download 306122.stp

You are not authorized to download 306122.igs

You are not authorized to download 306122.jt

You are not authorized to download 306122.dwg

You are not authorized to download 306121_306122m_D.dxf

Product 306122 was added to Notepad.

Product 306122 was added to the cart.

Para diámetros diferentes 4-10 mm con dos tornillos

Part No. 305000 PV 4.10 SKM8X30 STTZN

You are not authorized to download 305000.stp

You are not authorized to download 305000.igs

You are not authorized to download 305000.jt

You are not authorized to download 305000.dwg

You are not authorized to download 305000m_D.dxf

Product 305000 was added to Notepad.

Product 305000 was added to the cart.

Part No. 305007 PV 4.10 SKM8X30 CU

You are not authorized to download 305000.stp

You are not authorized to download 305000.igs

You are not authorized to download 305000.jt

You are not authorized to download 305000.dwg

You are not authorized to download 305000m_D.dxf

Product 305007 was added to Notepad.

Product 305007 was added to the cart.

Para diámetros de cable iguales y diferentes, pequeño

Part No. 306100 PV 5.12.5 SKM8X45 CU

You are not authorized to download 306100.stp

You are not authorized to download 306100.igs

You are not authorized to download 306100.jt

You are not authorized to download 306100.dwg

You are not authorized to download 306100m_D.dxf

Product 306100 was added to Notepad.

Product 306100 was added to the cart.

Para diámetros de cable iguales y diferentes, grande

Part No. 306101 PV 5.16 SKM10X50 CU

You are not authorized to download 306101.stp

You are not authorized to download 306101.igs

You are not authorized to download 306101.jt

You are not authorized to download 306101.dwg

You are not authorized to download 306101m_D.dxf

Product 306101 was added to Notepad.

Product 306101 was added to the cart.
