Sistema de conexión de pantalla para carriles de anclaje

  • Homologados para corriente de choque de rayo hasta 10 kA (10/350 μs)
  • Acero inoxidable resistente a la corrosión
  • Unión permanente de pantalla gracias al elemento de resorte

Details

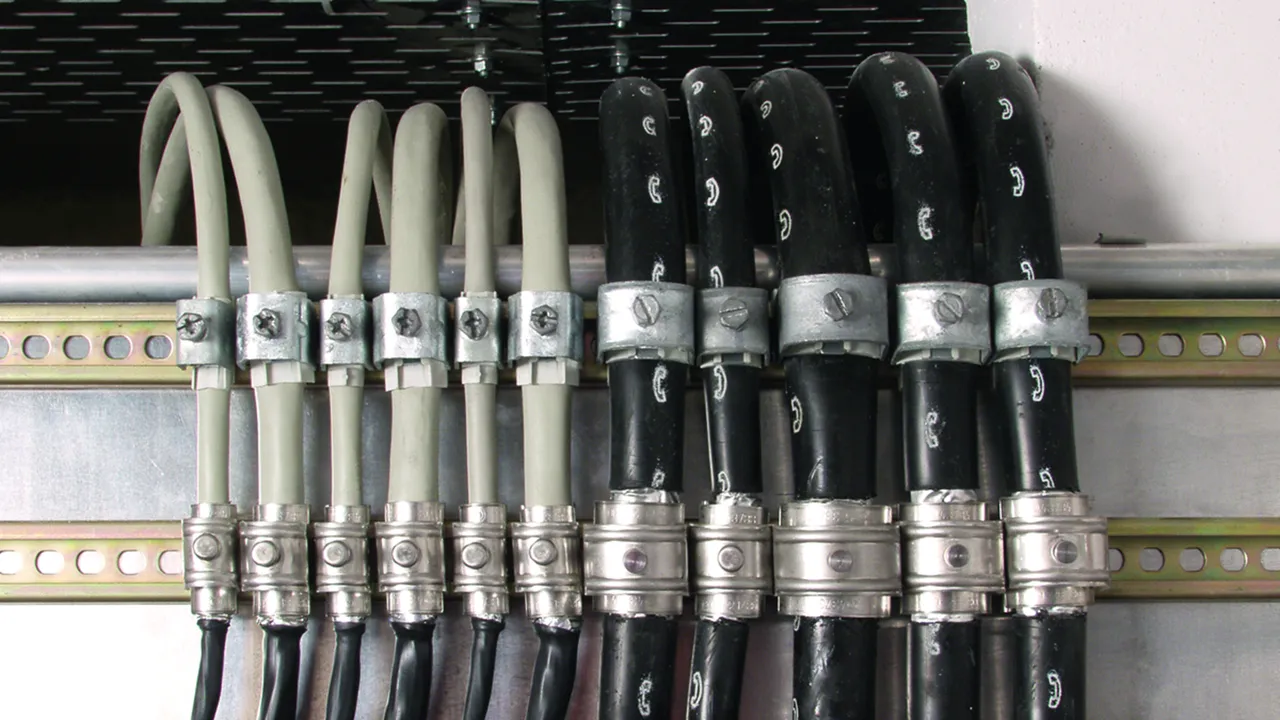

Sistema de conexión de pantalla en los carriles de anclaje
lorem ipsum

Conexión del apantallamiento

Bornas de conexión del apantallamiento para toma de tierra del blindaje de los cables en las vías de anclaje. Montaje sin necesidad de herramientas.

6 Products

Part No. 308403 SAK 10 AS V4A

GTIN 4013364070509, Customs tariff No. (EU): 85369095, Gross weight: 26.00 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: SAK 10 AS V4A
art. no.: 308403
o equivalente



Technical data

Capacidad para soportar corrientes de rayo (10/350 µs) 10 kA
Margen de apriete redondo 5-10 mm
Material StSt
Montaje sobre vía de anclaje
Dimensiones (an x al x pr) 16 x 40 x 48 mm

Product 308403 was added to Notepad.

Go to Notepad

Product 308403 was added to the cart.

Go to Web-Shop

Part No. 308404 SAK 14 AS V4A

GTIN 4013364070516, Customs tariff No. (EU): 85369095, Gross weight: 31.70 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: SAK 14 AS V4A
art. no.: 308404
o equivalente



Technical data

Capacidad para soportar corrientes de rayo (10/350 µs) 10 kA
Margen de apriete redondo 8-14 mm
Material StSt
Montaje sobre vía de anclaje
Dimensiones (an x al x pr) 19.5 x 40 x 50 mm

Product 308404 was added to Notepad.

Go to Notepad

Product 308404 was added to the cart.

Go to Web-Shop

Part No. 308405 SAK 18 AS V4A

GTIN 4013364070523, Customs tariff No. (EU): 85369095, Gross weight: 37.40 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: SAK 18 AS V4A
art. no.: 308405
o equivalente



Technical data

Capacidad para soportar corrientes de rayo (10/350 µs) 10 kA
Margen de apriete redondo 13-18 mm
Material StSt
Montaje sobre vía de anclaje
Dimensiones (an x al x pr) 24 x 40 x 56 mm

Product 308405 was added to Notepad.

Go to Notepad

Product 308405 was added to the cart.

Go to Web-Shop

Part No. 308406 SAK 21 AS V4A

GTIN 4013364070530, Customs tariff No. (EU): 85369095, Gross weight: 48.80 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: SAK 21 AS V4A
art. no.: 308406
o equivalente



Technical data

Capacidad para soportar corrientes de rayo (10/350 µs) 10 kA
Margen de apriete redondo 17-21 mm
Material StSt
Montaje sobre vía de anclaje
Dimensiones (an x al x pr) 29 x 40 x 59 mm

Product 308406 was added to Notepad.

Go to Notepad

Product 308406 was added to the cart.

Go to Web-Shop

Part No. 308407 SAK 26 AS V4A

GTIN 4013364070547, Customs tariff No. (EU): 85369095, Gross weight: 60.40 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: SAK 26 AS V4A
art. no.: 308407
o equivalente



Technical data

Capacidad para soportar corrientes de rayo (10/350 µs) 10 kA
Margen de apriete redondo 19-26 mm
Material StSt
Montaje sobre vía de anclaje
Dimensiones (an x al x pr) 36.5 x 40 x 74 mm

Product 308407 was added to Notepad.

Go to Notepad

Product 308407 was added to the cart.

Go to Web-Shop

Part No. 308408 SAK 33 AS V4A

GTIN 4013364070554, Customs tariff No. (EU): 85369095, Gross weight: 72.90 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: SAK 33 AS V4A
art. no.: 308408
o equivalente



Technical data

Capacidad para soportar corrientes de rayo (10/350 µs) 10 kA
Margen de apriete redondo 25-33 mm
Material StSt
Montaje sobre vía de anclaje
Dimensiones (an x al x pr) 45 x 40 x 82 mm

Product 308408 was added to Notepad.

Go to Notepad

Product 308408 was added to the cart.

Go to Web-Shop

Carril de anclaje

Carril de sujección para toma de tierra y bornas de conexión del blindaje.

1 Product

Part No. 308421 AS SAK 1000 V2A

GTIN 4013364070561, Customs tariff No. (EU): 72224090, Gross weight: 974.00 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: AS SAK 1000 V2A
art. no.: 308421
o equivalente



Technical data

Material StSt
Dimensiones (an x al x pr) 29 x 1000 x 15 mm

Product 308421 was added to Notepad.

Go to Notepad

Product 308421 was added to the cart.

Go to Web-Shop

Soporte aislado del carril

Soporte para fijación aislada del carril de anclaje AS SAK 1000 V2A con casquillo roscado M4.

1 Product

Part No. 308425 ST AS SAK K

GTIN 4013364058798, Customs tariff No. (EU): 39269097, Gross weight: 19.30 g, PU: 10.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: ST AS SAK K
art. no.: 308425
o equivalente



Technical data

Material Plástico

Product 308425 was added to Notepad.

Go to Notepad

Product 308425 was added to the cart.

Go to Web-Shop

Borna de conexión

Para conexión de los cables de compensación de potencial al carril de anclaje AS SAK 1000 V2A.

1 Product

Part No. 308411 AK 16 AS SAK MS

GTIN 4013364070578, Customs tariff No. (EU): 85369095, Gross weight: 55.60 g, PU: 5.00 unidad(es)

Images

Additional information



Producto DEHN
Tipo: AK 16 AS SAK MS
art. no.: 308411
o equivalente



Technical data

Sección de conexión un solo hilo 16 mm2
Montaje sobre Carril de anclaje
