HSA 194 High-Voltage Indicator

Easy and safe testing
  • For contactlessly verifying that switchgear and high-voltage overhead lines or centre-earthed monophase traction power lines are dead
  • Cost-effective / space-saving transport

Details

Figure 1: Example of application on the corner leg of a lattice tower with switch position "climbing check“ (only HSA 194 110 420 SN7737)
lorem ipsum
Table
lorem ipsum

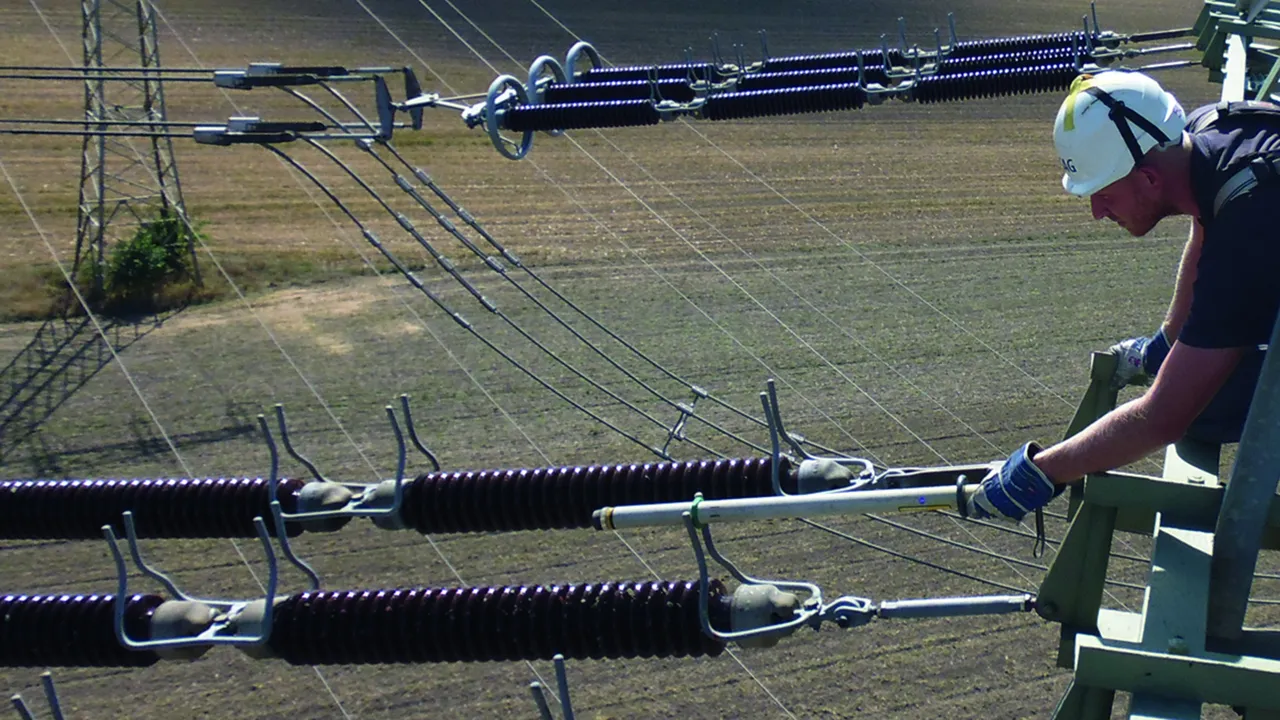

Figure 2: Example of application on the tower cross arm with switch position "110 ... 420 kV“
lorem ipsum

Nominal Voltage Range 110 ... 420 kV

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

2 Products

Part No. 767541 HSA194 110 420 STK

GTIN 4013364115712, Customs tariff No. (EU): 90303370, Gross weight: 1.70 kg, PU: 1.00 pc(s)

Images

Additional information

Certificates



Technical data

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 50 Hz
Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
Verification while climbing the tower No

Product 767541 was added to Notepad.

Go to Notepad

Product 767541 was added to the cart.

Go to Web-Shop

Part No. 767542 HSA194 110 420 16.7

GTIN 4013364086616, Customs tariff No. (EU): 90303370, Gross weight: 5.85 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Certificates



Technical data

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 16.7 Hz
Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
DB drawing No. 3 Ekgw 02.54
Verification while climbing the tower No

Product 767542 was added to Notepad.

Go to Notepad

Product 767542 was added to the cart.

Go to Web-Shop

Nominal Voltage Range 110 ... 420 kV, with verification while climbing the tower

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

1 Product

Part No. 767539 HSA 194 110 420 SN7737

GTIN 4013364306769, Customs tariff No. (EU): 90303370, Gross weight: 1.82 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 50 Hz
Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
Verification while climbing the tower Yes
