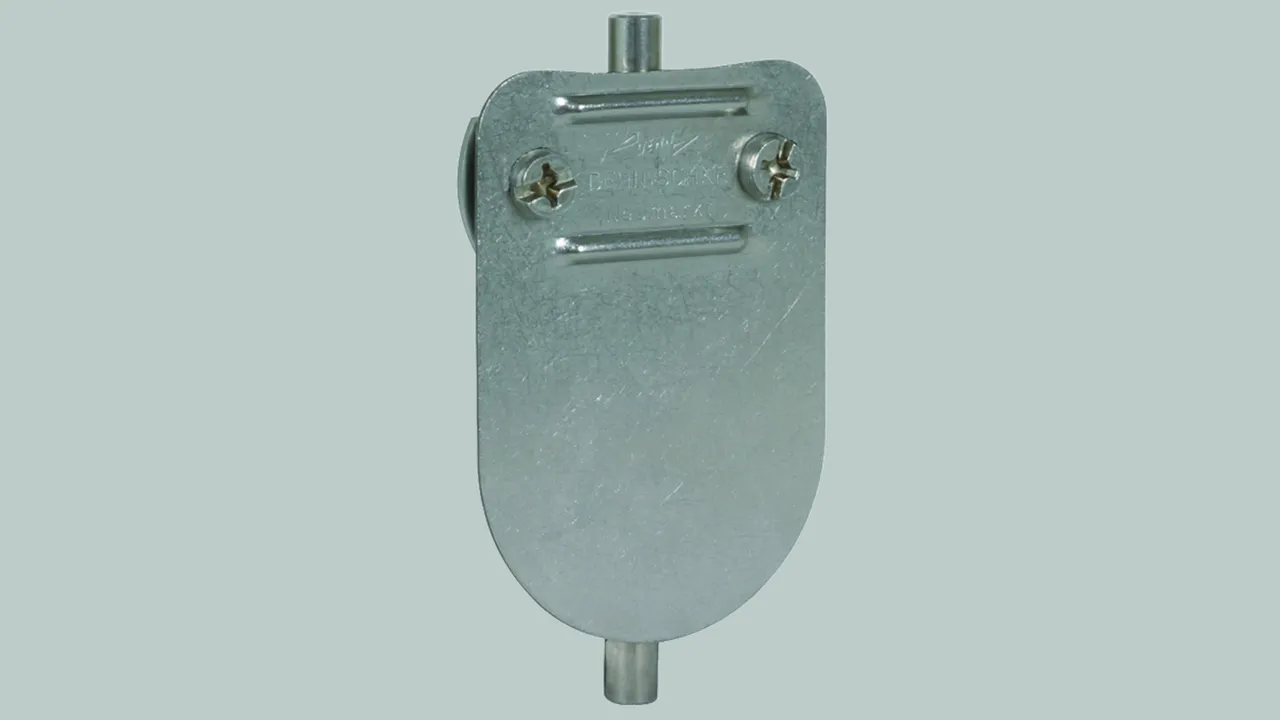

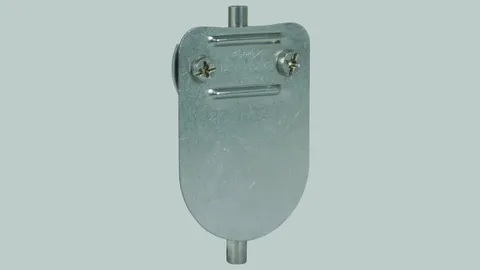

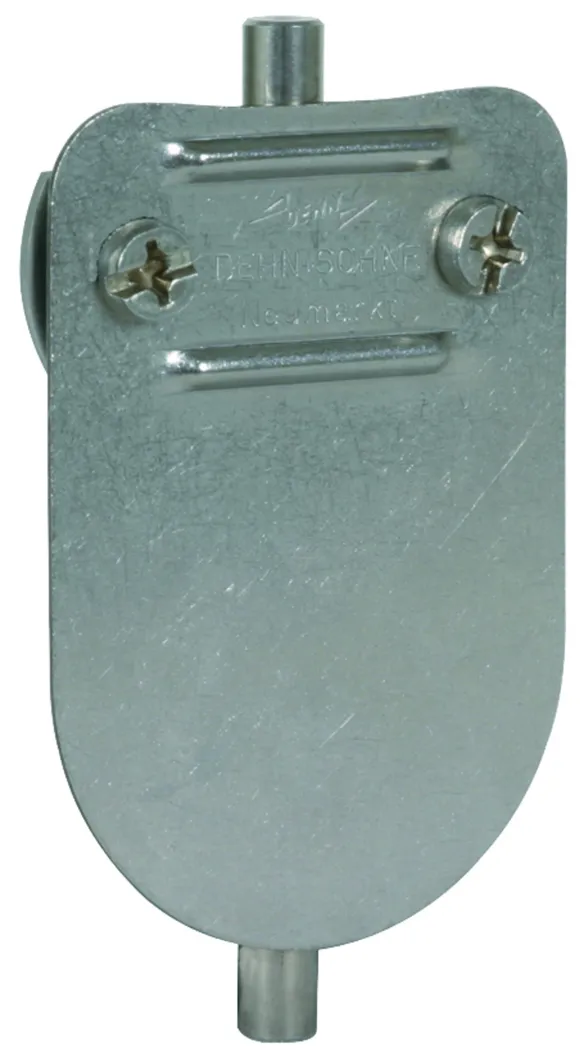

Carrier Plate for VDB Test Badge

For fixing the test badge at the down conductor or earth entry.

For round / flat conductors

1 Product

Part No. 480113 TS 7.10 FL30 PP V2A

GTIN 4013364112681, Customs tariff No. (EU): 83100000, Gross weight: 62.80 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

Support for VDB test badge, StSt
Support for VDB test badge
For fixing of the test badge at the down conductor or the earth entry
For Rd 7-10 and Fl 30 mm conductors
Material: StSt
Clamping range Rd / Fl: 7-10 / 30 mm

Brand: DEHN
Type: TS 7.10 FL30 PP V2A
Part No.: 480113
or equivalent.

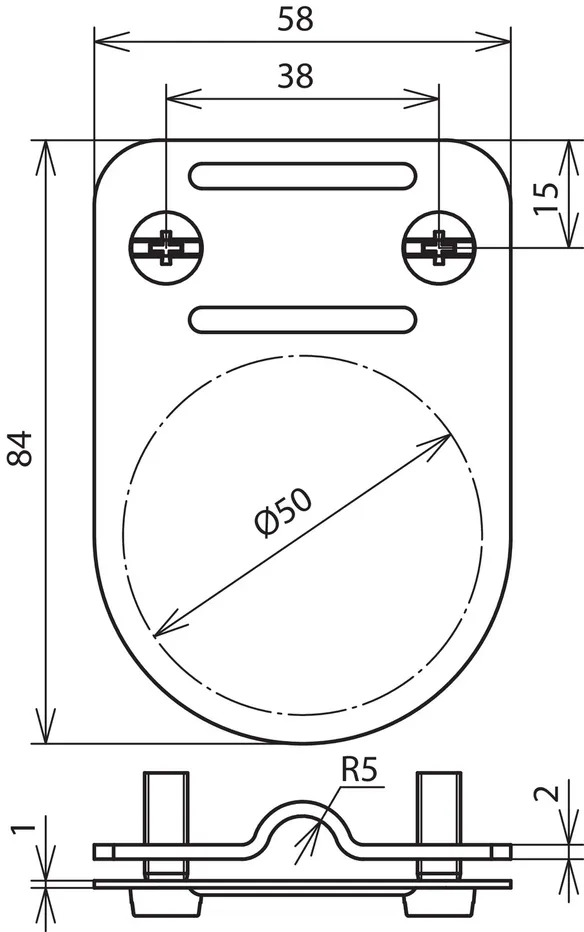

Technical data

Material StSt
Clamping range Rd / Fl 7-10 / 30 mm
Dimension 84 x 58 x 1 mm
