Wiring accessories STAK

Enables EMC-optimised through-wiring according to IEC 60364-5-53

Details

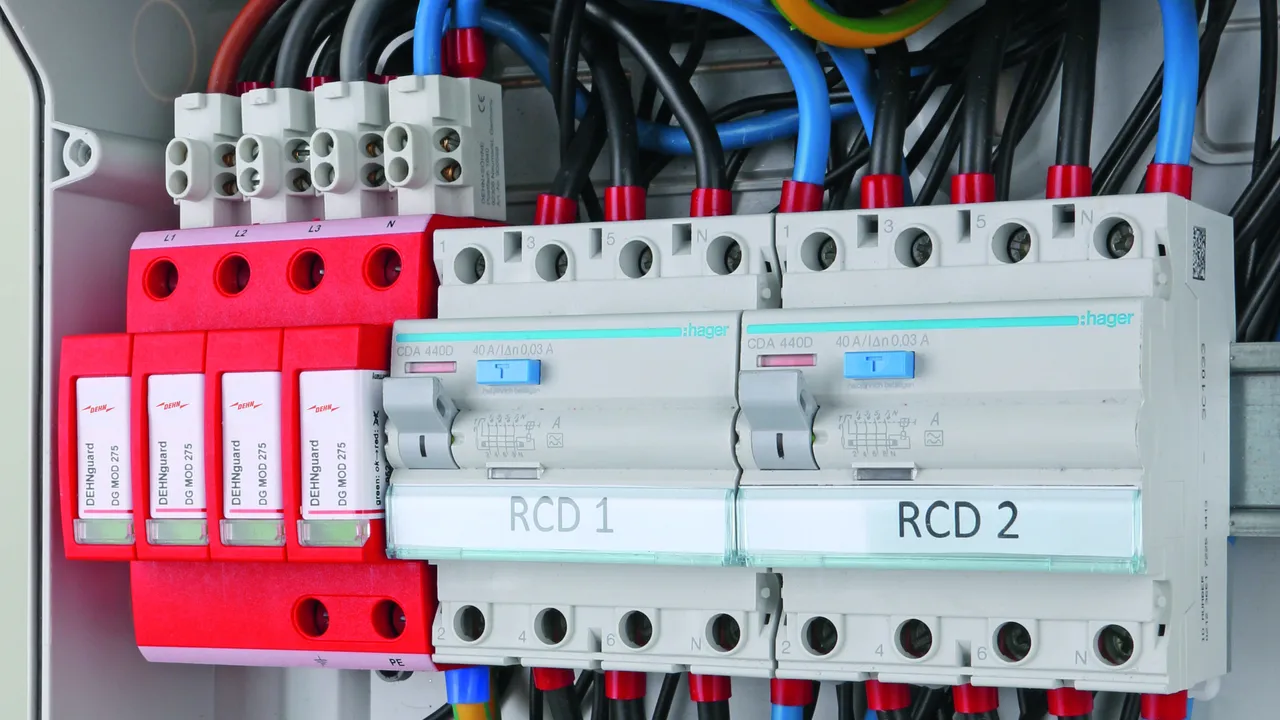

STAK 2X16 for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

lorem ipsum — STAK 2X16 for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

Push-in spring terminal STAK 4X10

1 Product

Part No. 952588 STAK 4X10

GTIN 4013364526624, Customs tariff No. (EU): 85369010, Gross weight: 35.67 g, PU: 2.00 pc(s)

Images

Additional information

Push-in terminal STAK 4X10
Cross-sectional area: 4 x 10 mm²

Brand: DEHN
Type: STAK 4X10
Part No.: 952588
or equivalent.

Certificates

Technical data

Max. continuous operating voltage (AC) (U_C )	275 V
Max. PV voltage (U_CPV )	1500 V
Lightning impulse current (10/350 µs) (I_imp )	6.25 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Cross-sectional area (min.)	1.5 mm² solid / 6 mm² fine-stranded
Cross-sectional area (max.)	10 mm² solid / fine-stranded
Cross-sectional area (min.) with wire end ferrule	1,5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²

Max. continuous operating voltage (AC) (U_C )	275 V
Max. PV voltage (U_CPV )	1500 V
Lightning impulse current (10/350 µs) (I_imp )	6.25 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Short-circuit withstand strength (I_SCPV )	10 kA
Short-circuit withstand strength (I_SCCR )	50 kA
Nominal load current (I_L )	40 A
Operating temperature range (T_U )	-40 °C ... +80 °C
Cross-sectional area (min.)	1.5 mm² solid / 6 mm² fine-stranded
Cross-sectional area (max.)	10 mm² solid / fine-stranded
Cross-sectional area (min.) with wire end ferrule	1,5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
Installation point	Indoor
Dimensions	1 Standard DIN module, DIN 43880
Base part height with STAK 4X10	57 mm

Product 952588 was added to Notepad.

Go to Notepad

Product 952588 was added to the cart.

Go to Web-Shop

STAK 25 Pin-shaped Terminal

Pin-shaped terminal for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

1 Product

Part No. 952589 STAK 25

GTIN 4013364132306, Customs tariff No. (EU): 85369010, Gross weight: 17.40 g, PU: 4.00 pc(s)

Images

Additional information

CAD files

STAK 25 pin-shaped terminal
Pin-shaped terminal for "V-connection" to
surge protective devices up to 25mm²

Brand: DEHN
Type: STAK 25
Part No.: 952589
or equivalent.

Certificates

Technical data

Nominal voltage (a.c. / d.c.) (U_N )	600 V
Max. PV voltage (U_CPV) when used in combination with DEHNguard M YPV ...	1200 V
Nominal load current (a.c.) (I_L )	100 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Discharge current (8/20 µs)	50 kA
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	25 mm² stranded / 16 mm² flexible
Type of connection	front

Nominal voltage (a.c. / d.c.) (U_N )	600 V
Max. PV voltage (U_CPV) when used in combination with DEHNguard M YPV ...	1200 V
Nominal load current (a.c.) (I_L )	100 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Discharge current (8/20 µs)	50 kA
Rated insulation voltage (U_i )	630 V
Rated impulse withstand voltage (U_imp )	6 kV
Operating temperature range (T_U )	-40 °C ... +80 °C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	25 mm² stranded / 16 mm² flexible
Type of connection	front
Suitable for	DEHNguard S, DEHNguard M, DEHNgap C S, DEHNshield, DK 25 feed-through terminal

Product 952589 was added to Notepad.

Go to Notepad

Product 952589 was added to the cart.

Go to Web-Shop

STAK 3X16 Pin-shaped Terminal

Pin-shaped terminal for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

1 Product

Part No. 900588 STAK 3X16

GTIN 4013364323933, Customs tariff No. (EU): 85369010, Gross weight: 40.00 g, PU: 4.00 pc(s)

Images

Open PDF

Additional information

CAD files

Pin-shaped terminal STAK 3X16
Terminal for "V-connection"
Cross-sectional area: 3 x 16 mm2

Brand: DEHN
Type: STAK 3X16
Part No.: 900588
or equivalent.

Certificates

Technical data

Nominal voltage (a.c. / d.c.) (U_N )	690 V / 1500 V
Nominal load current (a.c.) (I_L )	160 A
Load current at V-wiring	80 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	16 mm² stranded / 10 mm² flexible
Type of connection	front

Nominal voltage (a.c. / d.c.) (U_N )	690 V / 1500 V
Nominal load current (a.c.) (I_L )	160 A
Load current at V-wiring	80 A
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Rated insulation voltage (U_i )	1000 V
Rated impulse withstand voltage (U_imp )	8 kV
Operating temperature range (T_U )	-40 °C ... +80 °C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	16 mm² stranded / 10 mm² flexible
Type of connection	front

Product 900588 was added to Notepad.

Go to Notepad

Product 900588 was added to the cart.

Go to Web-Shop

STAK 2X16 Pin-shaped Terminal

Pin-shaped terminal for EMC-optimised through-wiring of lightning current and surge arresters according to IEC 60364-5-53.

1 Product

Part No. 900589 STAK 2X16

GTIN 4013364109339, Customs tariff No. (EU): 85369010, Gross weight: 20.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

STAK 2X16 pin-shaped terminal
Double terminal design for
EMC-optimised feed-through wiring
Cross-sectional area: 2 x 16 mm2

Brand: DEHN
Type: STAK 2X16
Part No.: 900589
or equivalent.

Technical data

Lightning impulse current (10/350 µs) (I_imp )	25 kA
Cross-sectional area (min.)	2x 10 mm²
Cross-sectional area (max.)	2x 16 mm²
Type of connection	front (double terminal)

Product 900589 was added to Notepad.

Go to Notepad

Product 900589 was added to the cart.

Go to Web-Shop
