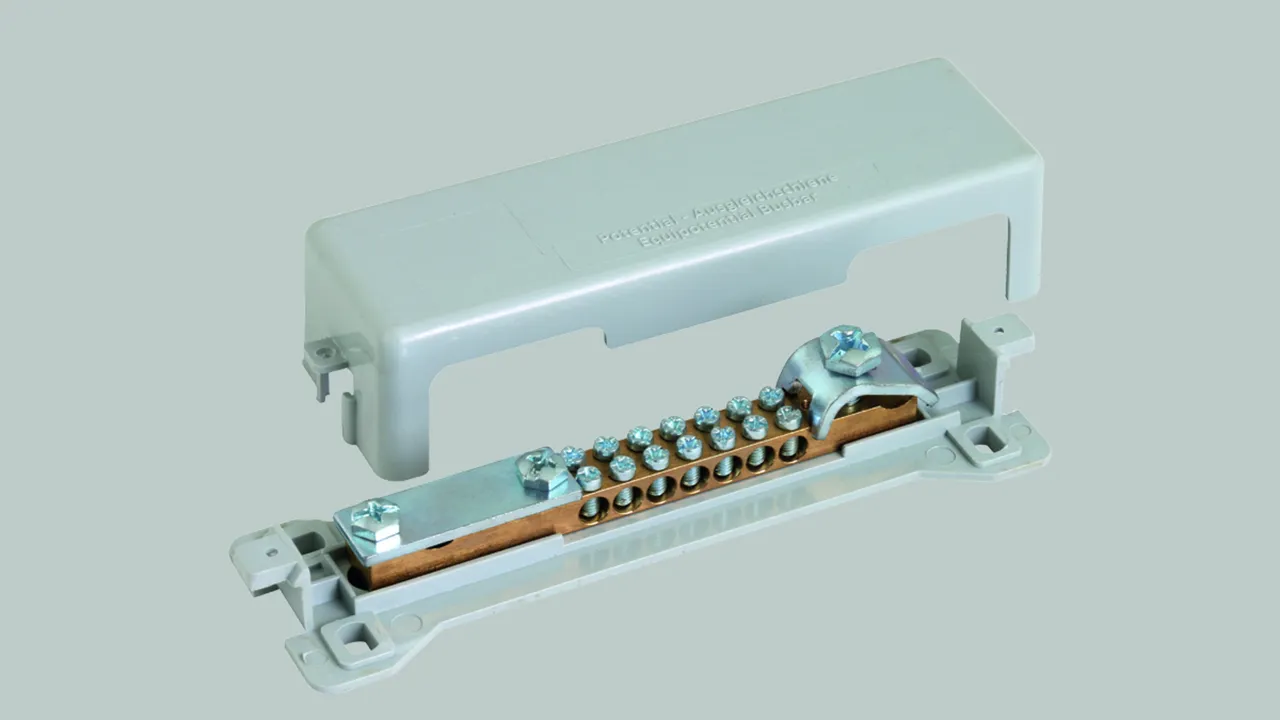

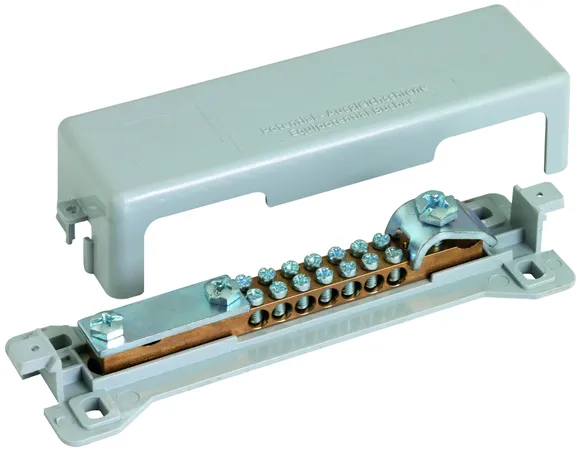

Equipotential Busbar MS

Busbar for equipotential bonding

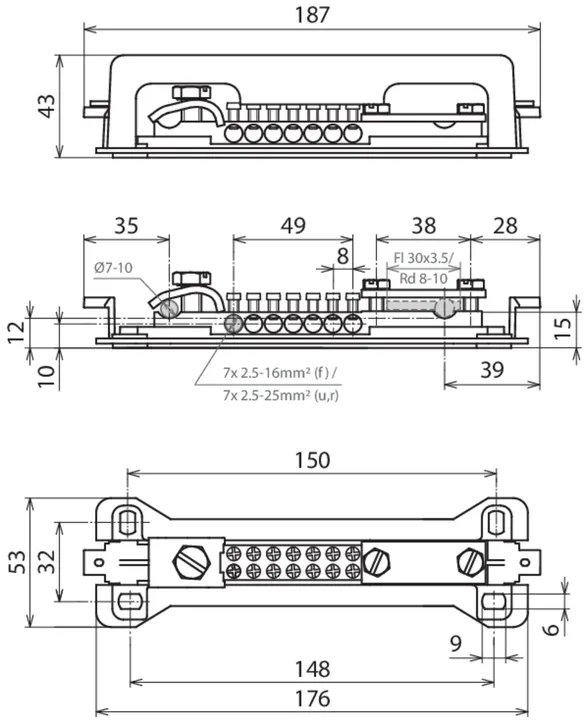

Terminals for:
7 conductors 2.5-25 mm² (solid / stranded)
1 conductor Rd Ø7-10 mm
1 conductor Fl up to 30 x 3.5 mm or Rd Ø8-10 mm

With grey plastic cover.

1 Product

Part No. 563050 PAS 9AK

GTIN 4013364054707, Customs tariff No. (EU): 85359000, Gross weight: 254.00 g, PU: 1.00 pc(s)

Images

Additional information

Equipotential bonding bar MS
MS equipotential bonding bar
For main equipotential bonding according to DIN VDE
0100 Part 410/540

Connection (solid u / stranded r / flexible f): 7 x 2.5-25 mm2 (conductor type u, r); 7 x 2.5-16 mm2 (conductor type f)
Connection Rd: 1 x 7-10 mm2
Connection Fl / Rd: 1 x –30 x 3.5 or 8-10 mm
Contact bar: brass
Cross section: 35 mm2
Fixing: [4x] 6 x 9 mm

Brand: DEHN
Type: PAS 9AK
Part No.: 563050
or equivalent.



Technical data

Contact bar brass
Cross section 35 mm2
Fixing [4x] 6 x 9 mm
