PHE III Voltage Detector

Nominal voltages up to 33 kV / 50 HzSafe verification of isolation from supply voltage

Reliable indication
Easy to use
Cost-effective/space-saving transport

Details

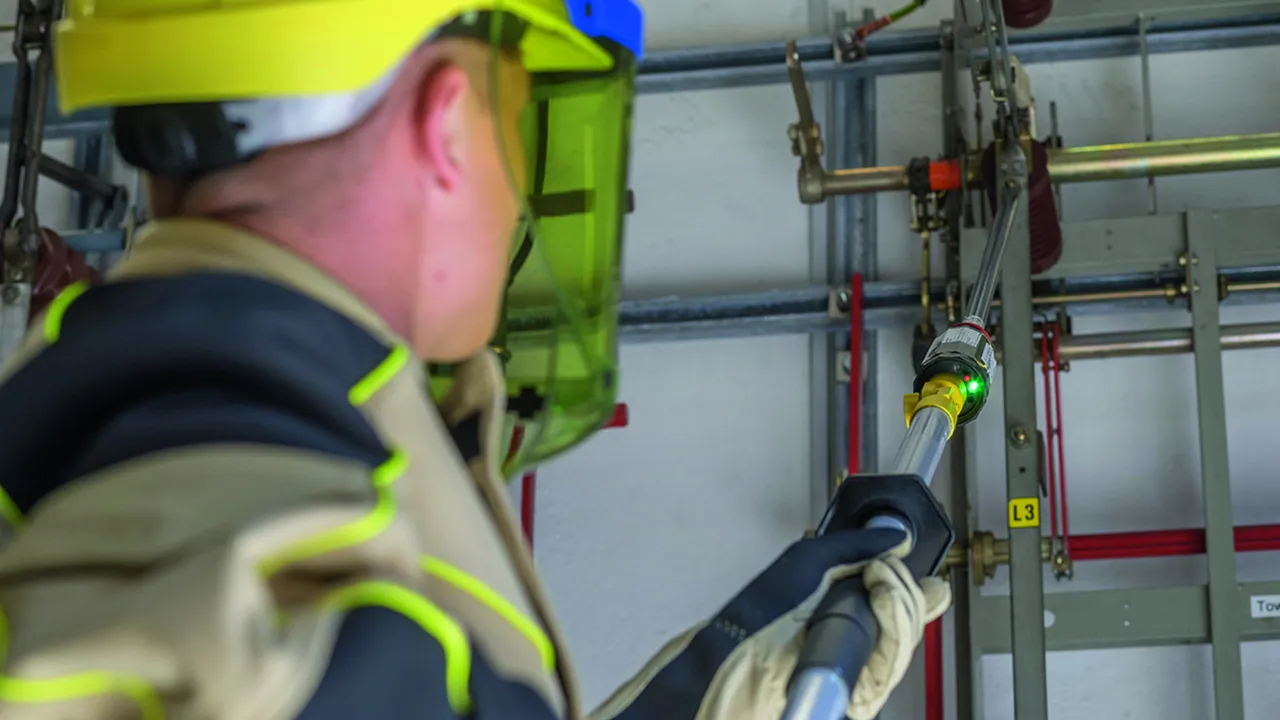

lorem ipsum — Testing with integrated electrode

Testing with screwed-on V-shaped electrode

Plugging a HV STK extension handle into an IS PHE STK insulating stick

Nominal Voltages up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 Products

Part No. 767798 PHE3 3.3 S SN7130

GTIN 4013364160019, Customs tariff No. (EU): 90303370, Gross weight: 1.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3.3 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3.3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767798 was added to Notepad.

Go to Notepad

Product 767798 was added to the cart.

Go to Web-Shop

Part No. 767707 PHE3 6.6 S SN7101

GTIN 4013364131620, Customs tariff No. (EU): 90303370, Gross weight: 2.55 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6.6 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6.6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767707 was added to Notepad.

Go to Notepad

Product 767707 was added to the cart.

Go to Web-Shop

Part No. 767719 PHE3 11 S SN7116

GTIN 4013364131699, Customs tariff No. (EU): 90303370, Gross weight: 2.55 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	11 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	11 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767719 was added to Notepad.

Go to Notepad

Product 767719 was added to the cart.

Go to Web-Shop

Part No. 767756 PHE3 22 S SN7128

GTIN 4013364132047, Customs tariff No. (EU): 90303370, Gross weight: 2.65 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	22 kV
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	22 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767756 was added to Notepad.

Go to Notepad

Product 767756 was added to the cart.

Go to Web-Shop

Part No. 767757 PHE3 33 S SN7129

GTIN 4013364132054, Customs tariff No. (EU): 90303370, Gross weight: 1.83 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	33 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	33 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767757 was added to Notepad.

Go to Notepad

Product 767757 was added to the cart.

Go to Web-Shop

Nominal Voltage Ranges up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 Products

Part No. 767758 PHE3 3.3 11 S SN7127

GTIN 4013364132030, Customs tariff No. (EU): 90303370, Gross weight: 1.86 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3.3 ... 11 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3.3 ... 11 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767758 was added to Notepad.

Go to Notepad

Product 767758 was added to the cart.

Go to Web-Shop

Part No. 767769 PHE3 6.6 22 SN7197

GTIN 4013364139831, Customs tariff No. (EU): 90303370, Gross weight: 1.93 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6.6 ... 22 kV
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6.6 ... 22 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767769 was added to Notepad.

Go to Notepad

Product 767769 was added to the cart.

Go to Web-Shop

Part No. 767773 PHE3 11 33 S SN7264

GTIN 4013364135567, Customs tariff No. (EU): 90303370, Gross weight: 1.90 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Nominal voltage (U_N )	11 ... 33 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	11 ... 33 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767773 was added to Notepad.

Go to Notepad

Product 767773 was added to the cart.

Go to Web-Shop

Nominal Voltage Ranges up to 33 kV / 50 Hz, switchable, M12 Thread

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3.3 kV to 11 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 Product

Part No. 767774 PHE3 U 3.3 33 SN7108

GTIN 4013364131637, Customs tariff No. (EU): 90303370, Gross weight: 2.00 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor switchgear installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 767774 was added to Notepad.

Go to Notepad

Product 767774 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

PHE III Voltage Detector

Details

Nominal Voltages up to 33 kV / 50 Hz, M12 Thread

Part No. 767798 PHE3 3.3 S SN7130

Product 767798 was added to Notepad.

Product 767798 was added to the cart.

Part No. 767707 PHE3 6.6 S SN7101

Product 767707 was added to Notepad.

Product 767707 was added to the cart.

Part No. 767719 PHE3 11 S SN7116

Product 767719 was added to Notepad.

Product 767719 was added to the cart.

Part No. 767756 PHE3 22 S SN7128

Product 767756 was added to Notepad.

Product 767756 was added to the cart.

Part No. 767757 PHE3 33 S SN7129

Product 767757 was added to Notepad.

Product 767757 was added to the cart.

Nominal Voltage Ranges up to 33 kV / 50 Hz, M12 Thread

Part No. 767758 PHE3 3.3 11 S SN7127

Product 767758 was added to Notepad.

Product 767758 was added to the cart.

Part No. 767769 PHE3 6.6 22 SN7197

Product 767769 was added to Notepad.

Product 767769 was added to the cart.

Part No. 767773 PHE3 11 33 S SN7264

Product 767773 was added to Notepad.

Product 767773 was added to the cart.

Nominal Voltage Ranges up to 33 kV / 50 Hz, switchable, M12 Thread

Part No. 767774 PHE3 U 3.3 33 SN7108

Product 767774 was added to Notepad.

Product 767774 was added to the cart.
