Connection Brackets

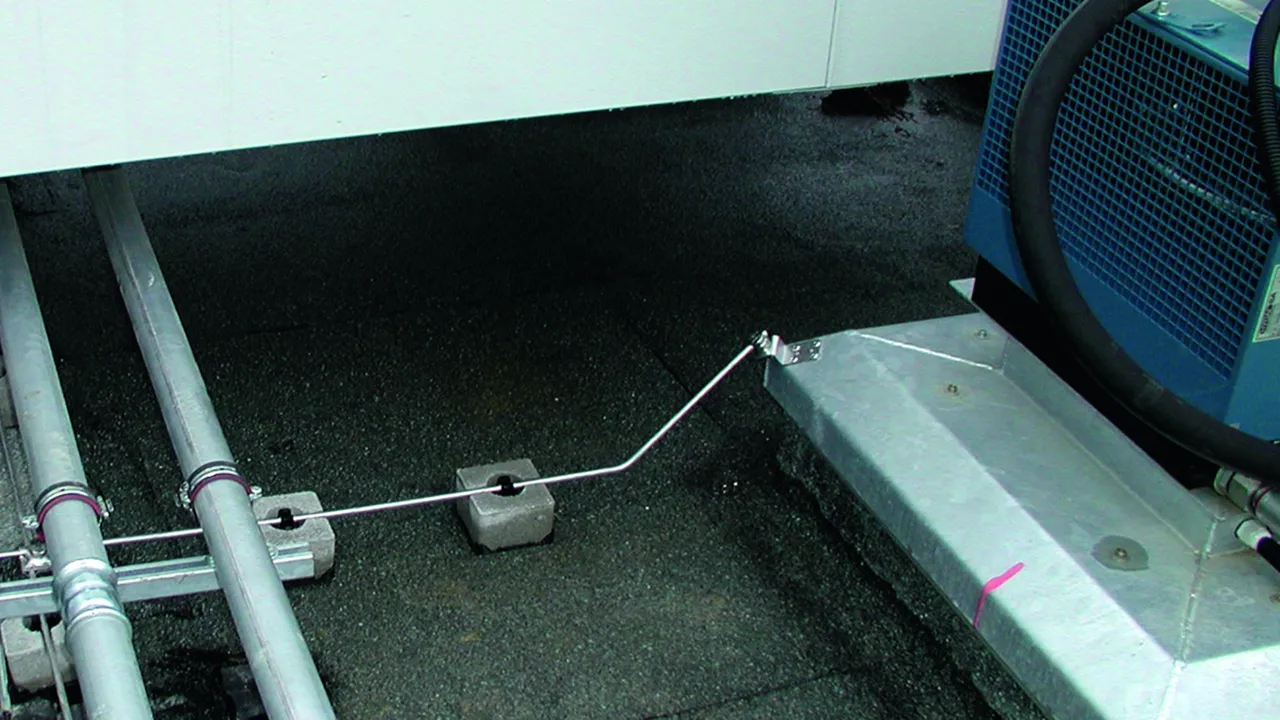

For connecting metal cladding using blind rivets or screws.

With square hole

Dimensions 11 x 11 mm (e.g. for M10 KS connector), longitudinal or cross connection.

3 Products

Part No. 377005 AL ZF B11.11 B5.2 6.5 L81 AL

GTIN 4013364024908, Customs tariff No. (EU): 85359000, Gross weight: 23.90 g, PU: 50.00 pc(s)

Images

Additional information

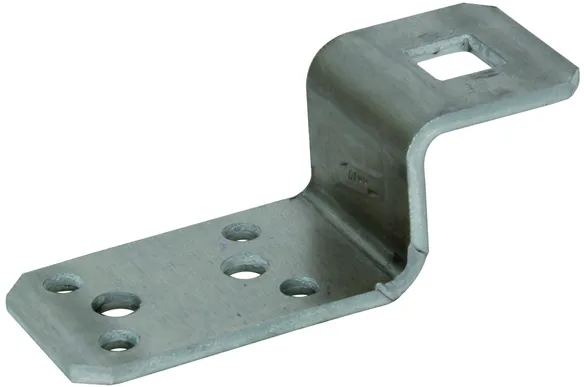

Connection bracket with square hole, Al
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 AL
Part No.: 377005
or equivalent.

Certificates



Technical data

Material of bracket Al
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377005 was added to Notepad.

Go to Notepad

Product 377005 was added to the cart.

Go to Web-Shop

Part No. 377017 AL ZF B11.11 B5.2 6.5 L81 CU

GTIN 4013364024915, Customs tariff No. (EU): 85359000, Gross weight: 51.20 g, PU: 50.00 pc(s)

Images

Additional information

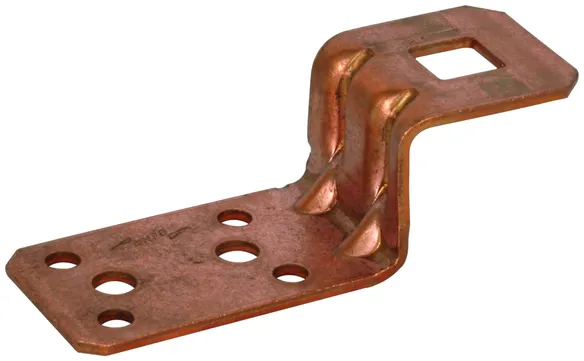

Connection bracket with square hole, Cu
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: Cu
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 CU
Part No.: 377017
or equivalent.

Certificates



Technical data

Material of bracket Cu
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377017 was added to Notepad.

Go to Notepad

Product 377017 was added to the cart.

Go to Web-Shop

Part No. 377009 AL ZF B11.11 B5.2 6.5 L81 V2A

GTIN 4013364119284, Customs tariff No. (EU): 85359000, Gross weight: 54.10 g, PU: 50.00 pc(s)

Images

Additional information

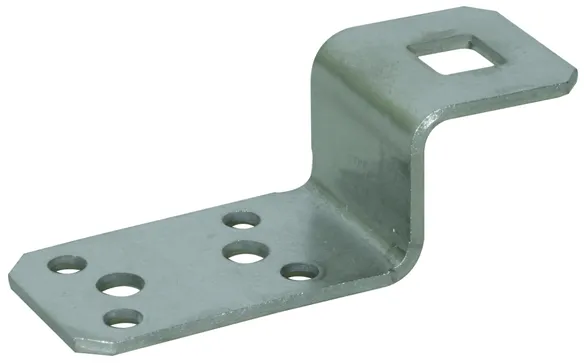

Connection bracket with square hole, StSt
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: StSt
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 V2A
Part No.: 377009
or equivalent.

Certificates



Technical data

Material of bracket StSt
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377009 was added to Notepad.

Go to Notepad

Product 377009 was added to the cart.

Go to Web-Shop

With clamping piece

Longitudinal or cross connection.

3 Products

Part No. 377100 AL ZF KB 6.10STTZN B5.2 6.5 L81 AL

GTIN 4013364078604, Customs tariff No. (EU): 85359000, Gross weight: 76.00 g, PU: 50.00 pc(s)

Images

Additional information

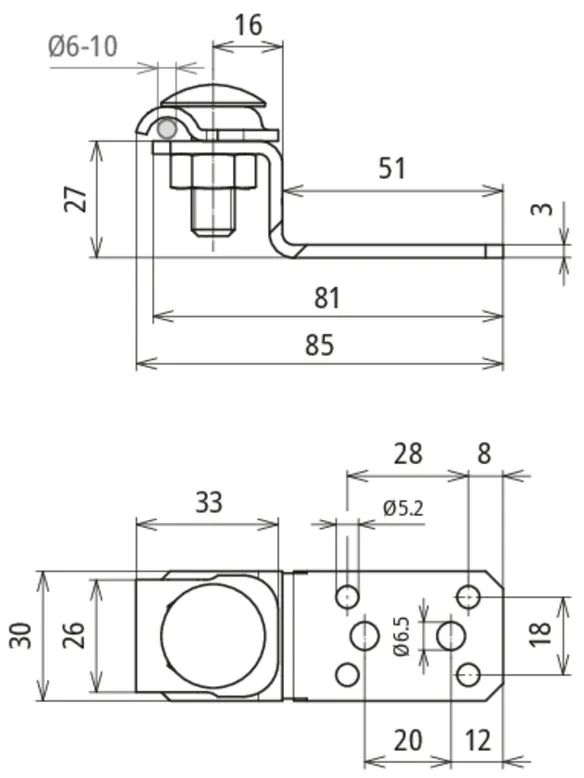

Connection bracket with clamping piece
Connection bracket for connecting metal cladding
using blind rivets or screws
With clamping piece for Rd 6-10 mm conductors
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece: St/tZn
Screw: M10 x 30 mm
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF KB 6.10STTZN B5.2 6.5 L81 AL
Part No.: 377100
or equivalent.

Certificates



Technical data

Material of bracket Al
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377100 was added to Notepad.

Go to Notepad

Product 377100 was added to the cart.

Go to Web-Shop

Part No. 377117 AL ZF KB 6.10CU B5.2 6.5 L81 CU

GTIN 4013364524781, Gross weight: 110.00 g, PU: 1.00 pc(s)

Images

Additional information


Material of bracket: Cu
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece: Cu
Screw: M10 x 30 mm
Clamping range Rd: 6-10 mm

Brand: DEHN
Type: AL ZF KB 6.10CU B5.2 6.5 L81 CU
Part No.: 377117
or equivalent.



Technical data

Material of bracket Cu
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece Cu
Clamping range Rd 6-10 mm
*) For exact assignment, see test certificate.

Product 377117 was added to Notepad.

Go to Notepad

Product 377117 was added to the cart.

Go to Web-Shop

Part No. 377109 AL ZF KB 6.10V2A B5.2 6.5 L81 V2A

GTIN 4013364524743, Gross weight: 120.00 g, PU: 1.00 pc(s)

Images

Additional information


Material of bracket: StSt
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece: StSt
Screw: M10 x 30 mm
Clamping range Rd: 6-10 mm

Brand: DEHN
Type: AL ZF KB 6.10V2A B5.2 6.5 L81 V2A
Part No.: 377109
or equivalent.



Technical data

Material of bracket StSt
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece StSt
Clamping range Rd 6-10 mm
*) For exact assignment, see test certificate.

Product 377109 was added to Notepad.

Go to Notepad

Product 377109 was added to the cart.

Go to Web-Shop

With double clamp

Longitudinal or cross connection.

3 Products

Part No. 377200 AL ZF DUL 6.10 B5.2 6.5 L81 AL

GTIN 4013364136465, Customs tariff No. (EU): 85359000, Gross weight: 72.40 g, PU: 50.00 pc(s)

Images

Additional information

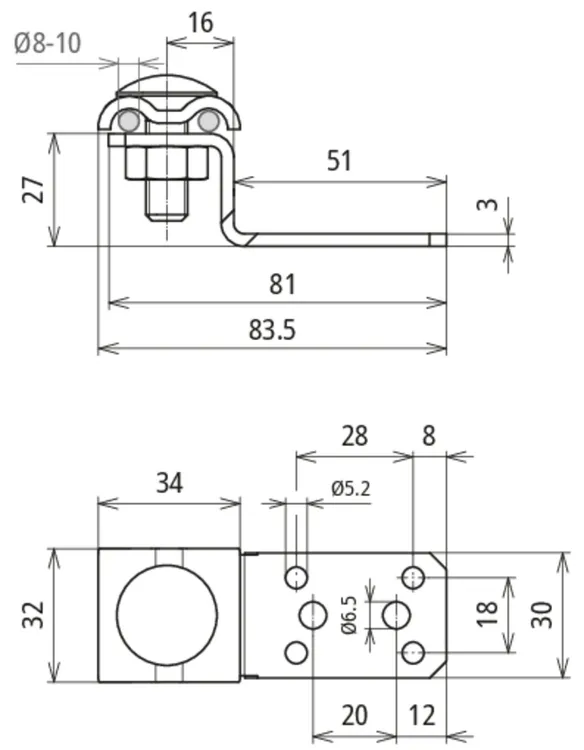

Connection bracket with double clamp, Al
Connection bracket for connecting metal cladding
using blind rivets or screws
With double clamp for Rd 8-10 mm conductors
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp: Al
Screw: M10 x 30 mm
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF DUL 6.10 B5.2 6.5 L81 AL
Part No.: 377200
or equivalent.

Certificates



Technical data

Material of bracket Al
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp Al
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377200 was added to Notepad.

Go to Notepad

Product 377200 was added to the cart.

Go to Web-Shop

Part No. 377201 AL ZF DUL 6.10 B5.2 6.5 L81 STTZN

GTIN 4013364525122, Customs tariff No. (EU): 85359000, Gross weight: 117.50 g, PU: 50.00 pc(s)

Images

Additional information

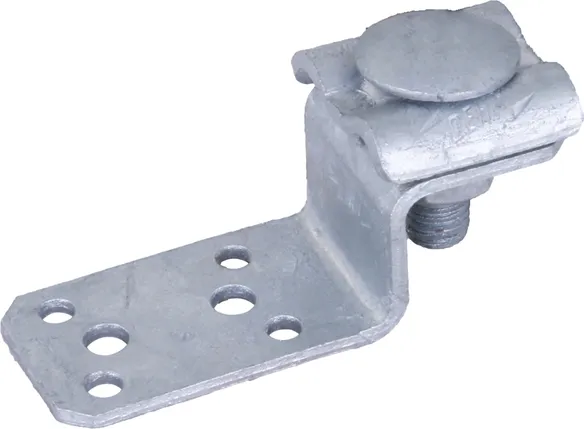

Connection bracket with double clamp, HDG steel
Connection brackets for connecting
metal cladding using blind rivets
or screws
With double clamp for Rd. 8-10 mm conductors
Material of bracket: HDG steel
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp: HDG steel
Screw: M10 x 30 mm
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF DUL 6.10 B5.2 6.5 L81 STTZN
Part No.: 377201
or equivalent.

Certificates



Technical data

Material of bracket HDG steel
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp HDG steel
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377201 was added to Notepad.

Go to Notepad

Product 377201 was added to the cart.

Go to Web-Shop

Part No. 377209 AL ZF DUL 6.10 B5.2 6.5 L81 V2A

GTIN 4013364525139, Customs tariff No. (EU): 85359000, Gross weight: 111.65 g, PU: 50.00 pc(s)

Images

Additional information

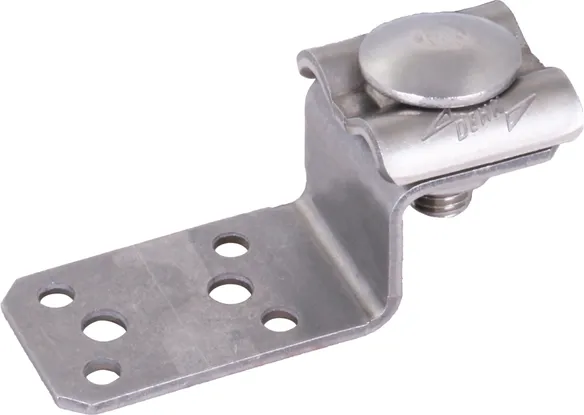

Connection bracket with double clamp, stainless steel
Connection brackets for connecting
metal cladding using blind rivets
or screws
With double clamp for Rd. 8-10 mm conductors
Material of bracket: StSt
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp: StSt
Screw: M10 x 30 mm
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF DUL 6.10 B5.2 6.5 L81 V2A
Part No.: 377209
or equivalent.

Certificates



Technical data

Material of bracket StSt
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377209 was added to Notepad.

Go to Notepad

Product 377209 was added to the cart.

Go to Web-Shop
