Cross Units for Aboveground Connections

of conductors in cross, parallel and T arrangement.

Without intermediate plate

2 Products

Part No. 314300 KS 8.10 8.10 FL30 OV STTZN

GTIN 4013364096400, Customs tariff No. (EU): 85359000, Gross weight: 122.30 g, PU: 50.00 pc(s)

Images

Additional information

Cross units for aboveground connections without intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV STTZN
Part No.: 314300
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm

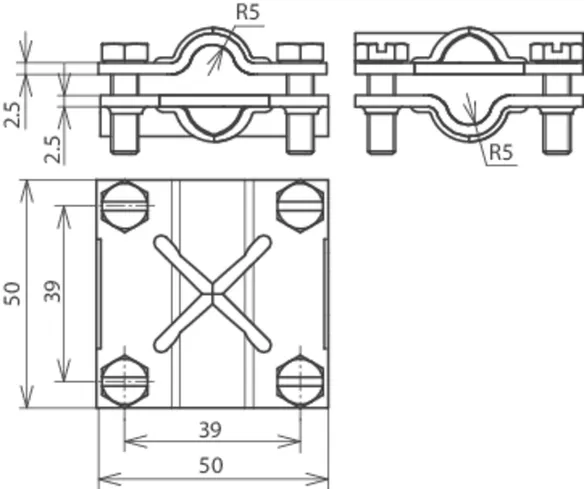

Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 314300 was added to Notepad.

Go to Notepad

Product 314300 was added to the cart.

Go to Web-Shop

Part No. 314307 KS 8.10 8.10 FL30 OV CU

GTIN 4013364096417, Customs tariff No. (EU): 85359000, Gross weight: 134.30 g, PU: 50.00 pc(s)

Images

Additional information

Cross units for aboveground connections without intermediate plate, Cu
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Clamping range (stranded / cable): 35-70 mm2
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV CU
Part No.: 314307
or equivalent.

Certificates



Technical data

Material of clamp Cu
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Clamping range (stranded / cable) 35-70 mm2
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 314307 was added to Notepad.

Go to Notepad

Product 314307 was added to the cart.

Go to Web-Shop

With intermediate plate

1 Product

Part No. 314310 KS 8.10 8.10 FL30 OV ZP STTZN

GTIN 4013364042841, Customs tariff No. (EU): 85359000, Gross weight: 176.80 g, PU: 50.00 pc(s)

Images

Additional information

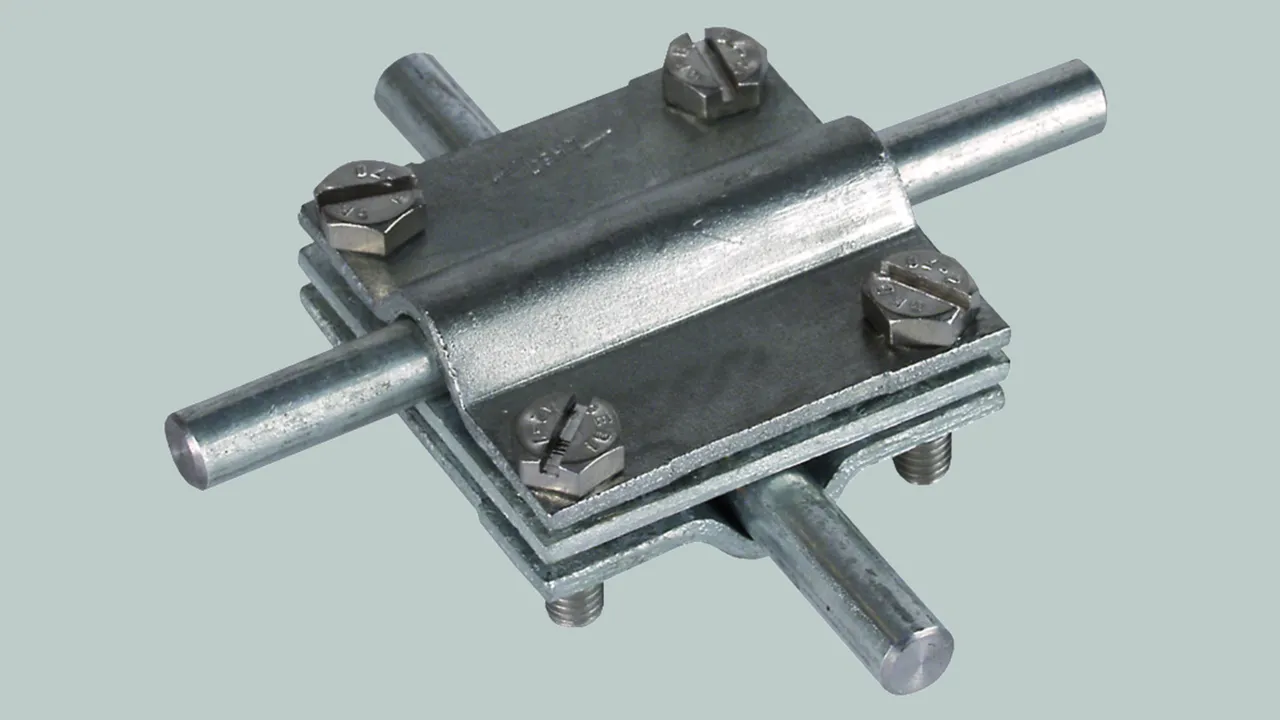

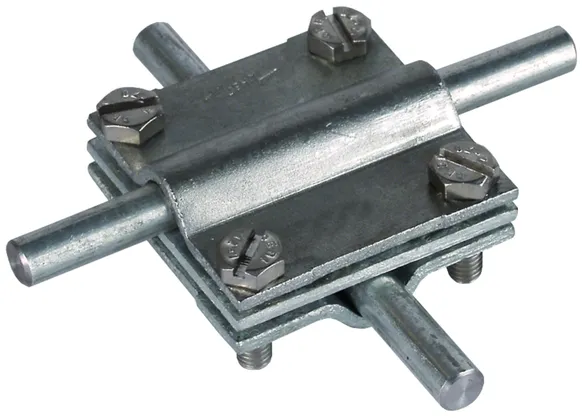

Cross units for aboveground connections with intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV ZP STTZN
Part No.: 314310
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 314310 was added to Notepad.

Go to Notepad

Product 314310 was added to the cart.

Go to Web-Shop

With intermediate plate, e.g. for air-termination rods

2 Products

Part No. 316163 KS 16 8.10 FL30 OV ZP STTZN

GTIN 4013364024502, Customs tariff No. (EU): 85359000, Gross weight: 195.00 g, PU: 1.00 pc(s)

Images

Additional information

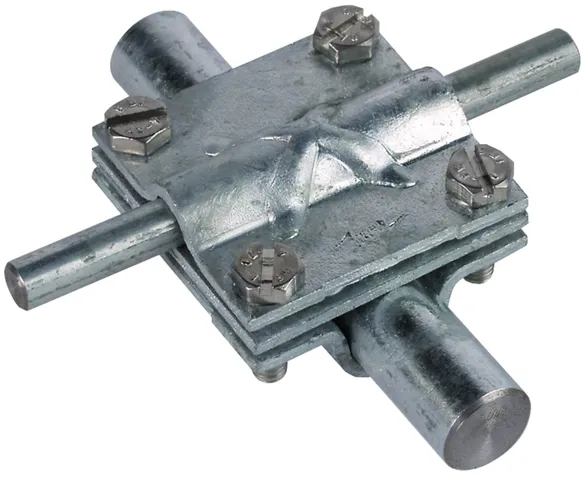

Cross units for aboveground connections with intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors with the air-termination rod
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 16 8.10 FL30 OV ZP STTZN
Part No.: 316163
or equivalent.

Certificates



Technical data

Material of clamp St/tZn
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm

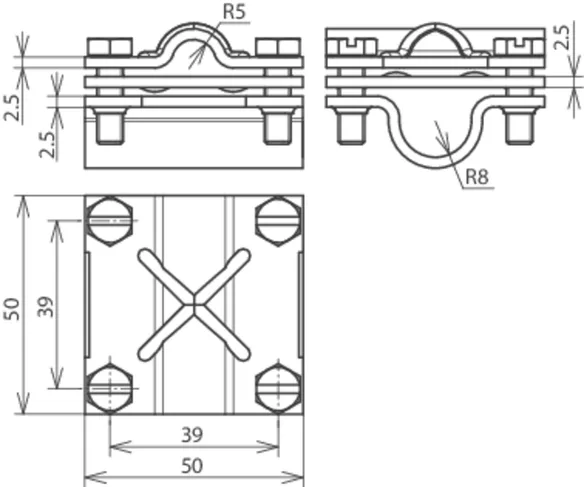

Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 316163 was added to Notepad.

Go to Notepad

Product 316163 was added to the cart.

Go to Web-Shop

Part No. 316167 KS 16 8.10 FL30 OV ZP CU

GTIN 4013364035386, Customs tariff No. (EU): 85359000, Gross weight: 213.40 g, PU: 25.00 pc(s)

Images

Additional information

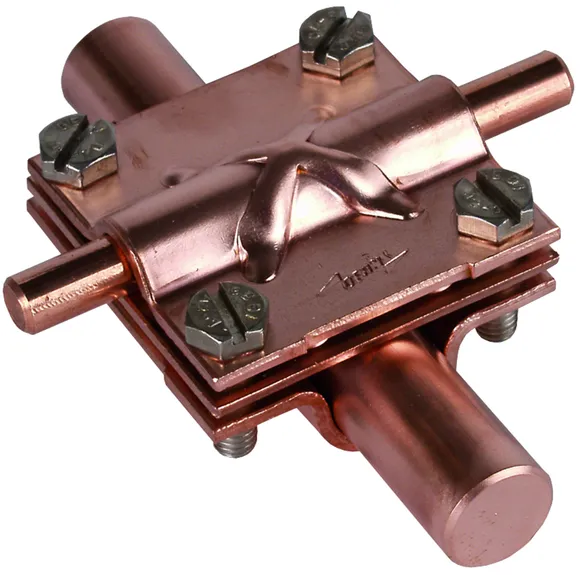

Cross units for aboveground connections with intermediate plate, Cu
Cross units for aboveground connections
for connecting conductors with the air-termination rod
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
Clamping range (stranded / cable): 35-120 mm2
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 16 8.10 FL30 OV ZP CU
Part No.: 316167
or equivalent.

Certificates



Technical data

Material of clamp Cu
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm
Clamping range (stranded / cable) 35-120 mm2
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 316167 was added to Notepad.

Go to Notepad

Product 316167 was added to the cart.

Go to Web-Shop
