Rod Holders DEHNfix

Two-in-one holder system (fixing of holder and conductor), fixed conductor leading.

Only suitable for massive stones or concrete.

1 Product

Part No. 252000 SH DFI 16 STTZN H42 GR

GTIN 4013364023963, Customs tariff No. (EU): 85389099, Gross weight: 47.20 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

DEHNfix rod holder
DEHNfix rod holder system with 2 functions (fixing the holder and
the conductor), fixed conductor leading, UV-stabilised
Material of cleat: St/tZn
Material of base part: plastic
Conductor holder support Rd: 16 mm
Knock-in dowel: 100 / 60 mm

Brand: DEHN
Type: SH DFI 16 STTZN H42 GR
Part No.: 252000
or equivalent.

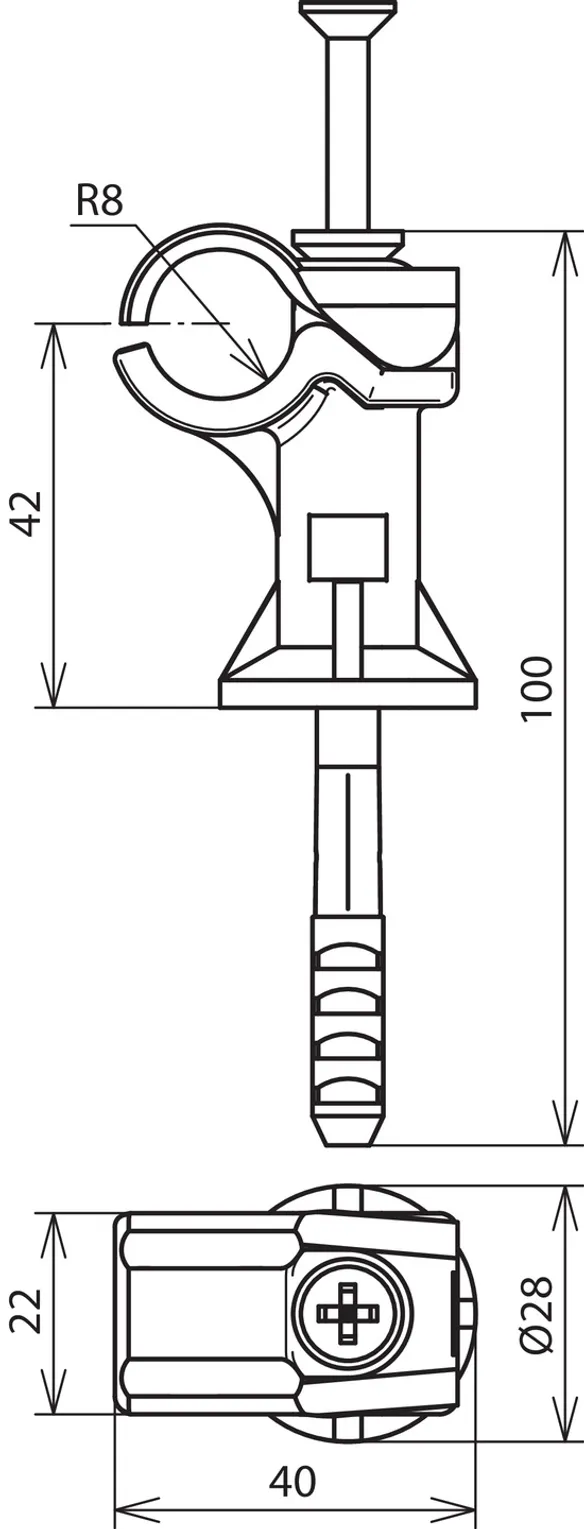

Technical data

Material of cleat St/tZn
Material of base part plastic
Colour of conductor holder grey ●
Installation height of base part 42 mm
Conductor holder support Rd 16 mm
Knock-in dowel 100 / 60 mm
Bore Ø for knock-in dowel 10 mm
Bore depth 60 mm
