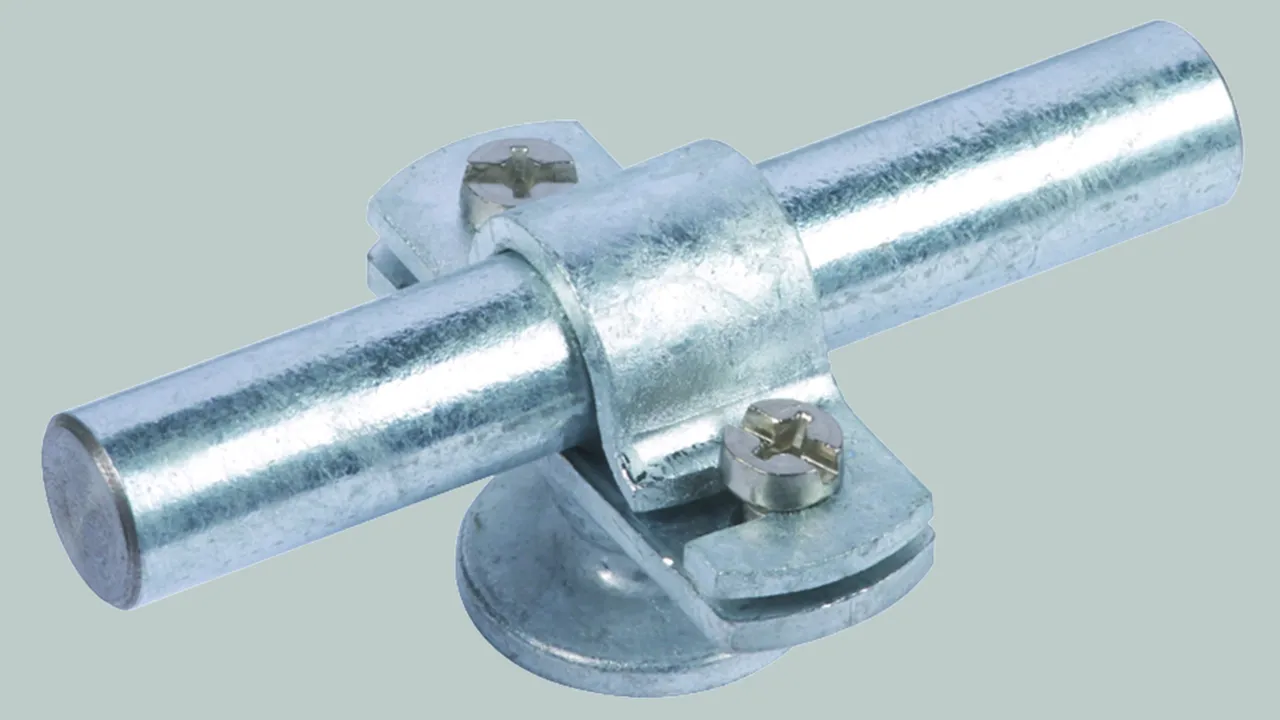

Rod Holders with Cleat and Flange

Complete unit with flange for the installation of air-termination rods and earth entry rods, fixed conductor leading.

With female thread

1 Product

Part No. 275116 SH ZS 16 M8 V2A

GTIN 4013364095823, Customs tariff No. (EU): 85389099, Gross weight: 98.00 g, PU: 50.00 pc(s)

Images

Additional information

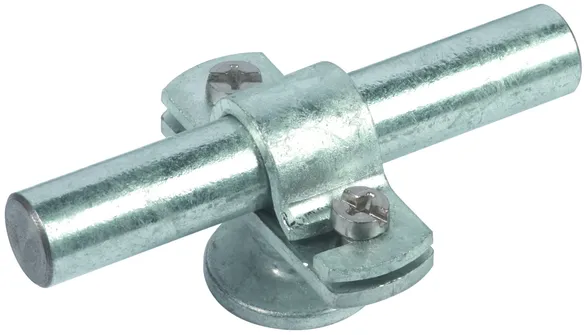

Rod holder with cleat and flange
Rod holder with cleat and flange
Complete unit with flange for installation of
air-termination and earth entry rods,
for Rd conductors 16 mm,
fixed conductor leading
Material of cleat: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: SH ZS 16 M8 V2A
Part No.: 275116
or equivalent.

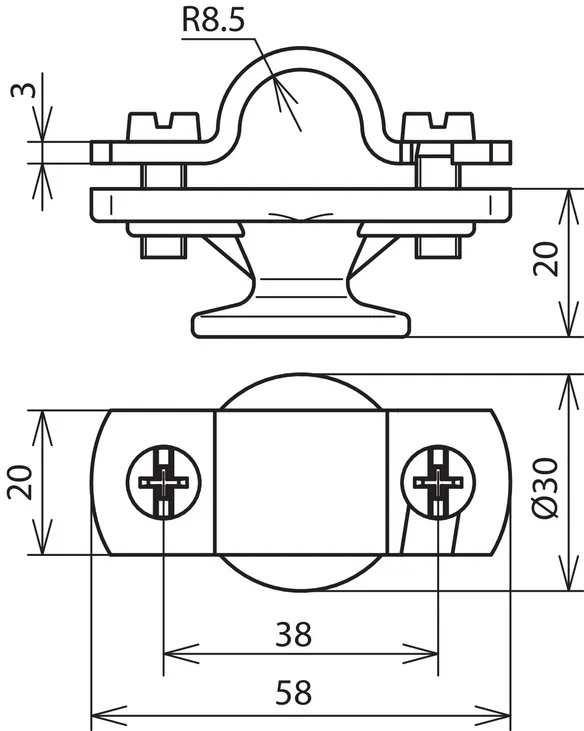

Technical data

Conductor holder support Rd 16 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of cleat St/tZn
Material of base part ZDC

Product 275116 was added to Notepad.

Go to Notepad

Product 275116 was added to the cart.

Go to Web-Shop

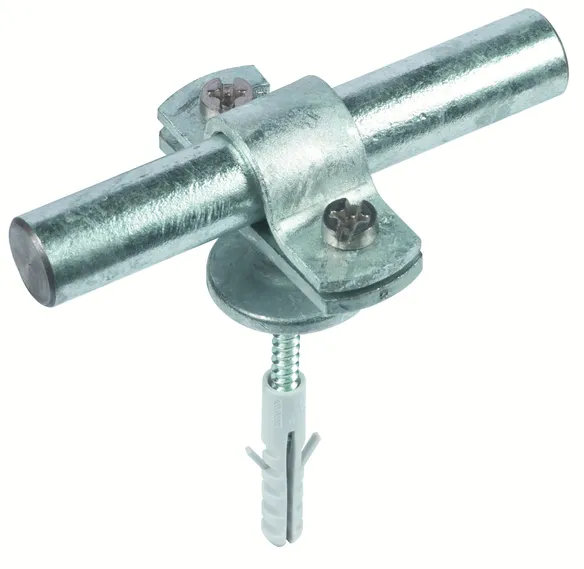

Pre-assembled with screw and dowel

1 Product

Part No. 275260 SH ZS 16 KD8X40 STTZN ZG

GTIN 4013364095830, Customs tariff No. (EU): 85389099, Gross weight: 102.30 g, PU: 50.00 pc(s)

Images

Additional information

Rod holder with cleat and flange (premounted)
Rod holder with cleat and flange
Complete unit with flange for installation of
air-termination and earth entry rods,
for Rd conductors 16 mm,
fixed conductor leading
Premounted with screw and dowel
Material of cleat: St/tZn
Material of base part: ZDC
Screw: 5 x 50 mm

Brand: DEHN
Type: SH ZS 16 KD8X40 STTZN ZG
Part No.: 275260
or equivalent.

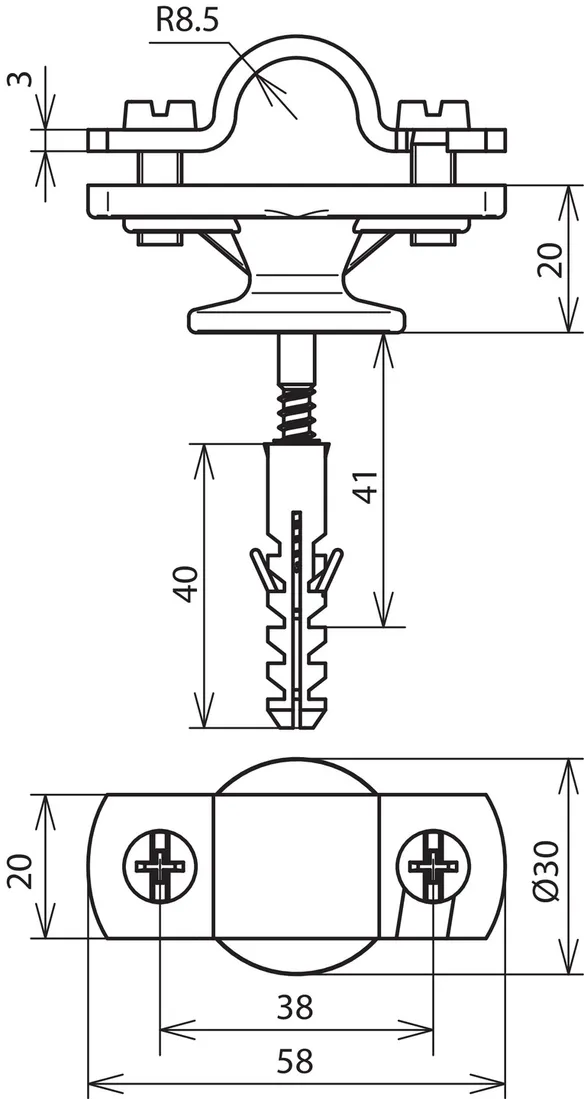

Technical data

Conductor holder support Rd 16 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of cleat St/tZn
Material of base part ZDC
Screw ak 5 x 50 mm
Plastic dowel Ø8 x 40 mm
