Roof Conductor Holders with Adhesive Pad

For installing air-termination systems, e.g. on trapezoidal roofs.
The conductor holder can be used on smooth (unstructured) surfaces such as metal roofs / metal surfaces. The conductor holders are stuck to the roof (remove protective backing).

Clean the surface with the special cleaning liquid (Part No. 297 199) as indicated in the installation instructions.
One litre of the special cleaner is sufficient for approx. 1000 adhesive pads.
The roof conductor holders shall be installed at a temperature of ≥ +15 °C.
Robust, weather-resistant and UV-stabilsed type, halogen-free.

DEHNsnap conductor holder with formable aluminium brace

1 Product

Part No. 297130 DLH DS 8 H16 KP K AL

GTIN 4013364492523, Customs tariff No. (EU): 85389099, Gross weight: 19.84 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

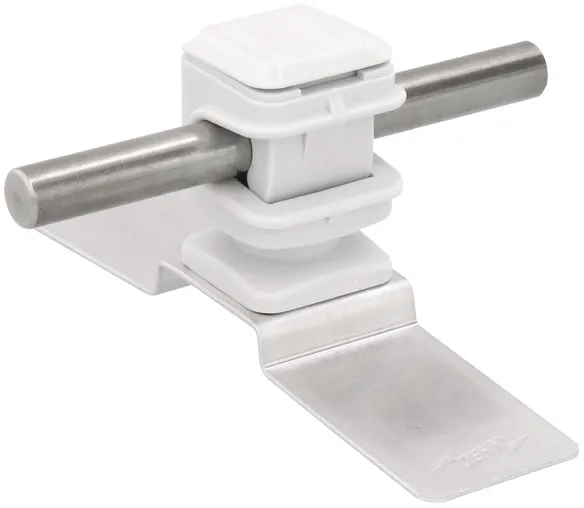

Roof conductor holder with aluminium brace and adhesive pad (DEHNsnap)
Roof conductor holder with adhesive pad and
formable aluminium brace for installing
air-termination systems on

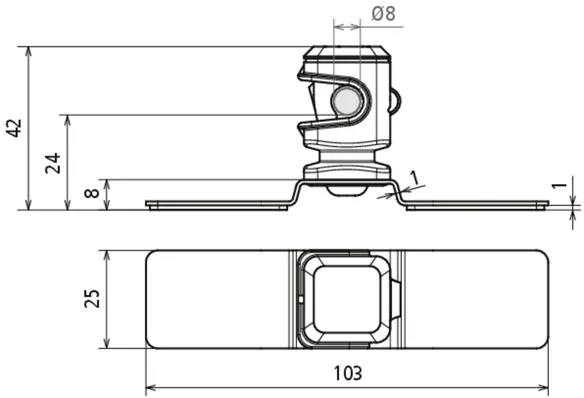

different sheet roof shapes.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Brace material: Aluminium – formable
Material of conductor holder: Plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Type of conductor holder: DEHNsnap
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H16 KP K AL
Part No.: 297130
or equivalent.

Technical data

Brace material	Aluminium – formable
Material of conductor holder	Plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm
Type of conductor holder	DEHNsnap
Height of conductor holder	16 mm
Conductor routing	loose
Dimensions	as per CAD

Brace material	Aluminium – formable
Material of conductor holder	Plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm
Type of conductor holder	DEHNsnap
Height of conductor holder	16 mm
Female thread	M6
Conductor routing	loose
Dimensions	as per CAD
Adherend	1600 mm²
Tensile strength	940 N
Transverse resistance (dynamic)	760 N

Product 297130 was added to Notepad.

Go to Notepad

Product 297130 was added to the cart.

Go to Web-Shop

DEHNgrip conductor holder with formable aluminium brace

1 Product

Part No. 297140 DLH DG 8 H20 KP V2A AL

GTIN 4013364492530, Customs tariff No. (EU): 85389099, Gross weight: 28.40 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

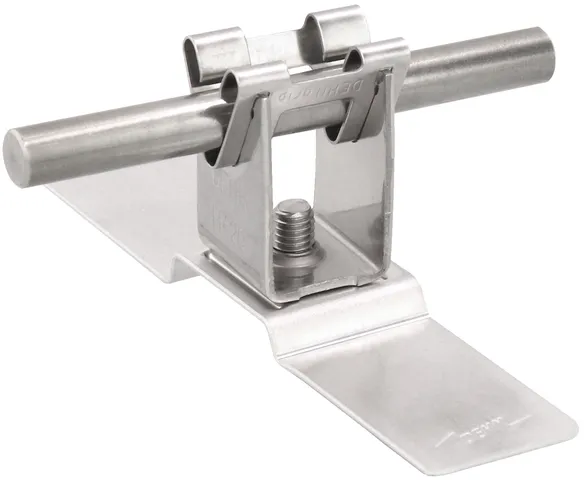

Roof conductor holder with aluminium brace and adhesive pad (DEHNgrip)
Roof conductor holder with adhesive pad and
formable aluminium brace for installing
air-termination systems on
different sheet roof shapes.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Brace material: Aluminium – formable
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Type of conductor holder: DEHNgrip
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H20 KP V2A AL
Part No.: 297140
or equivalent.

Technical data

Brace material	Aluminium – formable
Material of conductor holder	StSt
Conductor support Rd	8 mm
Type of conductor holder	DEHNgrip
Height of conductor holder	20 mm
Conductor routing	loose
Dimensions	as per CAD

Brace material	Aluminium – formable
Material of conductor holder	StSt
Conductor support Rd	8 mm
Type of conductor holder	DEHNgrip
Height of conductor holder	20 mm
Female thread	M6
Conductor routing	loose
Dimensions	as per CAD
Adherend	1600 mm²
Tensile strength	940 N
Transverse resistance (dynamic)	760 N

Product 297140 was added to Notepad.

Go to Notepad

Product 297140 was added to the cart.

Go to Web-Shop

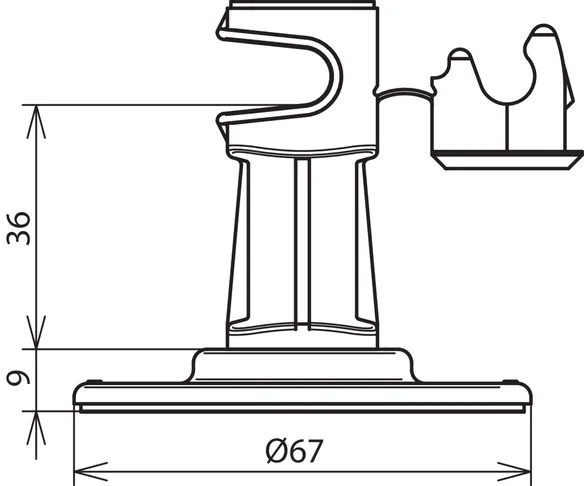

DEHNsnap conductor holder with base plate

1 Product

Part No. 297110 DLH DS 8 H36 KP67 K GR

GTIN 4013364100886, Customs tariff No. (EU): 85389099, Gross weight: 34.72 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

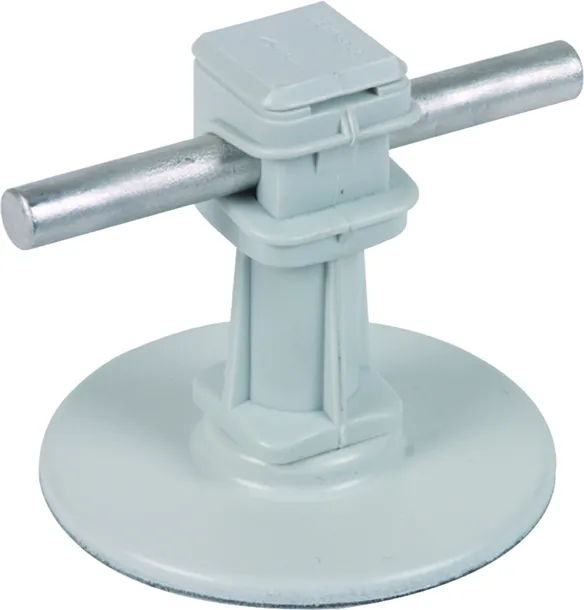

Roof conductor holder with adhesive pad (DEHNsnap)
Roof conductor holder with adhesive pad for
installing air-termination systems, e.g.
on trapezoidal sheet roofs.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Base plate material: plastic
Base plate colour: grey ●
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Type of conductor holder: DEHNsnap
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H36 KP67 K GR
Part No.: 297110
or equivalent.

Certificates

Technical data

Base plate material	plastic
Base plate colour	grey ●
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm
Type of conductor holder	DEHNsnap
Height of conductor holder	36 mm
Conductor routing	loose
Dimensions	Ø 67 mm

Base plate material	plastic
Base plate colour	grey ●
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor support Rd	8 mm
Type of conductor holder	DEHNsnap
Height of conductor holder	36 mm
Female thread	M6
Conductor routing	loose
Dimensions	Ø 67 mm
Adherend	3000 mm²
Tensile strength	1770 N
Transverse resistance (dynamic)	1440 N

Product 297110 was added to Notepad.

Go to Notepad

Product 297110 was added to the cart.

Go to Web-Shop

DEHNgrip conductor holder with base plate

1 Product

Part No. 297120 DLH DG 8 H32 KP67 V2A K GR

GTIN 4013364100916, Customs tariff No. (EU): 85389099, Gross weight: 46.00 g, PU: 50.00 pc(s)

Images

Open PDF

Additional information

CAD files

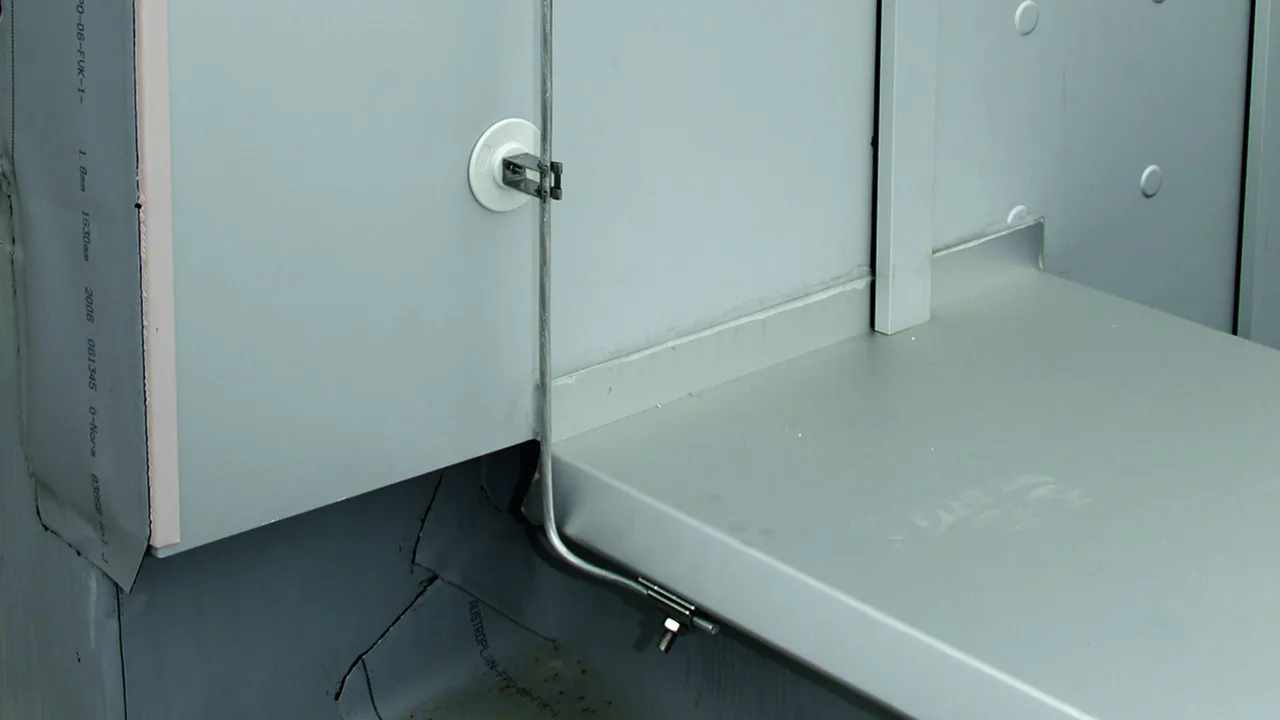

Roof conductor holder with adhesive pad (DEHNgrip)
Roof conductor holder with adhesive pad for
installing air-termination systems, e.g.
on trapezoidal sheet roofs.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Base plate material: plastic
Base plate colour: grey ●
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Type of conductor holder: DEHNgrip
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H32 KP67 V2A K GR
Part No.: 297120
or equivalent.

Technical data

Base plate material	plastic
Base plate colour	grey ●
Material of conductor holder	StSt
Conductor support Rd	8 mm
Type of conductor holder	DEHNgrip
Height of conductor holder	32 mm
Conductor routing	loose
Dimensions	Ø 67 mm
Standard	EN 62561-4

Base plate material	plastic
Base plate colour	grey ●
Material of conductor holder	StSt
Conductor support Rd	8 mm
Type of conductor holder	DEHNgrip
Height of conductor holder	32 mm
Female thread	M6
Conductor routing	loose
Dimensions	Ø 67 mm
Adherend	3000 mm²
Tensile strength	1770 N
Transverse resistance (dynamic)	1440 N
Standard	EN 62561-4

Product 297120 was added to Notepad.

Go to Notepad

Product 297120 was added to the cart.

Go to Web-Shop
