DEHNguard EZ

Type 1 SPD for superior surge protection
UL 4X listed enclosure for harsh environments
Serviceable design for easy maintenance
Prewired for quick, hassle-free installation
Suitable for residential and commercial applications
Compact size for easy integration
Visual status indicator visible without power, Mechanical flag shows protection status at a glance
UL 1449 listed for safety and performance
Available in various voltage configurations

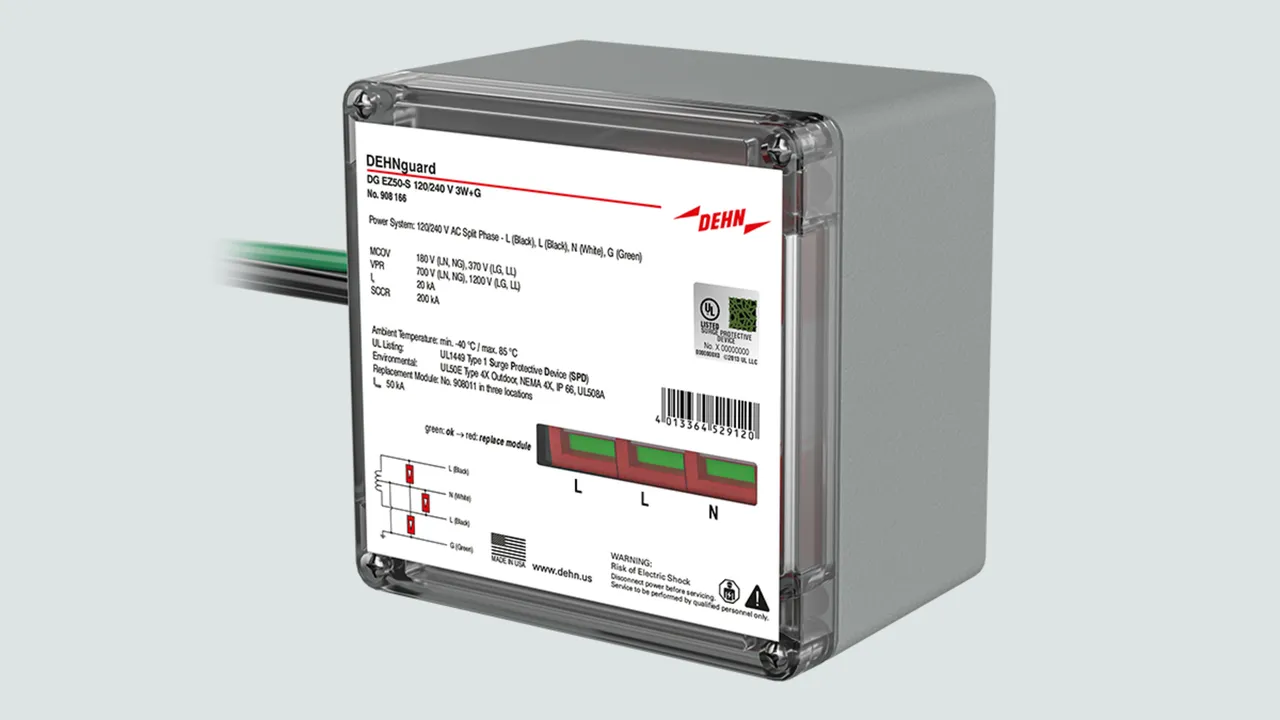

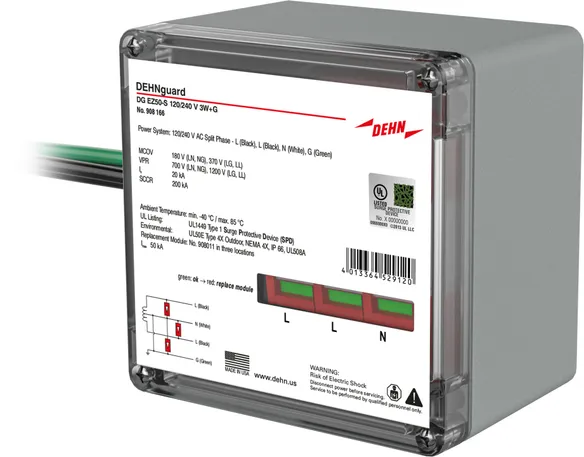

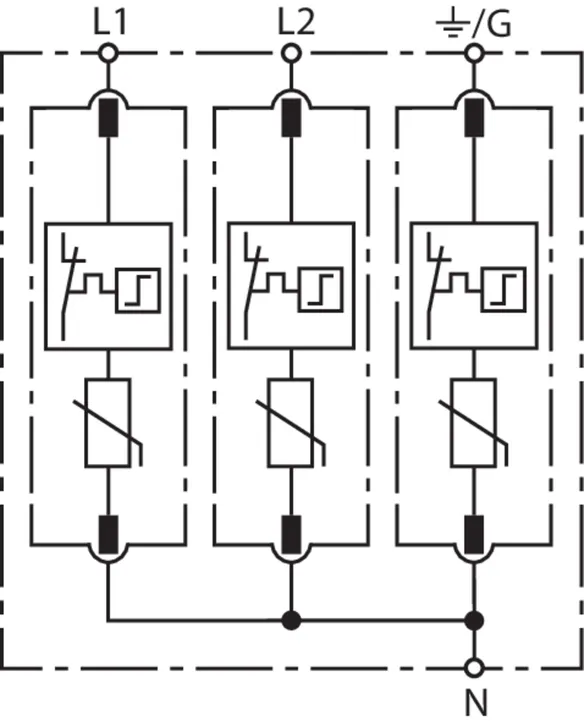

DEHNguard EZ50-S 120/240 V 3W+G

Prewired NEMA 4X Type 1 SPD box for application in Split Phase systems

1 Product

Part No. 908166 DG EZ50-S 120/240 V 3W+G

GTIN 4013364529120, Customs tariff No. (EU): 85371098, Gross weight: 616.00 g, PU: 1.00 pc(s)

Images

Additional information

'Prewired NEMA4X Type 1 SPD box DEHNguard EZ50-S 120/240 V 3W+G
Prewired complete unit for universal installation
for 120/240V split-phase systems
UL 1449 Type 1 SPD
No additional surge protection devices required
Nominal system voltage: 120/240 V split-phase
Voltage protection level [L-N] / [L-G] / [L-L] / [N-G]:
700 V / 1200 V / 1200 V / 700 V
Nominal discharge current (8/20) 20 kA
Max. discharge current (8/20): 50 kA
Short-circuit current rating (SCCR): 200 kA
Fault indication

Brand: DEHN
Type: DG EZ50-S 120/240 V 3W+G
Part No.: 908166
or equivalent.

Technical data

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	120 / 240 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 Vac / 370 Vac / 370 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	120 / 240 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 Vac / 370 Vac / 370 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	700 V / 1200 V / 1200 V / 700 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Split Phase with N protected
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36‘‘ Long, 10 AWG stranded
Mounting method	1/2“ NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclosure

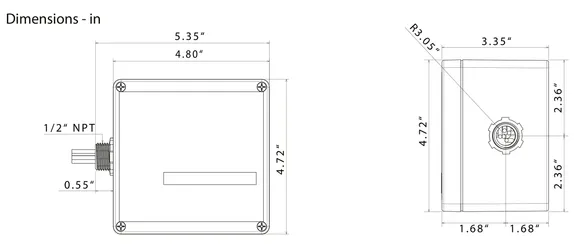

Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

Product 908166 was added to Notepad.

Go to Notepad

Product 908166 was added to the cart.

Go to Web-Shop

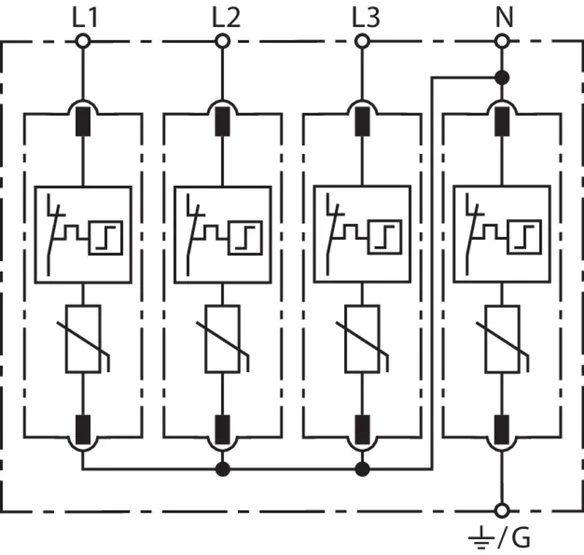

DEHNguard EZ50-S 120/208 V 4W+G

Prewired NEMA 4X Type 1 SPD box for application in 3 Phase Wye systems

1 Product

Part No. 908167 DG EZ50-S 120/208 V 4W+G

GTIN 4013364529137, Customs tariff No. (EU): 85371098, Gross weight: 698.00 g, PU: 1.00 pc(s)

Images

Additional information

'Prewired NEMA4X Type 1 SPD box DEHNguard EZ50-S 120/208 V 4W+G
Prewired complete unit for universal installation
for 120/208 V 3-phase wye systems
UL 1449 Type 1 SPD
No additional surge protection devices required
System voltage: 120/208 V 3-phase Wye
Voltage protection level [L-N] / [L-G] / [L-L] / [N-G]:
700 V / 1200 V / 1200 V / 700 V
Nominal discharge current (8/20) 20 kA
Max. discharge current (8/20): 50 kA
Short-circuit current rating (SCCR): 200 kA
Fault indication

Brand: DEHN
Type: DG EZ50-S 120/208 V 4W+G
Part No.: 908167
or equivalent.

Technical data

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	120 / 208 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 Vac / 360 Vac / 360 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage [L-N] / [L-G] / [L-L] / [N-G] (U_N )	120 / 208 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	180 Vac / 360 Vac / 360 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	700 V / 1200 V / 1200 V / 700 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

Product 908167 was added to Notepad.

Go to Notepad

Product 908167 was added to the cart.

Go to Web-Shop

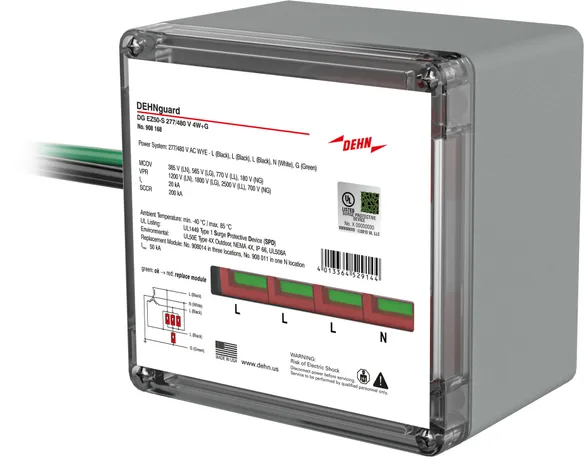

DEHNguard EZ50-S 277/480 V 4W+G

Prewired NEMA 4X Type 1 SPD box for application in 3 Phase Wye systems

1 Product

Part No. 908168 DG EZ50-S 277/480 V 4W+G

GTIN 4013364529144, Customs tariff No. (EU): 85371098, Gross weight: 735.00 g, PU: 1.00 pc(s)

Images

Additional information

'Prewired NEMA4X Type 1 SPD box DEHNguard EZ50-S 277/480 V 4W+G
Prewired complete unit for universal installation
for 277/480 V 3-phase wye systems
UL 1449 Type 1 SPD
No additional surge protection devices required
System voltage: 277/480 V 3-phase Wye
Voltage protection level [L-N] / [L-G] / [L-L] / [N-G]:
1200 V / 1800 V / 2500 V / 700 V
Nominal discharge current (8/20) 20 kA
Max. discharge current (8/20): 50 kA
Short-circuit current rating (SCCR): 200 kA
Fault indication

Brand: DEHN
Type: DG EZ50-S 277/480 V 4W+G
Part No.: 908168
or equivalent.

Technical data

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	277 / 480 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	385 Vac / 565 Vac / 770 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	277 / 480 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-N] / [L-G] / [L-L] / [N-G] (MCOV)	385 Vac / 565 Vac / 770 Vac / 180 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-N] / [L-G] / [L-L] / [N-G] (VPR)	1200 V / 1800 V / 2500 V / 700 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

Product 908168 was added to Notepad.

Go to Notepad

Product 908168 was added to the cart.

Go to Web-Shop

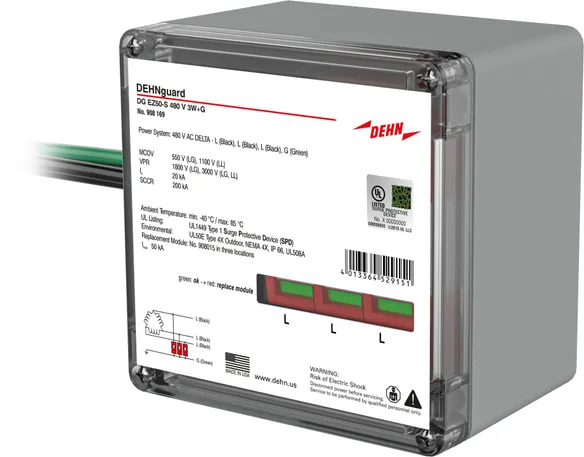

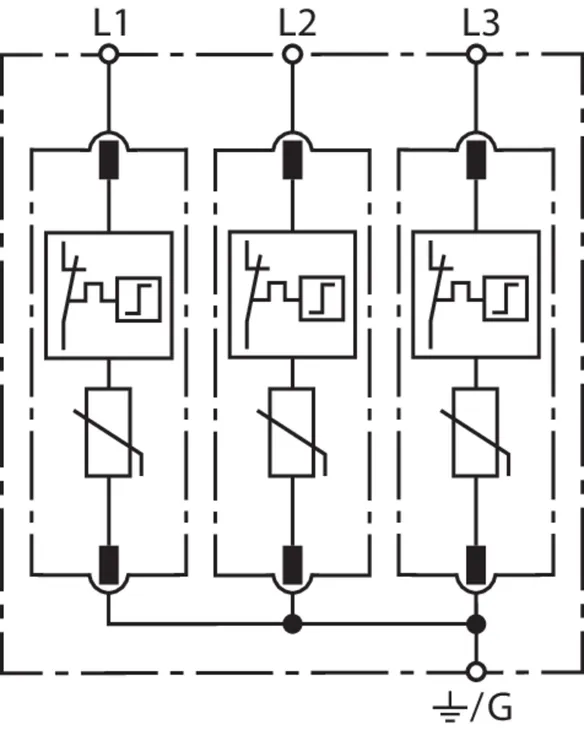

DEHNguard EZ50-S 480 V 3W+G

Prewired NEMA 4X Type 1 SPD box for application in 3 Phase Delta systems

1 Product

Part No. 908169 DG EZ50-S 480 V 3W+G

GTIN 4013364529151, Customs tariff No. (EU): 85371098, Gross weight: 685.00 g, PU: 1.00 pc(s)

Images

Additional information

'Prewired NEMA4X Type 1 SPD box DEHNguard EZ50-S 480 V 3W+G
Prewired complete unit for universal installation
for 480 V 3-phase delta systems
UL 1449 Type 1 SPD
No additional surge protection devices required
System voltage: 480 V 3-phase delta
Voltage protection level [L-G] / [L-L]:
1800 V / 3000 V
Nominal discharge current (8/20) 20 kA
Max. discharge current (8/20): 50 kA
Short-circuit current rating (SCCR): 200 kA
Fault indication

Brand: DEHN
Type: DG EZ50-S 480 V 3W+G
Part No.: 908169
or equivalent.

Technical data

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	480 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 Vac / 1100 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	480 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	550 Vac / 1100 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V_pk / 3000 V_pk
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Delta
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

Product 908169 was added to Notepad.

Go to Notepad

Product 908169 was added to the cart.

Go to Web-Shop

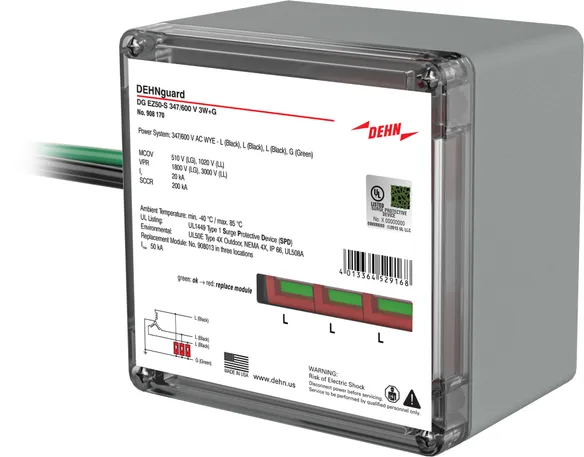

DEHNguard EZ50-S 600 V 3W+G

Prewired NEMA 4X Type 1 SPD box for application in 3 Phase Wye systems

1 Product

Part No. 908170 DG EZ50-S 600 V 3W+G

GTIN 4013364529168, Customs tariff No. (EU): 85371098, Gross weight: 675.00 g, PU: 1.00 pc(s)

Images

Additional information

'Prewired NEMA4X Type 1 SPD box DEHNguard EZ50-S 600 V 3W+G
Prewired complete unit for universal installation
for 600 V 3-phase wye systems
UL 1449 Type 1 SPD
No additional surge protection devices required
System voltage: 600 V 3-phase Wye
Voltage protection level [L-G] / [L-L]:
1800 V / 3000 V
Nominal discharge current (8/20) 20 kA
Max. discharge current (8/20): 50 kA
Short-circuit current rating (SCCR): 200 kA
Fault indication

Brand: DEHN
Type: DG EZ50-S 600 V 3W+G
Part No.: 908170
or equivalent.

Technical data

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	347 / 600 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	510 Vac / 1020 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	347 / 600 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC [L-G] / [L-L] (MCOV)	510 Vac / 1020 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating [L-G] / [L-L] (VPR)	1800 V / 3000 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	3 Phase Wye systems
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

Product 908170 was added to Notepad.

Go to Notepad

Product 908170 was added to the cart.

Go to Web-Shop

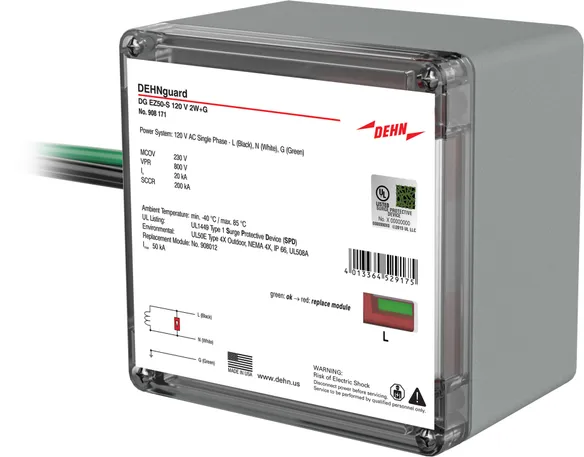

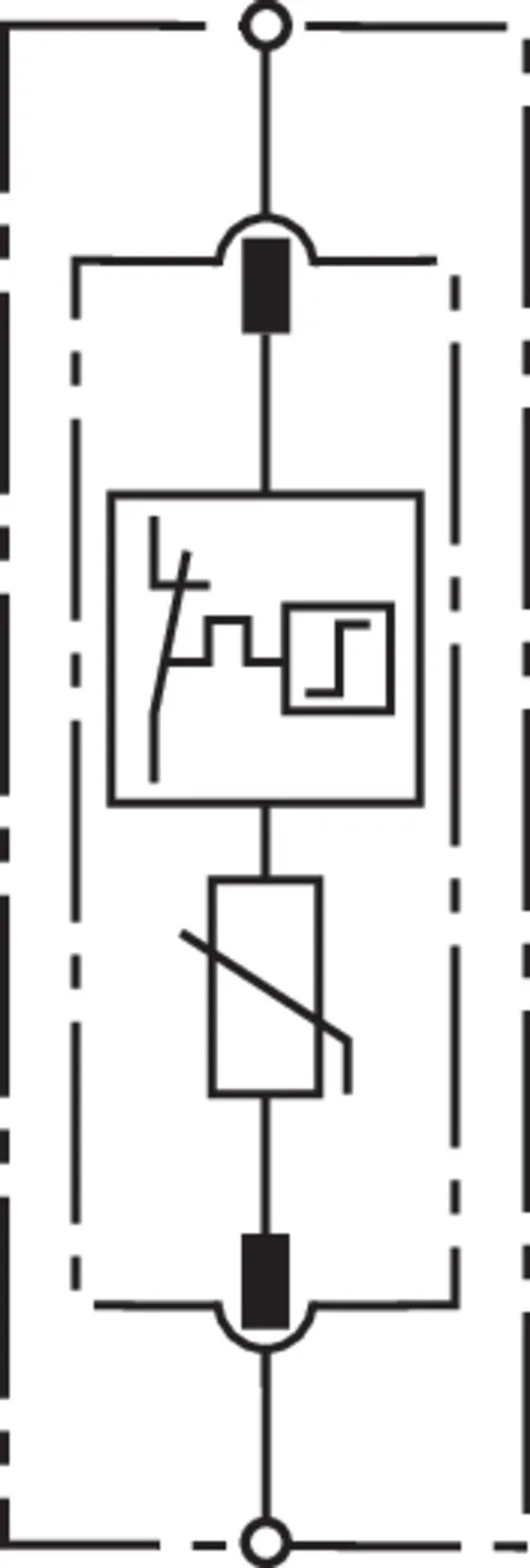

DEHNguard EZ50-S 120 V 2W+G

Prewired NEMA 4X Type 1 SPD box for application in Single Phase systems

1 Product

Part No. 908171 DG EZ50-S 120 V 2W+G

GTIN 4013364529175, Customs tariff No. (EU): 85371098, Gross weight: 425.00 g, PU: 1.00 pc(s)

Images

Additional information

'Prewired NEMA4X Type 1 SPD box DEHNguard EZ50-S 120 V 2W+G
Prewired complete unit for universal installation
for 120 V single phase systems
UL 1449 Type 1 SPD
No additional surge protection devices required
System voltage: 120 V single phase
Voltage protection level: 800 V
Nominal discharge current (8/20) 20 kA
Max. discharge current (8/20): 50 kA
Short-circuit current rating (SCCR): 200 kA
Fault indication

Brand: DEHN
Type: DG EZ50-S 120 V 2W+G
Part No.: 908171
or equivalent.

Technical data

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	120 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	230 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA

SPD as per UL 1449	Type 1 SPD
Nominal System Voltage (U_N )	120 Vac
Nominal Power System Frequency	50 / 60 Hz
Max. continuous operating voltage AC (MCOV)	230 Vac
Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection rating (VPR)	800 V
Max. mains-side overcurrent protection	Not needed
Short circuit current rating (SCCR)	200 kA
System type	Single Phase
Operating Temperature Range (T_U )	-40°C…+85°C
Enviromental Protection	NEMA 4X, IP66, UL50E Type 4X Outdoor
Operating state / fault indication	Green = Good ; Red = Replace Module
Conductor	36" long, 10 AWG stranded
Mounting method	1/2" NPT or Flush mounting with external brackets
Enclosure material	Polycarbonate V0 Enclusure
Dimensions	H: 4.72" (120 mm), W: 4.80" (122 mm), D: 3.35" (85 mm)
Approvals	UL 1449, UL50E, UL 508A
Made in	the USA
Extended technical data:	---------------------------------
Max. discharge current per phase (8/20) (I_max )	50 kA

Product 908171 was added to Notepad.

Go to Notepad

Product 908171 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

DEHNguard EZ

DEHNguard EZ50-S 120/240 V 3W+G

Part No. 908166 DG EZ50-S 120/240 V 3W+G

Product 908166 was added to Notepad.

Product 908166 was added to the cart.

DEHNguard EZ50-S 120/208 V 4W+G

Part No. 908167 DG EZ50-S 120/208 V 4W+G

Product 908167 was added to Notepad.

Product 908167 was added to the cart.

DEHNguard EZ50-S 277/480 V 4W+G

Part No. 908168 DG EZ50-S 277/480 V 4W+G

Product 908168 was added to Notepad.

Product 908168 was added to the cart.

DEHNguard EZ50-S 480 V 3W+G

Part No. 908169 DG EZ50-S 480 V 3W+G

Product 908169 was added to Notepad.

Product 908169 was added to the cart.

DEHNguard EZ50-S 600 V 3W+G

Part No. 908170 DG EZ50-S 600 V 3W+G

Product 908170 was added to Notepad.

Product 908170 was added to the cart.

DEHNguard EZ50-S 120 V 2W+G

Part No. 908171 DG EZ50-S 120 V 2W+G

Product 908171 was added to Notepad.

Product 908171 was added to the cart.

DEHNguard EZ

DEHNguard EZ50-S 120/240 V 3W+G

Part No. 908166 DG EZ50-S 120/240 V 3W+G

You are not authorized to download 908166_908169_908170.stp

You are not authorized to download 908166_908169_908170.igs

You are not authorized to download 908166_908169_908170.jt

You are not authorized to download 908166_908169_908170.dwg

Product 908166 was added to Notepad.

Product 908166 was added to the cart.

DEHNguard EZ50-S 120/208 V 4W+G

Part No. 908167 DG EZ50-S 120/208 V 4W+G

You are not authorized to download 908167_908168.stp

You are not authorized to download 908167_908168.igs

You are not authorized to download 908167_908168.jt

You are not authorized to download 908167_908168.dwg

Product 908167 was added to Notepad.

Product 908167 was added to the cart.

DEHNguard EZ50-S 277/480 V 4W+G

Part No. 908168 DG EZ50-S 277/480 V 4W+G

You are not authorized to download 908167_908168.stp

You are not authorized to download 908167_908168.igs

You are not authorized to download 908167_908168.jt

You are not authorized to download 908167_908168.dwg

Product 908168 was added to Notepad.

Product 908168 was added to the cart.

DEHNguard EZ50-S 480 V 3W+G

Part No. 908169 DG EZ50-S 480 V 3W+G

You are not authorized to download 908166_908169_908170.stp

You are not authorized to download 908166_908169_908170.igs

You are not authorized to download 908166_908169_908170.jt

You are not authorized to download 908166_908169_908170.dwg

Product 908169 was added to Notepad.

Product 908169 was added to the cart.

DEHNguard EZ50-S 600 V 3W+G

Part No. 908170 DG EZ50-S 600 V 3W+G

You are not authorized to download 908166_908169_908170.stp

You are not authorized to download 908166_908169_908170.igs

You are not authorized to download 908166_908169_908170.jt

You are not authorized to download 908166_908169_908170.dwg

Product 908170 was added to Notepad.

Product 908170 was added to the cart.

DEHNguard EZ50-S 120 V 2W+G

Part No. 908171 DG EZ50-S 120 V 2W+G

You are not authorized to download 908171.stp

You are not authorized to download 908171.igs

You are not authorized to download 908171.jt

You are not authorized to download 908171.dwg

Product 908171 was added to Notepad.

Product 908171 was added to the cart.
