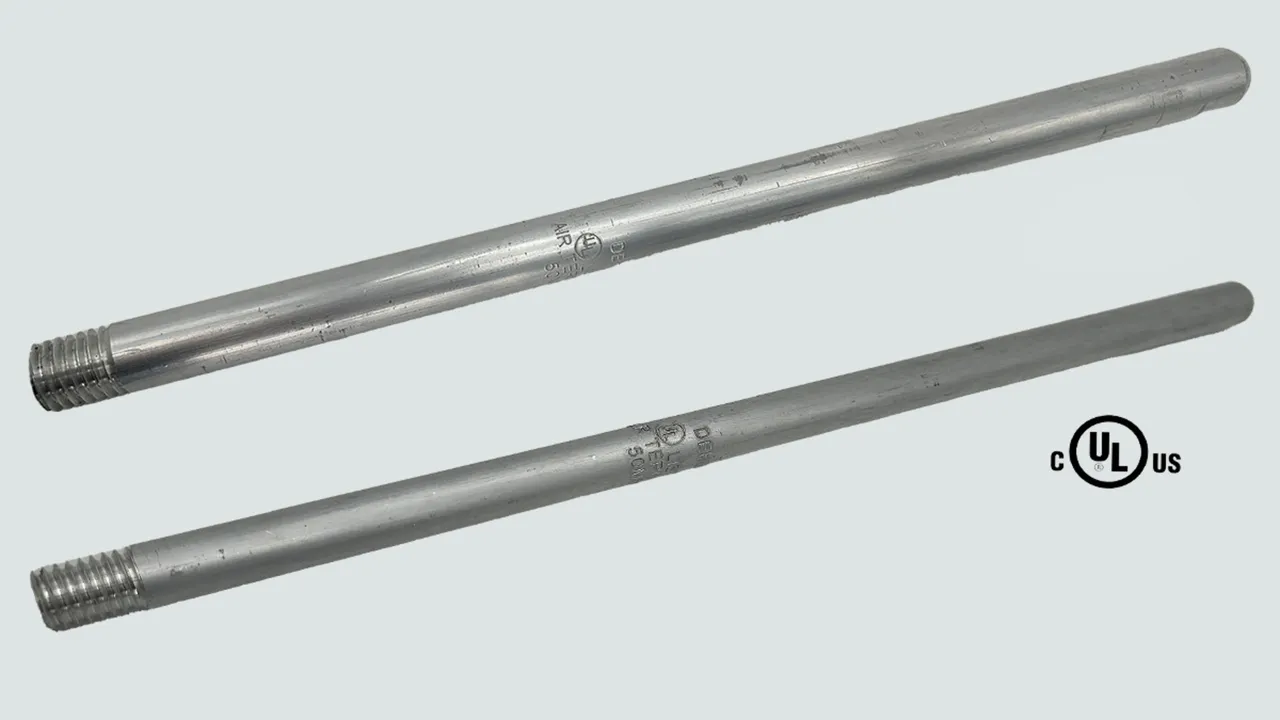

DEHNaterms - Air Terminals & Accessories

For protecting roof-mounted structures, parapets, ridges, equipment, etc.

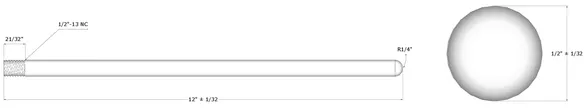

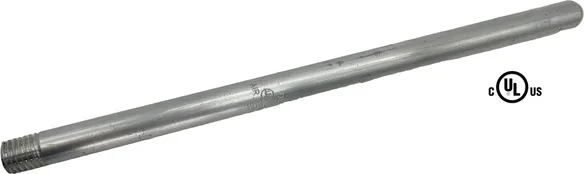

1/2 x 12 blunt air terminal UL

1 Product

Part No. 218431 AT ROD 1/2'' 12'' BL AL

GTIN 4013364517790, Customs tariff No. (EU): , Gross weight: 3.20 OZ, PU: 1.00 pc(s)

Images

Additional information

Aluminum 1/2 x 12 Blunt Air Terminal UL

Brand: DEHN
Type: AT ROD 1/2'' 12'' BL AL
Part No.: 218431
or equivalent.



Technical data

Material Aluminum (minimum 90%)
Rod length 12 in (305 mm)
Diameter 1/2 in (12.7 mm)
Standards UL 96
Classification Class 1
Weight (Metric) 90.7 g

Product 218431 was added to Notepad.

Go to Notepad

Product 218431 was added to the cart.

Go to Web-Shop

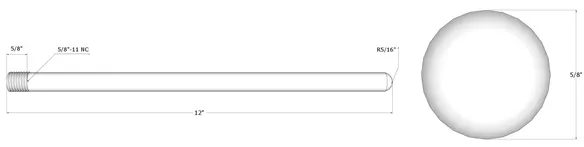

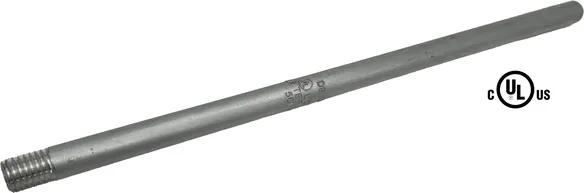

5/8 x 12 blunt air terminal UL

1 Product

Part No. 218454 AT ROD 5/8'' 12'' BL AL

GTIN 4013364517783, Customs tariff No. (EU): , Gross weight: 5.60 OZ, PU: 1.00 pc(s)

Images

Additional information

Aluminum 5/8 x 12 Blunt Air Terminal UL

Brand: DEHN
Type: AT ROD 5/8'' 12'' BL AL
Part No.: 218454
or equivalent.



Technical data

Material Aluminum (minimum 90%)
Rod length 12 in (305 mm)
Diameter 5/8 in (15.9 mm)
Standards UL 96
Classification Class 2
Weight (Metric) 158.7 g
