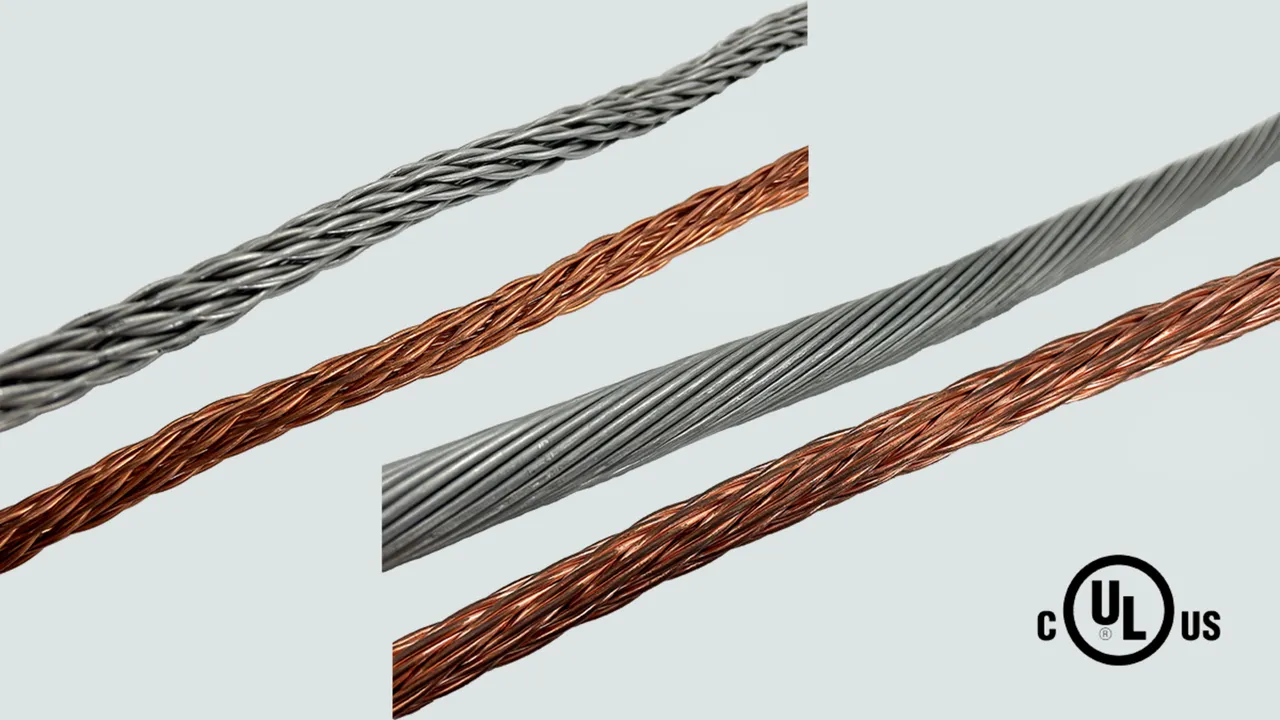

DEHNconduct - Conductors

For interconnecting air terminals, bonds, and grounds in a complete system.

Aluminium cable

2 Products

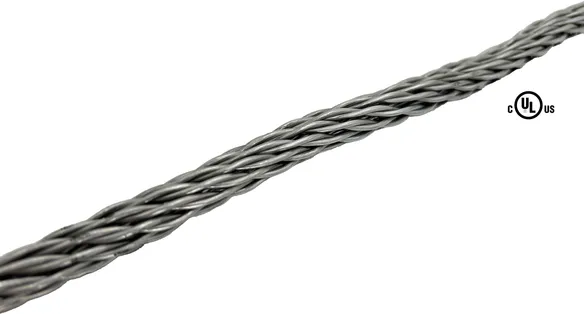

Part No. 228300 CABLE 24x14 AL 50QMM

GTIN 4013364518322, Customs tariff No. (EU): 76149000, Gross weight: 0.10 LB/FT, PU: 500.00 FT

Images

Additional information

Aluminum 24 x 14 Cable UL ECLE

Brand: DEHN
Type: CABLE 24x14 AL 50QMM
Part No.: 228300
or equivalent.



Technical data

Cross-section 98.640 circular mils (50 mm2)
Cable structure qty x Ø wire 24 x 14 gauge (1.63 mm)
Material Electrical grade aluminum (minimum 99%)
Outside diameter Ø 3/8 in. (9.525 mm)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Classification Class 1
Conductor length 500 ft. (152.4 m)
Coil weight 102 lb / 1000 ft (152 g / m)

Product 228300 was added to Notepad.

Go to Notepad

Product 228300 was added to the cart.

Go to Web-Shop

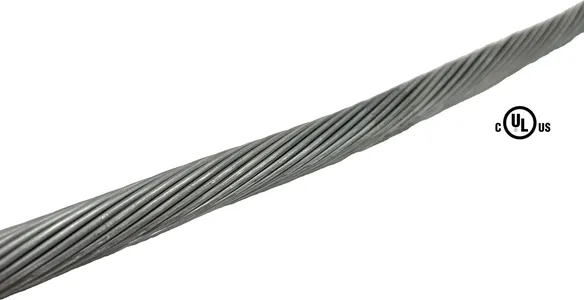

Part No. 228301 CABLE 37x12.5 AL 107QMM

GTIN 4013364518339, Customs tariff No. (EU): 76149000, Gross weight: 0.20 LB/FT, PU: 500.00 FT

Images

Additional information

Aluminum 4/0-37 Cable UL ECLE

Brand: DEHN
Type: CABLE 37x12.5 AL 107QMM
Part No.: 228301
or equivalent.



Technical data

Cross-section 211.475 circular mils (107 mm2)
Cable structure qty x Ø wire 37 x 12-1/2 gauge (1.92 mm)
Material Electrical grade aluminum (minimum 99%)
Outside diameter Ø 19/32 in. (15.081 mm)
Conductor material Alumium, Galvanized Steel, Stainless steel, Steel
Classification Class 2
Conductor length 500 ft. (152.4 m)
Coil weight 200 lb / 1000 ft (298 g / m)

Product 228301 was added to Notepad.

Go to Notepad

Product 228301 was added to the cart.

Go to Web-Shop

Copper cable

2 Products

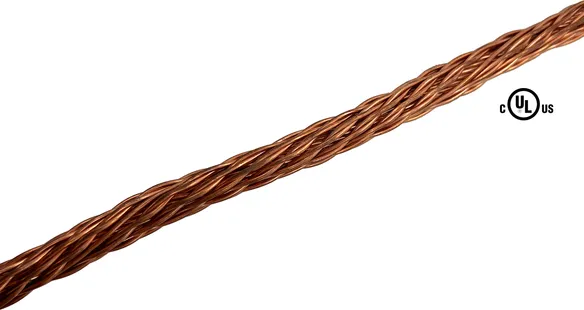

Part No. 228310 CABLE 29x17 CU 30QMM

GTIN 4013364518346, Customs tariff No. (EU): 74130000, Gross weight: 0.19 LB/FT, PU: 500.00 FT

Images

Additional information

Copper 29 x 17 Cable UL ECLE

Brand: DEHN
Type: CABLE 29x17 CU 30QMM
Part No.: 228310
or equivalent.



Technical data

Cross-section 59.450 circular mils (30 mm2)
Cable structure qty x Ø wire 29 x 17 gauge (1.15 mm)
Material Electrical grade copper (minimum 95%)
Outside diameter Ø 3/8 in. (9.525 mm)
Conductor material Copper, Stainless Steel, Steel
Classification Class 1
Conductor length 502 ft. (152.4 m)
Coil weight 192 lb / 1000 ft (286 g / m)

Product 228310 was added to Notepad.

Go to Notepad

Product 228310 was added to the cart.

Go to Web-Shop

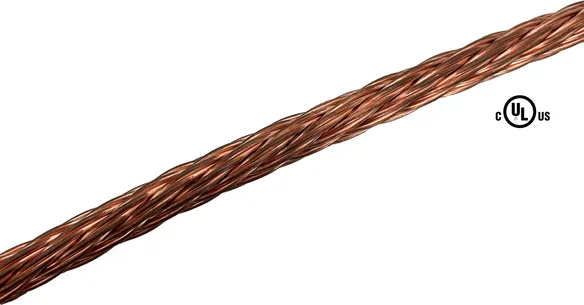

Part No. 228311 CABLE 28x0.066 CU 61.5QMM

GTIN 4013364518353, Customs tariff No. (EU): 74130000, Gross weight: 0.39 LB/FT, PU: 500.00 FT

Images

Additional information

Copper 28 x .066 Cable UL ECLE

Brand: DEHN
Type: CABLE 28x0.066 CU 61.5QMM
Part No.: 228311
or equivalent.



Technical data

Cross-section 121.968 circular mils (61.5 mm2)
Cable structure qty x Ø wire 28 x 0.066 gauge (1.68 mm)
Material Electrical grade copper (minimum 95%)
Outside diameter Ø 1/2 in. (12.7 mm)
Conductor material Copper, Stainless Steel, Steel
Classification Class 2
Conductor length 502 ft. (152.4 m)
Coil weight 385 lb / 1000 ft (573 g / m)

Product 228311 was added to Notepad.

Go to Notepad

Product 228311 was added to the cart.

Go to Web-Shop
