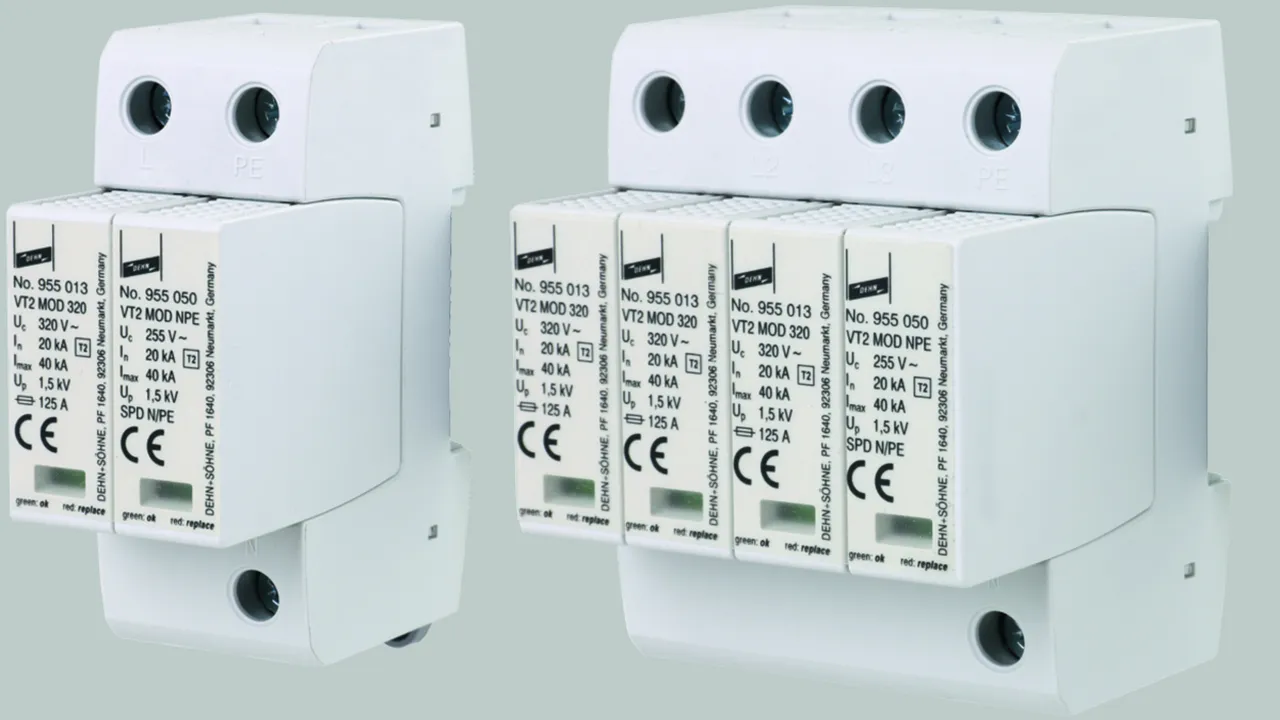

SPD VT2

  • Prewired complete unit consisting of a base part and plug-in protection modules
  • High discharge capacity due to heavy-duty zinc oxide varistors / spark gaps
  • High reliability due to "Thermo Dynamic Control" SPD monitoring device

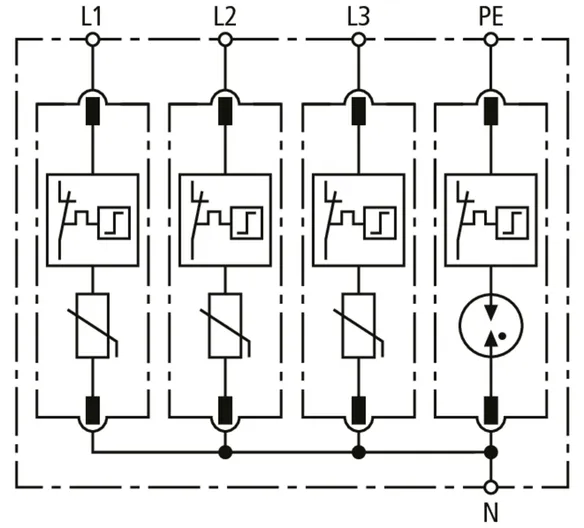

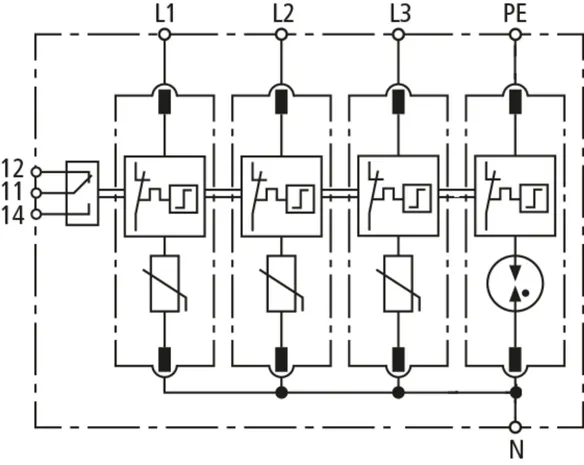

SPD VT2 TT (FM)

Modular surge arrester for use in TT and TN-S systems (3+1 configuration).

2 Products

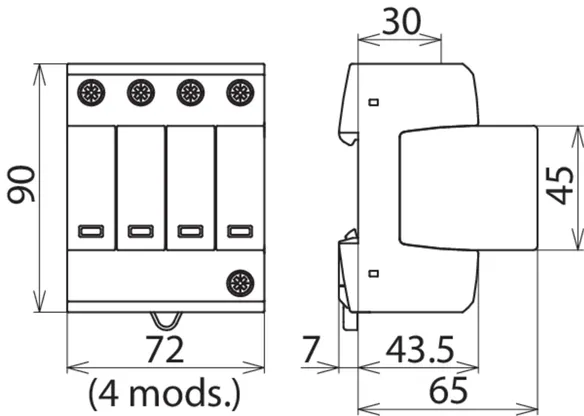

Part No. 955320 VT2 M TT 320

GTIN 4013364369108, Customs tariff No. (EU): 85363030, Gross weight: 442.00 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL

Product 955320 was added to Notepad.

Product 955320 was added to the cart.

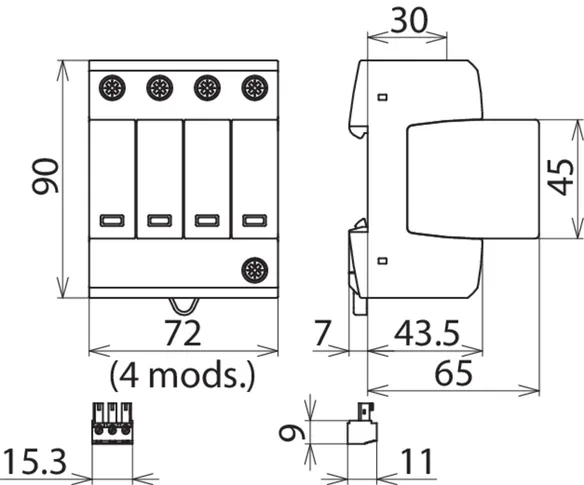

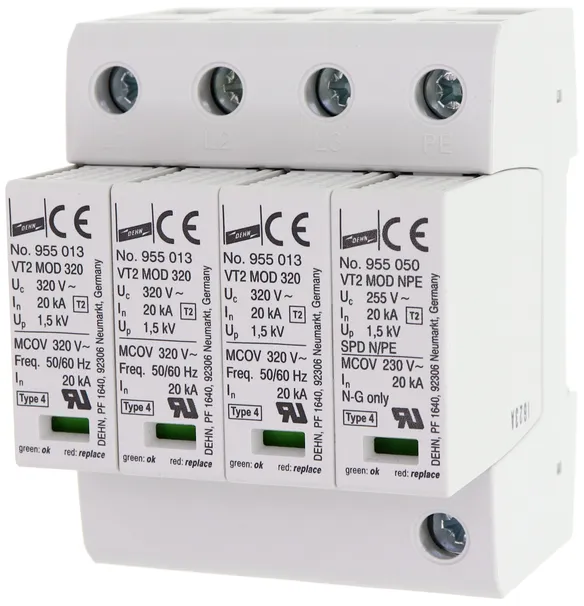

Part No. 955325 VT2 M TT 320 FM

GTIN 4013364369122, Customs tariff No. (EU): 85363030, Gross weight: 450.00 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL
Type of remote signalling contact changeover contact

Product 955325 was added to Notepad.

Product 955325 was added to the cart.

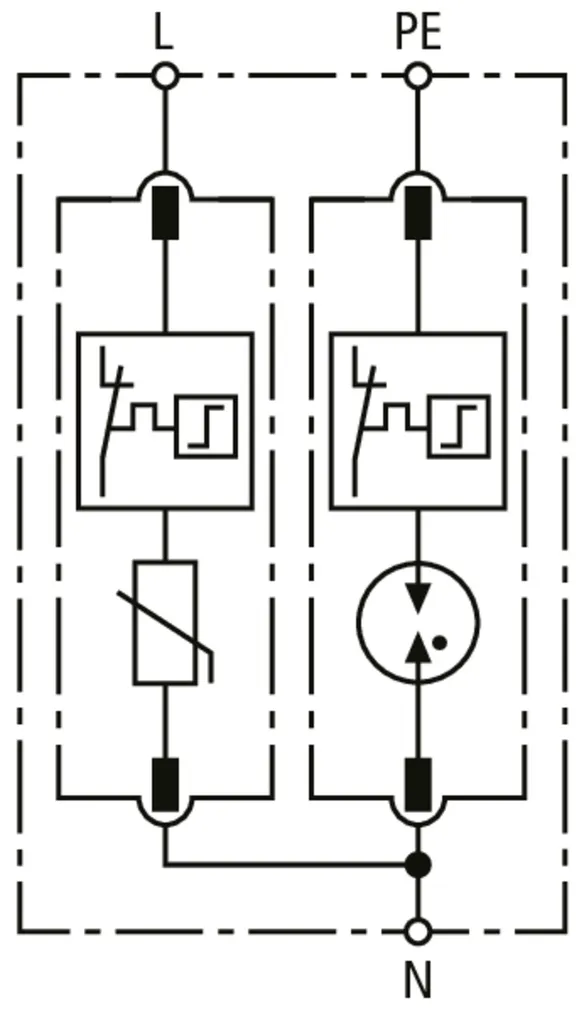

SPD VT2 TT 2P (FM)

Modular surge arrester for single-phase TT and TN systems (1+1 configuration); with floating remote signalling contact.

2 Products

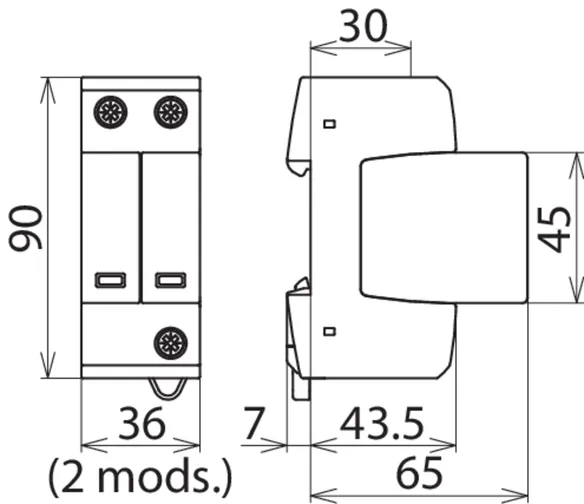

Part No. 955130 VT2 M TT 2P 320

GTIN 4013364369115, Customs tariff No. (EU): 85363030, Gross weight: 263.00 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL

Product 955130 was added to Notepad.

Product 955130 was added to the cart.

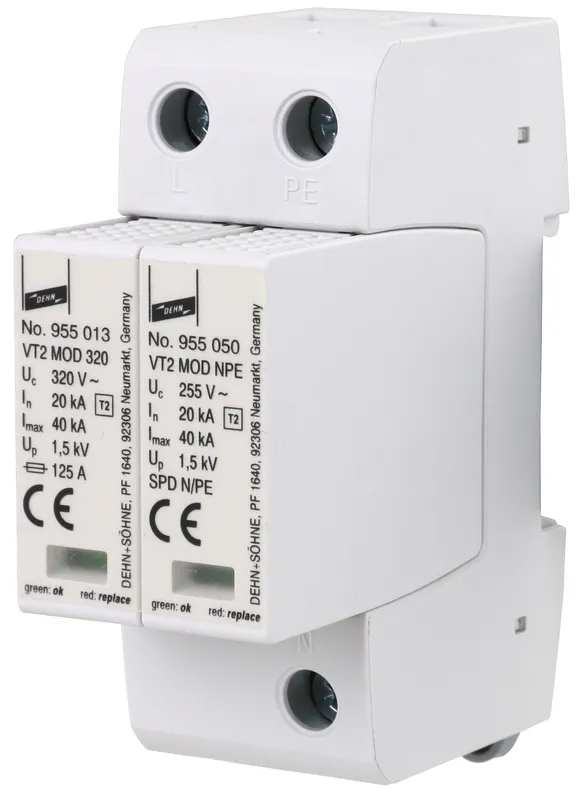

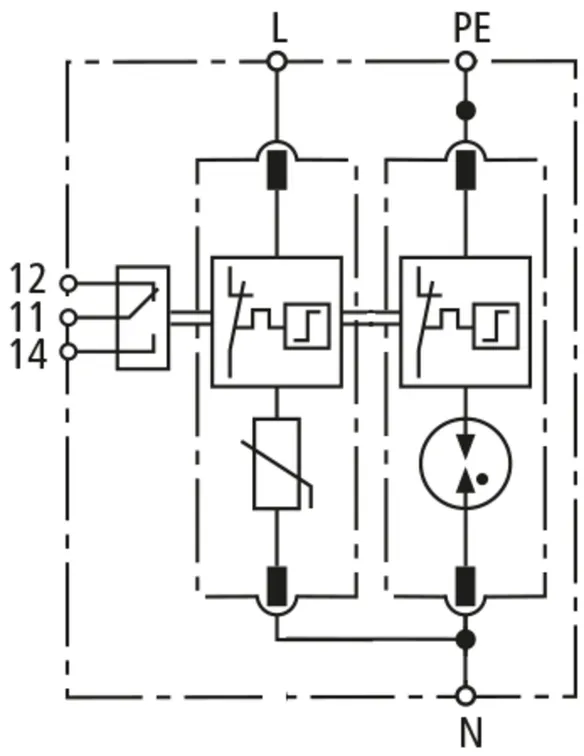

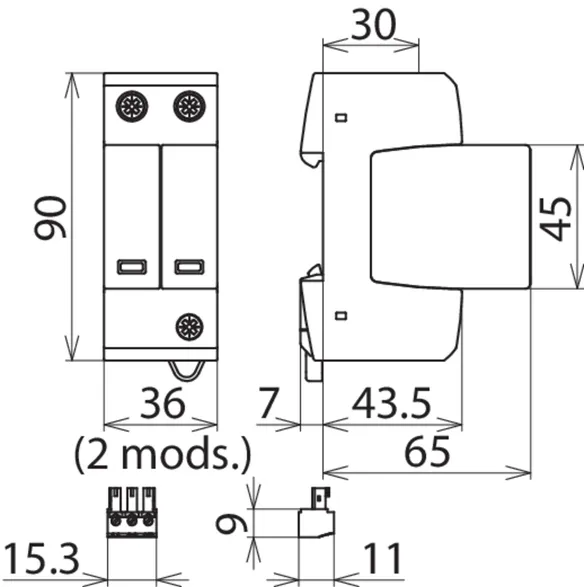

Part No. 955135 VT2 M TT 2P 320 FM

GTIN 4013364369092, Customs tariff No. (EU): 85363030, Gross weight: 269.20 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL
Type of remote signalling contact changeover contact

Product 955135 was added to Notepad.

Product 955135 was added to the cart.

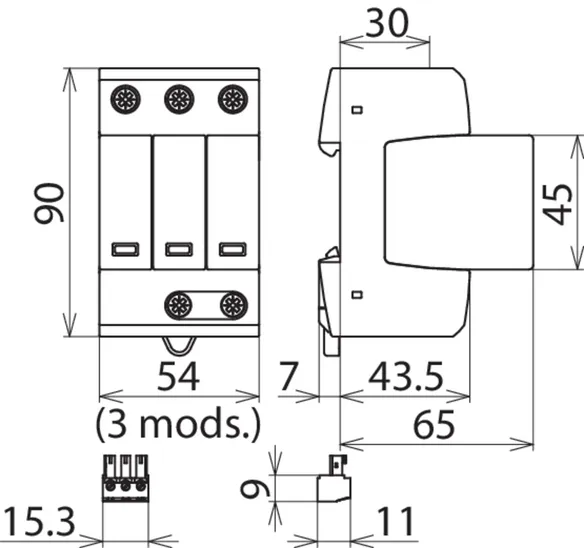

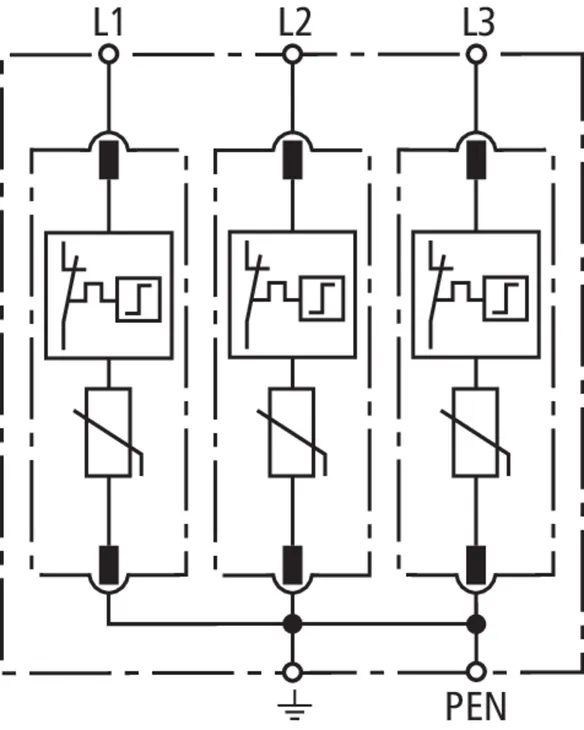

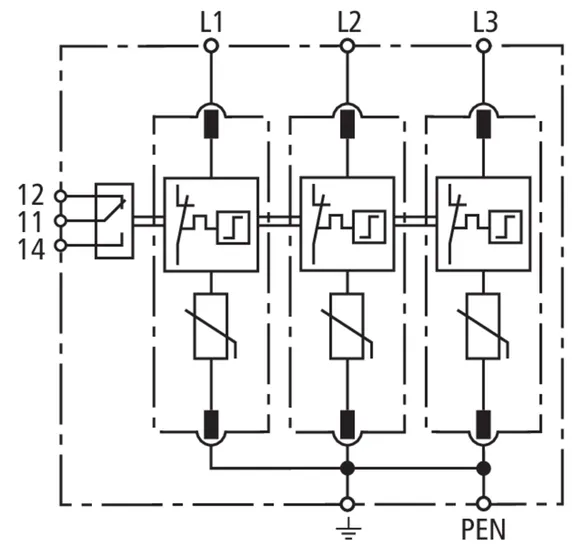

SPD VT2 TNC (FM)

2 Products

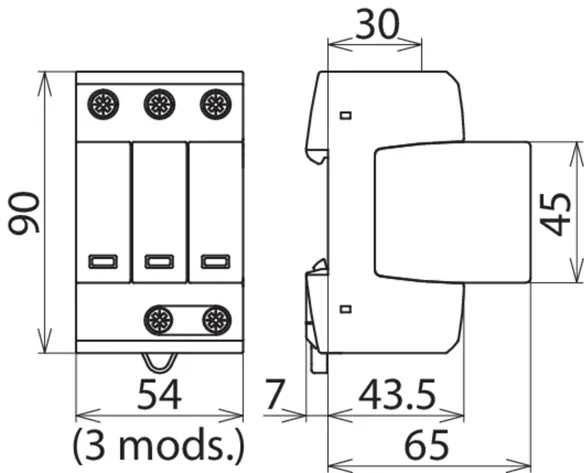

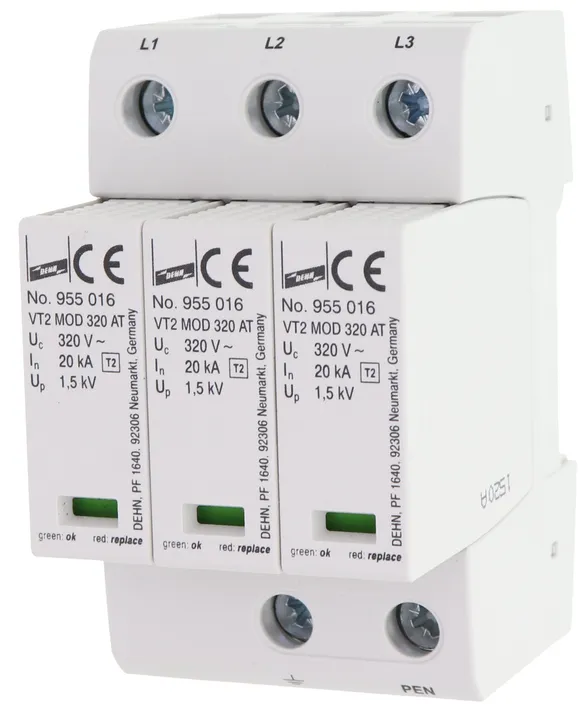

Part No. 955300 VT2 M TNC 320 AT

GTIN 4013364439788, Customs tariff No. (EU): 85363030, Gross weight: 357.40 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Voltage protection level (UP ) ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG

Product 955300 was added to Notepad.

Product 955300 was added to the cart.

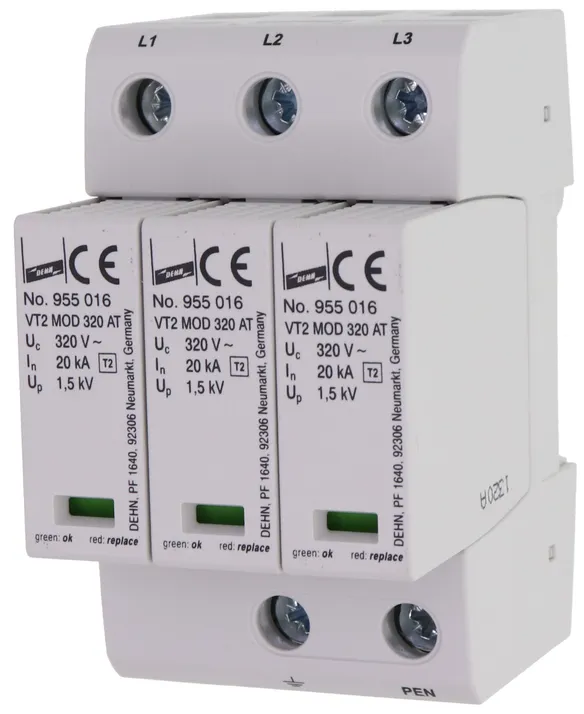

Part No. 955305 VT2 M TNC 320 FM AT

GTIN 4013364439795, Customs tariff No. (EU): 85363030, Gross weight: 365.86 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Voltage protection level (UP ) ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Type of remote signalling contact changeover contact

Product 955305 was added to Notepad.

Product 955305 was added to the cart.

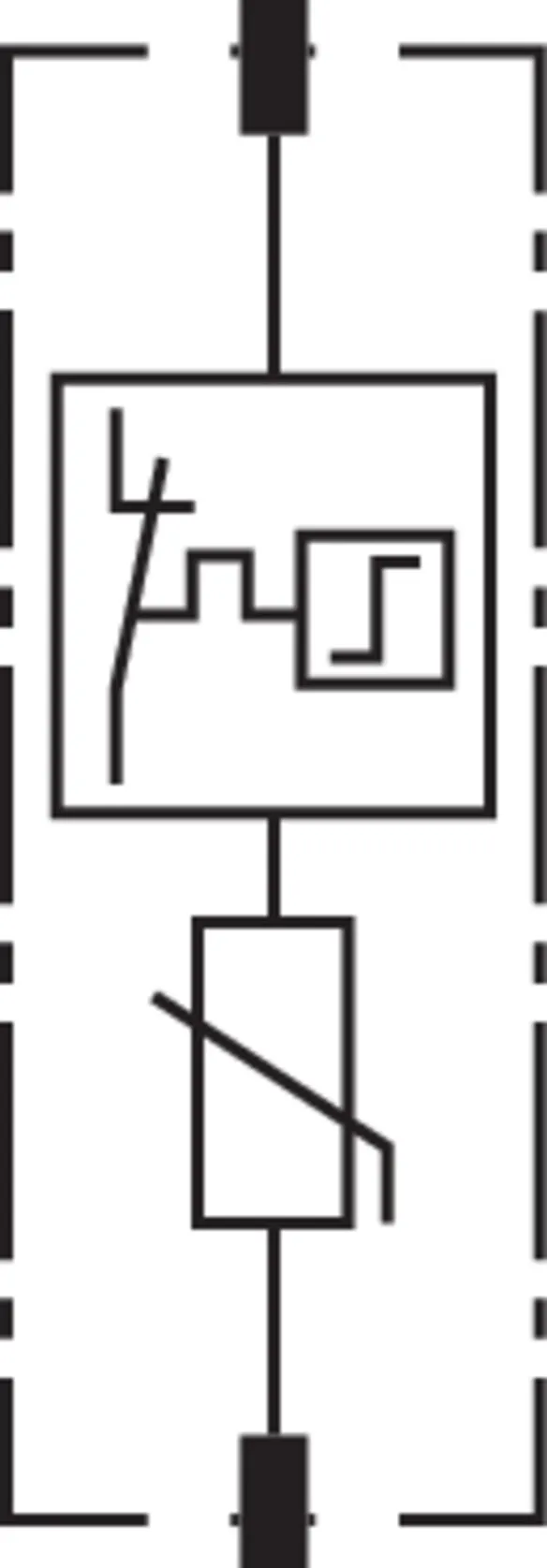

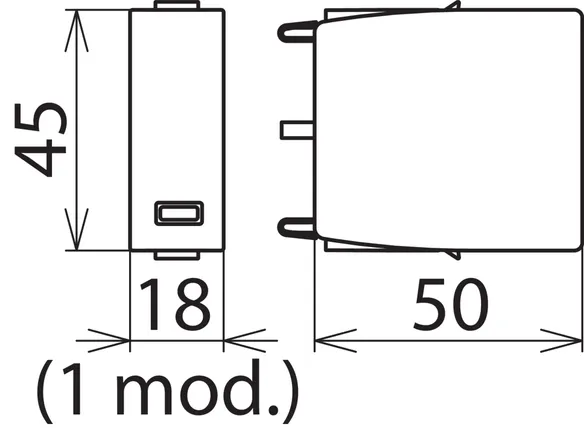

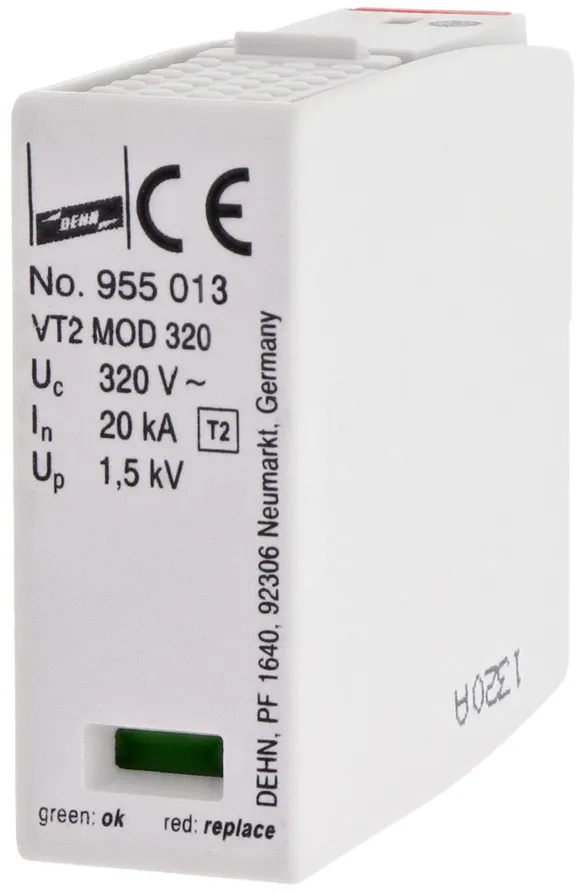

Varistor-based Protection Module for VT2

1 Product

Part No. 955013 VT2 MOD 320

GTIN 4013364376083, Customs tariff No. (EU): 85363030, Gross weight: 52.00 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA

Product 955013 was added to Notepad.

Product 955013 was added to the cart.

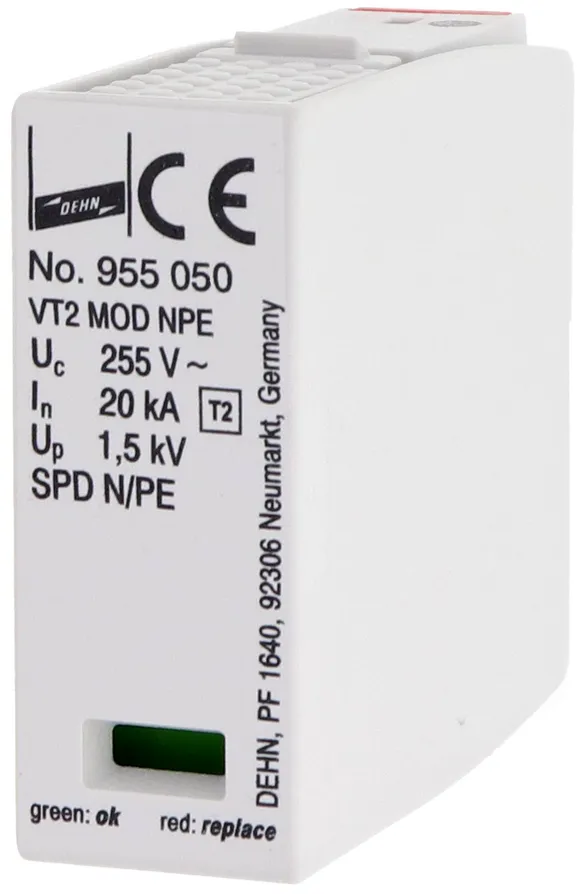

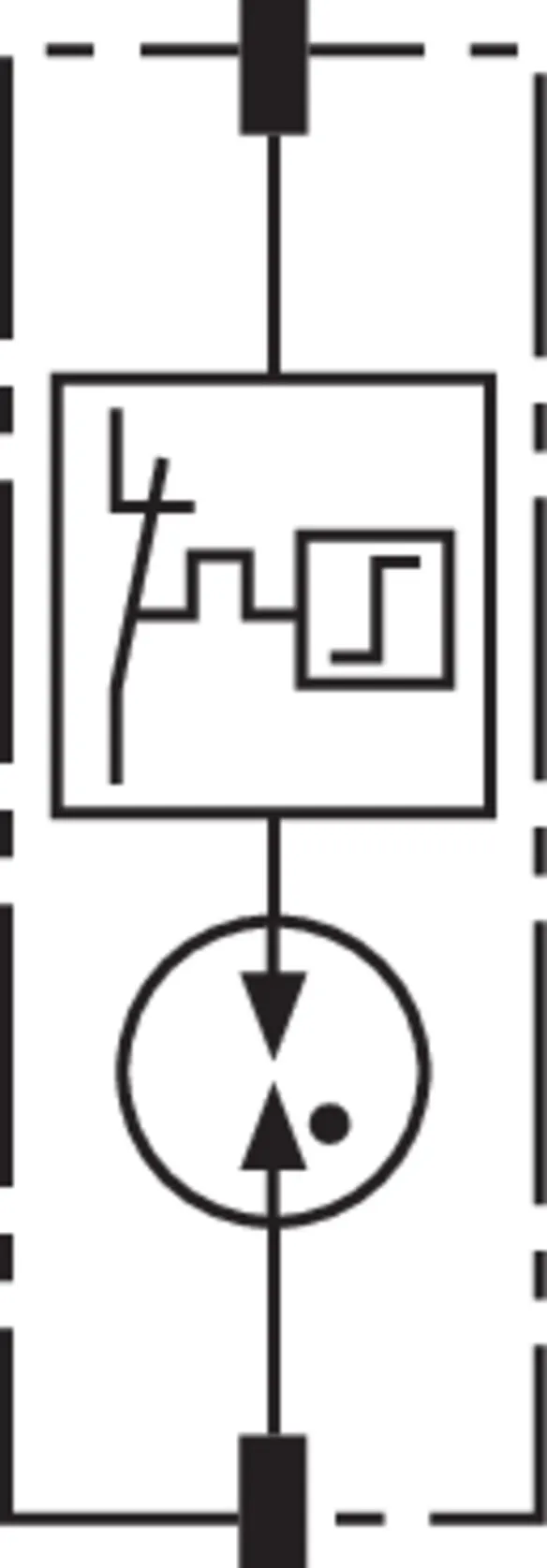

N-PE Spark-Gap-Based Protection Module for VT2

1 Product

Part No. 955050 VT2 MOD NPE

GTIN 4013364376090, Customs tariff No. (EU): 85363030, Gross weight: 44.00 g, PU: 1.00 pc(s)


Images

Additional information

Certificates



Technical data

Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA

Product 955050 was added to Notepad.

Product 955050 was added to the cart.
