Roof Conductor Holders for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge.

FIRSTsnap

For attaching to the ridge clamps of dry ridges, with conductor holder DEHNsnap, loose conductor leading.

2 Products

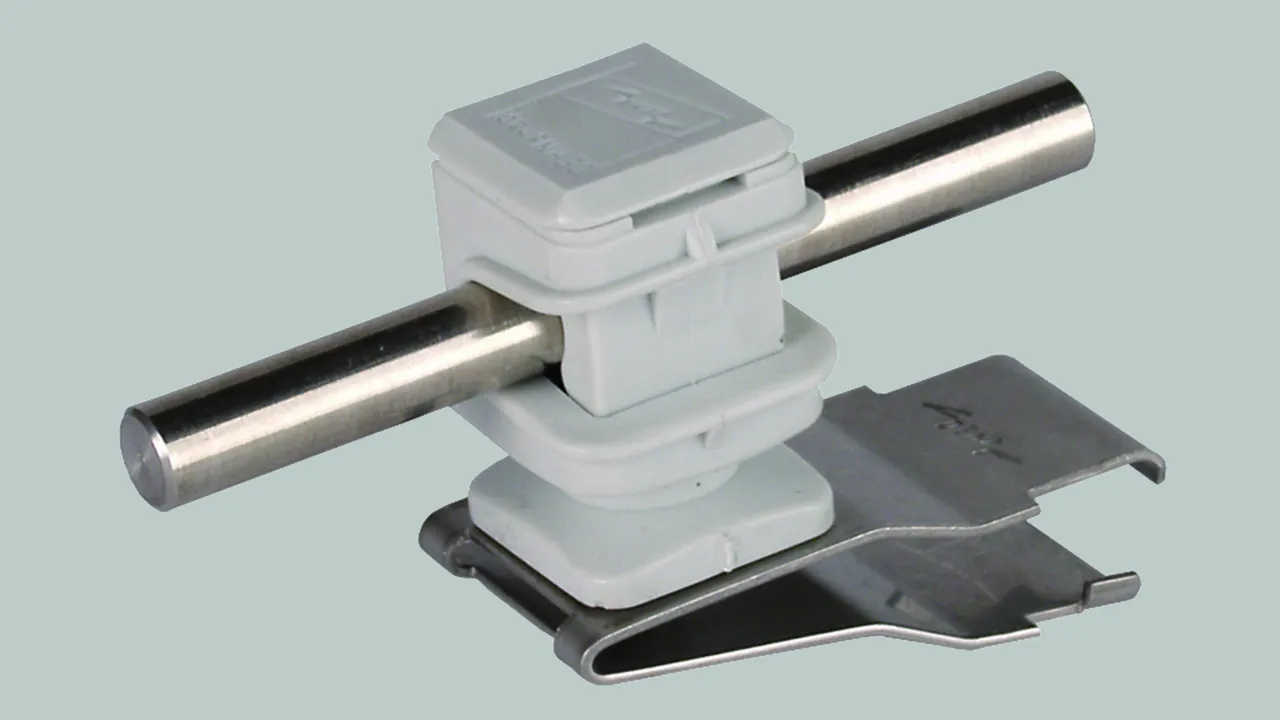

Part No. 204029 LH FS 8 H16 GR V2A

GTIN 4013364032286, Customs tariff No. (EU): 85389099, Gross weight: 37.80 g, PU: 50.00 pc(s)


Images

Additional information

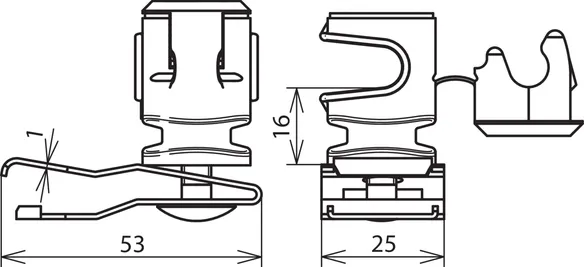

Pitched roofs - FIRSTsnap roof conductor holder, height 16 mm
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
FIRSTsnap, for attaching on the ridge clamp of dry ridges
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: LH FS 8 H16 GR V2A
Part No.: 204029
or equivalent.



Technical data

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey
Conductor holder support Rd 8 mm

Product 204029 was added to Notepad.

Product 204029 was added to the cart.

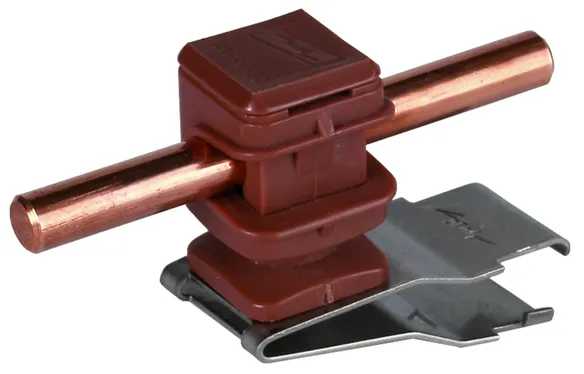

Part No. 204039 LH FS 8 H16 K BR V2A

GTIN 4013364032293, Customs tariff No. (EU): 85389099, Gross weight: 37.60 g, PU: 50.00 pc(s)


Images

Additional information

Pitched roofs - FIRSTsnap roof conductor holder, height 16 mm
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
FIRSTsnap, for attaching on the ridge clamp of dry ridges
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: LH FS 8 H16 K BR V2A
Part No.: 204039
or equivalent.



Technical data

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown
Conductor holder support Rd 8 mm

Product 204039 was added to Notepad.

Product 204039 was added to the cart.


Two-screw cleat with spacer and elastic sealing

For tiled, slated and corrugated sheet roofs, with weather-resistant spacer and elastic sealing, fixed conductor leading.

1 Product

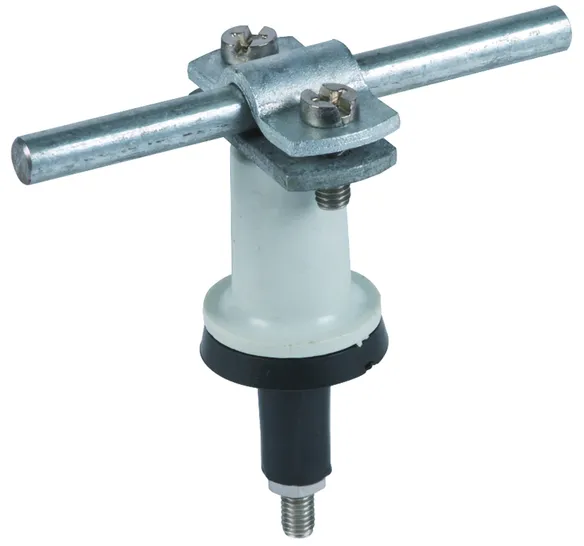

Part No. 216000 DLH ZS 7.10 FL20 KT12 STTZN

GTIN 4013364020054, Customs tariff No. (EU): 85389099, Gross weight: 78.00 g, PU: 25.00 pc(s)


Images

Additional information

Two-screw cleat with spacer and elastic sealing
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
for tiled, slated and corrugated plate roofing, with weather-resistant clamp bush
Material of roof conductor holder: plastic
Bore : Ø12 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH ZS 7.10 FL20 KT12 STTZN
Part No.: 216000
or equivalent.



Technical data

Material of roof conductor holder plastic
Bore Ø12 mm
Material of conductor holder St/tZn
Conductor holder support Rd 7-10 mm
Conductor holder support Fl 20 mm

Product 216000 was added to Notepad.

Product 216000 was added to the cart.
