Roof Conductor Holders with Angled, Flexible Brace for Roof Surfaces

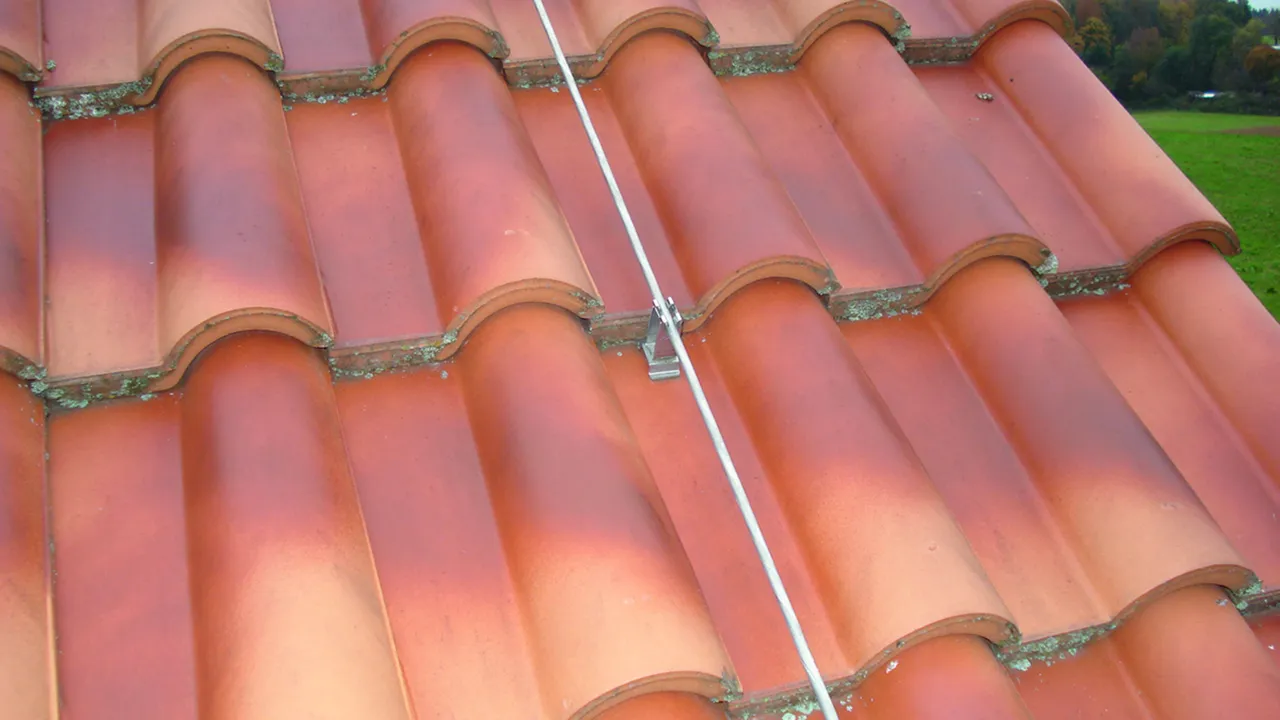

For hanging into roof tiles, with a flexible brace made of thin StSt (0.3 mm) which moulds itself to the grooves of the tile.

FLEXIsnap

Fixed to grooved tiles using the flexible brace, loose conductor routing.

4 Products

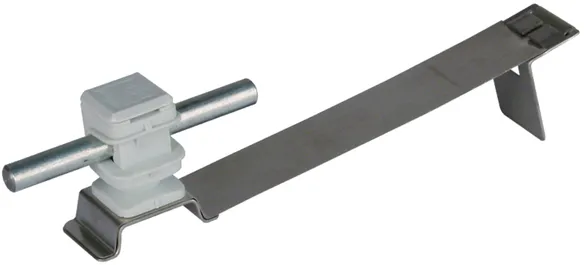

Part No. 204935 DLH FS 8 H16 L170 GR V2A

GTIN 4013364029958, Customs tariff No. (EU): 85389099, Gross weight: 43.02 g, PU: 1.00 pc(s)


Images

Additional information

Gable roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 GR V2A
Part No.: 204935
or equivalent.

Certificates

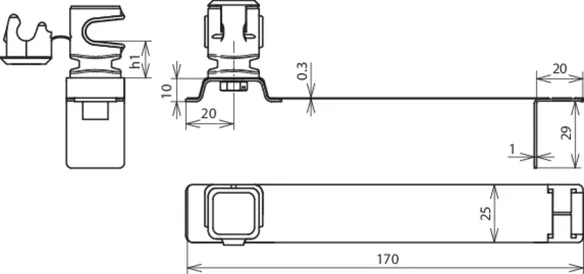

Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey
Conductor support Rd 8 mm

Product 204935 was added to Notepad.

Product 204935 was added to the cart.

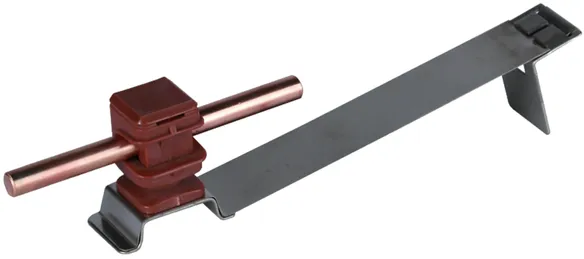

Part No. 204936 DLH FS 8 H16 L170 BR V2A

GTIN 4013364029927, Customs tariff No. (EU): 85389099, Gross weight: 43.02 g, PU: 50.00 pc(s)


Images

Additional information

Gable roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 BR V2A
Part No.: 204936
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown
Conductor support Rd 8 mm

Product 204936 was added to Notepad.

Product 204936 was added to the cart.

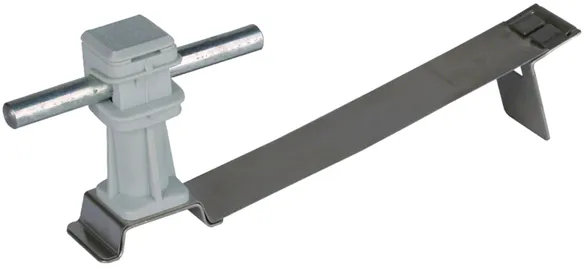

Part No. 204937 DLH FS 8 H36 L170 GR V2A

GTIN 4013364029941, Customs tariff No. (EU): 85389099, Gross weight: 49.22 g, PU: 50.00 pc(s)


Images

Additional information

Gable roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 GR V2A
Part No.: 204937
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey
Conductor support Rd 8 mm

Product 204937 was added to Notepad.

Product 204937 was added to the cart.

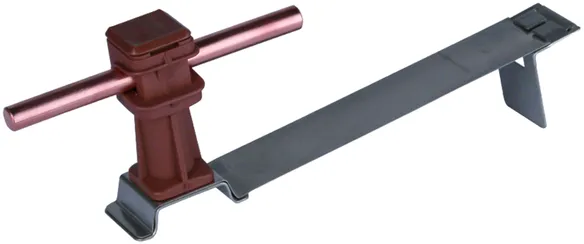

Part No. 204938 DLH FS 8 H36 L170 BR V2A

GTIN 4013364029989, Customs tariff No. (EU): 85389099, Gross weight: 50.22 g, PU: 50.00 pc(s)


Images

Additional information

Gable roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 BR V2A
Part No.: 204938
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown
Conductor support Rd 8 mm

Product 204938 was added to Notepad.

Product 204938 was added to the cart.


FLEXIgrip

Fixed to grooved tiles using the flexible brace, loose conductor routing.

2 Products

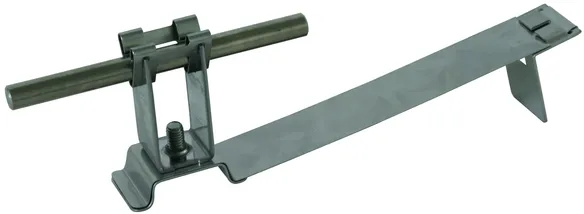

Part No. 204949 DLH FG 8 H32 L170 V2A

GTIN 4013364129290, Customs tariff No. (EU): 85389099, Gross weight: 57.02 g, PU: 50.00 pc(s)


Images

Additional information

Gable roofs - FLEXIsnap roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A
Part No.: 204949
or equivalent.

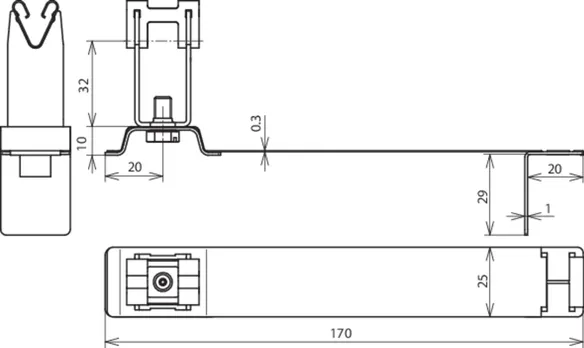

Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Product 204949 was added to Notepad.

Product 204949 was added to the cart.

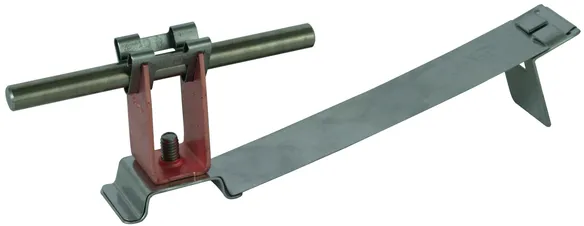

Part No. 204957 DLH FG 8 H32 L170 V2A GALCU

GTIN 4013364129269, Customs tariff No. (EU): 85389099, Gross weight: 58.02 g, PU: 50.00 pc(s)


Images

Additional information

Gable roofs - FLEXIsnap roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: Cu
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A GALCU
Part No.: 204957
or equivalent.



Technical data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Product 204957 was added to Notepad.

Product 204957 was added to the cart.
