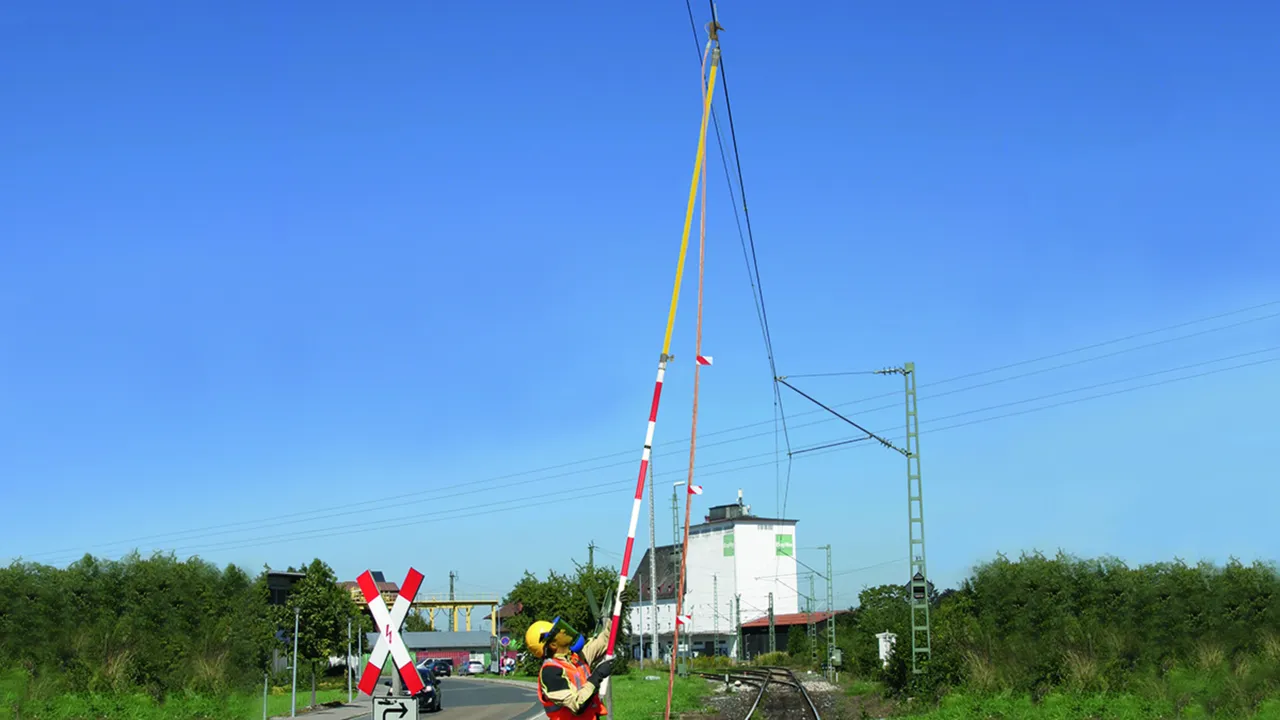

Earthing Sticks for Railway Applications

For outdoor use

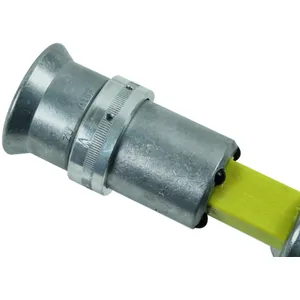

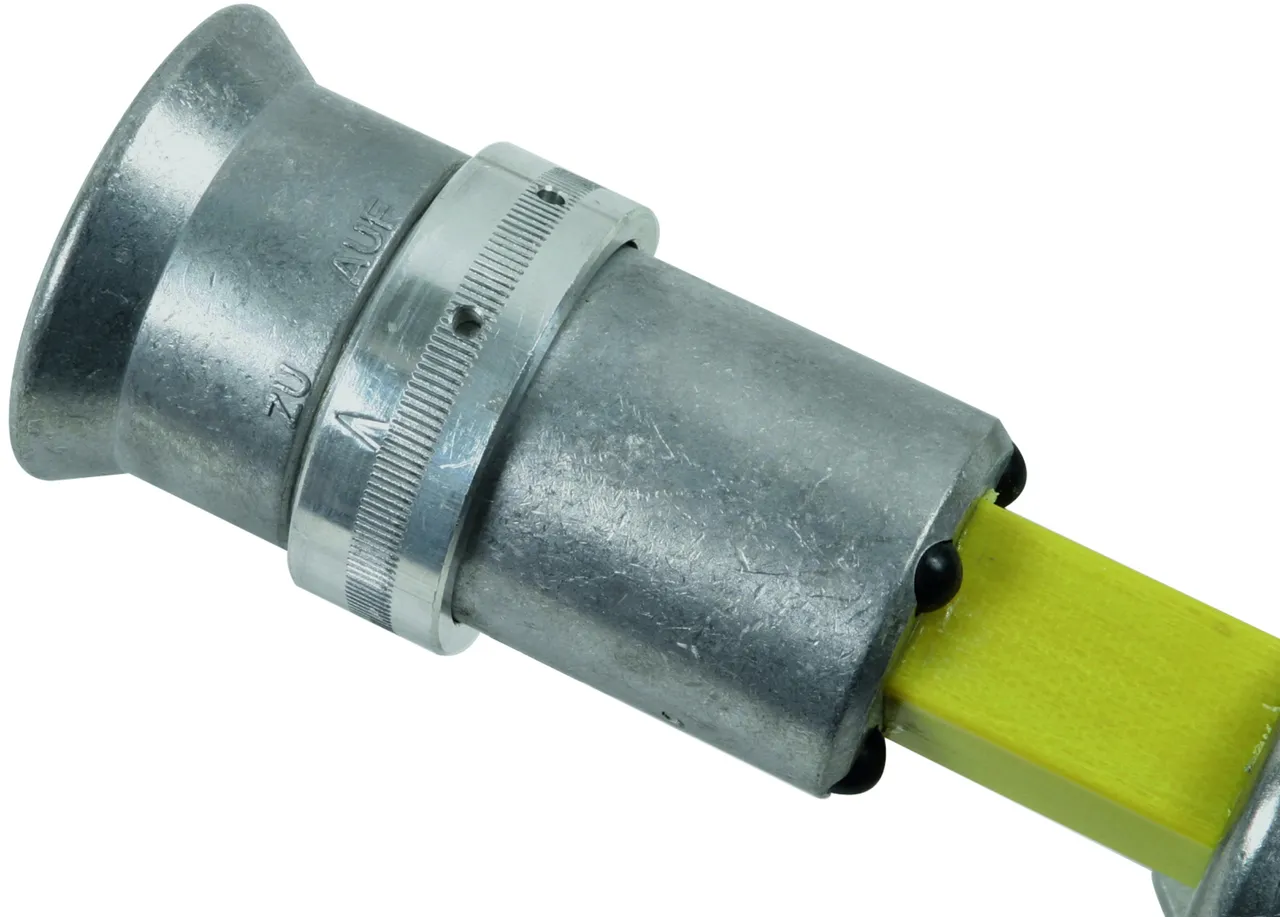

Robust aluminium cone coupling
Telescopic stick, length continuously adjustable by star knob
Only suitable for phase screw clamps and clamps with long T pin shaft

Details

Telescopic, with T pin shaft

For threaded T pin shaft (bayonet locking mechanism).

2 Products

Part No. 769352 ESTC SQL RW 3500

GTIN 4013364007345, Customs tariff No. (EU): 82055980, Gross weight: 4.60 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Total length (l_{G max} / I_{G min} )	3515 / 1935 mm
DB drawing No.	3 Ebgw 01.58
DB material No.	157 534

Total length (l_{G max} / I_{G min} )	3515 / 1935 mm
Handle length (I_H )	1150 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
DB drawing No.	3 Ebgw 01.58
DB material No.	157 534
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (star knob)	Aluminium alloy
End fitting	Aluminium / rubber eye
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C

Product 769352 was added to Notepad.

Go to Notepad

Product 769352 was added to the cart.

Go to Web-Shop

Part No. 769502 ESTC SQL RW 5000

GTIN 4013364004542, Customs tariff No. (EU): 82055980, Gross weight: 5.30 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Total length (l_{G max} / I_{G min} )	5015 / 2685 mm
DB drawing No.	3 Ebgw 01.52
DB material No.	157 533

Total length (l_{G max} / I_{G min} )	5015 / 2685 mm
Handle length (I_H )	1900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
DB drawing No.	3 Ebgw 01.52
DB material No.	157 533
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (star knob)	Aluminium alloy
End fitting	Aluminium / rubber eye
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C

Product 769502 was added to Notepad.

Go to Notepad

Product 769502 was added to the cart.

Go to Web-Shop

Telescopic with T pin shaft and cable guide

For threaded T pin shaft (bayonet locking mechanism).
The coupling is additionally fitted with a cable entry and a hook for securing the earthing cable and earthing stick at the tower (without adjusting ring).

1 Product

Part No. 769508 ESTC SQL H RW 5000

GTIN 4013364052383, Customs tariff No. (EU): 82055980, Gross weight: 5.30 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Total length (l_{G max} / I_{G min} )	5015 / 2685 mm
DB drawing No.	3 Ebgw 01.55
DB material No.	612 142

Total length (l_{G max} / I_{G min} )	5015 / 2685 mm
Handle length (I_H )	1900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
DB drawing No.	3 Ebgw 01.55
DB material No.	612 142
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (star knob)	Aluminium alloy
End fitting	Aluminium / rubber eye
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C

Product 769508 was added to Notepad.

Go to Notepad

Product 769508 was added to the cart.

Go to Web-Shop

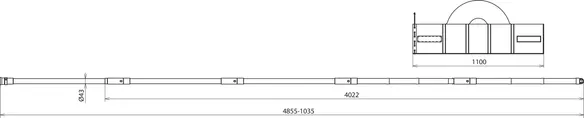

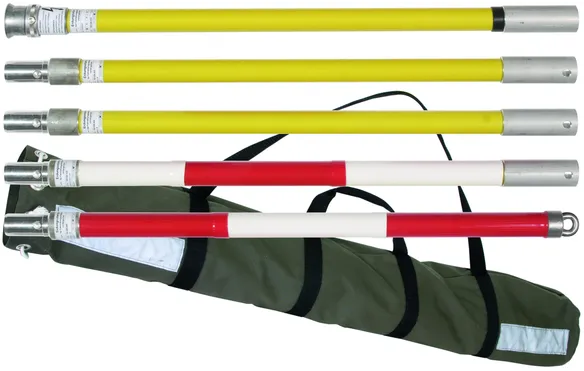

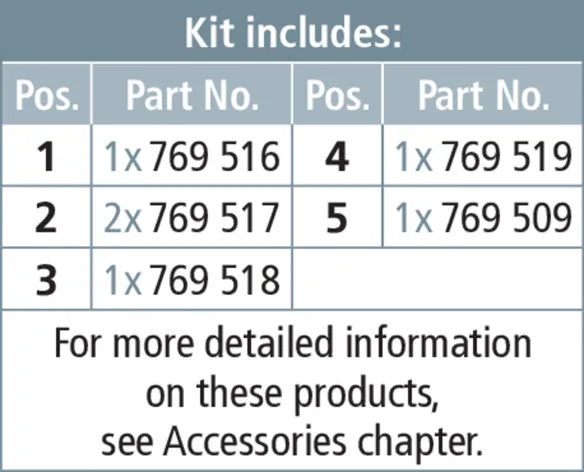

Six-part, with T pin shaft and aluminium coupling

For threaded T pin shafts (bayonet locking mechanism)

1 Product

Part No. 769515 EST SQL RW 4855 TA

GTIN 4013364157361, Customs tariff No. (EU): 82055980, Gross weight: 6.69 kg, PU: 1.00 pc(s)

Images

Additional information

Technical data

Total length (l_{G max} / I_{G min} )	4855 / 1035 mm
DB drawing No.	3 Ebgw 01.68-1

Product 769515 was added to Notepad.

Go to Notepad

Product 769515 was added to the cart.

Go to Web-Shop
