Spacers

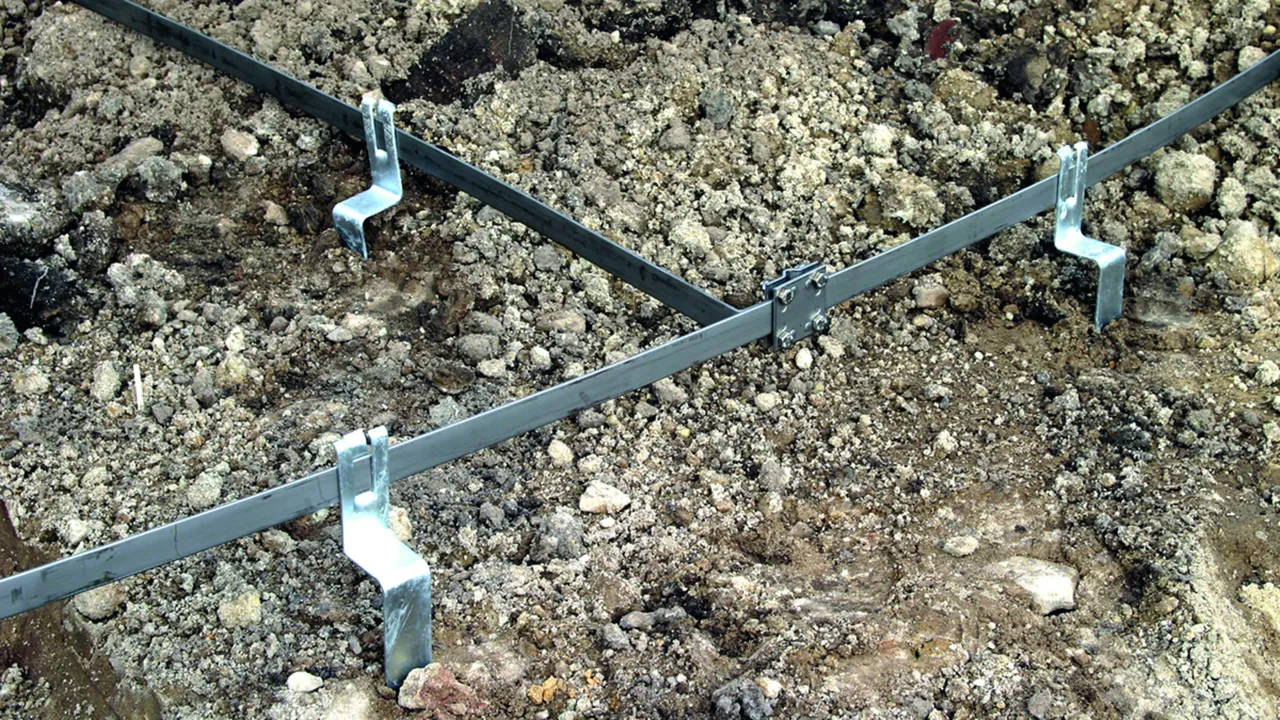

For the installation of earthing conductors in the foundation slab.
With catch lug to avoid loosening of the conductor.

Angled and reinforced design

1 Product

Part No. 290001 AH FE RF V G

GTIN 4013364027909, Customs tariff No. (EU): 85389099, Gross weight: 331.94 g, PU: 25.00 pc(s)

Images

Additional information

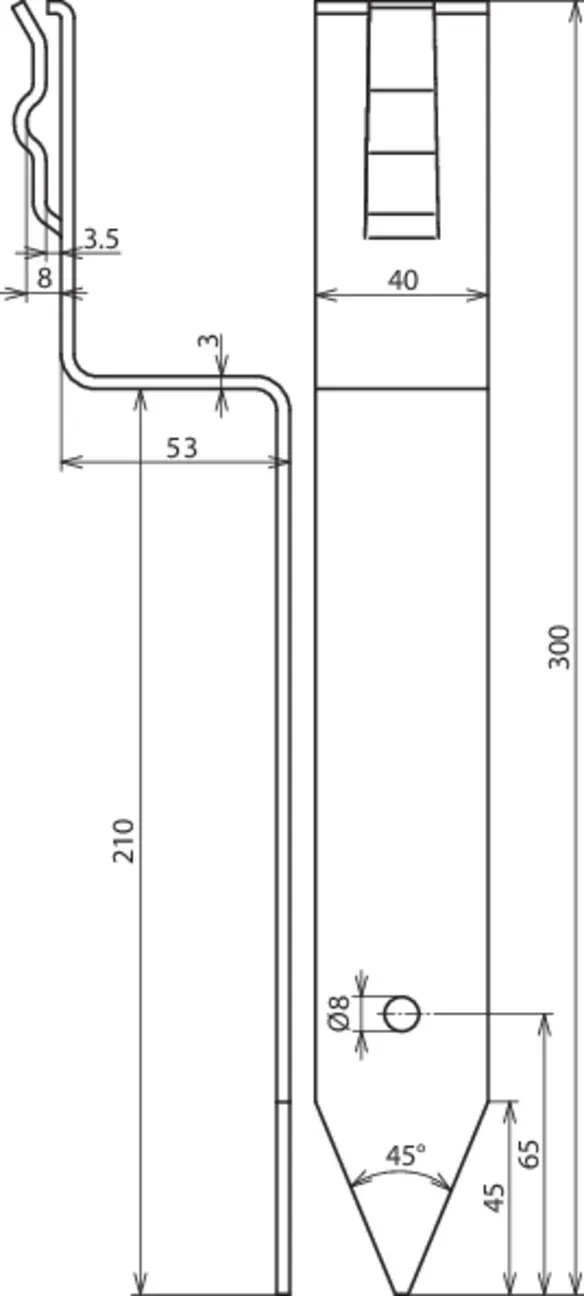

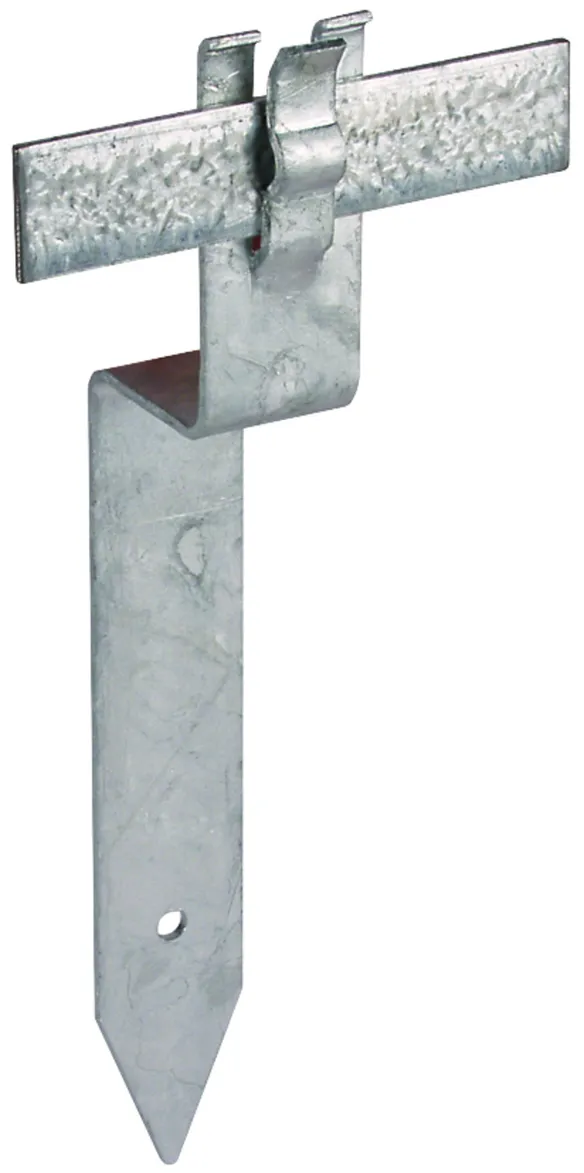

Spacer, angled and reinforced, St/tZn
Spacer
For installing earth conductors into the foundation level,
with safety lug to stop the conductor from coming loose
Reinforced angled type
Material: St/tZn
Support Fl: 40 mm
Support Rd: 8-10 mm
Length: 300 mm

Brand: DEHN
Type: AH FE RF V G
Part No.: 290001
or equivalent.



Technical data

Material St/tZn
Support Fl 40 mm
Support Rd 8-10 mm
Length 300 mm

Product 290001 was added to Notepad.

Go to Notepad

Product 290001 was added to the cart.

Go to Web-Shop

Straight design

1 Product

Part No. 290002 AH FE RF

GTIN 4013364027893, Customs tariff No. (EU): 85389099, Gross weight: 91.92 g, PU: 50.00 pc(s)

Images

Additional information

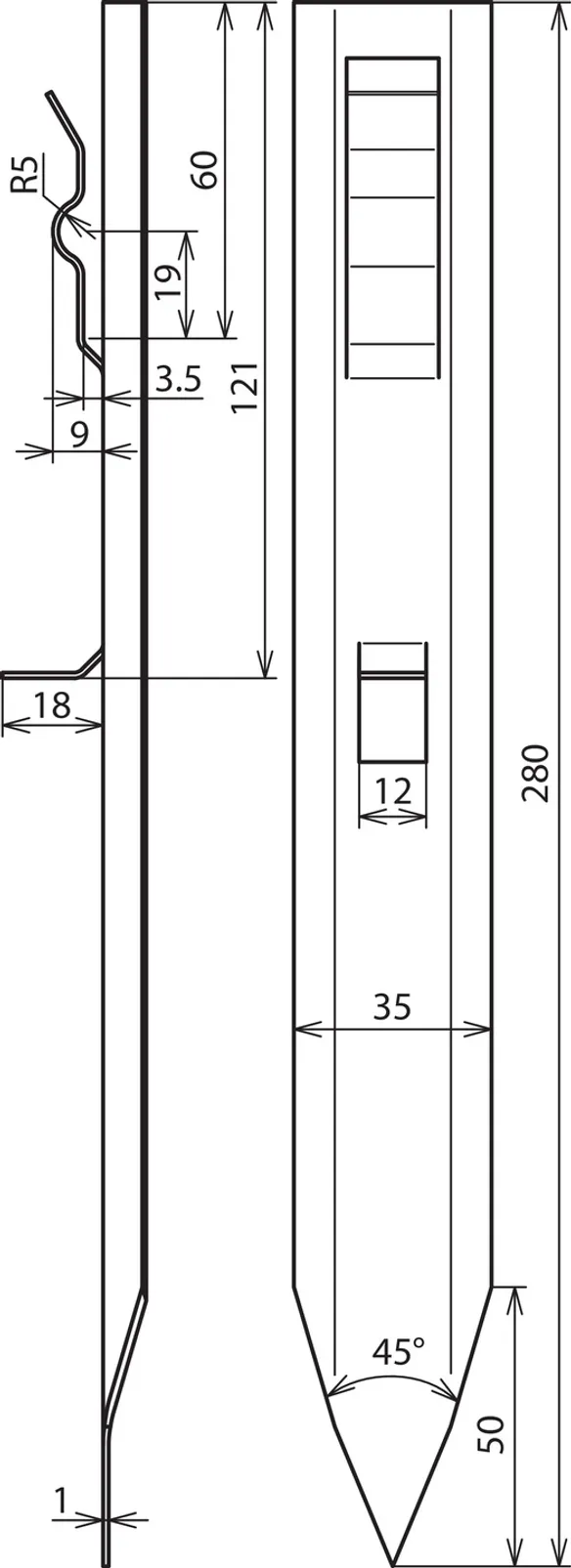

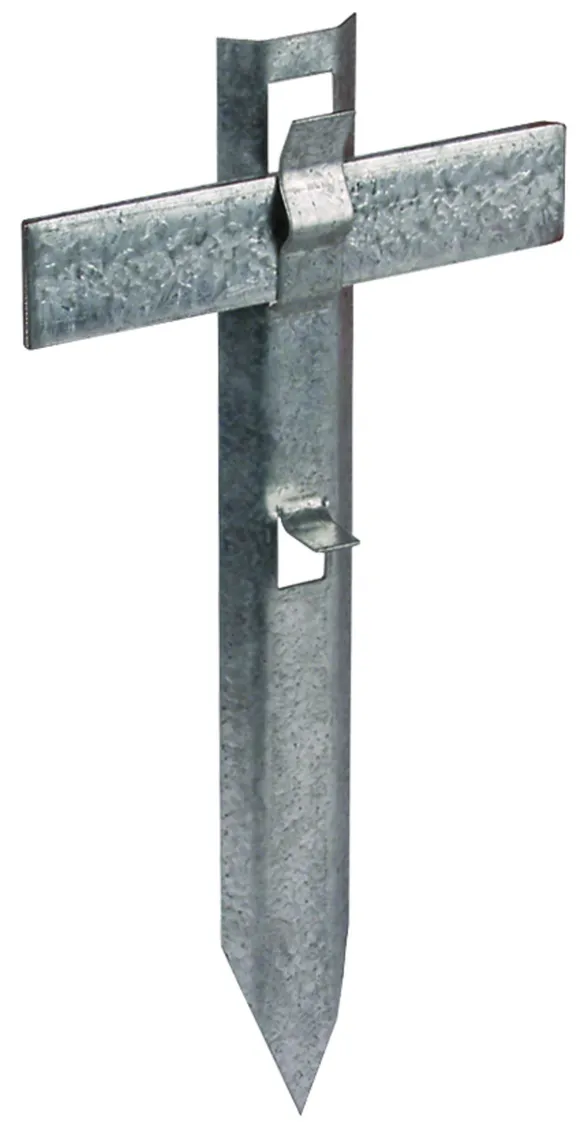

Spacer, straight, St/tZn
Spacer
For installing earth conductors into the foundation level,
with safety lug against loosening of the conductor
Straight type
Material: St/tZn
Support Fl: 40 mm
Support Rd: 8-10 mm
Length: 280 mm

Brand: DEHN
Type: AH FE RF
Part No.: 290002
or equivalent.



Technical data

Material St/tZn
Support Fl 40 mm
Support Rd 8-10 mm
Length 280 mm

Product 290002 was added to Notepad.

Go to Notepad

Product 290002 was added to the cart.

Go to Web-Shop
