Bridging Brackets

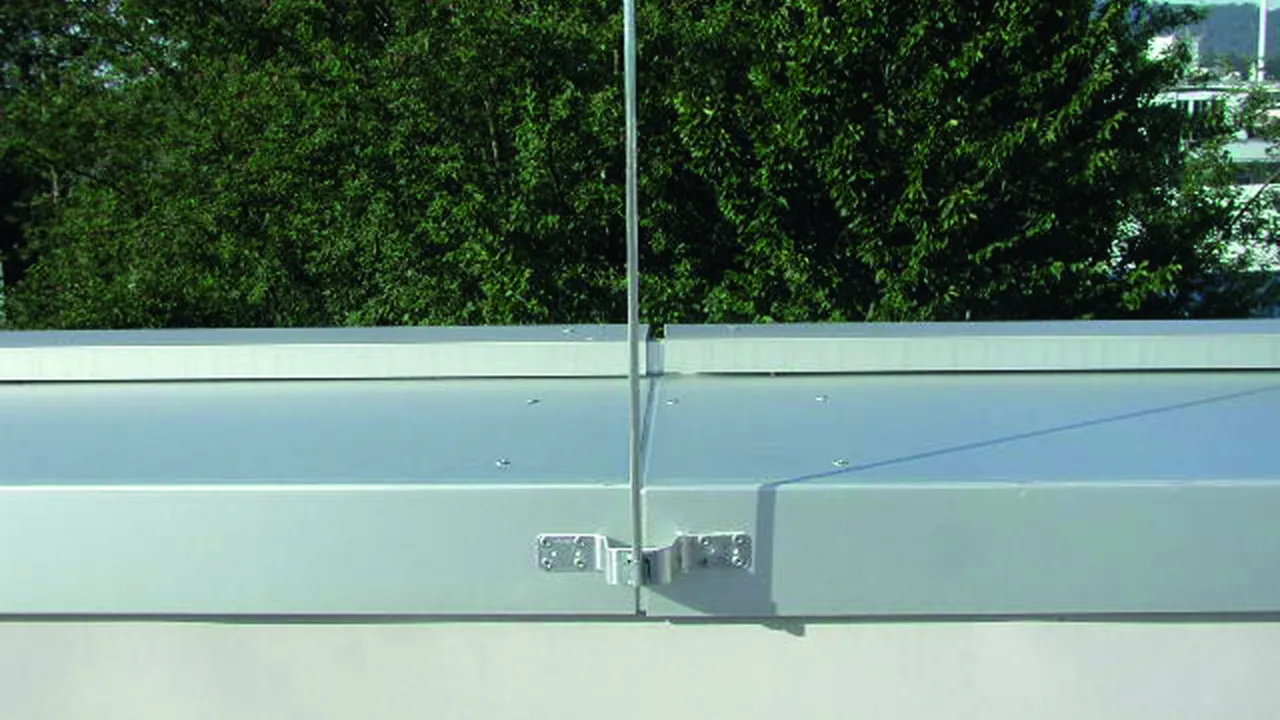

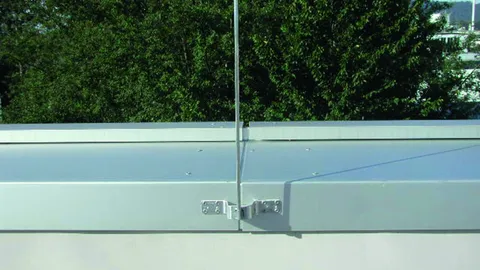

For connection (riveting or screwing) of metal cladding.

Application note:
According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt self-tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.

Short design with middle hole

2 Products

Part No. 377006 UEBL L170 B11 B5.2 6.5 AL

GTIN 4013364024922, Customs tariff No. (EU): 85359000, Gross weight: 39.30 g, PU: 50.00 pc(s)


Images

Additional information

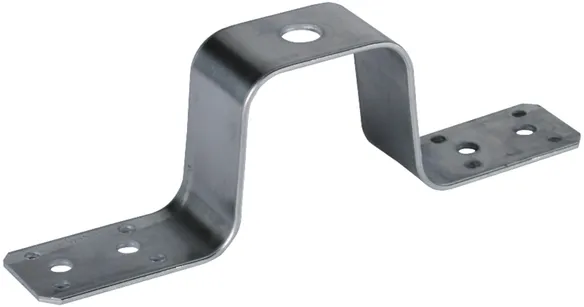

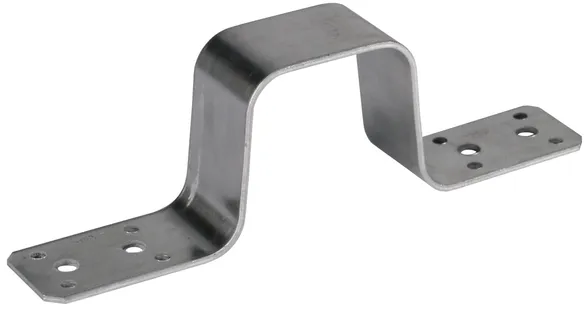

Bridging brackets, short, with middle hole, Al
Bridging bracket
For connection of metal cladding
(riveting or screwing)

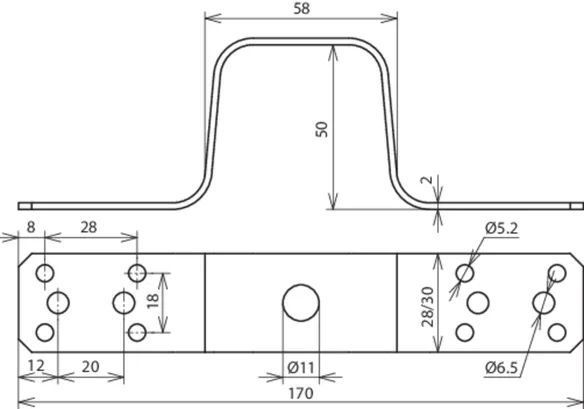

Short design, with middle hole
Material: Al
Length : 170 mm
Fixing : [8x] Ø5.2 / [4x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: UEBL L170 B11 B5.2 6.5 AL
Part No.: 377006
or equivalent.

Certificates



Technical data

Material Al
Dimensions 30 x 2 mm
Length 170 mm
Fixing [8x] Ø5.2 / [4x] Ø6.5 mm
Middle hole Ø11 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377006 was added to Notepad.

Product 377006 was added to the cart.

Part No. 377027 UEBL L170 B11 B5.2 6.5 CU

GTIN 4013364034204, Customs tariff No. (EU): 85359000, Gross weight: 114.30 g, PU: 50.00 pc(s)


Images

Additional information

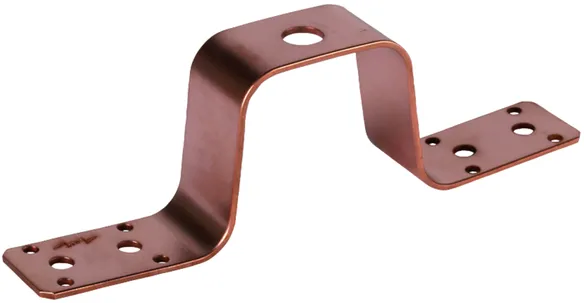

Bridging brackets, short, with middle hole, Cu
Bridging bracket
For connection of metal cladding
(riveting or screwing)
Short design, with middle hole
Material: Cu
Length : 170 mm
Fixing : [8x] Ø5.2 / [4x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: UEBL L170 B11 B5.2 6.5 CU
Part No.: 377027
or equivalent.

Certificates



Technical data

Material Cu
Dimensions 28 x 2 mm
Length 170 mm
Fixing [8x] Ø5.2 / [4x] Ø6.5 mm
Middle hole Ø11 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377027 was added to Notepad.

Product 377027 was added to the cart.


Short design without middle hole

1 Product

Part No. 377016 UEBL L170 B5.2 6.5 AL

GTIN 4013364083417, Customs tariff No. (EU): 85359000, Gross weight: 38.30 g, PU: 50.00 pc(s)


Images

Additional information

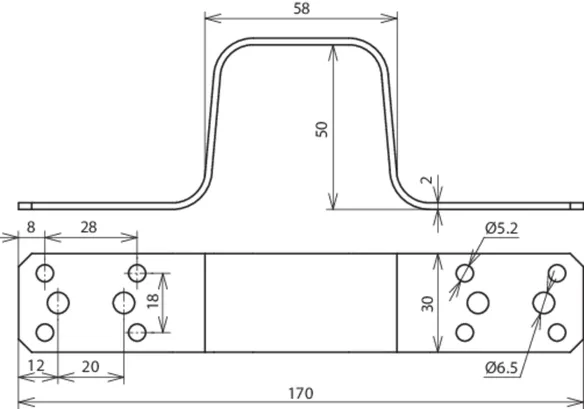

Bridging brackets, short, without middle hole, Al
Bridging bracket
For connection of metal cladding
(riveting or screwing)
Short design, without middle hole
Material: Al
Length : 170 mm
Fixing : [8x] Ø5.2 / [4x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: UEBL L170 B5.2 6.5 AL
Part No.: 377016
or equivalent.

Certificates



Technical data

Material Al
Dimensions 30 x 2 mm
Length 170 mm
Fixing [8x] Ø5.2 / [4x] Ø6.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377016 was added to Notepad.

Product 377016 was added to the cart.


Long design with middle hole

1 Product

Part No. 377026 UEBL L220 B11 B5.2 6.5 AL

GTIN 4013364068582, Customs tariff No. (EU): 85359000, Gross weight: 48.02 g, PU: 50.00 pc(s)


Images

Additional information

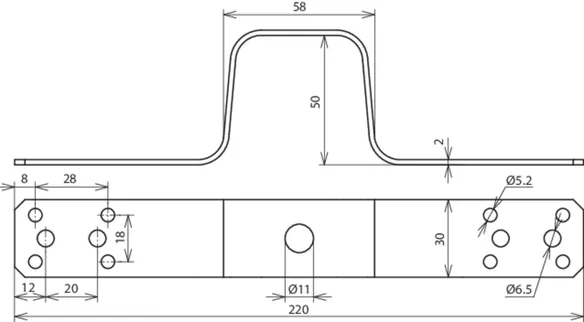

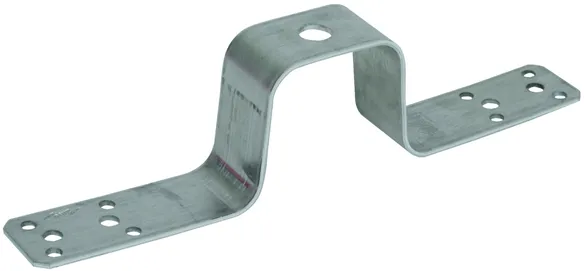

Bridging brackets, long, with middle hole, Al
