Specific PCB solutions

Surge arrester for protecting the terminal device ready for installation
Space-saving protective devices for integration into the customer application
Can be used in AC, DC and AC+DC applications
Fitted directly on the PCB using THT
Designed as a type 1 +2 combined arrester in RAC spark gap technology with follow current limitation
Designed as a type 2 arrester in varistor technology with "thermodynamic control" arrester monitoring
High device reliability requiring minimal installation space
Use in various sectors: e.g. wind, PV, mobile communication

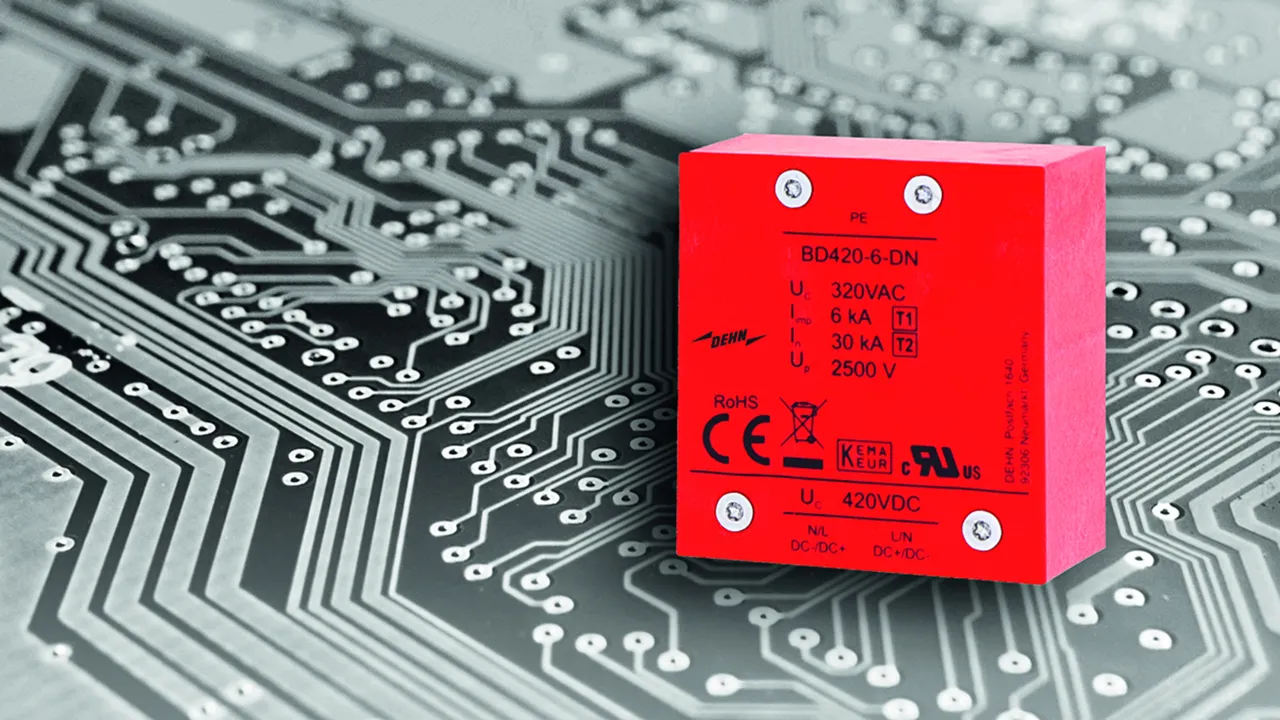

BD420-6-DN

1 Product

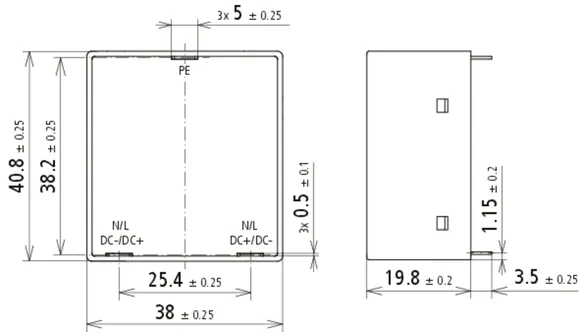

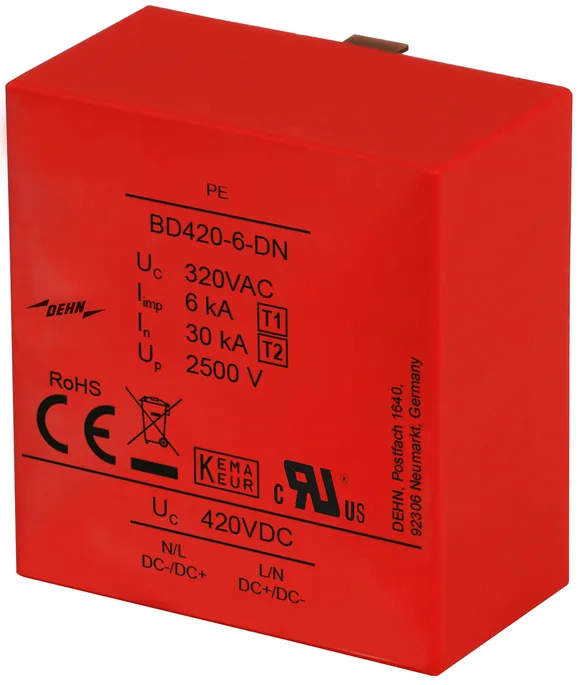

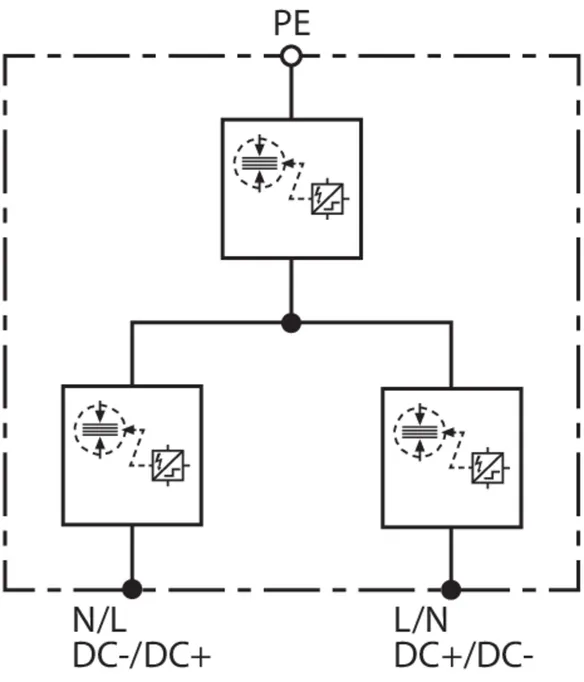

Part No. 900488 BD420-6-DN

GTIN 4013364426382, Customs tariff No. (EU): 85363090, Gross weight: 58.00 g, PU: 125.00 pc(s)

Images

Additional information

Brand: DEHN
Type: BD420-6-DN
Part No.: 900488
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	6 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. backup fuse (L) up to I_K= 3 kA_rms	100 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	320 V (50 / 60 Hz)
Nominal voltage (d.c.) (U_N )	380 V
Max. continuous operating voltage (d.c.) (Uc)	420 V
Lightning impulse current (10/350 µs) (I_imp )	6 kA
Specific energy (W/R)	9 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	30 kA
Voltage protection level (U_P )	≤ 2.5 kV
Follow current extinguishing capability (a.c.) (I_fi) 275 V	3 kA_rms
Follow current extinguishing capability (a.c.) (I_fi) 320 V	1.5 kA_rms
Follow current extinguishing capability (d.c.) (I_fi) 420 V	50 A
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 3 kA_rms	100 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] (T_U )	-40 °C ... +105 °C
For mounting on	printed circuit boards
Enclosure material	thermoplastic, red, UL 94 V-0 and UL
Place of installation	PCB assembly
Dimensions	41.05 x 38.25 x 20 mm
Approvals	KEMA, UL

Product 900488 was added to Notepad.

Go to Notepad

Product 900488 was added to the cart.

Go to Web-Shop

VC 350 2 5

1 Product

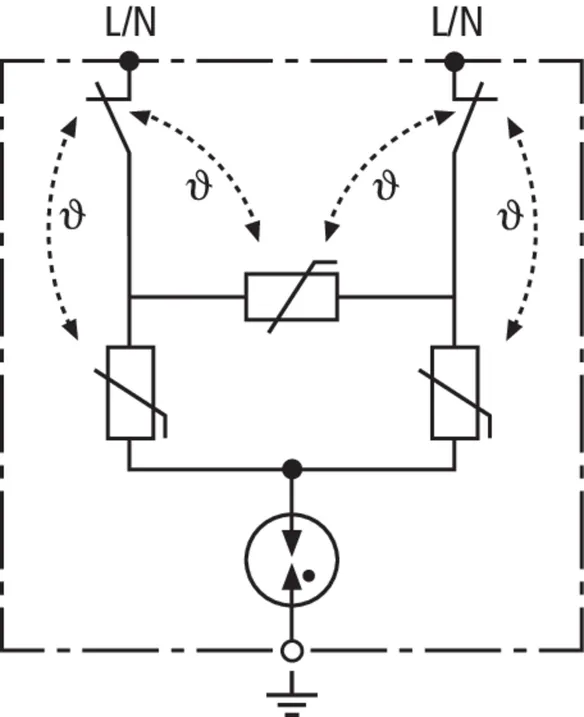

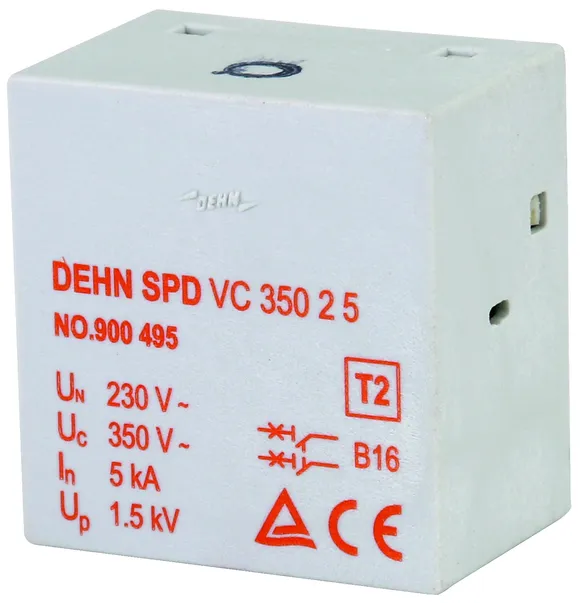

Part No. 900495 VC 350 2 5

GTIN 6942299502527, Gross weight: 27.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

VC 350 2 5 PCB surge arrester
Two-pole surge arrester
For installation onto printed circuit boards of terminal equipment to be protected
Type 2 SPD as per IEC 61643-11
Energy-coordinated as per IEC 62305-4, GB/T21714.4-2015 with arresters from the Red/Line product series

Brand: DEHN
Type: VC 350 2 5
Part No.: 900495
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	350 V (50 / 60 Hz)
Voltage protection level (U_P )	≤ 1.5 kV
Supplementary data:	-------------------------
Nominal discharge current (8/20 µs) at ≤70 °C [L-N/N-PE / L-PE] (I_n )	5.5 kA +-5 times, interval 1min. (each time), interval 25 min. (each group)

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	350 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	B 16 2P
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating state / fault indication	green / not green
For mounting on	printed circuit boards
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	25 x 24 x 16.2 mm
Approvals	CE / TÜV
Degree of pollution	II
Number of ports	1
Altitude	5000 m
Isolation voltage	2.5 kV, 1 min.
Wire pull	40 N
Safety gap	3 mm
Wave soldering	260 °C, 10 s (max. 2 times)
Iron soldering	350 °C, 5 s
Withstanding temperature of disconnector	130 °C, 30 min.
Operating temperature range (T_U )	-40 °C ~ +95 °C (humidity: 45% RH~95%RH), +95 °C ~ +105 °C (humidity: 45% RH~75%RH)
Power supply system	TT / TN
Supplementary data:	-------------------------
Nominal discharge current (8/20 µs) at ≤70 °C [L-N/N-PE / L-PE] (I_n )	5.5 kA +-5 times, interval 1min. (each time), interval 25 min. (each group)

Product 900495 was added to Notepad.

Go to Notepad

Product 900495 was added to the cart.

Go to Web-Shop

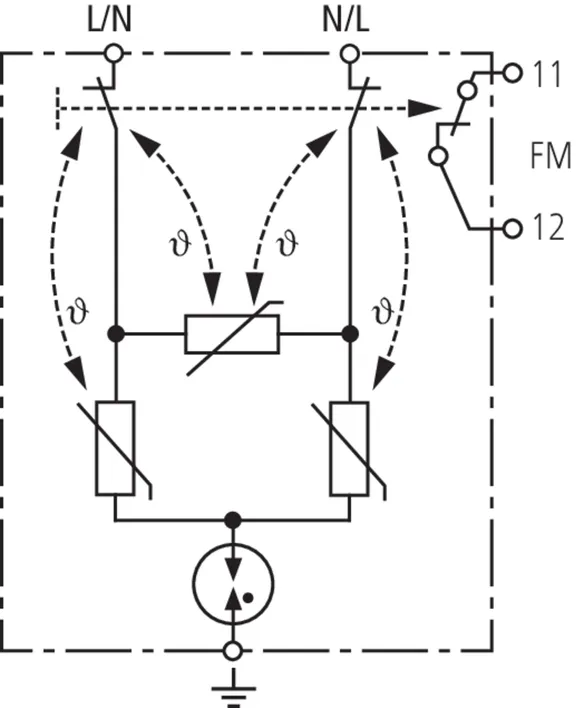

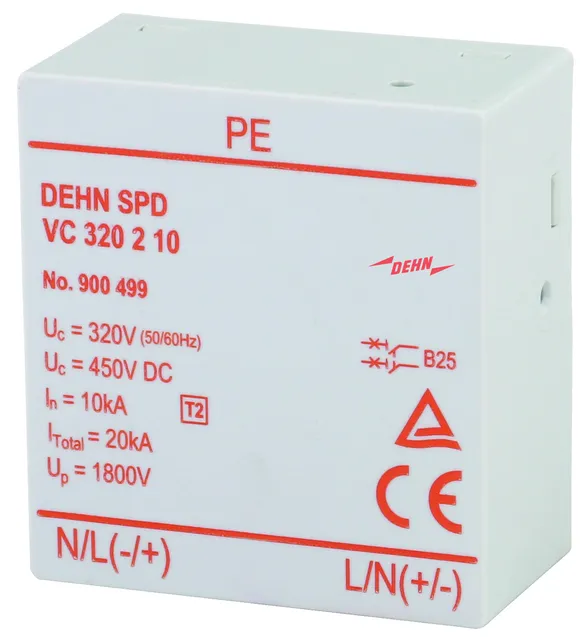

VC 320 2 10

1 Product

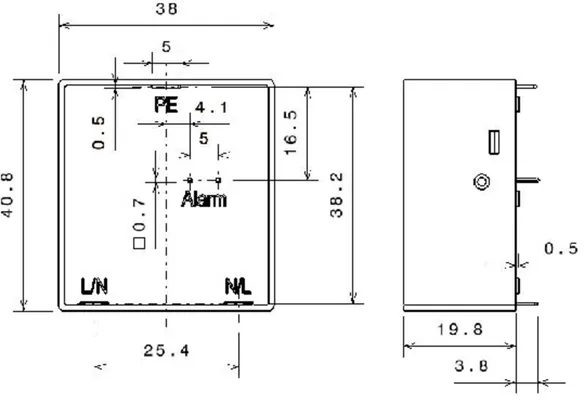

Part No. 900499 VC 320 2 10

GTIN , Gross weight: 0.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Brand: DEHN
Type: VC 320 2 10
Part No.: 900499
or equivalent.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L/N-PE] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) [(DC+/DC-) --> PE] (Uc)	450 V
Voltage protection level (U_P )	≤ 1.8 kV
Supplementary data:	-------------------------

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L/N-PE] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) [(DC+/DC-) --> PE] (Uc)	450 V
Nominal voltage (d.c.) (U_N )	400 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Total discharge current (8/20 µs) (I_total )	20 kA
Voltage protection level (U_P )	≤ 1.8 kV
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	B 25 2P
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating state / fault indication	black / red
For mounting on	printed circuit boards
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	40.8 x 38 x 20 mm
Approvals	TÜV; CE
Degree of pollution	II
Number of ports	1
Altitude	5000 m
Wave soldering	260 °C, 10 s (max. 2 times)
Operating temperature range (T_U )	-40 °C ~ +85 °C
Power supply system	TT/TN
Remote contact: switching capacity (a.c.)	250 V / 0.1 A
Remote contact: switching capacity (d.c.)	125 V / 0.05 A
Supplementary data:	-------------------------

Product 900499 was added to Notepad.

Go to Notepad

Product 900499 was added to the cart.

Go to Web-Shop

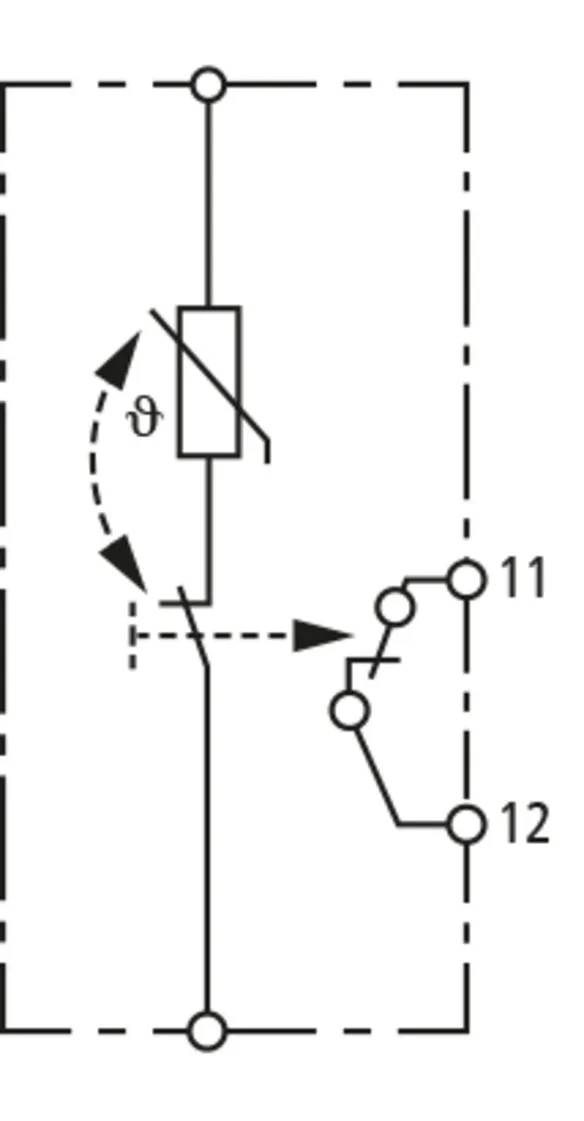

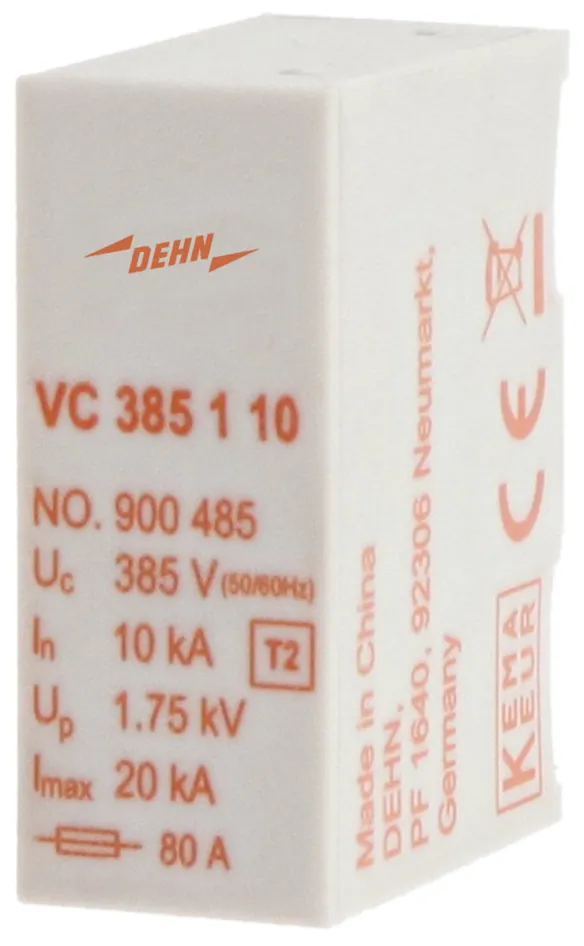

VC 385 1 10

1 Product

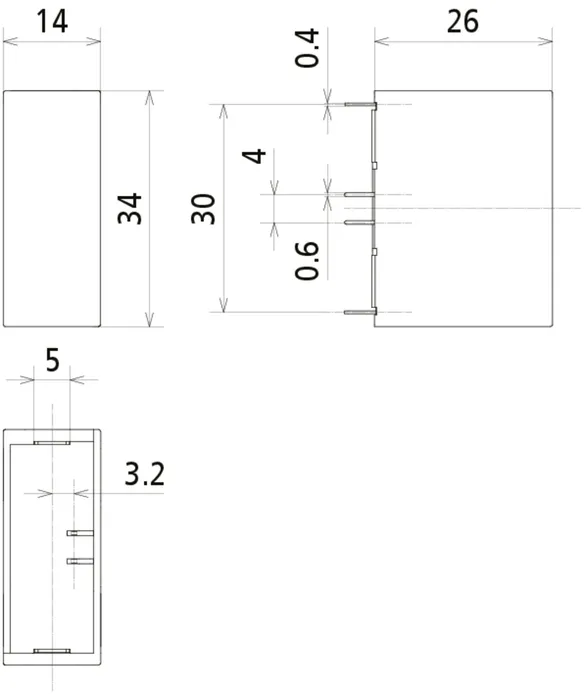

Part No. 900485 VC 385 1 10

GTIN 4013364434790, Customs tariff No. (EU): 85363010, Gross weight: 30.58 g, PU: 120.00 pc(s)

Images

Open PDF

Additional information

CAD files

Brand: DEHN
Type: VC 385 1 10
Part No.: 900485
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	385 V
Voltage protection level (U_P )	≤ 1.75 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
SPD according to UL1449	4CA
Max. continuous operating voltage (a.c.) (U_C )	385 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 1.75 kV
Voltage protection level at 3 kA (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	80 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	30 x 14 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Product 900485 was added to Notepad.

Go to Notepad

Product 900485 was added to the cart.

Go to Web-Shop

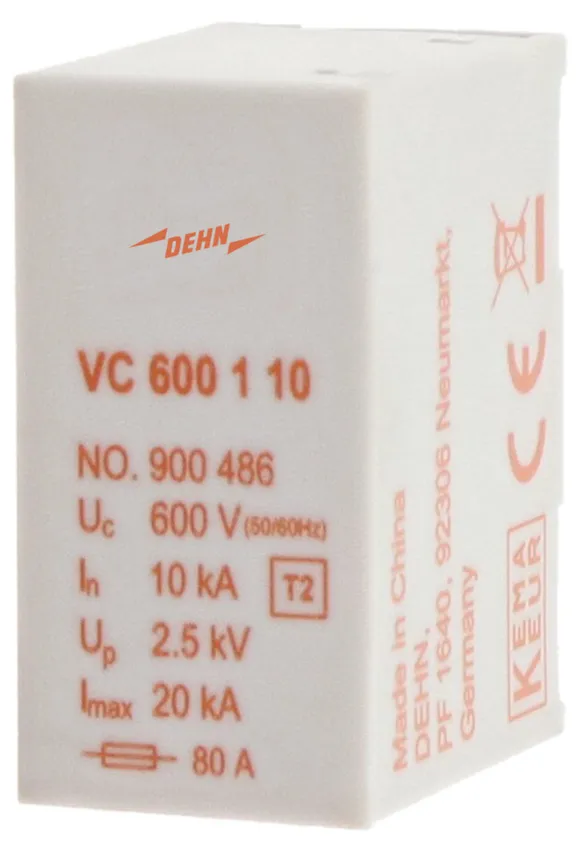

VC 600 1 10

1 Product

Part No. 900486 VC 600 1 10

GTIN 4013364434806, Customs tariff No. (EU): 85363010, Gross weight: 38.25 g, PU: 120.00 pc(s)

Images

Open PDF

Additional information

CAD files

Brand: DEHN
Type: VC 600 1 10
Part No.: 900486
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	600 V
Voltage protection level (U_P )	≤ 2.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
SPD according to UL1449	4CA
Max. continuous operating voltage (a.c.) (U_C )	600 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 3 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	80 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	6 kA_rms
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	30 x 18 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Product 900486 was added to Notepad.

Go to Notepad

Product 900486 was added to the cart.

Go to Web-Shop

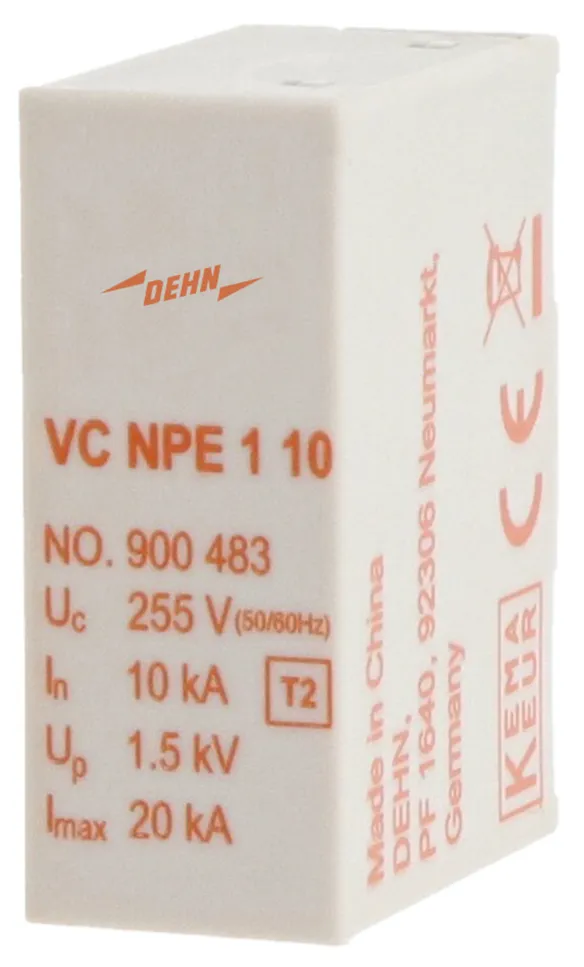

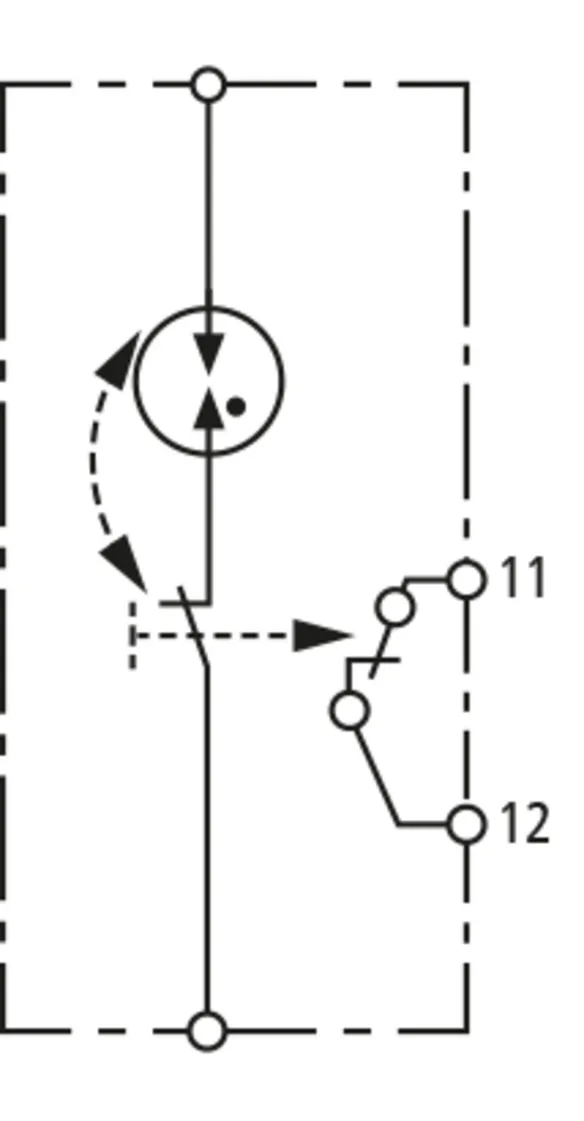

VC NPE 1 10

1 Product

Part No. 900483 VC NPE 1 10

GTIN 4013364434813, Customs tariff No. (EU): 85363010, Gross weight: 22.25 g, PU: 120.00 pc(s)

Images

Open PDF

Additional information

CAD files

Brand: DEHN
Type: VC NPE 1 10
Part No.: 900483
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	255 V
Voltage protection level (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
SPD according to UL1449	4CA
Max. continuous operating voltage (a.c.) (U_C )	255 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 3 kA (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	100 A_rms
Response time (t_A )	≤ 100 ns
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	30 x 14 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Product 900483 was added to Notepad.

Go to Notepad

Product 900483 was added to the cart.

Go to Web-Shop

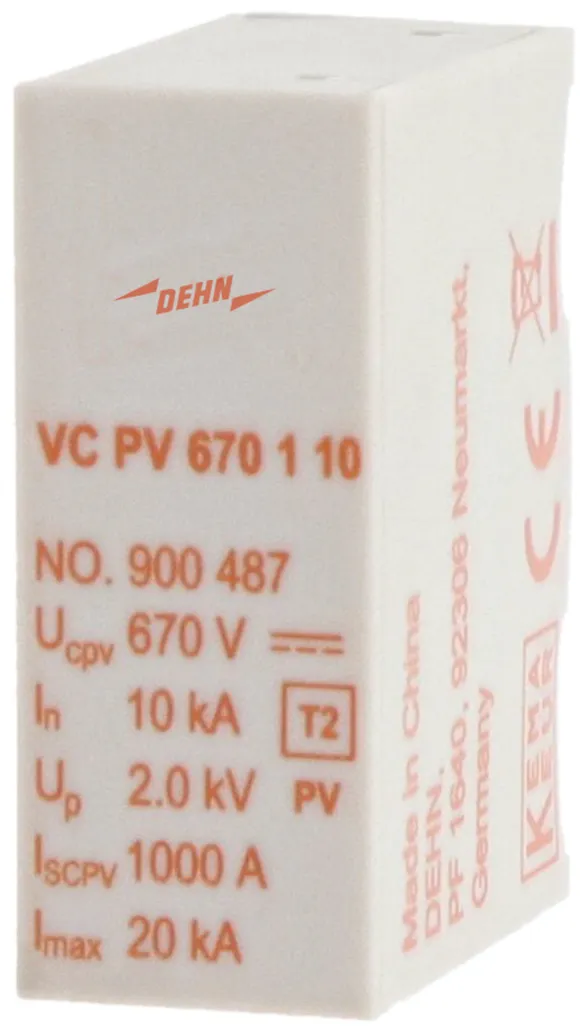

VC PV 670 1 10

1 Product

Part No. 900487 VC PV 670 1 10

GTIN 4013364434820, Customs tariff No. (EU): 85363010, Gross weight: 34.33 g, PU: 120.00 pc(s)

Images

Open PDF

Additional information

CAD files

Brand: DEHN
Type: VC PV 670 1 10
Part No.: 900487
or equivalent.

Certificates

Technical data

Max. PV voltage (d.c.) (U_CPV )	670 V
Voltage protection level (U_P )	≤ 2 kV

SPD according to EN 50539-11 / IEC 61643-31	type 2 / class II
SPD according to UL1449	4CA
Max. PV voltage (d.c.) (U_CPV )	670 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 2 kV
Voltage protection level at 3 kA (U_P )	≤ 1.7 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability (I_SCPV )	1 kA
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	34 x 14 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Product 900487 was added to Notepad.

Go to Notepad

Product 900487 was added to the cart.

Go to Web-Shop

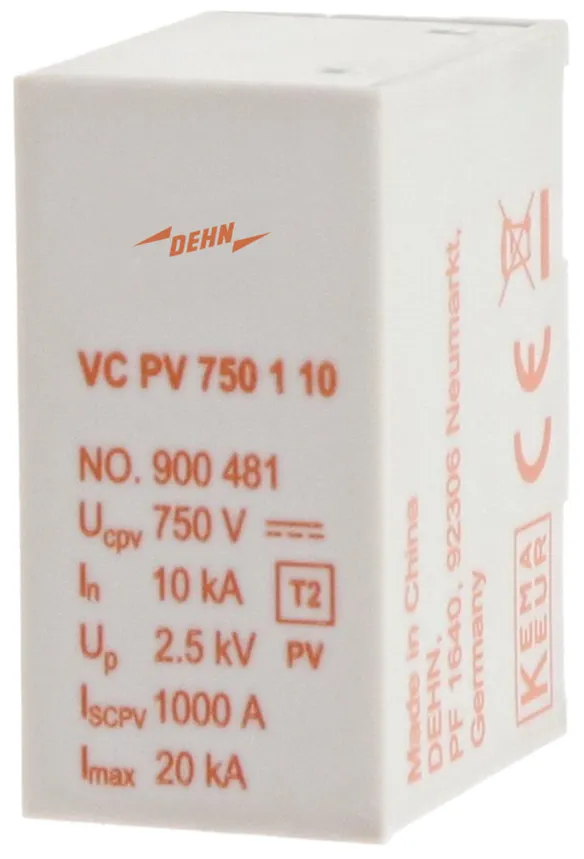

VC PV 750 1 10

1 Product

Part No. 900481 VC PV 750 1 10

GTIN 4013364434837, Customs tariff No. (EU): 85363010, Gross weight: 38.08 g, PU: 120.00 pc(s)

Images

Open PDF

Additional information

CAD files

Brand: DEHN
Type: VC PV 750 1 10
Part No.: 900481
or equivalent.

Certificates

Technical data

Max. PV voltage (d.c.) (U_CPV )	750 V
Voltage protection level (U_P )	≤ 2.5 kV

SPD according to EN 50539-11 / IEC 61643-31	type 2 / class II
SPD according to UL1449	4CA
Max. PV voltage (d.c.) (U_CPV )	750 V
Max. discharge current (8/20 µs) (I_max )	20 kA
Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level (U_P )	≤ 2.5 kV
Voltage protection level at 3 kA (U_P )	≤ 2 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability (I_SCPV )	1 kA
Operating state / fault indication	with remote signalling contact (break contact)
For mounting on	printed circuit boards
Enclosure material	PA66, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	34 x 18 x 26 mm
Approvals	KEMA, UL
Number of ports	1
Wave soldering	260 °C
Operating temperature range (T_U )	-40 °C ... +85 °C
Remote contact: switching capacity (a.c.)	250 V / 0.5 A
Remote contact: switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A; 30 V / 1 A

Product 900481 was added to Notepad.

Go to Notepad

Product 900481 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Specific PCB solutions

BD420-6-DN

Part No. 900488 BD420-6-DN

Product 900488 was added to Notepad.

Product 900488 was added to the cart.

VC 350 2 5

Part No. 900495 VC 350 2 5

Product 900495 was added to Notepad.

Product 900495 was added to the cart.

VC 320 2 10

Part No. 900499 VC 320 2 10

Product 900499 was added to Notepad.

Product 900499 was added to the cart.

VC 385 1 10

Part No. 900485 VC 385 1 10

Product 900485 was added to Notepad.

Product 900485 was added to the cart.

VC 600 1 10

Part No. 900486 VC 600 1 10

Product 900486 was added to Notepad.

Product 900486 was added to the cart.

VC NPE 1 10

Part No. 900483 VC NPE 1 10

Product 900483 was added to Notepad.

Product 900483 was added to the cart.

VC PV 670 1 10

Part No. 900487 VC PV 670 1 10

Product 900487 was added to Notepad.

Product 900487 was added to the cart.

VC PV 750 1 10

Part No. 900481 VC PV 750 1 10

Product 900481 was added to Notepad.

Product 900481 was added to the cart.

Specific PCB solutions

BD420-6-DN

Part No. 900488 BD420-6-DN

Product 900488 was added to Notepad.

Product 900488 was added to the cart.

VC 350 2 5

Part No. 900495 VC 350 2 5

You are not authorized to download 900495.stp

You are not authorized to download 900495.igs

You are not authorized to download 900495.jt

You are not authorized to download 900495.dwg

You are not authorized to download 900495m_D.dxf

Product 900495 was added to Notepad.

Product 900495 was added to the cart.

VC 320 2 10

Part No. 900499 VC 320 2 10

You are not authorized to download 900499.stp

You are not authorized to download 900499.igs

You are not authorized to download 900499.jt

You are not authorized to download 900499.dwg

Product 900499 was added to Notepad.

Product 900499 was added to the cart.

VC 385 1 10

Part No. 900485 VC 385 1 10

You are not authorized to download 900483_485_487.stp

You are not authorized to download 900483_485_487.igs

You are not authorized to download 900483_485_487.jt

You are not authorized to download 900483_485_487.dwg

You are not authorized to download 900485m_CN.dxf

Product 900485 was added to Notepad.

Product 900485 was added to the cart.

VC 600 1 10

Part No. 900486 VC 600 1 10

You are not authorized to download 900481_486.stp

You are not authorized to download 900481_486.igs

You are not authorized to download 900481_486.jt

You are not authorized to download 900481_486.dwg

You are not authorized to download 900486m_CN.dxf

Product 900486 was added to Notepad.

Product 900486 was added to the cart.

VC NPE 1 10

Part No. 900483 VC NPE 1 10

You are not authorized to download 900483_485_487.stp

You are not authorized to download 900483_485_487.igs

You are not authorized to download 900483_485_487.jt

You are not authorized to download 900483_485_487.dwg

You are not authorized to download 900485m_CN.dxf

Product 900483 was added to Notepad.

Product 900483 was added to the cart.

VC PV 670 1 10

Part No. 900487 VC PV 670 1 10

You are not authorized to download 900483_485_487.stp

You are not authorized to download 900483_485_487.igs

You are not authorized to download 900483_485_487.jt

You are not authorized to download 900483_485_487.dwg

You are not authorized to download 900485m_CN.dxf

Product 900487 was added to Notepad.

Product 900487 was added to the cart.

VC PV 750 1 10

Part No. 900481 VC PV 750 1 10

You are not authorized to download 900481_486.stp

You are not authorized to download 900481_486.igs

You are not authorized to download 900481_486.jt

You are not authorized to download 900481_486.dwg

You are not authorized to download 900486m_CN.dxf

Product 900481 was added to Notepad.

Product 900481 was added to the cart.
