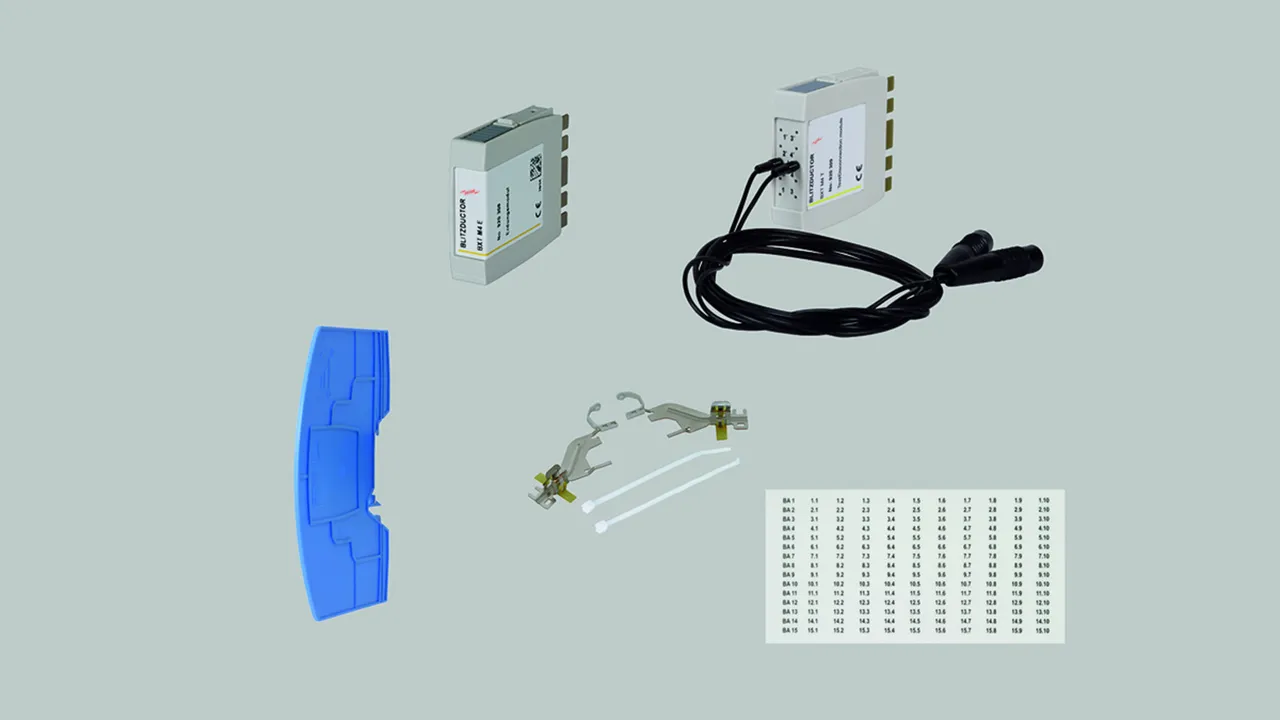

Accessories for BLITZDUCTOR SP / XT / XTU

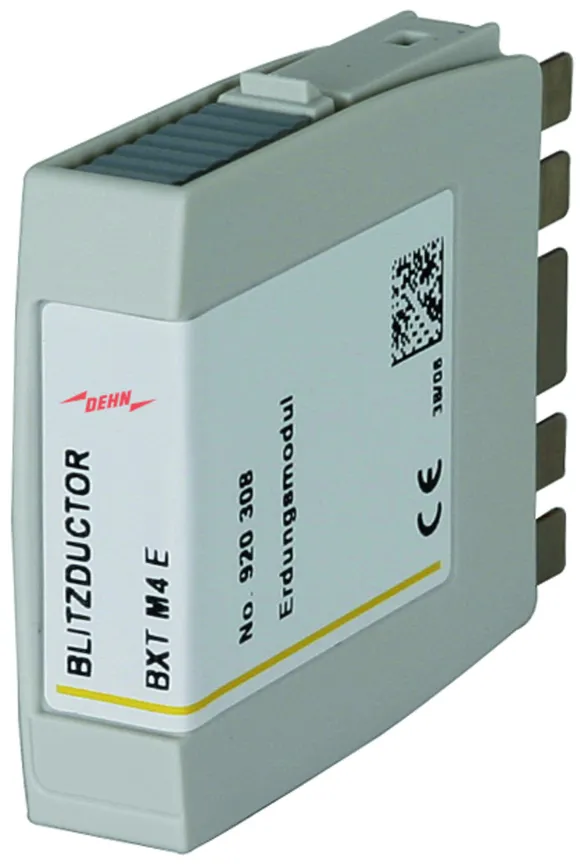

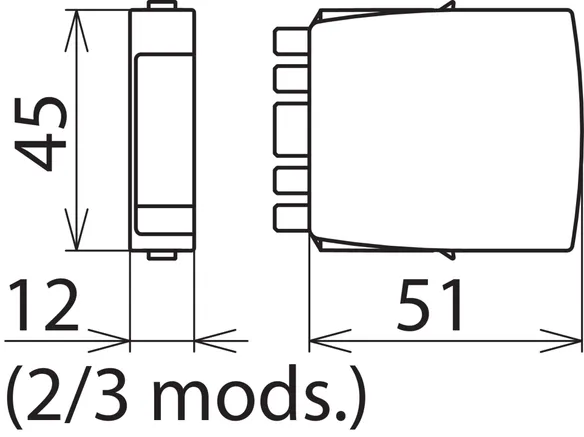

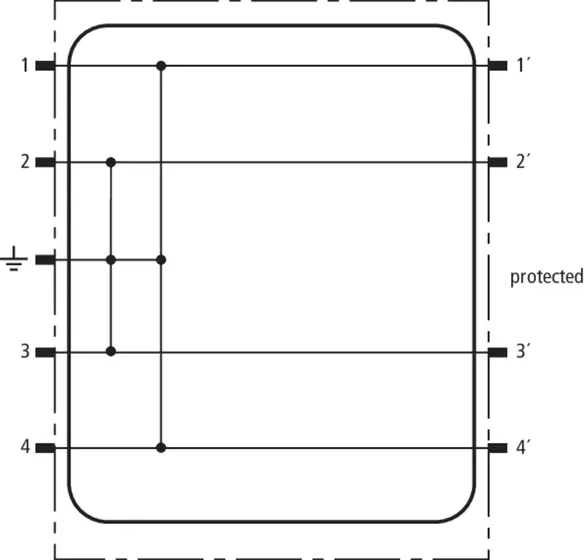

Earthing Module

The plugged-in earthing module connects all lines connected to the BLITZDUCTOR SP / XT / XTU base part to the equipotential bonding. It directly earths unused cable cores that are already connected to the base part.

1 Product

Part No. 920308 BXT M4 E

GTIN 4013364109209, Customs tariff No. (EU): 85369010, Gross weight: 29.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

BXT M4 E earthing module for BLITZDUCTOR SP/XT/XTU base parts
Plug-in module for direct earthing of the lines
connected to the BLITZDUCTOR XT base part.


Brand: DEHN
Type: BXT M4 E
Part No.: 920308
or equivalent.

Certificates



Technical data

D1 Total lightning impulse current (10/350 µs) (Iimp ) 10 kA
Plugs into base part

Product 920308 was added to Notepad.

Go to Notepad

Product 920308 was added to the cart.

Go to Web-Shop

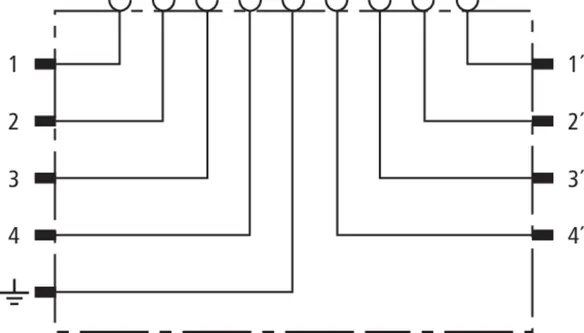

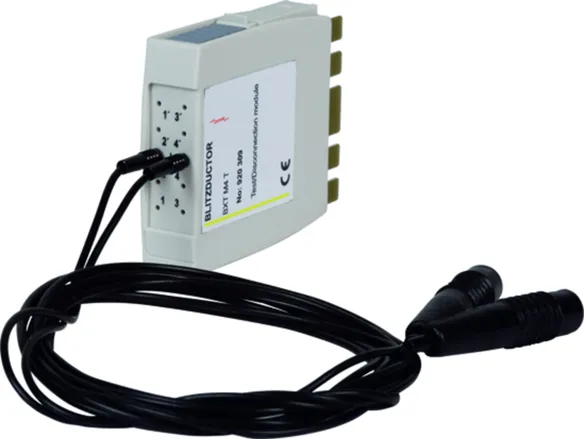

Test / Disconnection Module

The plugged-in test / disconnection module interrupts the cable run of the lines connected to the BLITZDUCTOR SP / XT / XTU base part and leads them to a test socket at the front of the module. This allows to carry out measurements in the installation without removing the lines from the base part.

1 Product

Part No. 920309 BXT M4 T

GTIN 4013364109193, Customs tariff No. (EU): 85369010, Gross weight: 24.60 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

BXT M4 T test / disconnection module for BLITZDUCTOR SP/XT/XTU base parts
Plug-in module as test joint for insulation testing
without disconnecting the lines, pluggable into
BLITZDUCTOR XT base part.

Accessories: 2 measuring lines (1 m), protective bag

Brand: DEHN
Type: BXT M4 T
Part No.: 920309
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (d.c.) (UC ) 180 V
Nominal current at 80 °C (IL ) 1.0 A
Volume resistance 0.1 ohms
Plugs into base part
Test sockets gold-plated, 1 mm
Accessories 2 measuring lines (1 m), protective bag

Product 920309 was added to Notepad.

Go to Notepad

Product 920309 was added to the cart.

Go to Web-Shop

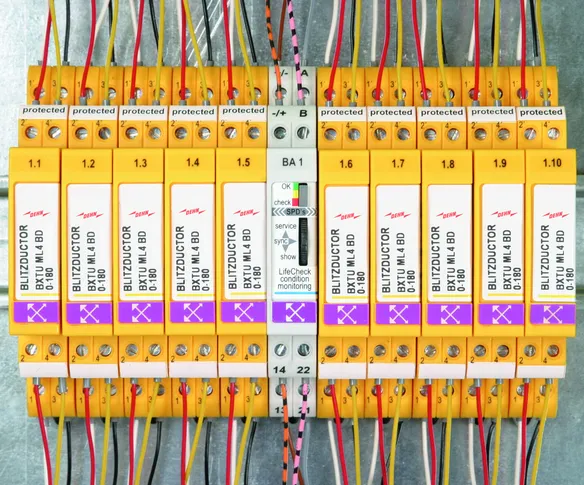

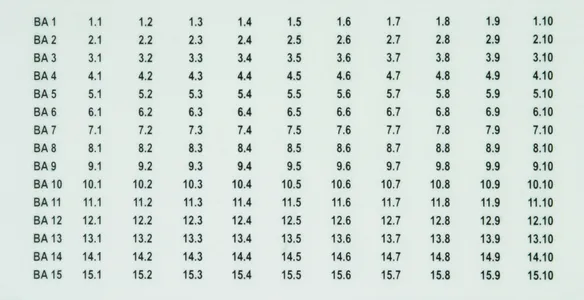

Labelling System BA1-BA15

2x 165 adhesive labels for labelling DRC MCM XT monitoring devices with the bus address (BA1 to BA15) and BXT modules with consecutive numbers (1.1-1.10 to 15.1-15.10).

1 Product

Part No. 920398 BS BA1 BA15 BXT

GTIN 4013364126572, Customs tariff No. (EU): 39199080, Gross weight: 5.60 g/PAK, PU: 1.00 PAK

Images

Additional information

Labelling system BA1-BA15
Adhesive labels
printed with BA1 (1.1-1.10) to BA15 (15.1-15.10)
for easy labelling of DRC MCM XT monitoring devices
and BLITZDUCTOR XT base parts or modules;
transparent, permanently adhesive, abrasion-proof

Brand: DEHN
Type: BS BA1 BA15 BXT
Part No.: 920398
or equivalent.



Technical data

Dimensions (W x H) 13 x 7 mm

Product 920398 was added to Notepad.

Go to Notepad

Product 920398 was added to the cart.

Go to Web-Shop

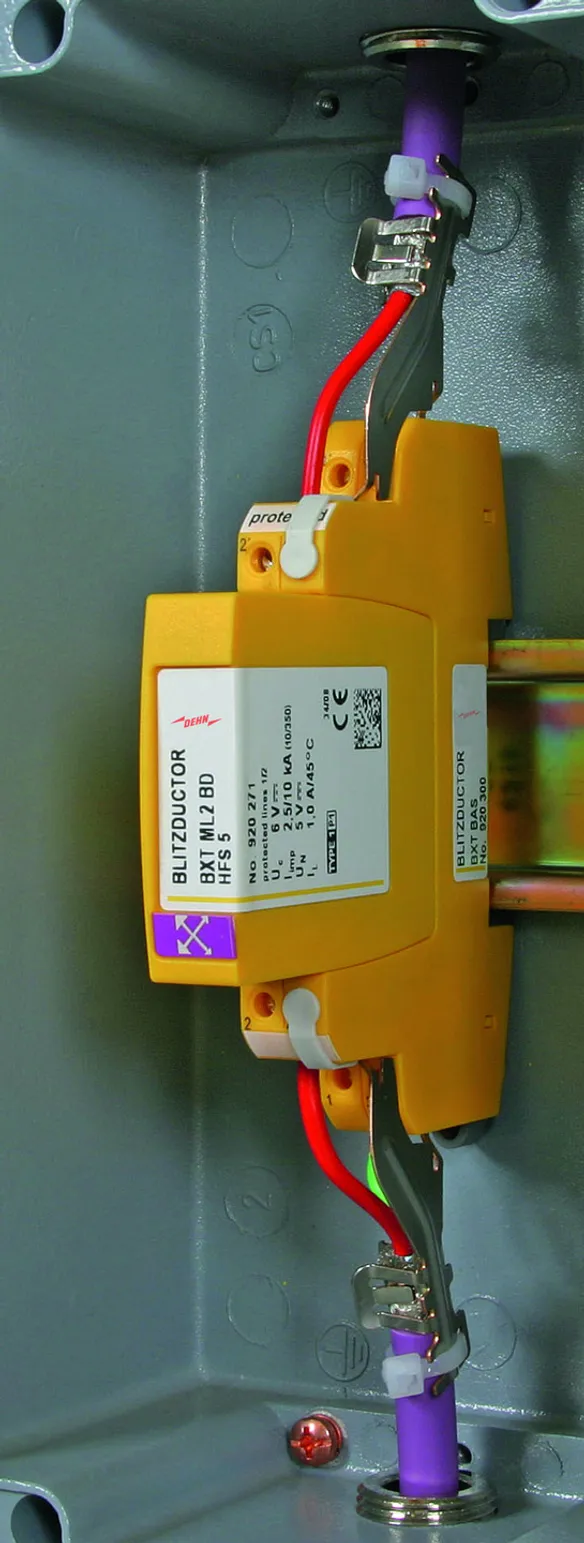

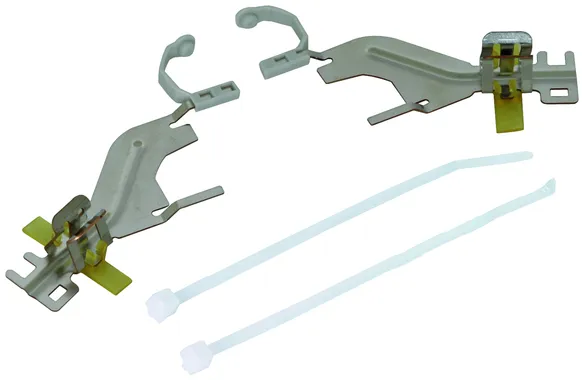

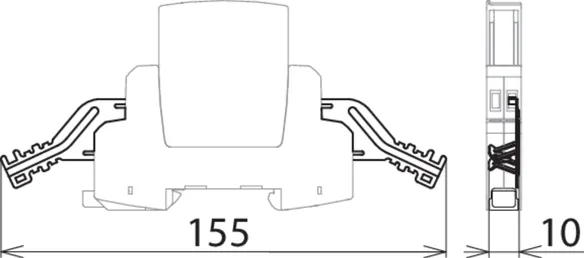

EMC Spring Terminals

Two spring terminals for the protected and unprotected side of a BLITZDUCTOR SP / XT / XTU arrester for permanent low-impedance shield contact with a shielded signal line. Insulating cap for indirect shield earthing (BXT only), cable ties and insulating strips included. Can be used for the types BXT(U) ML2 ...S ... / BSP M2 ... (only direct shield earthing).

1 Product

Part No. 920395 SAK BXT LR

GTIN 4013364118157, Customs tariff No. (EU): 85369095, Gross weight: 12.00 g/PAK, PU: 1.00 PAK

Predecessor

Images

Additional information

EMC spring terminals of type SAK BXT LR
2 spring terminals for permanent low-impedant
shield contact to the protected and unprotected side
of a BLITZDUCTOR XT.
With integrated terminal coding for direct or indirect
shield earthing, with cable ties and insulating cap.
Clamping range: 3-10 mm
Accessories: insulating caps, cable ties, insulating strips

Brand: DEHN
Type: SAK BXT LR
Part No.: 920395
or equivalent.

Certificates



Technical data

D1 Lightning impulse current (10/350 µs) 5 kA
Plugs into terminal BXT BAS / BSP BAS 4
Accessories insulating caps, cable ties, insulating strips

Product 920395 was added to Notepad.

Go to Notepad

Product 920395 was added to the cart.

Go to Web-Shop

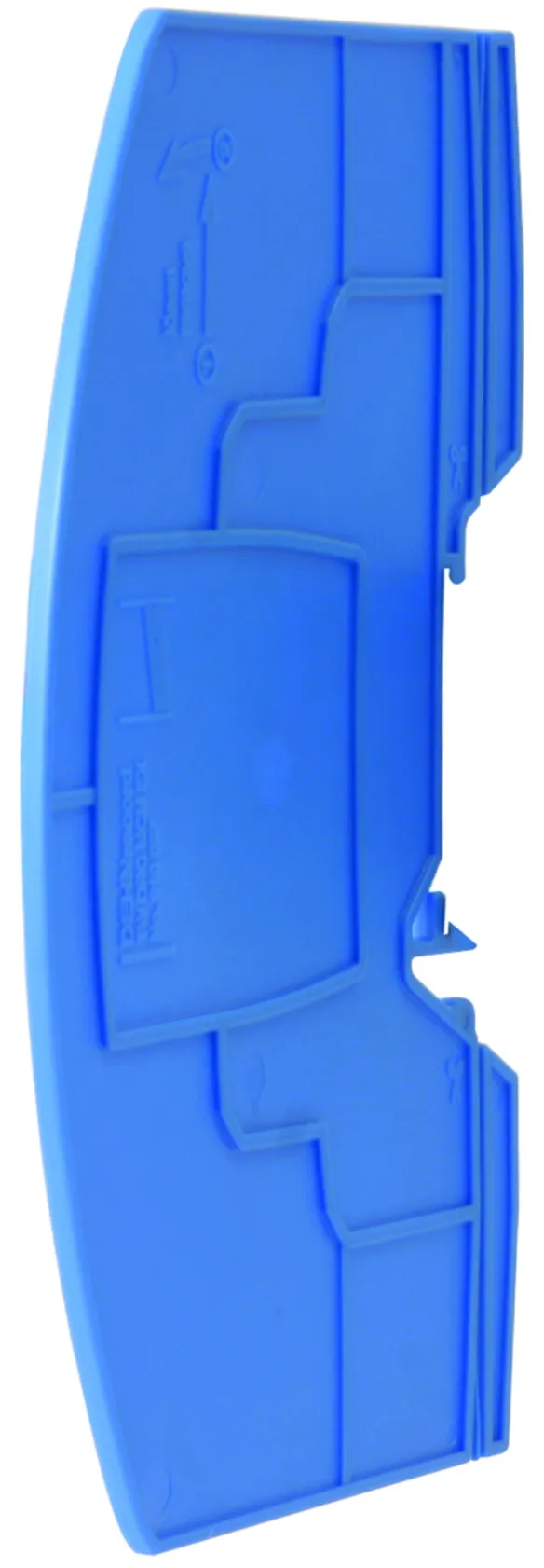

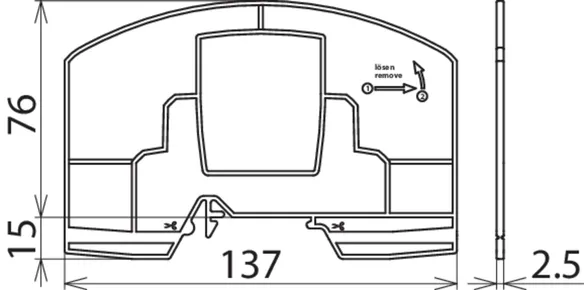

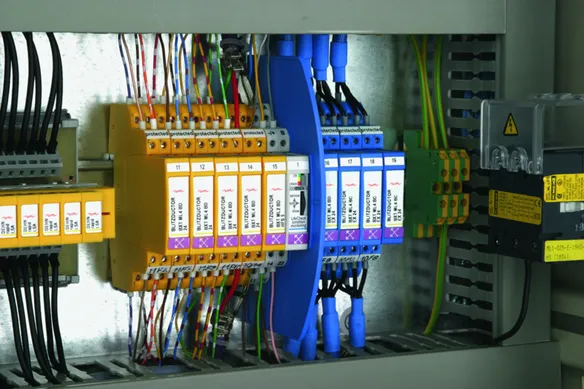

Partition

Special installation instructions have to be observed when using BLITZDUCTOR XT Ex (i) surge protective devices in intrinsically safe circuits.
In accordance with EN 60079-11; 2007 (VDE 0170-7), a minimum distance (clearance) of ≥ 50 mm must be maintained between intrinsically and non-intrinsically safe circuits (connecting parts, e.g. terminals)!
When using the Ex i partition of type TW DRC MCM EX, this clearance is also maintained if the surge protective devices are arranged directly next to one other.
Ideally suited for use in conjunction with the DRC MCM XT for the condition monitoring of BXT modules. (1 pack = 2 pieces)

1 Product

Part No. 910697 TW DRC MCM EX

GTIN 4013364123717, Customs tariff No. (EU): 39269097, Gross weight: 31.00 g/PAK, PU: 1.00 PAK

Images

Additional information

TW DRC MCM EX partition
Ex(i) partition
for maintaining a minimum distance (thread measure)
of at least 50 mm between intrinsically safe and
non-intrinsically safe circuits according to EN 60079-11
For 7 mm and 35 mm DIN rails
Polyamide PA 6.6, blue

Brand: DEHN
Type: TW DRC MCM EX
Part No.: 910697
or equivalent.



Technical data

For mounting on 35 mm DIN rails according to EN 60715

Product 910697 was added to Notepad.

Go to Notepad

Product 910697 was added to the cart.

Go to Web-Shop
