Part No. 953201 DR M 2P 30

GTIN 4013364109674, Customs tariff No. (EU): 85363030, Gross weight: 90.60 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

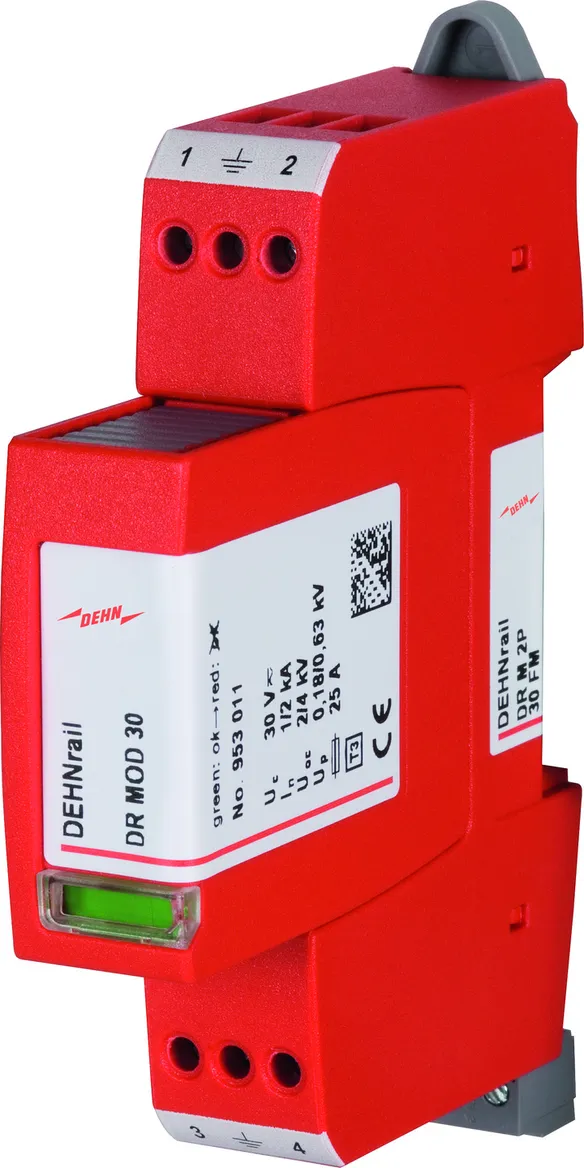

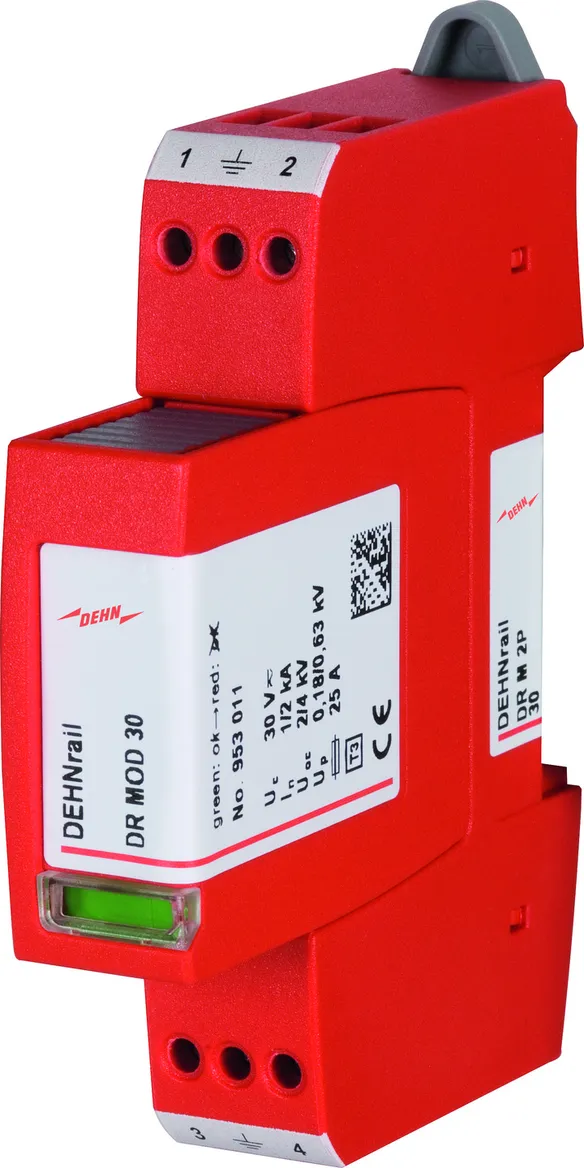

DEHNrail M 2P 30 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 30
Part No.: 953201
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	24 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Product 953201 was added to Notepad.

Go to Notepad

Product 953201 was added to the cart.

Go to Web-Shop

Part No. 953202 DR M 2P 60

GTIN 4013364109681, Customs tariff No. (EU): 85363030, Gross weight: 91.80 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

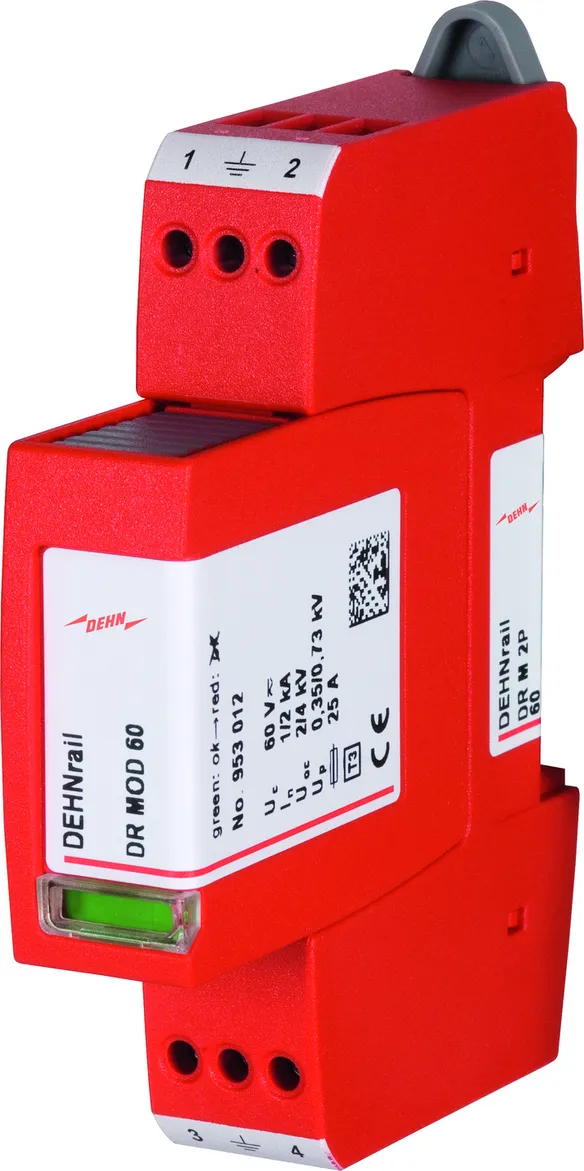

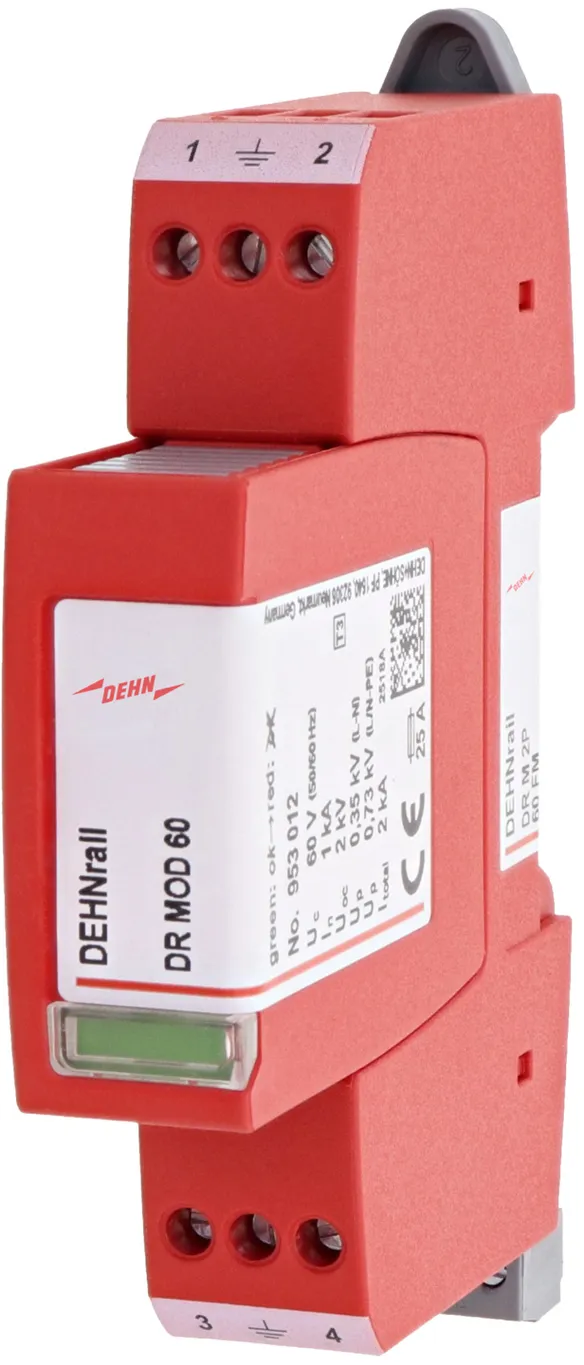

DEHNrail M 2P 60 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60
Part No.: 953202
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	48 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Product 953202 was added to Notepad.

Go to Notepad

Product 953202 was added to the cart.

Go to Web-Shop

Part No. 953203 DR M 2P 75

GTIN 4013364109698, Customs tariff No. (EU): 85363030, Gross weight: 89.80 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

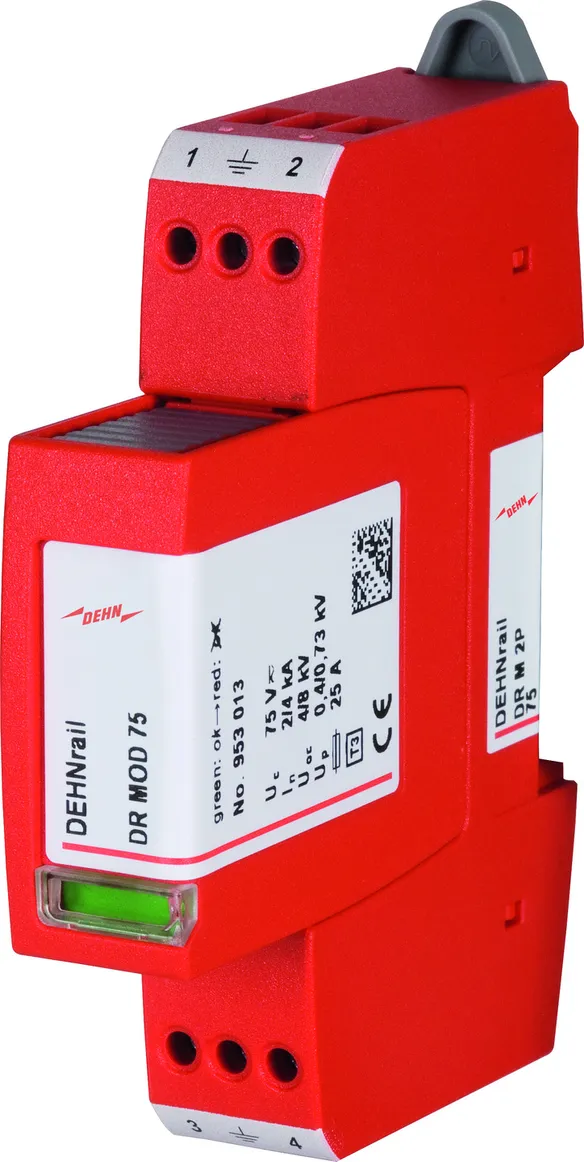

DEHNrail M 2P 75 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75
Part No.: 953203
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Product 953203 was added to Notepad.

Go to Notepad

Product 953203 was added to the cart.

Go to Web-Shop

Part No. 953204 DR M 2P 150

GTIN 4013364109704, Customs tariff No. (EU): 85363030, Gross weight: 90.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNrail M 2P 150 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 150
Part No.: 953204
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Product 953204 was added to Notepad.

Go to Notepad

Product 953204 was added to the cart.

Go to Web-Shop

Part No. 953200 DR M 2P 255

GTIN 4013364108301, Customs tariff No. (EU): 85363030, Gross weight: 91.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

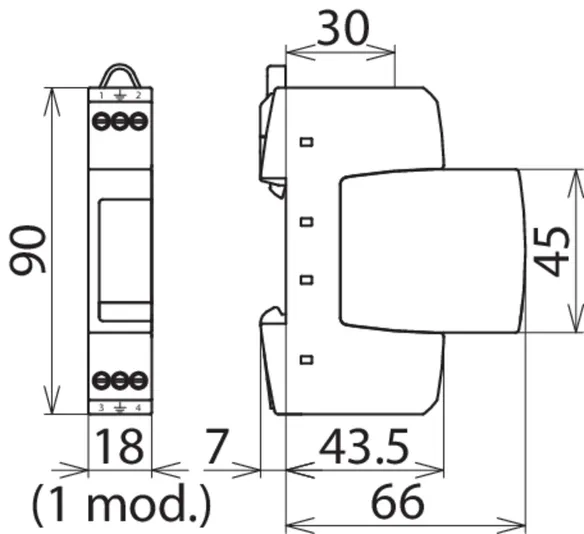

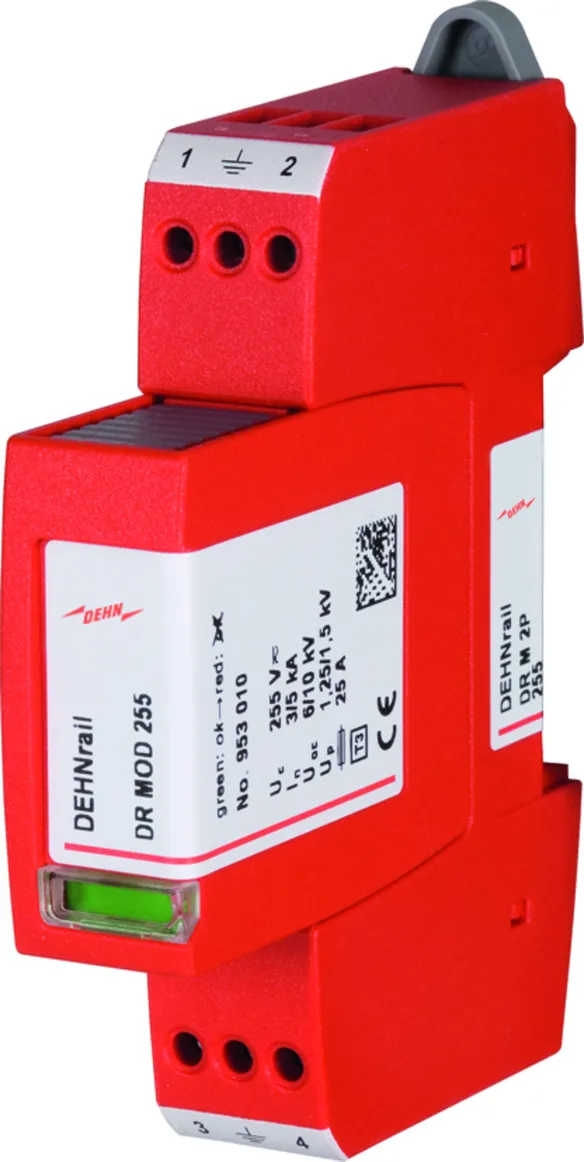

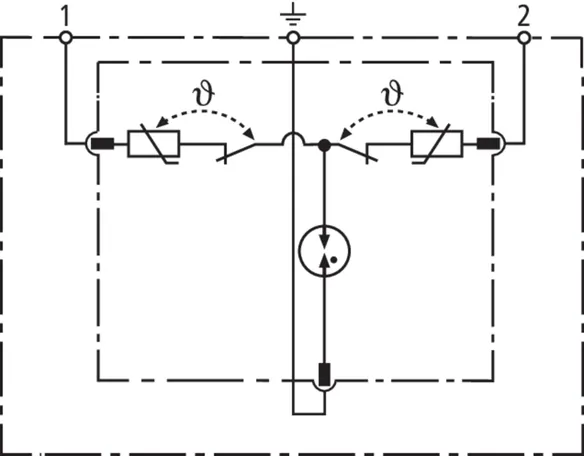

DEHNrail M 2P 255 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255
Part No.: 953200
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Product 953200 was added to Notepad.

Go to Notepad

Product 953200 was added to the cart.

Go to Web-Shop

Part No. 953206 DR M 2P 30 FM

GTIN 4013364109711, Customs tariff No. (EU): 85363030, Gross weight: 94.50 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

DEHNrail M 2P 30 FM surge arrester
Modular and pluggable two-pole surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 30 FM
Part No.: 953206
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	24 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 953206 was added to Notepad.

Go to Notepad

Product 953206 was added to the cart.

Go to Web-Shop

Part No. 953207 DR M 2P 60 FM

GTIN 4013364109728, Customs tariff No. (EU): 85363030, Gross weight: 95.40 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

Two-pole DEHNrail M 2P 60 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60 FM
Part No.: 953207
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	48 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal load current (a.c.) / (d.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 953207 was added to Notepad.

Go to Notepad

Product 953207 was added to the cart.

Go to Web-Shop

Part No. 953208 DR M 2P 75 FM

GTIN 4013364109735, Customs tariff No. (EU): 85363030, Gross weight: 93.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

Two-pole DEHNrail M 2P 75 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75 FM
Part No.: 953208
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 953208 was added to Notepad.

Go to Notepad

Product 953208 was added to the cart.

Go to Web-Shop

Part No. 953209 DR M 2P 150 FM

GTIN 4013364109742, Customs tariff No. (EU): 85363030, Gross weight: 93.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

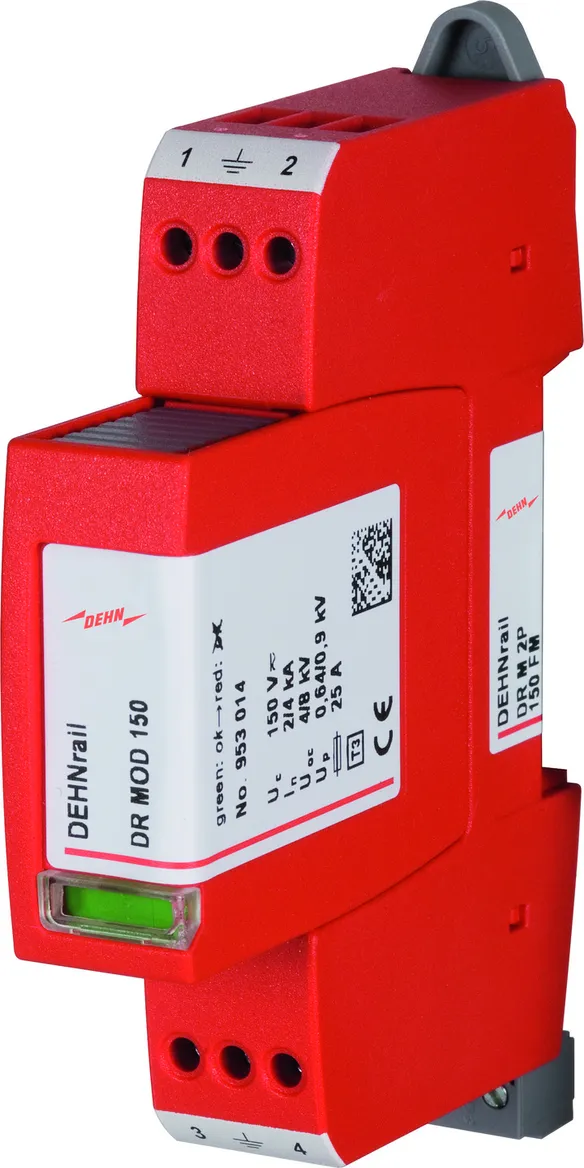

DEHNrail M 2P 150 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: DR M 2P 150 FM
Part No.: 953209
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 953209 was added to Notepad.

Go to Notepad

Product 953209 was added to the cart.

Go to Web-Shop

Part No. 953205 DR M 2P 255 FM

GTIN 4013364108318, Customs tariff No. (EU): 85363030, Gross weight: 98.88 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

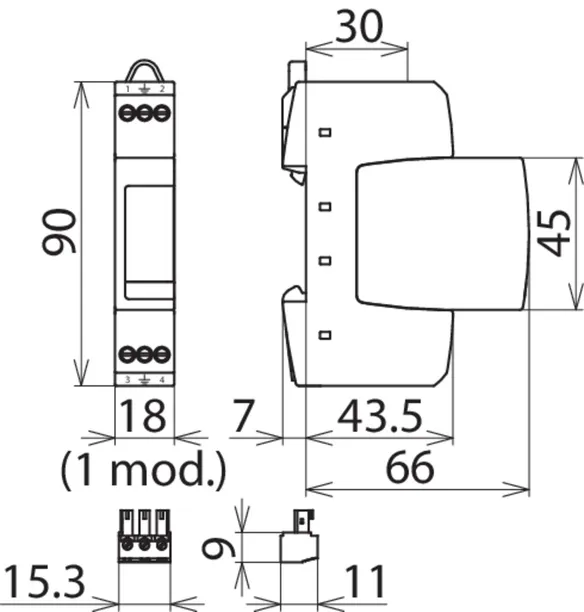

CAD files

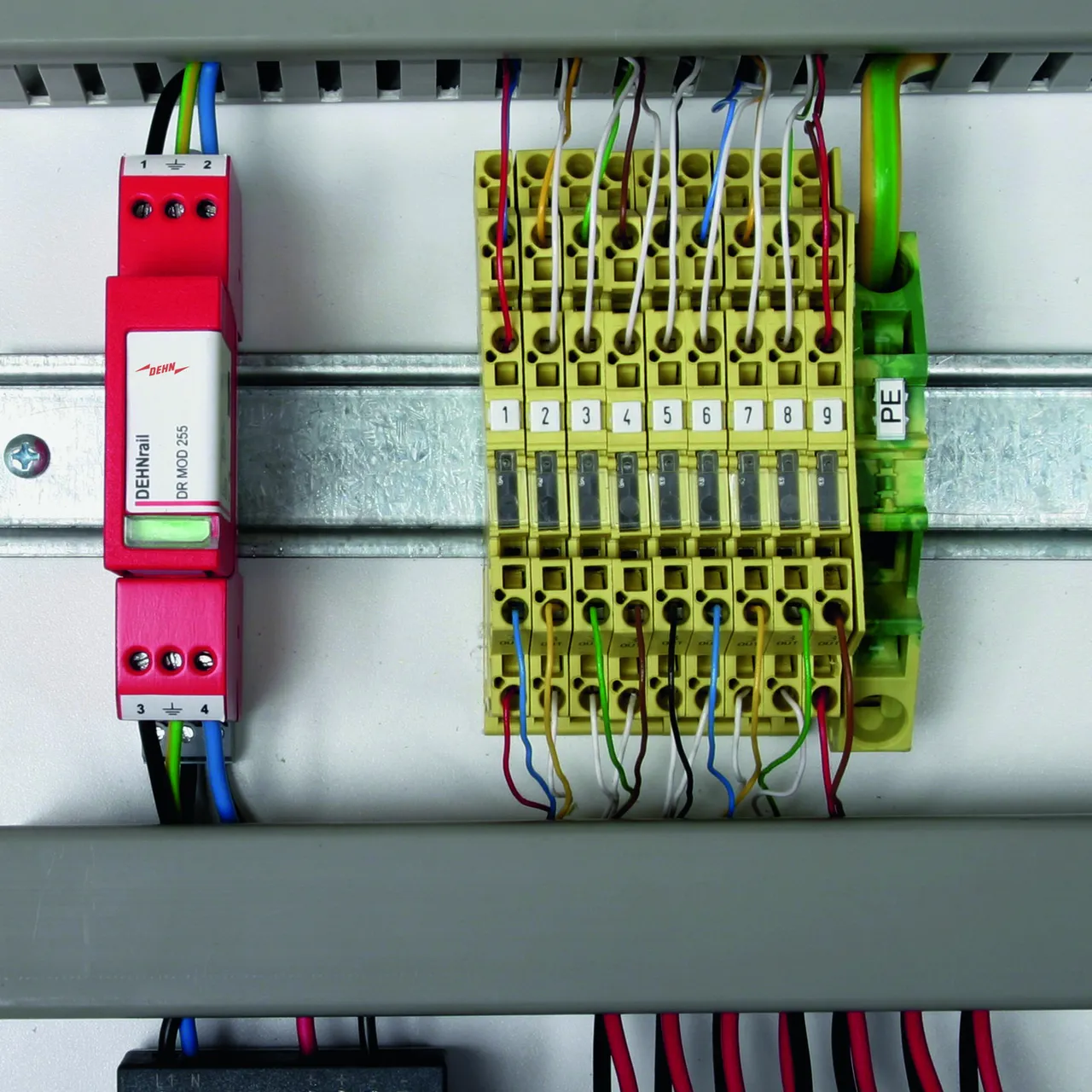

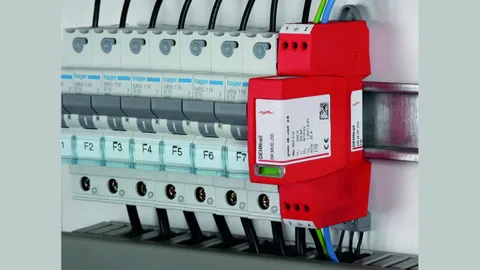

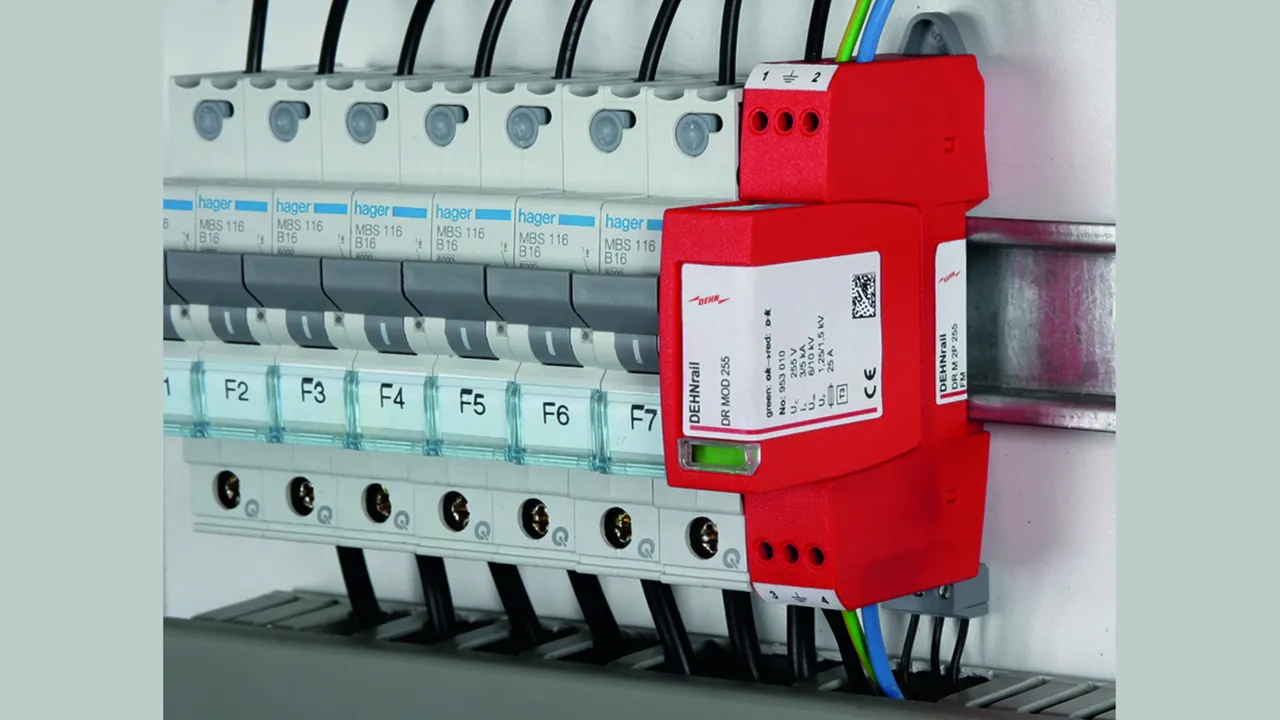

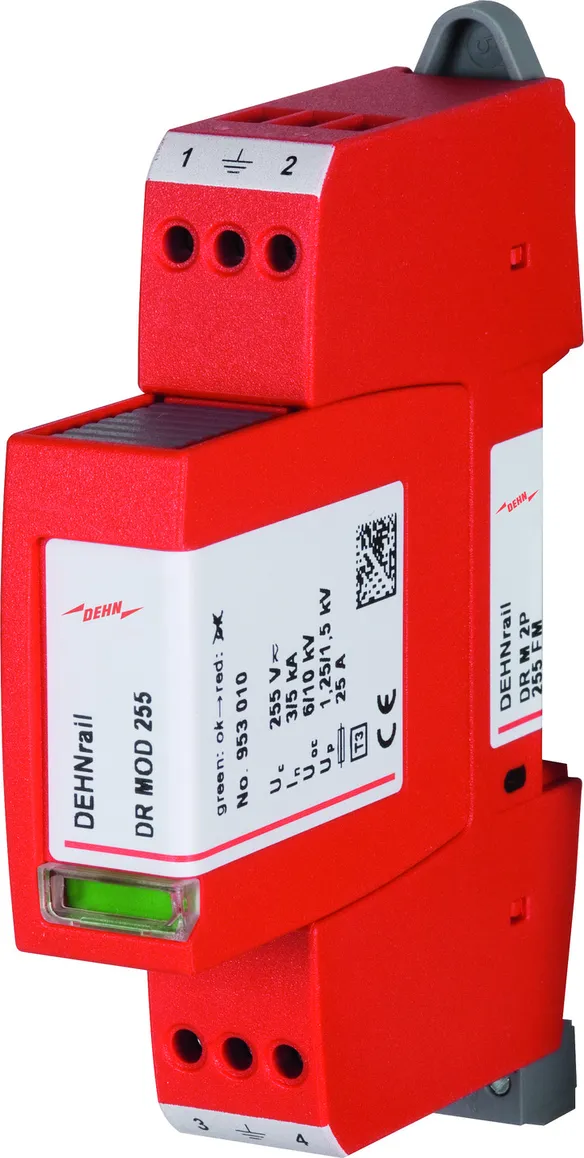

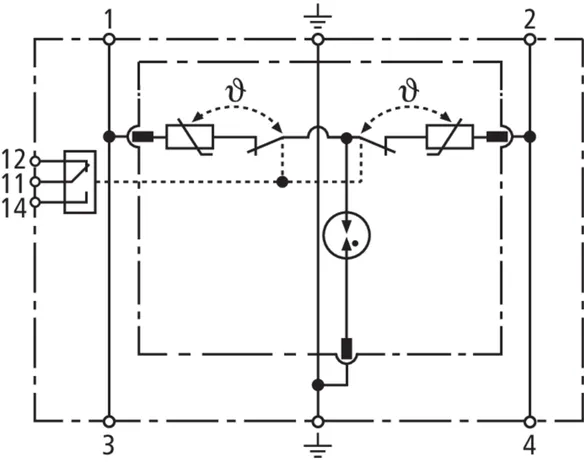

Two-pole DEHNrail M 2P 255 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255 FM
Part No.: 953205
or equivalent.

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 953205 was added to Notepad.

Go to Notepad

Product 953205 was added to the cart.

Go to Web-Shop

Part No. 953228 DR M 2P 255 SN1802

GTIN 4013364158986, Customs tariff No. (EU): 85363030, Gross weight: 89.70 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

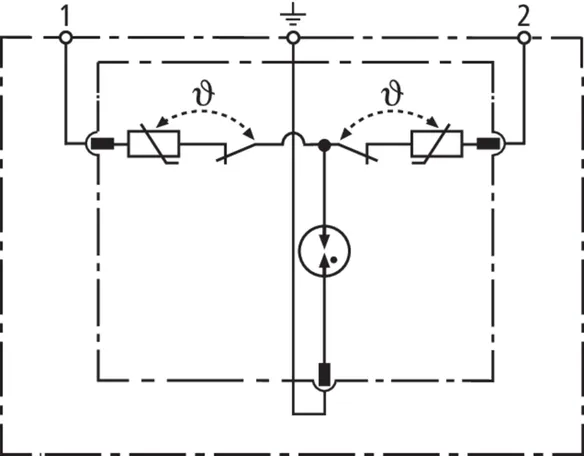

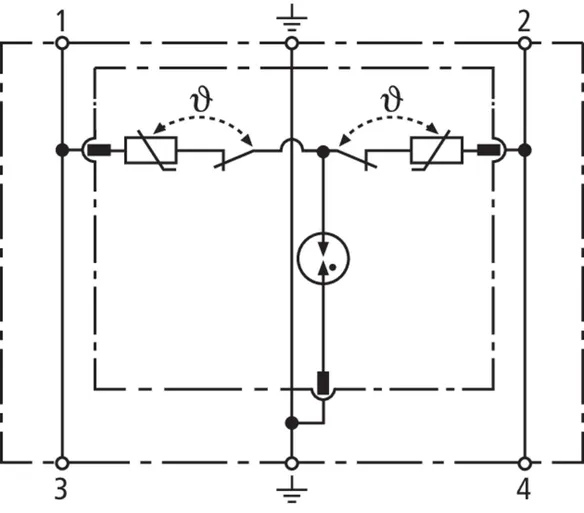

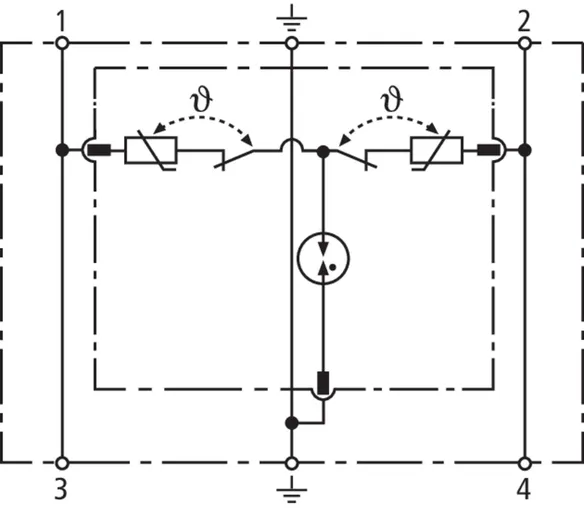

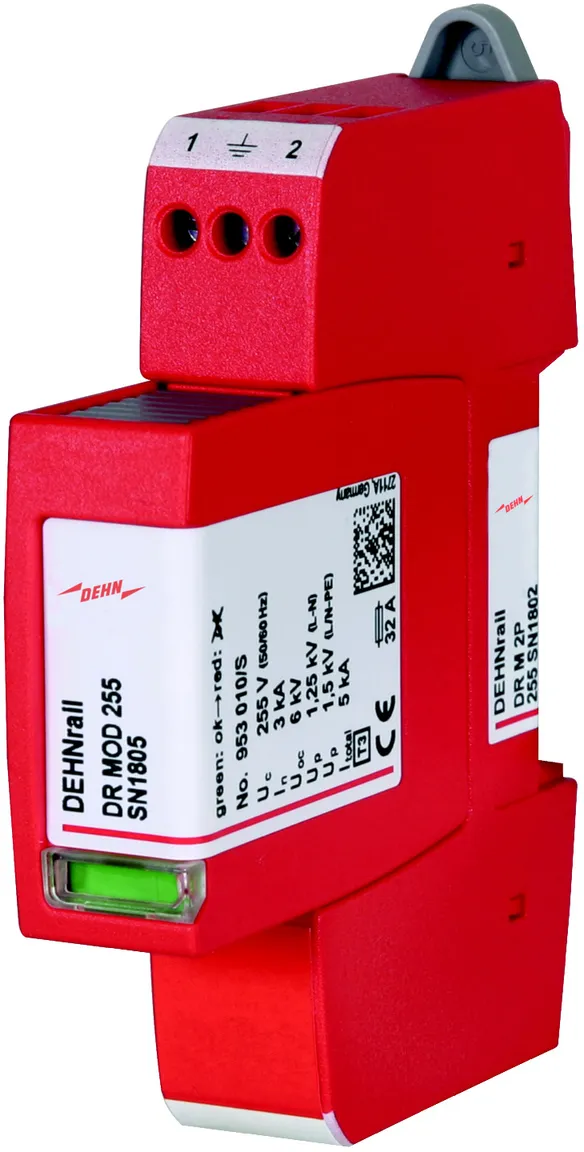

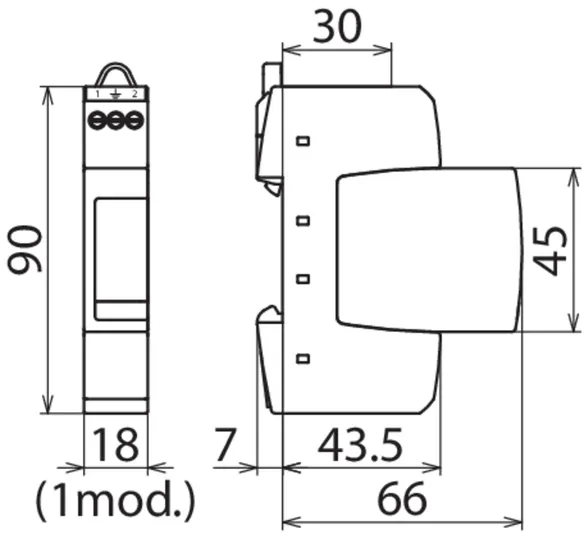

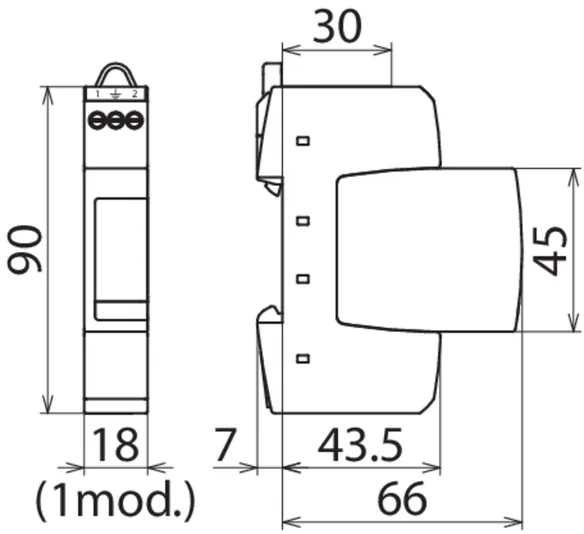

DEHNrail M 2P 255 SN1802 surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
Arrester Type 3 acc- to EN 61643-11
Max. contin. operating voltage: 255 V ac/dc
Total discharge current: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arrester of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1802
Part No.: 953228
or equivalent.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	32 A gG or B 32 A
Protection module upon request

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	32 A gG or B 32 A
Short-circuit withstand capability for mains-side overcurrent protection with 32 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Protection module upon request

Product 953228 was added to Notepad.

Go to Notepad

Product 953228 was added to the cart.

Go to Web-Shop

Part No. 953229 DR M 2P 255 SN1803FM

GTIN 4013364158993, Customs tariff No. (EU): 85363030, Gross weight: 93.40 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

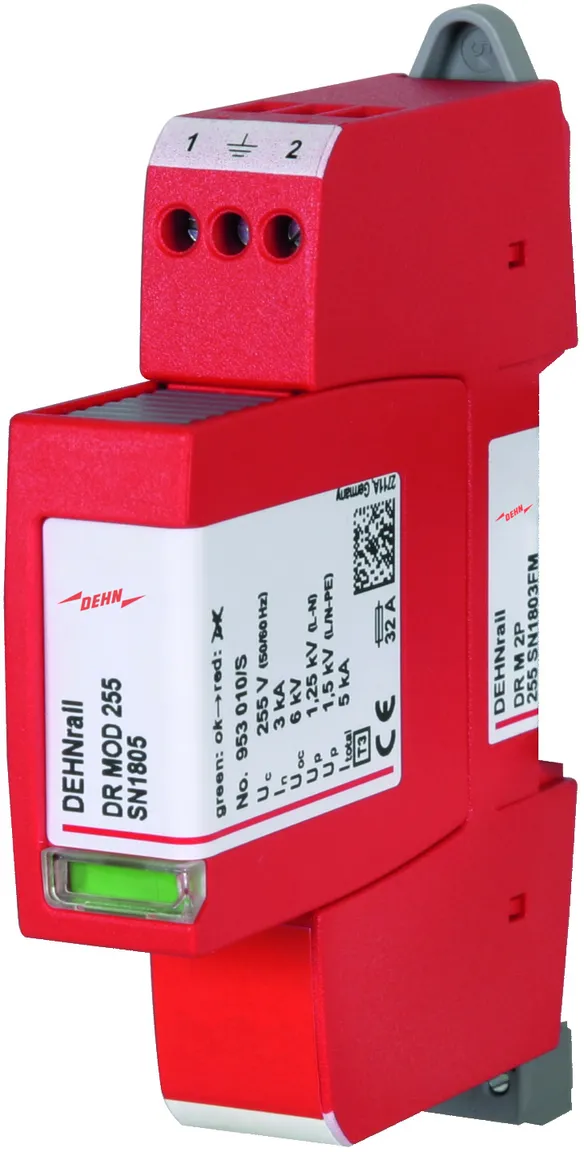

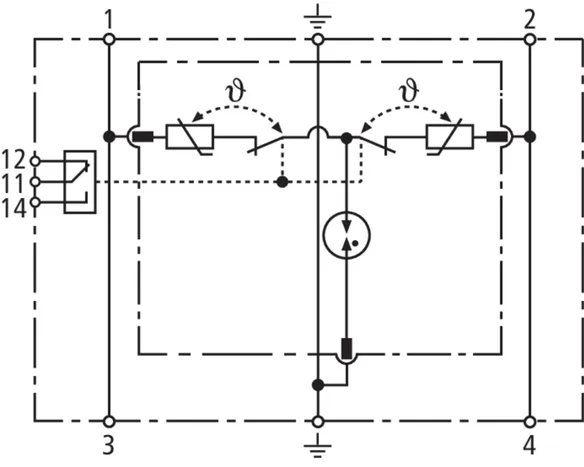

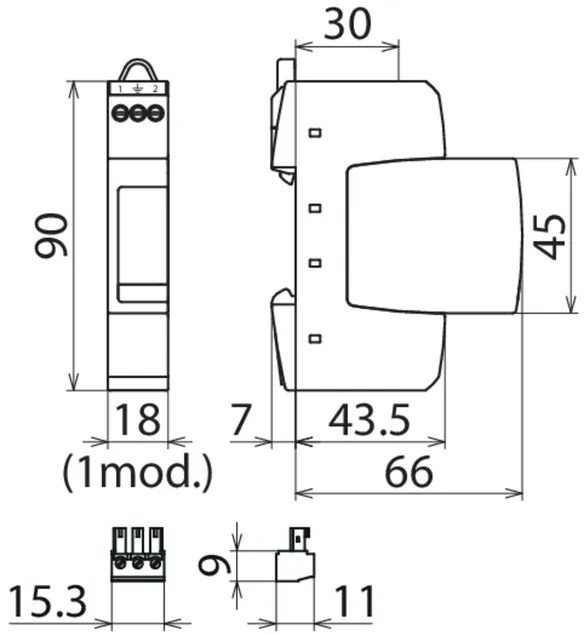

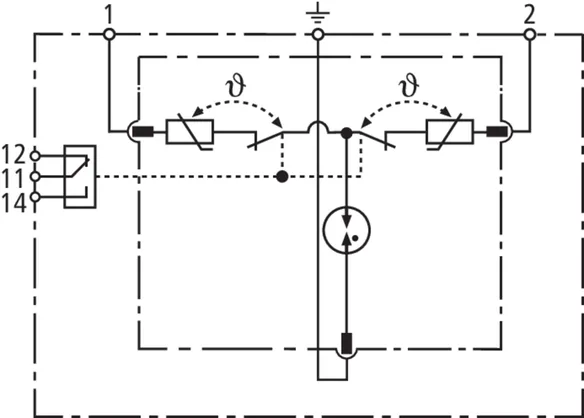

DEHNrail M 2P 255 SN1803FM surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
With remote signalling contact
Arrester Type 3 acc. to EN 61643-11
Max. cont. operating voltage: 255 V ac/dc
Total discharge curremt: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1803FM
Part No.: 953229
or equivalent.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	32 A gG or B 32 A
Type of remote signalling contact	changeover contact
Protection module upon request

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	32 A gG or B 32 A
Short-circuit withstand capability for mains-side overcurrent protection with 32 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Protection module upon request

Product 953229 was added to Notepad.

Go to Notepad

Product 953229 was added to the cart.

Go to Web-Shop

DEHNrail modular

Details

DEHNrail M 2P ...

Part No. 953201 DR M 2P 30

You are not authorized to download 953200.stp

You are not authorized to download 953200.igs

You are not authorized to download 953200.jt

You are not authorized to download 953200.dwg

You are not authorized to download 953200m_E.dxf

You are not authorized to download DEHN.953201.wspak

You are not authorized to download 953201_eplan.zip

Product 953201 was added to Notepad.

Product 953201 was added to the cart.

Part No. 953202 DR M 2P 60

You are not authorized to download 953200.stp

You are not authorized to download 953200.igs

You are not authorized to download 953200.jt

You are not authorized to download 953200.dwg

You are not authorized to download 953200m_E.dxf

You are not authorized to download DEHN.953202.wspak

You are not authorized to download DEHN.953202.edz

Product 953202 was added to Notepad.

Product 953202 was added to the cart.

Part No. 953203 DR M 2P 75

You are not authorized to download 953200.stp

You are not authorized to download 953200.igs

You are not authorized to download 953200.jt

You are not authorized to download 953200.dwg

You are not authorized to download 953200m_E.dxf

You are not authorized to download DEHN.953203.wspak

You are not authorized to download DEHN.953203.edz

Product 953203 was added to Notepad.

Product 953203 was added to the cart.

Part No. 953204 DR M 2P 150

You are not authorized to download 953200.stp

You are not authorized to download 953200.igs

You are not authorized to download 953200.jt

You are not authorized to download 953200.dwg

You are not authorized to download 953200m_E.dxf

You are not authorized to download DEHN.953204.wspak

You are not authorized to download DEHN.953204.edz

Product 953204 was added to Notepad.

Product 953204 was added to the cart.

Part No. 953200 DR M 2P 255

You are not authorized to download 953200.stp

You are not authorized to download 953200.igs

You are not authorized to download 953200.jt

You are not authorized to download 953200.dwg

You are not authorized to download 953200m_E.dxf

You are not authorized to download DEHN.953200.wspak

You are not authorized to download 953200_eplan.zip

Product 953200 was added to Notepad.

Product 953200 was added to the cart.

DEHNrail M 2P ... FM

Part No. 953206 DR M 2P 30 FM

You are not authorized to download 953205.stp

You are not authorized to download 953205.igs

You are not authorized to download 953205.jt

You are not authorized to download 953205.dwg

You are not authorized to download 953205m_E.dxf

You are not authorized to download DEHN.953206.wspak

You are not authorized to download 953206_eplan.zip

Product 953206 was added to Notepad.

Product 953206 was added to the cart.

Part No. 953207 DR M 2P 60 FM

You are not authorized to download 953205.stp

You are not authorized to download 953205.igs

You are not authorized to download 953205.jt

You are not authorized to download 953205.dwg

You are not authorized to download 953205m_E.dxf

You are not authorized to download DEHN.953207.wspak

You are not authorized to download DEHN.953207.edz

Product 953207 was added to Notepad.

Product 953207 was added to the cart.

Part No. 953208 DR M 2P 75 FM

You are not authorized to download 953205.stp

You are not authorized to download 953205.igs

You are not authorized to download 953205.jt

You are not authorized to download 953205.dwg

You are not authorized to download 953205m_E.dxf
