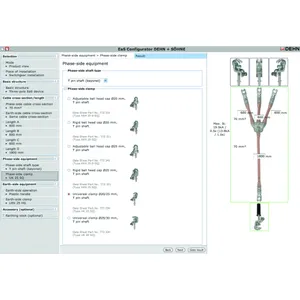

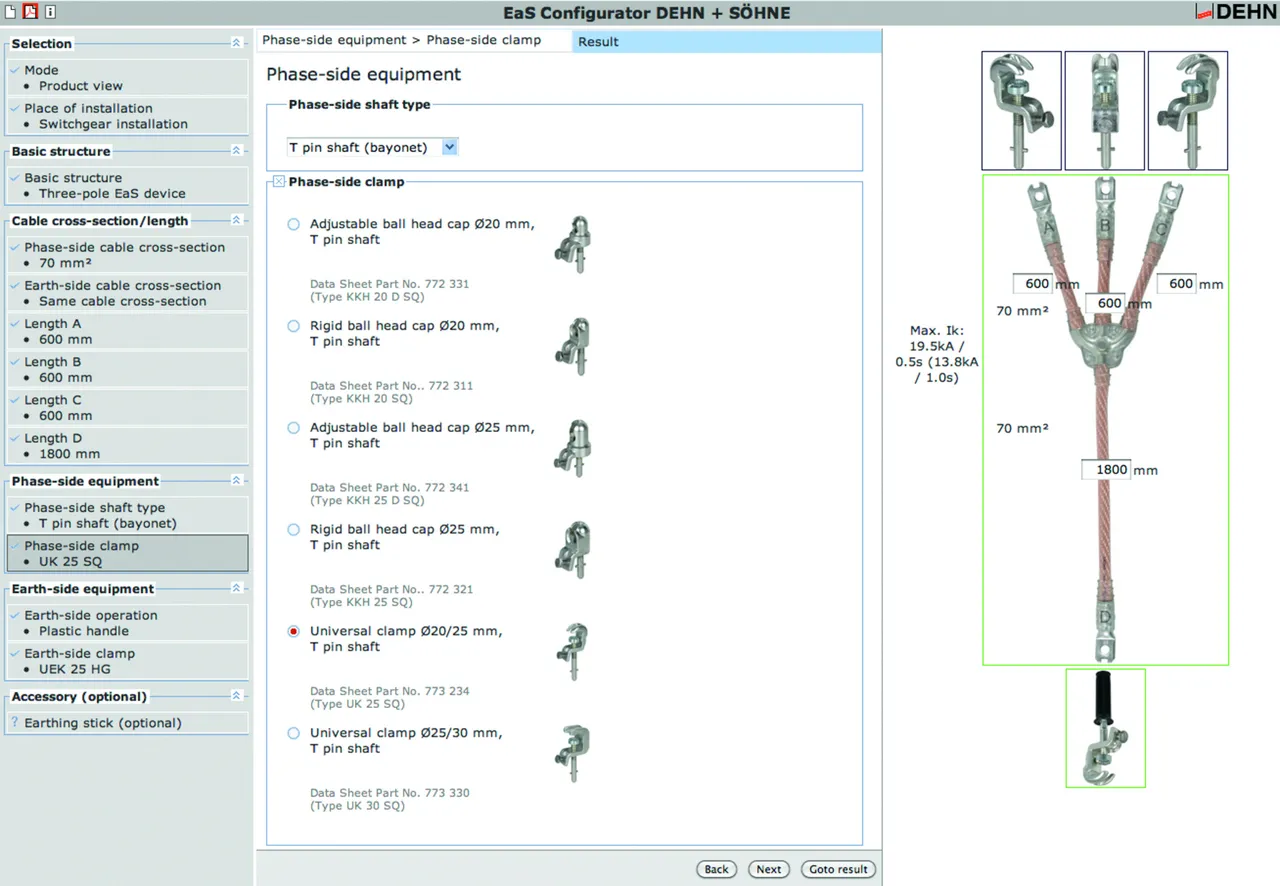

EaS Configurator: Easy online configuration

  • Easy online selection of the suitable EaS device

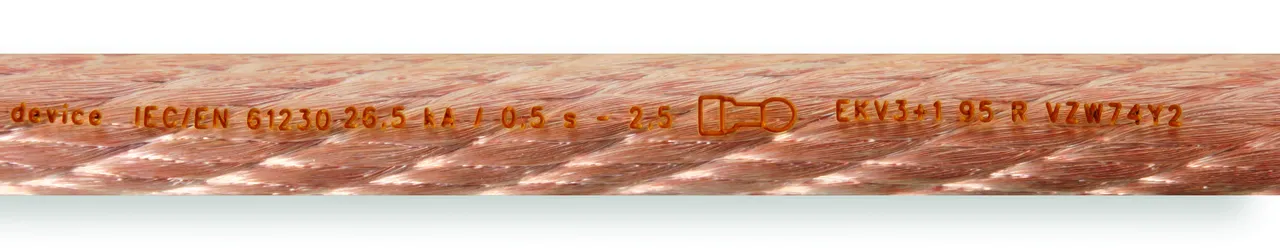

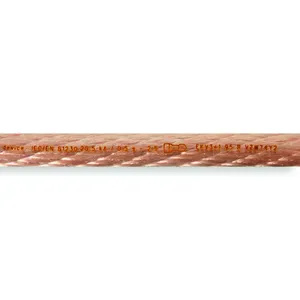

  • Unique laser marking of the EaS device
  • Individual configuration
  • Permanent plausibility check in the background
  • User-friendly interface
  • To start the configuration, simply enter the Variant No., Part No. or Product configuration

Details

lorem ipsum
lorem ipsum

Further information

Similar topics

Three-pole, same Cable Cross-Section with Ball Head Caps

... easy configuration ...

8 Products

Part No. VGJD2QX EKV3+1 16 G VGJD2QX

GTIN 4013364165373, Customs tariff No. (EU): 85359000, Gross weight: 3.12 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA

Product VGJD2QX was added to Notepad.

Go to Notepad

Product VGJD2QX was added to the cart.

Go to Web-Shop

Part No. VRDSN66 EKV3+1 25 G VRDSN66

GTIN 4013364163669, Customs tariff No. (EU): 85359000, Gross weight: 3.44 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA

Product VRDSN66 was added to Notepad.

Go to Notepad

Product VRDSN66 was added to the cart.

Go to Web-Shop

Part No. V3WJMYY EKV3+1 35 G V3WJMYY

GTIN 4013364163676, Customs tariff No. (EU): 85359000, Gross weight: 3.81 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA

Product V3WJMYY was added to Notepad.

Go to Notepad

Product V3WJMYY was added to the cart.

Go to Web-Shop

Part No. VU8P6LE EKV3+1 50 G VU8P6LE

GTIN 4013364165380, Customs tariff No. (EU): 85359000, Gross weight: 4.53 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product VU8P6LE was added to Notepad.

Go to Notepad

Product VU8P6LE was added to the cart.

Go to Web-Shop

Part No. VCEY1U6 EKV3+1 70 G VCEY1U6

GTIN 4013364165397, Customs tariff No. (EU): 85359000, Gross weight: 5.50 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product VCEY1U6 was added to Notepad.

Go to Notepad

Product VCEY1U6 was added to the cart.

Go to Web-Shop

Part No. VA3926U EKV3+1 95 G VA3926U

GTIN 4013364165403, Customs tariff No. (EU): 85359000, Gross weight: 7.19 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product VA3926U was added to Notepad.

Go to Notepad

Product VA3926U was added to the cart.

Go to Web-Shop

Part No. VAB3PJV EKV3+1 120 G VAB3PJV

GTIN 4013364165410, Customs tariff No. (EU): 85359000, Gross weight: 8.18 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product VAB3PJV was added to Notepad.

Go to Notepad

Product VAB3PJV was added to the cart.

Go to Web-Shop

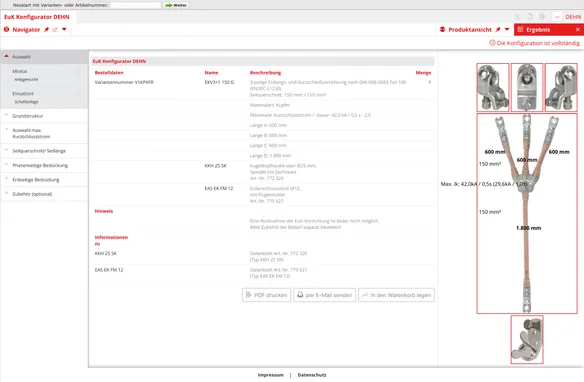

Part No. V1KPXFR EKV3+1 150 G V1KPXFR

GTIN 4013364165427, Customs tariff No. (EU): 85359000, Gross weight: 10.23 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 25 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 25 mm
Cable cross-section Cu 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product V1KPXFR was added to Notepad.

Go to Notepad

Product V1KPXFR was added to the cart.

Go to Web-Shop

Three-pole, reduced Cable Cross-Section with Ball Head Caps

... easy configuration ...

5 Products

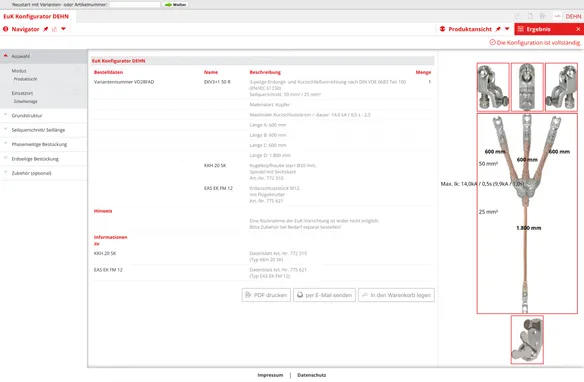

Part No. VD28FAD EKV3+1 50 R VD28FAD

GTIN 4013364165434, Customs tariff No. (EU): 85359000, Gross weight: 4.11 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 50/25 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product VD28FAD was added to Notepad.

Go to Notepad

Product VD28FAD was added to the cart.

Go to Web-Shop

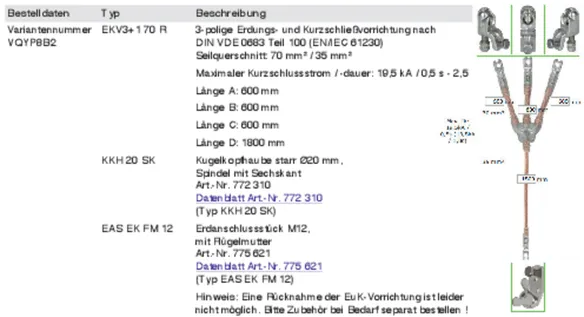

Part No. VQYP8B2 EKV3+1 70 R VQYP8B2

GTIN 4013364163195, Customs tariff No. (EU): 85359000, Gross weight: 7.63 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 70/35 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product VQYP8B2 was added to Notepad.

Go to Notepad

Product VQYP8B2 was added to the cart.

Go to Web-Shop

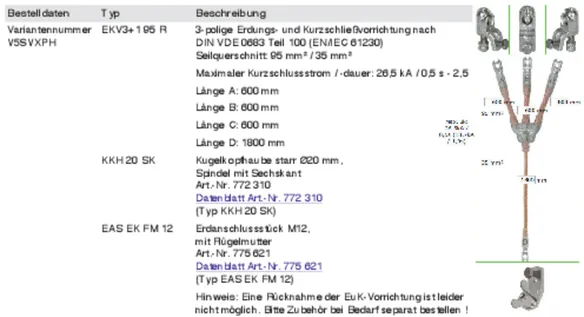

Part No. V5SVXPH EKV3+1 95 R V5SVXPH

GTIN 4013364164727, Customs tariff No. (EU): 85359000, Gross weight: 6.71 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 95/35 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product V5SVXPH was added to Notepad.

Go to Notepad

Product V5SVXPH was added to the cart.

Go to Web-Shop

Part No. VTSY9XH EKV3+1 120 R VTSY9XH

GTIN 4013364163621, Customs tariff No. (EU): 85359000, Gross weight: 6.78 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 20 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 20 mm
Cable cross-section Cu 120/50 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product VTSY9XH was added to Notepad.

Go to Notepad

Product VTSY9XH was added to the cart.

Go to Web-Shop

Part No. VHBWUNH EKV3+1 150 R VHBWUNH

GTIN 4013364163645, Customs tariff No. (EU): 85359000, Gross weight: 8.24 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end KKH 25 SK
Earth cable end EAS EK FM 12
For fixed ball point Ø 25 mm
Cable cross-section Cu 150/50 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA

Product VHBWUNH was added to Notepad.

Go to Notepad

Product VHBWUNH was added to the cart.

Go to Web-Shop

Three-pole, same Cable Cross-Section with Universal Clamp

... easy configuration ...

7 Products

Part No. V8MCNWM EKV3+1 16 G V8MCNWM

GTIN 4013364165441, Customs tariff No. (EU): 85359000, Gross weight: 4.61 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA

Product V8MCNWM was added to Notepad.

Go to Notepad

Product V8MCNWM was added to the cart.

Go to Web-Shop

Part No. V8VF7CP EKV3+1 25 G V8VF7CP

GTIN 4013364165458, Customs tariff No. (EU): 85359000, Gross weight: 4.66 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA

Product V8VF7CP was added to Notepad.

Go to Notepad

Product V8VF7CP was added to the cart.

Go to Web-Shop

Part No. V5VN56Z EKV3+1 35 G V5VN56Z

GTIN 4013364165465, Customs tariff No. (EU): 85359000, Gross weight: 4.98 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA

Product V5VN56Z was added to Notepad.

Go to Notepad

Product V5VN56Z was added to the cart.

Go to Web-Shop

Part No. VPH98CT EKV3+1 50 G VPH98CT

GTIN 4013364165472, Customs tariff No. (EU): 85359000, Gross weight: 5.75 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product VPH98CT was added to Notepad.

Go to Notepad

Product VPH98CT was added to the cart.

Go to Web-Shop

Part No. VMLM2BZ EKV3+1 70 G VMLM2BZ

GTIN 4013364165489, Customs tariff No. (EU): 85359000, Gross weight: 6.91 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product VMLM2BZ was added to Notepad.

Go to Notepad

Product VMLM2BZ was added to the cart.

Go to Web-Shop

Part No. VE9HQHJ EKV3+1 95 G VE9HQHJ

GTIN 4013364165496, Customs tariff No. (EU): 85359000, Gross weight: 8.29 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product VE9HQHJ was added to Notepad.

Go to Notepad

Product VE9HQHJ was added to the cart.

Go to Web-Shop

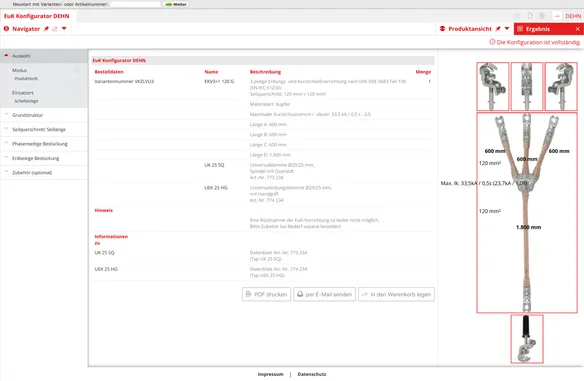

Part No. VKZLVU3 EKV3+1 120 G VKZLVU3

GTIN 4013364165502, Customs tariff No. (EU): 85359000, Gross weight: 9.28 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product VKZLVU3 was added to Notepad.

Go to Notepad

Product VKZLVU3 was added to the cart.

Go to Web-Shop

Three-pole, reduced Cable Cross-Section with Universal Clamp

... easy configuration ...

4 Products

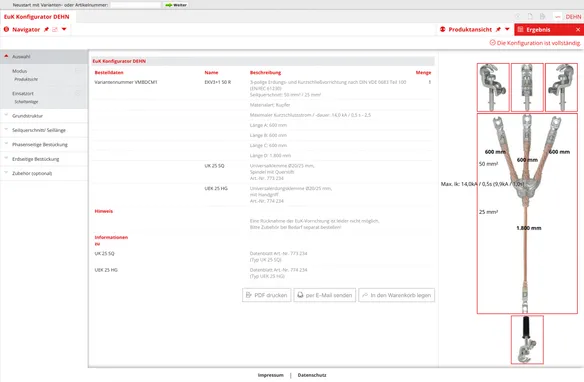

Part No. VMBDCM1 EKV3+1 50 R VMBDCM1

GTIN 4013364165519, Customs tariff No. (EU): 85359000, Gross weight: 5.25 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 50/25 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product VMBDCM1 was added to Notepad.

Go to Notepad

Product VMBDCM1 was added to the cart.

Go to Web-Shop

Part No. V4RJ7A2 EKV3+1 70 R V4RJ7A2

GTIN 4013364165526, Customs tariff No. (EU): 85359000, Gross weight: 5.92 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 70/35 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product V4RJ7A2 was added to Notepad.

Go to Notepad

Product V4RJ7A2 was added to the cart.

Go to Web-Shop

Part No. VRAB9WB EKV3+1 95 R VRAB9WB

GTIN 4013364165533, Customs tariff No. (EU): 85359000, Gross weight: 7.10 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 95/35 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product VRAB9WB was added to Notepad.

Go to Notepad

Product VRAB9WB was added to the cart.

Go to Web-Shop

Part No. VACNLP8 EKV3+1 120 R VACNLP8

GTIN 4013364165540, Customs tariff No. (EU): 85359000, Gross weight: 7.89 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 25 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 120/50 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product VACNLP8 was added to Notepad.

Go to Notepad

Product VACNLP8 was added to the cart.

Go to Web-Shop

Single-pole with Phase Screw Clamp

... easy configuration ...

7 Products

Part No. VE5E8FZ EKV1+1 16 VE5E8FZ

GTIN 4013364165557, Customs tariff No. (EU): 85359000, Gross weight: 3.67 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end PSK 4 30 SQL
Earth cable end EFK FL40 SKN
Clamping range Ø 4 ... 30 mm
Cable cross-section Cu 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA

Product VE5E8FZ was added to Notepad.

Go to Notepad

Product VE5E8FZ was added to the cart.

Go to Web-Shop

Part No. VF33XR2 EKV1+1 25 VF33XR2

GTIN 4013364165564, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end PSK 4 30 SQL
Earth cable end EFK FL40 SKN
Clamping range Ø 4 ... 30 mm
Cable cross-section Cu 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA

Product VF33XR2 was added to Notepad.

Go to Notepad

Product VF33XR2 was added to the cart.

Go to Web-Shop

Part No. V43FCV8 EKV1+1 35 V43FCV8

GTIN 4013364165571, Customs tariff No. (EU): 85359000, Gross weight: 4.58 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end PSK 4 30 SQL
Earth cable end EFK FL40 SKN
Clamping range Ø 4 ... 30 mm
Cable cross-section Cu 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA

Product V43FCV8 was added to Notepad.

Go to Notepad

Product V43FCV8 was added to the cart.

Go to Web-Shop

Part No. V2KWXUL EKV1+1 50 V2KWXUL

GTIN 4013364165588, Customs tariff No. (EU): 85359000, Gross weight: 5.46 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end PSK 4 30 SQL
Earth cable end EFK FL40 SKN
Clamping range Ø 4 ... 30 mm
Cable cross-section Cu 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product V2KWXUL was added to Notepad.

Go to Notepad

Product V2KWXUL was added to the cart.

Go to Web-Shop

Part No. VRP32FL EKV1+1 70 VRP32FL

GTIN 4013364165595, Customs tariff No. (EU): 85359000, Gross weight: 6.59 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end PSK 4 30 SQL
Earth cable end EFK FL40 SKN
Clamping range Ø 4 ... 30 mm
Cable cross-section Cu 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product VRP32FL was added to Notepad.

Go to Notepad

Product VRP32FL was added to the cart.

Go to Web-Shop

Part No. V2WPYVF EKV1+1 95 V2WPYVF

GTIN 4013364165601, Customs tariff No. (EU): 85359000, Gross weight: 8.44 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end PSK 10 65 SQL
Earth cable end UEK 30 HG
Clamping range Ø 10 ... 65 mm
Cable cross-section Cu 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product V2WPYVF was added to Notepad.

Go to Notepad

Product V2WPYVF was added to the cart.

Go to Web-Shop

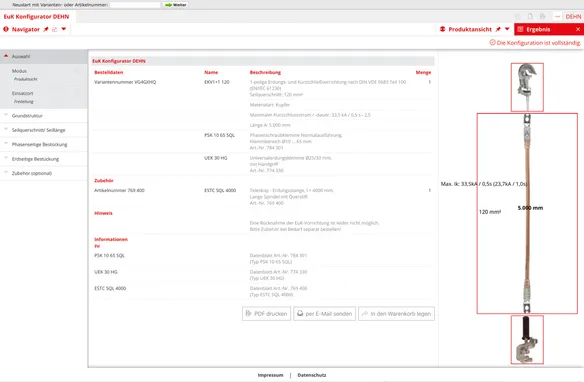

Part No. VG4GXHQ EKV1+1 120 VG4GXHQ

GTIN 4013364165618, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end PSK 10 65 SQL
Earth cable end UEK 30 HG
Clamping range Ø 10 ... 65 mm
Cable cross-section Cu 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product VG4GXHQ was added to Notepad.

Go to Notepad

Product VG4GXHQ was added to the cart.

Go to Web-Shop

Single-pole with Universal Clamp

... easy configuration ...

7 Products

Part No. VMZDL8N EKV1+1 16 VMZDL8N

GTIN 4013364165625, Customs tariff No. (EU): 85359000, Gross weight: 2.87 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 30 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA

Product VMZDL8N was added to Notepad.

Go to Notepad

Product VMZDL8N was added to the cart.

Go to Web-Shop

Part No. VB1DETL EKV1+1 25 VB1DETL

GTIN 4013364165632, Customs tariff No. (EU): 85359000, Gross weight: 3.19 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 30 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA

Product VB1DETL was added to Notepad.

Go to Notepad

Product VB1DETL was added to the cart.

Go to Web-Shop

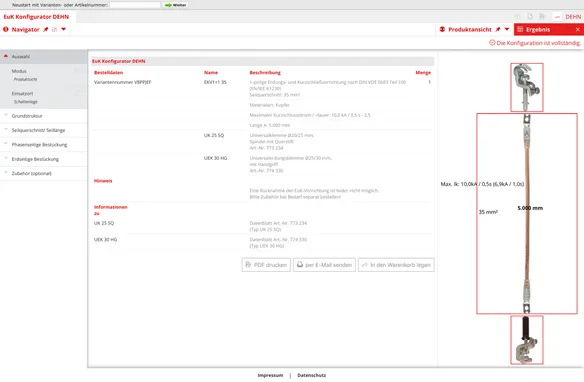

Part No. V8PPJEF EKV1+1 35 V8PPJEF

GTIN 4013364165649, Customs tariff No. (EU): 85359000, Gross weight: 4.14 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 30 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA

Product V8PPJEF was added to Notepad.

Go to Notepad

Product V8PPJEF was added to the cart.

Go to Web-Shop

Part No. VQY44GL EKV1+1 50 VQY44GL

GTIN 4013364165656, Customs tariff No. (EU): 85359000, Gross weight: 4.66 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 30 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA

Product VQY44GL was added to Notepad.

Go to Notepad

Product VQY44GL was added to the cart.

Go to Web-Shop

Part No. VFZ17TJ EKV1+1 70 VFZ17TJ

GTIN 4013364165663, Customs tariff No. (EU): 85359000, Gross weight: 6.15 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 30 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA

Product VFZ17TJ was added to Notepad.

Go to Notepad

Product VFZ17TJ was added to the cart.

Go to Web-Shop

Part No. VWBDMPS EKV1+1 95 VWBDMPS

GTIN 4013364165670, Customs tariff No. (EU): 85359000, Gross weight: 7.59 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 30 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA

Product VWBDMPS was added to Notepad.

Go to Notepad

Product VWBDMPS was added to the cart.

Go to Web-Shop

Part No. V3CM9FR EKV1+1 120 V3CM9FR

GTIN 4013364165687, Customs tariff No. (EU): 85359000, Gross weight: 8.80 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Phase cable end UK 25 SQ
Earth cable end UEK 30 HG
For fixed ball point Ø 20 / 25 mm
For T pins with a collar width of 15 mm
Rd / Fl clamping range 20 mm
Cable cross-section Cu 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product V3CM9FR was added to Notepad.

Go to Notepad

Product V3CM9FR was added to the cart.

Go to Web-Shop
back to top
