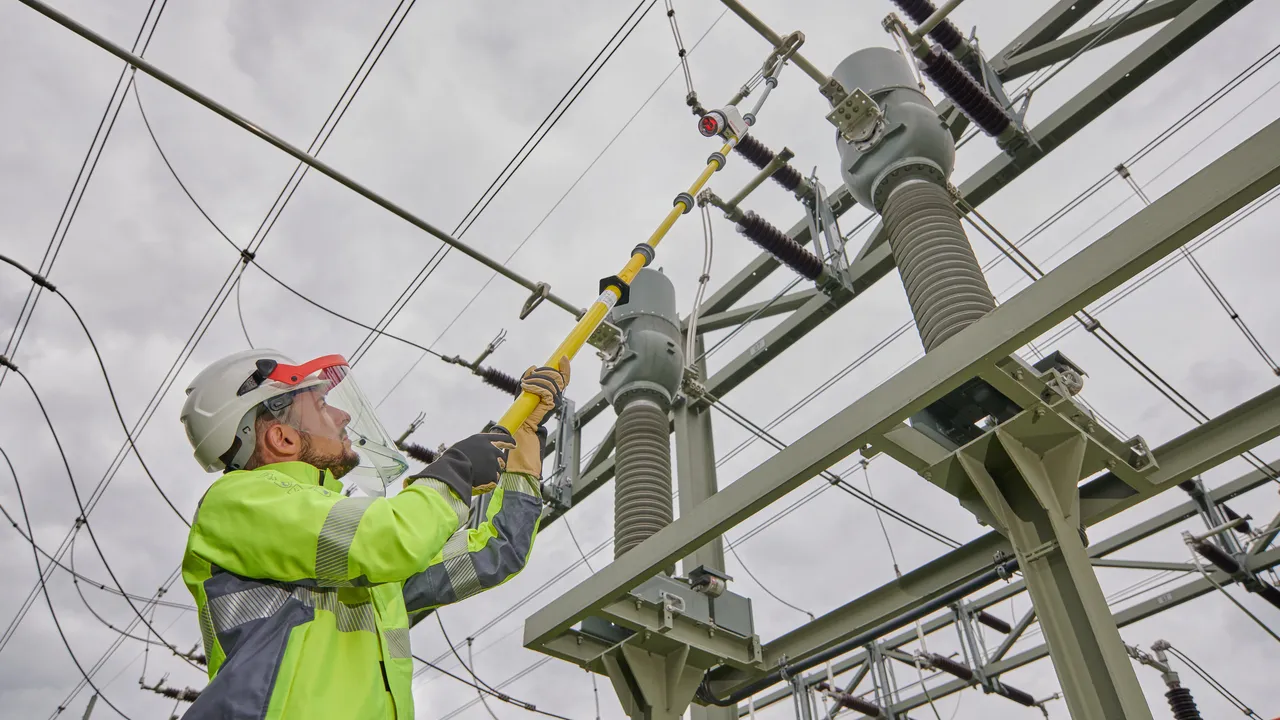

PHE4 Voltage Detector High Voltage

High nominal voltage range
Unique plug-in coupling system
Integrated visual and acoustic indication
Also for use in wet weather conditions

Nominal voltage ranges 30 ... 132 kV / 50 Hz, M12 thread

Category "S" for switchgear installations and overhead lines.

3 Products

Part No. 783270 PHE4 30 60 S

GTIN 4013364309852, Customs tariff No. (EU): 90303370, Gross weight: 3.39 kg, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	30 ... 60 kV
Total length (l_G )	2560 mm
Insertion depth (l_O )	910 mm
^*) all circuits without test prod

Nominal voltage (U_N )	30 ... 60 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	2560 mm
Insertion depth (l_O )	910 mm
Length (handle) (l_H )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits without test prod

Product 783270 was added to Notepad.

Go to Notepad

Product 783270 was added to the cart.

Go to Web-Shop

Part No. 783275 PHE4 60 110 S

GTIN 4013364309845, Customs tariff No. (EU): 90303370, Gross weight: 3.83 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	60 ... 110 kV
Total length (l_G )	3010 mm
Insertion depth (l_O )	910 mm
^*) all circuits without test prod

Nominal voltage (U_N )	60 ... 110 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	3010 mm
Insertion depth (l_O )	910 mm
Length (handle) (l_H )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits without test prod

Product 783275 was added to Notepad.

Go to Notepad

Product 783275 was added to the cart.

Go to Web-Shop

Part No. 783280 PHE4 60 132 S

GTIN 4013364317284, Customs tariff No. (EU): 90303370, Gross weight: 4.23 kg, PU: 1.00 pc(s)

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	60 ... 132 kV
Total length (l_G )	3420 mm
Insertion depth (l_O )	910 mm
^*) all circuits without test prod

Nominal voltage (U_N )	60 ... 132 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	3420 mm
Insertion depth (l_O )	910 mm
Length (handle) (l_H )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits without test prod

Product 783280 was added to Notepad.

Go to Notepad

Product 783280 was added to the cart.

Go to Web-Shop

Nominal Voltage Range 110 ... 132 kV / 50 & 16.7 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

1 Product

Part No. 783460 PHE4 110 132 S 16.7 50

GTIN 4013364309869, Customs tariff No. (EU): 90303370, Gross weight: 4.23 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Nominal voltage (U_N )	110 ... 132 kV
Total length (l_G )	3420 mm
Insertion depth (l_O )	910 mm
^*) all circuits without test prod

Nominal voltage (U_N )	110 ... 132 kV
Type of voltage	a.c.
Frequency	50 & 16.7 Hz
Category	S
Total length (l_G )	3420 mm
Insertion depth (l_O )	910 mm
Length (handle) (l_H )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits without test prod

Product 783460 was added to Notepad.

Go to Notepad

Product 783460 was added to the cart.

Go to Web-Shop

Nominal Voltage Ranges 110 ... 420 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

2 Products

Part No. 783285 PHE4 110 220 S

GTIN 4013364316898, Customs tariff No. (EU): 90303370, Gross weight: 4.50 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	110 ... 220 kV
Total length (l_G )	4420 mm
Insertion depth (l_O )	910 mm
^*) all circuits without test prod

Nominal voltage (U_N )	110 ... 220 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	4420 mm
Insertion depth (l_O )	910 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits without test prod

Product 783285 was added to Notepad.

Go to Notepad

Product 783285 was added to the cart.

Go to Web-Shop

Part No. 783290 PHE4 220 420 S

GTIN 4013364316904, Customs tariff No. (EU): 90303370, Gross weight: 6.48 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	220 ... 420 kV
Total length (l_G )	5750 mm
Insertion depth (l_O )	910 mm
^*) all circuits without test prod

Nominal voltage (U_N )	220 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	5750 mm
Insertion depth (l_O )	910 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits without test prod

Product 783290 was added to Notepad.

Go to Notepad

Product 783290 was added to the cart.

Go to Web-Shop
