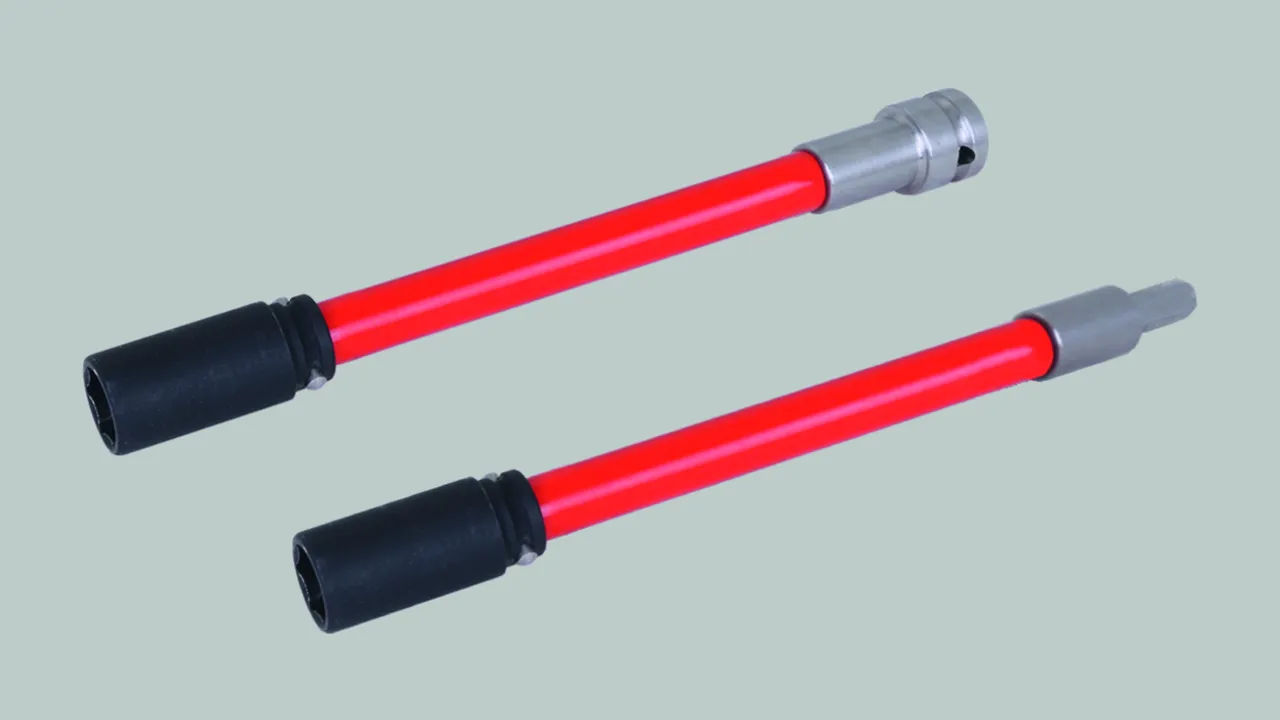

Assembly tool

For effortless installation of clamps in hard-to-reach reinforcement layers and use as a universal extension tool.

Our assembly tool is available in three different lengths (200 mm, 400 mm, 800 mm) and can be attached to the cordless screwdriver or impact wrench as required.

It has a socket (width across flats 17) with an integrated spring-loaded magnet. The magnet makes it easy to hold and screw clamps from a distance.

Nuts can also be screwed on easily thanks to the spring mechanism. The red handle provides a firm grip and remains stable while the underlying shaft rotates.

With square socket and magnetic socket (AF17)

Stainless steel extension tool with magnetically spring-loaded socket (AF17) and a 1/2-inch square holder for use with an impact wrench. With a red freewheel handle. Also included: O-ring and locking pin.

3 Products

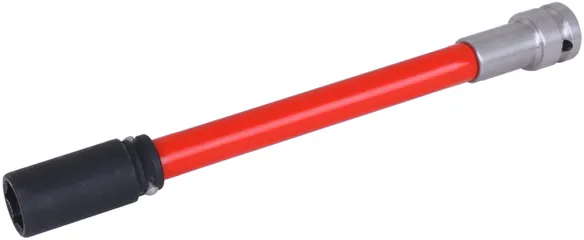

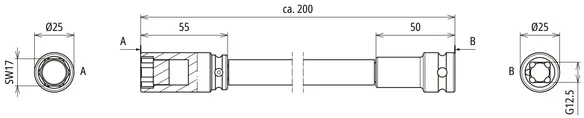

Part No. 597150 SA 200 4KANT SN V2A

GTIN 4013364519855, Customs tariff No. (EU): 82042000, Gross weight: 376.70 g, PU: 1.00 pc(s)

Images

Additional information

Extension tool approx. 200 mm
Socket (AF17) magnetically spring-loaded
1/2-inch square holder
O-ring and locking pin
With a red freewheel handle
Holder: Square (1/2 inch)
Material: StSt
Hexagon socket width across flats: 17 mm
Length: 200 mm

Brand: DEHN
Type: SA 200 4KANT SN V2A
Part No.: 597150
or equivalent.



Technical data

Holder Square (1/2 inch)
Material StSt
Hexagon socket width across flats 17 mm
Length (l1) 200 mm

Product 597150 was added to Notepad.

Go to Notepad

Product 597150 was added to the cart.

Go to Web-Shop

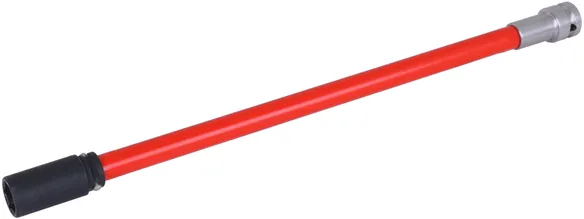

Part No. 597151 SA 400 4KANT SN V2A

GTIN 4013364519862, Customs tariff No. (EU): 82042000, Gross weight: 582.00 g, PU: 1.00 pc(s)

Images

Additional information

Extension tool approx. 400 mm
Socket (AF17) magnetically spring-loaded
1/2-inch square holder
O-ring and locking pin
With a red freewheel handle
Holder: Square (1/2 inch)
Material: StSt
Hexagon socket width across flats: 17 mm
Length: 400 mm

Brand: DEHN
Type: SA 400 4KANT SN V2A
Part No.: 597151
or equivalent.



Technical data

Holder Square (1/2 inch)
Material StSt
Hexagon socket width across flats 17 mm
Length (l1) 400 mm

Product 597151 was added to Notepad.

Go to Notepad

Product 597151 was added to the cart.

Go to Web-Shop

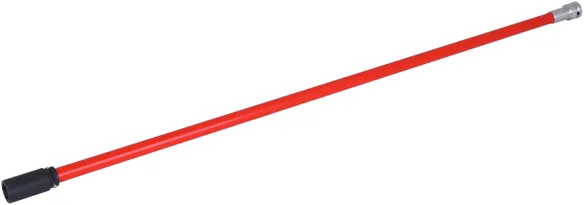

Part No. 597152 SA 800 4KANT SN V2A

GTIN 4013364519879, Customs tariff No. (EU): 82042000, Gross weight: 671.00 g, PU: 1.00 pc(s)

Images

Additional information

Extension tool approx. 800 mm
Socket (AF17) magnetically spring-loaded
1/2-inch square holder
O-ring and locking pin
With a red freewheel handle
Holder: Square (1/2 inch)
Material: StSt
Hexagon socket width across flats: 17 mm
Length: 800 mm

Brand: DEHN
Type: SA 800 4KANT SN V2A
Part No.: 597152
or equivalent.



Technical data

Holder Square (1/2 inch)
Material StSt
Hexagon socket width across flats 17 mm
Length (l1) 800 mm

Product 597152 was added to Notepad.

Go to Notepad

Product 597152 was added to the cart.

Go to Web-Shop

With hexagonal socket and magnetic socket (AF17)

Stainless steel extension tool with magnetically spring-loaded socket (AF17) and a hexagonal holder for use with a cordless screwdriver (chuck). With a red freewheel handle.

3 Products

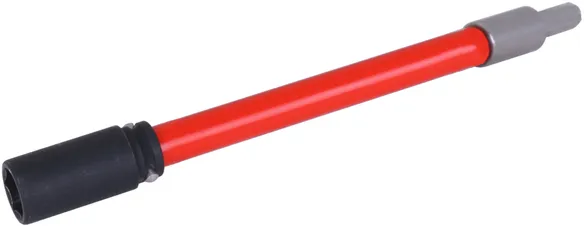

Part No. 597153 SA 200 6KANT SN V2A

GTIN 4013364519909, Customs tariff No. (EU): 82042000, Gross weight: 454.00 g, PU: 1.00 pc(s)

Images

Additional information

Extension tool approx. 200 mm
Socket (AF17) magnetically spring-loaded
Hexagonal holder (for chuck)
With a red freewheel handle
Holder: Hexagon
Material: StSt
Hexagon socket width across flats: 17 mm
Length: 200 mm

Brand: DEHN
Type: SA 200 6KANT SN V2A
Part No.: 597153
or equivalent.



Technical data

Holder Hexagon
Material StSt
Hexagon socket width across flats 17 mm
Length (l1) 200 mm

Product 597153 was added to Notepad.

Go to Notepad

Product 597153 was added to the cart.

Go to Web-Shop

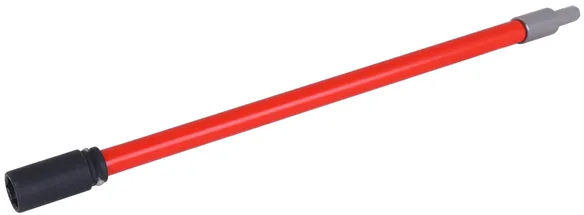

Part No. 597154 SA 400 6KANT SN V2A

GTIN 4013364519886, Customs tariff No. (EU): 82042000, Gross weight: 548.00 g, PU: 1.00 pc(s)

Images

Additional information

Extension tool approx. 400 mm
Socket (AF17) magnetically spring-loaded
Hexagonal holder (for chuck)
With a red freewheel handle
Holder: Hexagon
Material: StSt
Hexagon socket width across flats: 17 mm
Length: 400 mm

Brand: DEHN
Type: SA 400 6KANT SN V2A
Part No.: 597154
or equivalent.



Technical data

Holder Hexagon
Material StSt
Hexagon socket width across flats 17 mm
Length (l1) 400 mm

Product 597154 was added to Notepad.

Go to Notepad

Product 597154 was added to the cart.

Go to Web-Shop

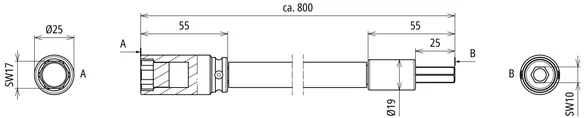

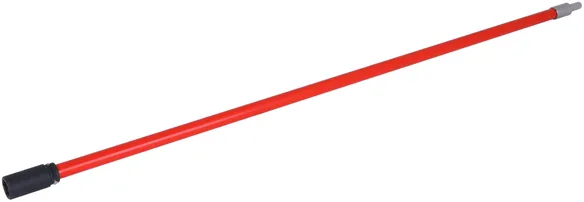

Part No. 597155 SA 800 6KANT SN V2A

GTIN 4013364519893, Customs tariff No. (EU): 82042000, Gross weight: 529.00 g, PU: 1.00 pc(s)

Images

Additional information

Extension tool approx. 800 mm
Socket (AF17) magnetically spring-loaded
Hexagonal holder (for chuck)
With a red freewheel handle
Holder: Hexagon
Material: StSt
Hexagon socket width across flats: 17 mm
Length: 800 mm

Brand: DEHN
Type: SA 800 6KANT SN V2A
Part No.: 597155
or equivalent.



Technical data

Holder Hexagon
Material StSt
Hexagon socket width across flats 17 mm
Length (l1) 800 mm

Product 597155 was added to Notepad.

Go to Notepad

Product 597155 was added to the cart.

Go to Web-Shop
