Forbindelsesklemmer til fundamentsjord og armering

Til forbindelse af runde og flade ledere i betonfundament eller til betongitter og armering.

Anordning:
(II) = parallel
(+) = kryds

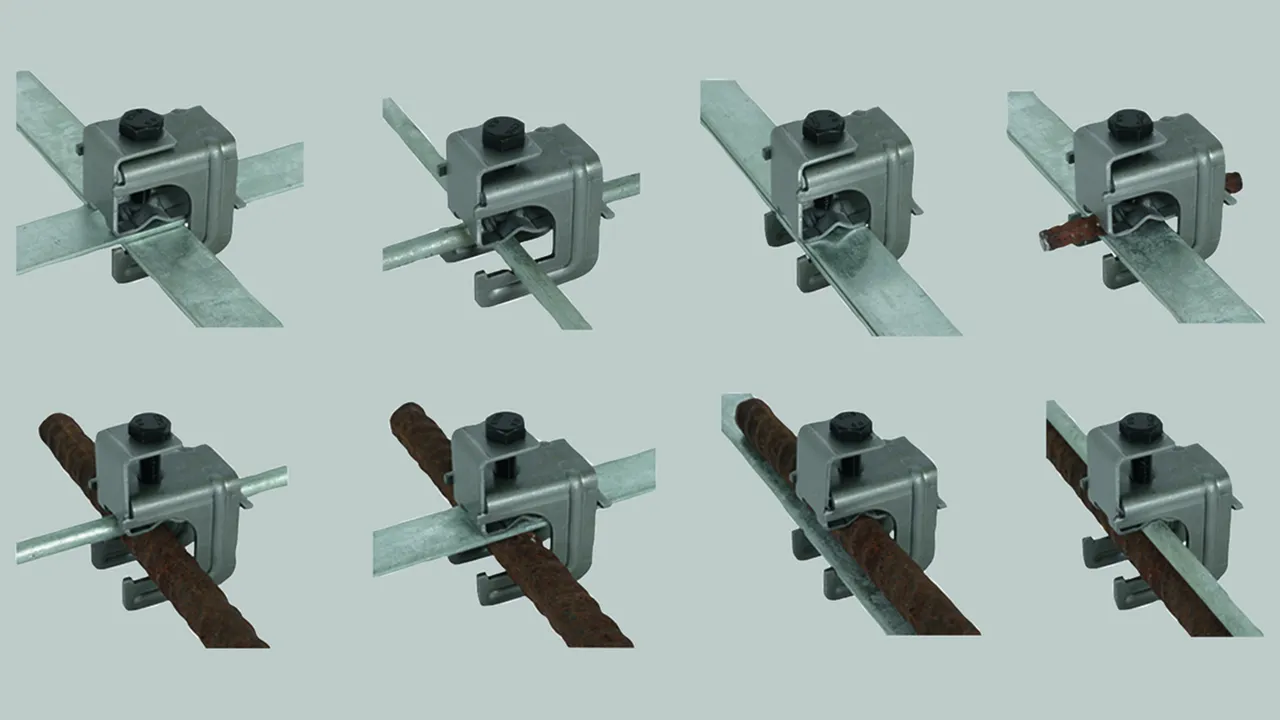

Bøjleklemme med trykplade

Til T-, kryds- og parallelforbindelse.

2 Products

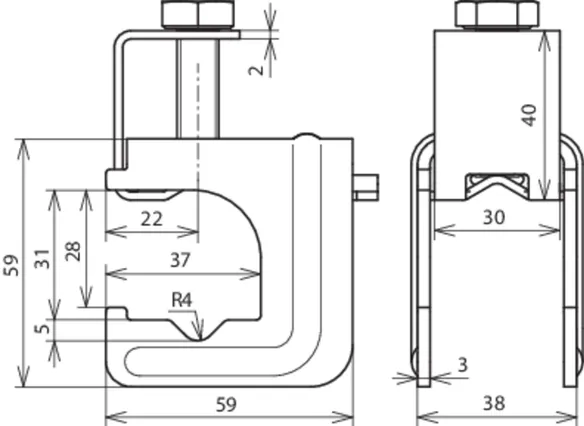

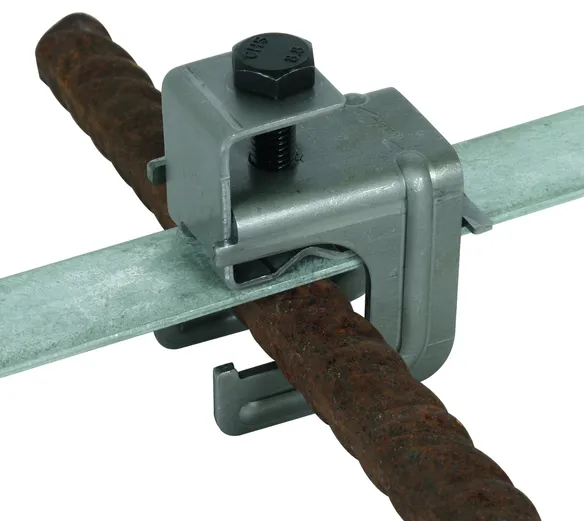

Part No. 308031 VK DB 6.20 8.10 FL30 BSB STBL

GTIN 4013364136571, Customs tariff No. (EU): 85359000, Gross weight: 239.60 g, PU: 25.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/blank
Klemmeområde (rund / rund): (+/II) 6-20 / 8-10 mm
Klemmeområde (rund / flad): (+/II) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad): (+/II) 30 x 3-4 / 30 x 3-4 mm
Udgave: uden klemring
Standard: EN 62561-1

fabrikat: DEHN
Type: VK DB 6.20 8.10 FL30 BSB STBL
artikelnr.: 308031
eller tilsvarende

Certificates

Technical data

Materiale	St/blank
Klemmeområde (rund / rund)	(+/II) 6-20 / 8-10 mm
Klemmeområde (rund / flad)	(+/II) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad)	(+/II) 30 x 3-4 / 30 x 3-4 mm
Udgave	uden klemring
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	8,4 kA
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Materiale	St/blank
Klemmeområde (rund / rund)	(+/II) 6-20 / 8-10 mm
Klemmeområde (rund / flad)	(+/II) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad)	(+/II) 30 x 3-4 / 30 x 3-4 mm
Skrue	di M10 x 35 mm
Materiale (skrue)	St/blank
Udgave	uden klemring
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	8,4 kA
Lynstrømsbæreevne (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Product 308031 was added to Notepad.

Go to Notepad

Product 308031 was added to the cart.

Go to Web-Shop

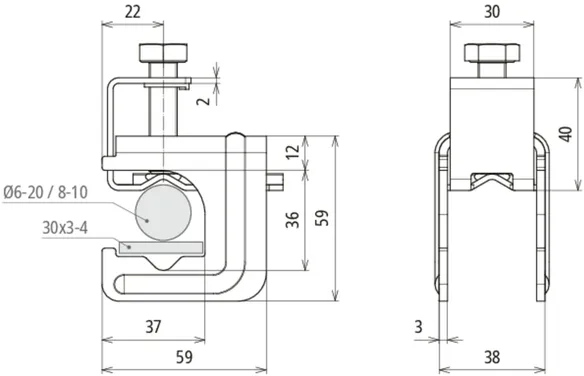

Part No. 308033 VK DB KR 6.20 8.10 FL30 BSB STBL

GTIN 4013364519978, Customs tariff No. (EU): 85359000, Gross weight: 240.40 g, PU: 25.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Bøjleklemme St/blank
Bøjleklemme med trykplade og klemring
til at forbinde rund- og
fladledere i betonfundament
eller betonstål-
måtter og armeringer med rund- og fladledere
til T-, kryds- og parallelforbindelser
Materiale: St/blank
Klemmeområde (rund / rund): (+/II) 6-20 / 8-10 mm
Klemmeområde (rund / flad): (+/II) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad): (+/II) 30 x 3-4 / 30 x 3-4 mm
Udgave: med klemring
Standard: EN 62561-1

fabrikat: DEHN
Type: VK DB KR 6.20 8.10 FL30 BSB STBL
artikelnr.: 308033
eller tilsvarende

Certificates

Technical data

Materiale	St/blank
Klemmeområde (rund / rund)	(+/II) 6-20 / 8-10 mm
Klemmeområde (rund / flad)	(+/II) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad)	(+/II) 30 x 3-4 / 30 x 3-4 mm
Udgave	med klemring
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	8,4 kA
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Materiale	St/blank
Klemmeområde (rund / rund)	(+/II) 6-20 / 8-10 mm
Klemmeområde (rund / flad)	(+/II) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad)	(+/II) 30 x 3-4 / 30 x 3-4 mm
Skrue	di M10 x 35 mm
Materiale (skrue)	St/blank
Udgave	med klemring
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	8,4 kA
Lynstrømsbæreevne (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Product 308033 was added to Notepad.

Go to Notepad

Product 308033 was added to the cart.

Go to Web-Shop

Bøjleklemme MAXI med trykplade

Til T-, kryds- og parallelforbindelse.

1 Product

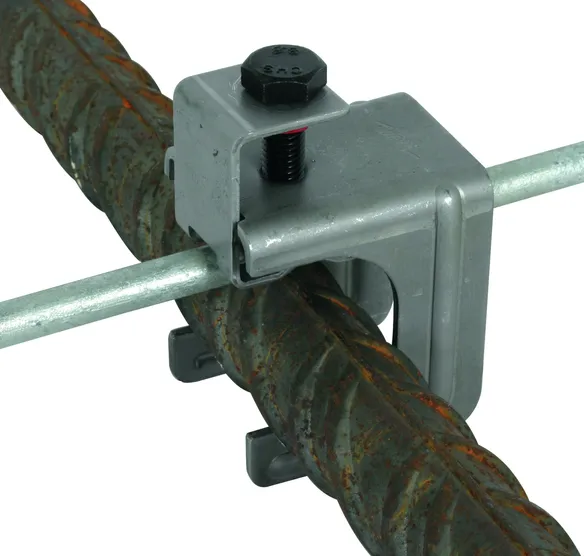

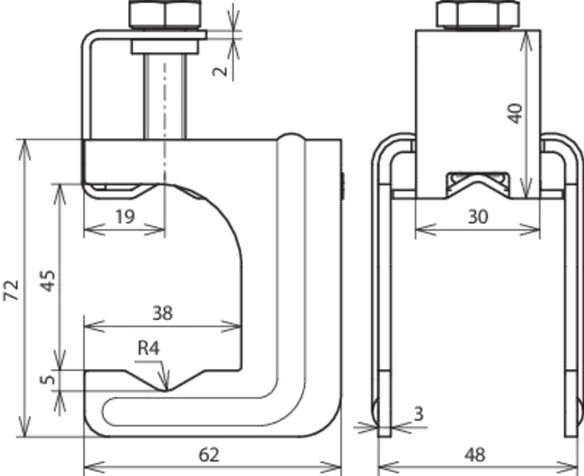

Part No. 308036 VK DB 20.32 8.10 FL40 BSB STBL

GTIN 4013364136588, Customs tariff No. (EU): 85359000, Gross weight: 275.60 g, PU: 25.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/blank
Klemmeområde (rund / rund): (+/II) 20-32 / 8-10 mm
Klemmeområde (rund / flad): (+/II) 20-32 / 40 x 4-5 mm
Udgave: med klemring
Standard: EN 62561-1

fabrikat: DEHN
Type: VK DB 20.32 8.10 FL40 BSB STBL
artikelnr.: 308036
eller tilsvarende

Certificates

Technical data

Materiale	St/blank
Klemmeområde (rund / rund)	(+/II) 20-32 / 8-10 mm
Klemmeområde (rund / flad)	(+/II) 20-32 / 40 x 4-5 mm
Udgave	med klemring
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	14,0 kA
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Materiale	St/blank
Klemmeområde (rund / rund)	(+/II) 20-32 / 8-10 mm
Klemmeområde (rund / flad)	(+/II) 20-32 / 40 x 4-5 mm
Skrue	di M10 x 35 mm
Materiale (skrue)	St/blank
Udgave	med klemring
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	14,0 kA
Lynstrømsbæreevne (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Product 308036 was added to Notepad.

Go to Notepad

Product 308036 was added to the cart.

Go to Web-Shop

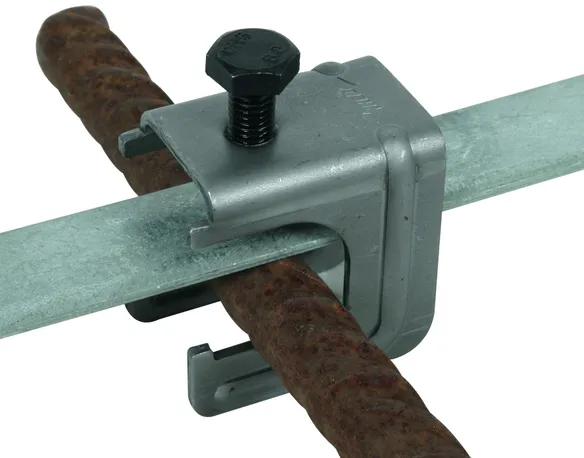

Bøjleklemme uden trykplade

Til krydsforbindelse.

1 Product

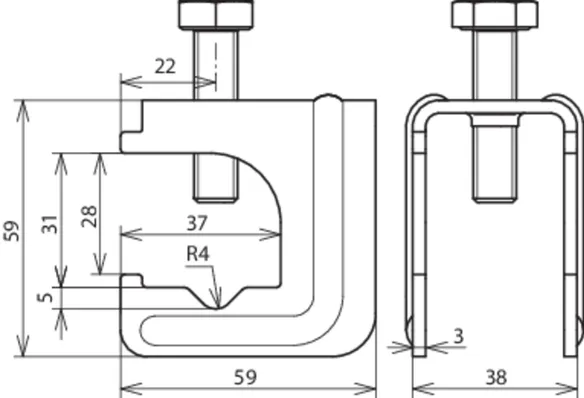

Part No. 308032 VK 6.20 FL30 BSB STBL

GTIN 4013364152823, Customs tariff No. (EU): 85359000, Gross weight: 178.50 g, PU: 25.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/blank
Klemmeområde (rund / flad): (+) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad): (+/II) 30 x 3-4 / 30 x 3-4 mm
Standard: EN 62561-1

fabrikat: DEHN
Type: VK 6.20 FL30 BSB STBL
artikelnr.: 308032
eller tilsvarende

Certificates

Technical data

Materiale	St/blank
Klemmeområde (rund / flad)	(+) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad)	(+/II) 30 x 3-4 / 30 x 3-4 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,0 kA
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Materiale	St/blank
Klemmeområde (rund / flad)	(+) 6-20 / 30 x 3-4 mm
Klemmeområde (flad / flad)	(+/II) 30 x 3-4 / 30 x 3-4 mm
Skrue	di M10 x 40 mm
Materiale (skrue)	St/blank
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,0 kA
Lynstrømsbæreevne (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Product 308032 was added to Notepad.

Go to Notepad

Product 308032 was added to the cart.

Go to Web-Shop

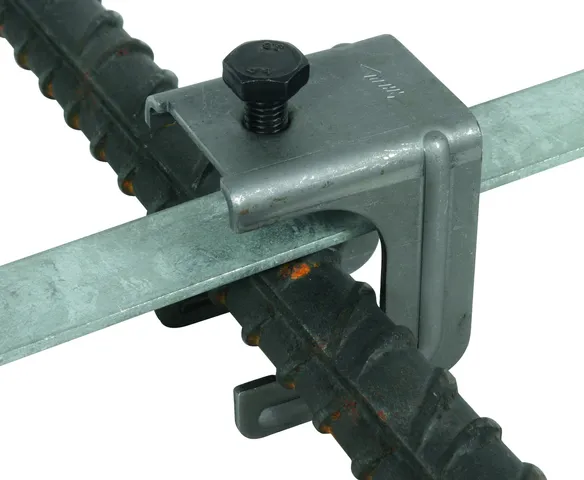

Bøjleklemme MAXI uden trykplade

Til krydsforbindelse.

1 Product

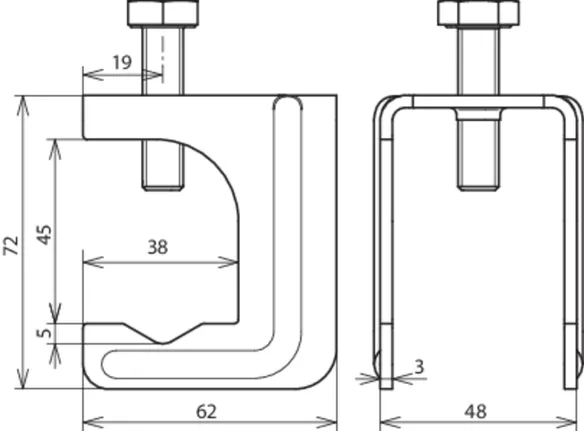

Part No. 308037 VK 20.32 FL40 BSB STBL

GTIN 4013364154704, Customs tariff No. (EU): 85359000, Gross weight: 218.00 g, PU: 25.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/blank
Klemmeområde (rund / flad): (+) 20-32 / 30 x 3-40 x 5 mm
Standard: EN 62561-1

fabrikat: DEHN
Type: VK 20.32 FL40 BSB STBL
artikelnr.: 308037
eller tilsvarende

Certificates

Technical data

Materiale	St/blank
Klemmeområde (rund / flad)	(+) 20-32 / 30 x 3-40 x 5 mm
Standard	EN 62561-1
*⁾ Se den præcise tildeling på testcertifikatet.

Product 308037 was added to Notepad.

Go to Notepad

Product 308037 was added to the cart.

Go to Web-Shop
