Jordingsklemmer

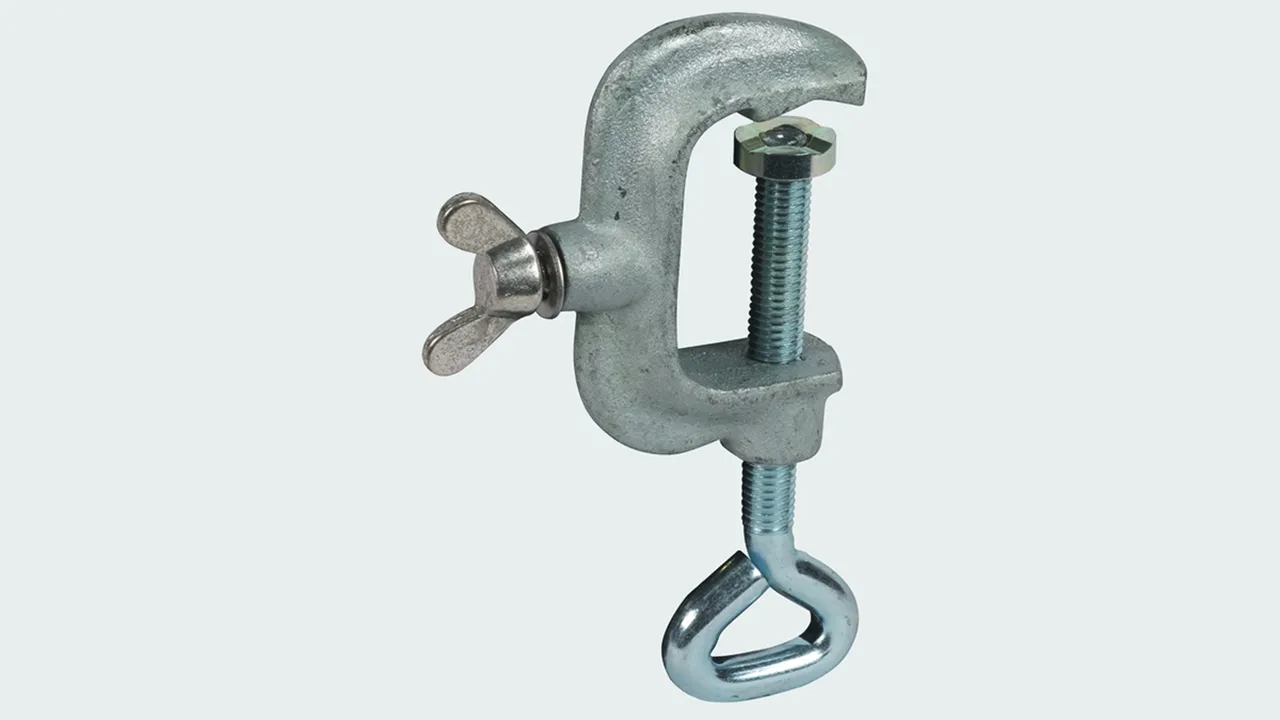

For tilslutning af jordingsledere på rørledere, med fingerskrue M8.

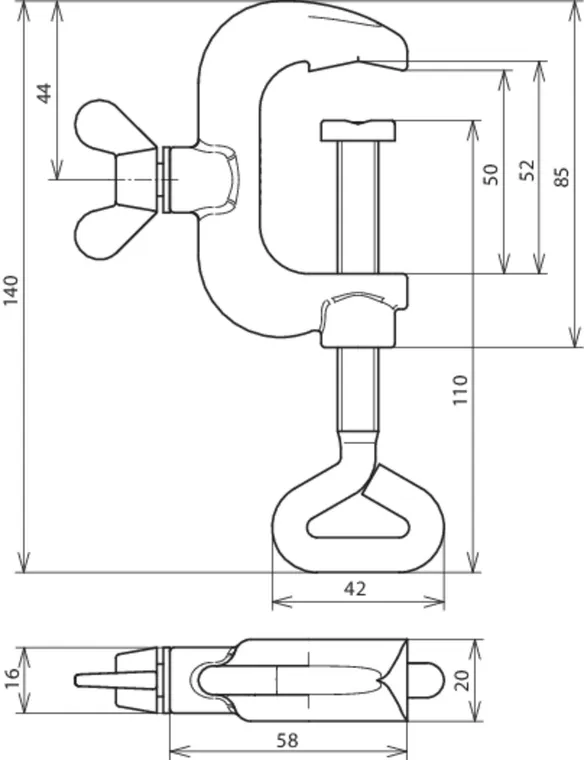

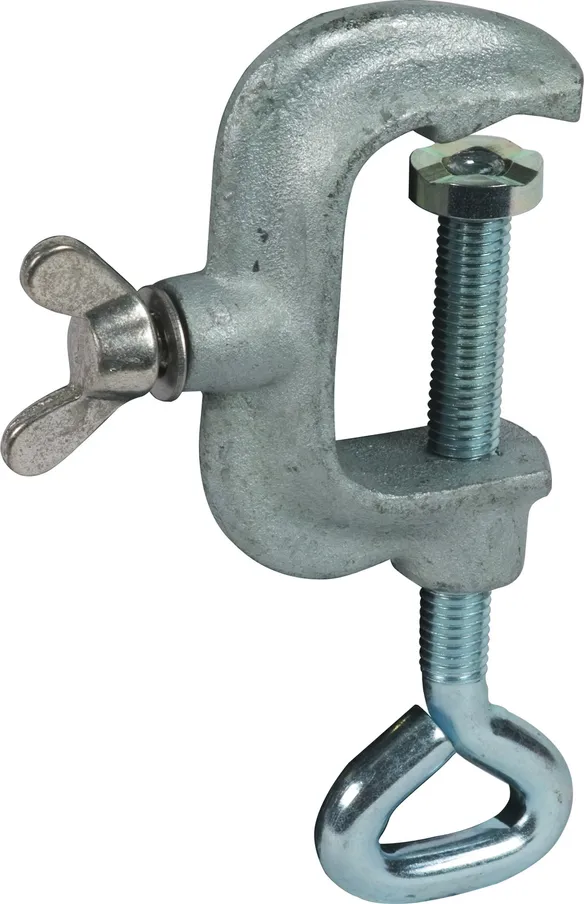

Lille model

1 Product

Part No. 435805 EK 4.45 AQ6 16 TGTZN

GTIN 4013364029798, Customs tariff No. (EU): 85369095, Gross weight: 317.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information


Materiale (klemmehus): TG/tZn
Materiale (spindel): St/gal Zn
Klemmeområde (rør Ø): 4-45 mm (3/8-1 1/4'')
Tilslutningstværsnit : 6-16 mm2

fabrikat: DEHN
Type: EK 4.45 AQ6 16 TGTZN
artikelnr.: 435805
eller tilsvarende

Certificates



Technical data

Materiale (klemmehus) TG/tZn
Materiale (spindel) St/gal Zn
Klemmeområde (rør Ø) 4-45 mm (3/8-1 1/4'')
Tilslutningstværsnit 6-16 mm2

Product 435805 was added to Notepad.

Go to Notepad

Product 435805 was added to the cart.

Go to Web-Shop

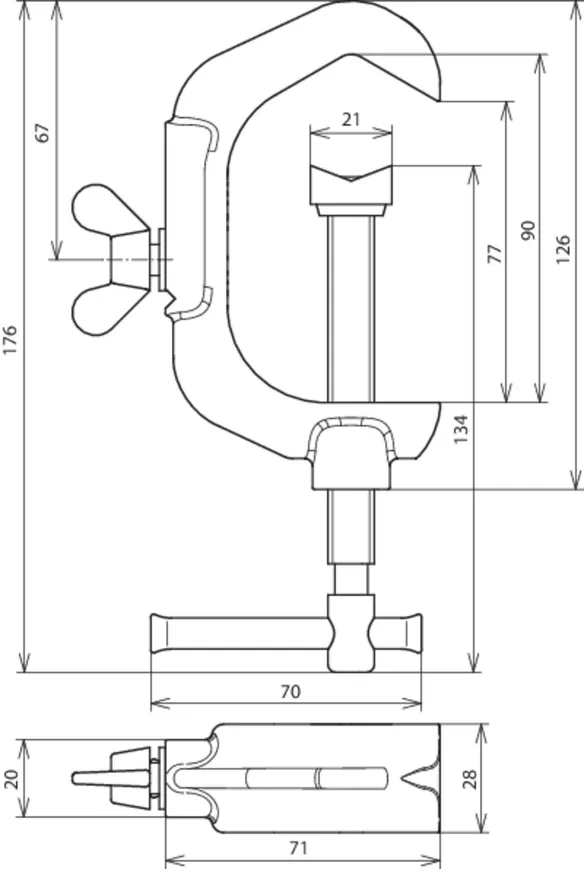

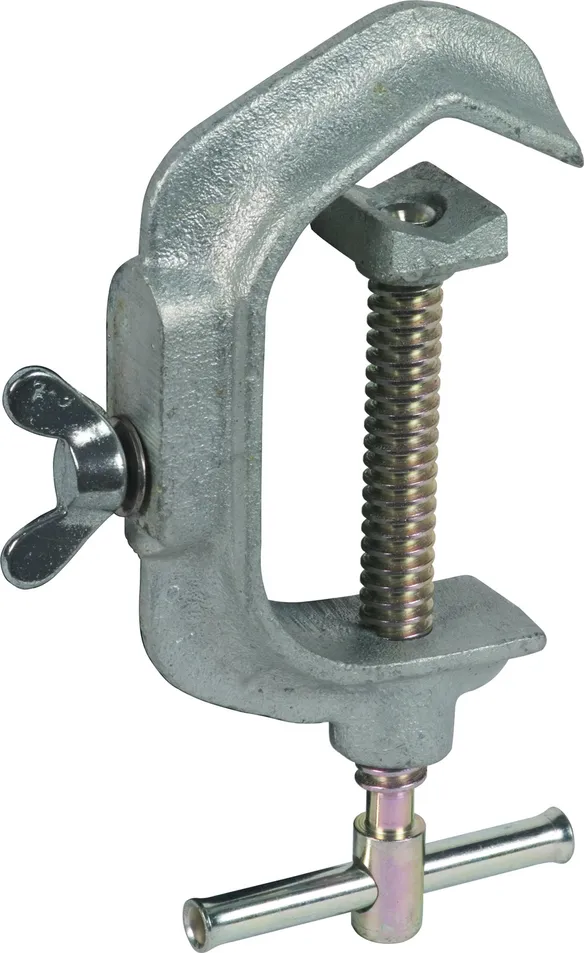

Stor model

1 Product

Part No. 435803 EK 12.60 AQ6 16 TGTZN

GTIN 4013364029781, Customs tariff No. (EU): 85369095, Gross weight: 468.20 g, PU: 1.00 Pakkestørrelse

Images

Additional information


Materiale (klemmehus): TG/tZn
Materiale (spindel): St/gal Zn
Klemmeområde (rør Ø): 12-60 mm (1/2-2'')
Tilslutningstværsnit : 6-16 mm2

fabrikat: DEHN
Type: EK 12.60 AQ6 16 TGTZN
artikelnr.: 435803
eller tilsvarende

Certificates



Technical data

Materiale (klemmehus) TG/tZn
Materiale (spindel) St/gal Zn
Klemmeområde (rør Ø) 12-60 mm (1/2-2'')
Tilslutningstværsnit 6-16 mm2

Product 435803 was added to Notepad.

Go to Notepad

Product 435803 was added to the cart.

Go to Web-Shop
