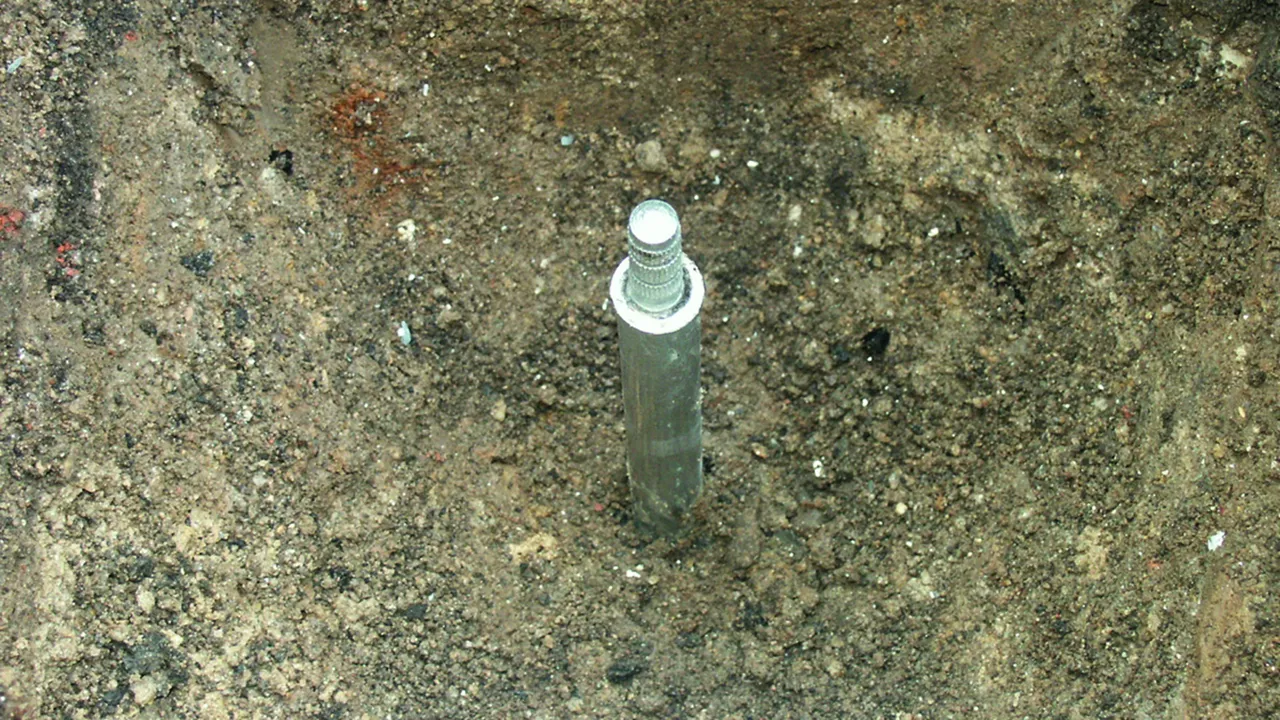

Jordspyd

Til oprettelse af jordingsanlæg til afledninger eller transformatorer.Karakteristika:

Ingen tværsnitsfortykkelse på koblingsstedet
Selvlukkende kobling
Korrosionsbestandighed
Forenklet opbevaring og transportmulighed
Kan anvendes universelt afhængigt af de lokale forhold
Konstante modstandsværdier

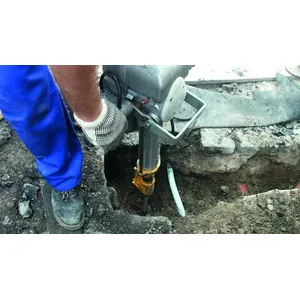

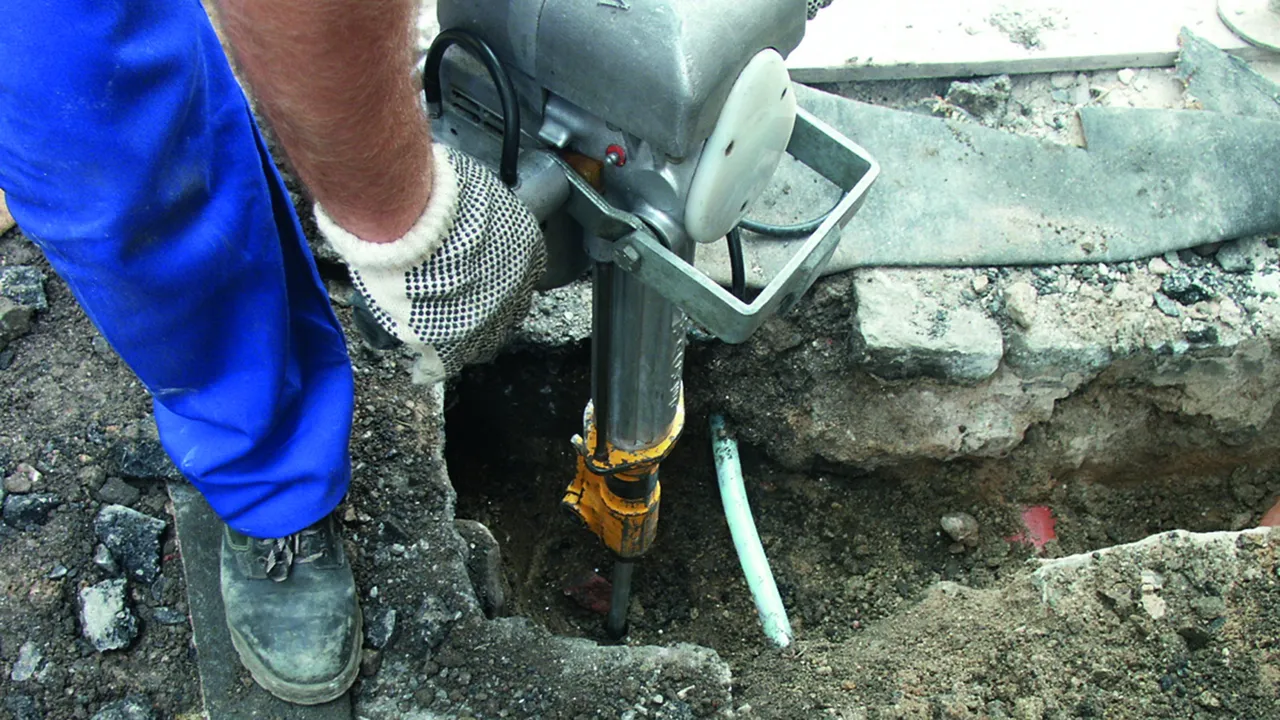

Enkel placering med slaghammer

Details

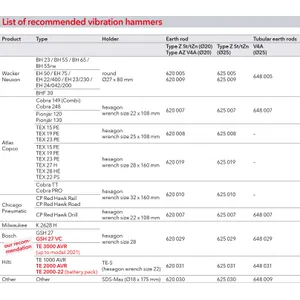

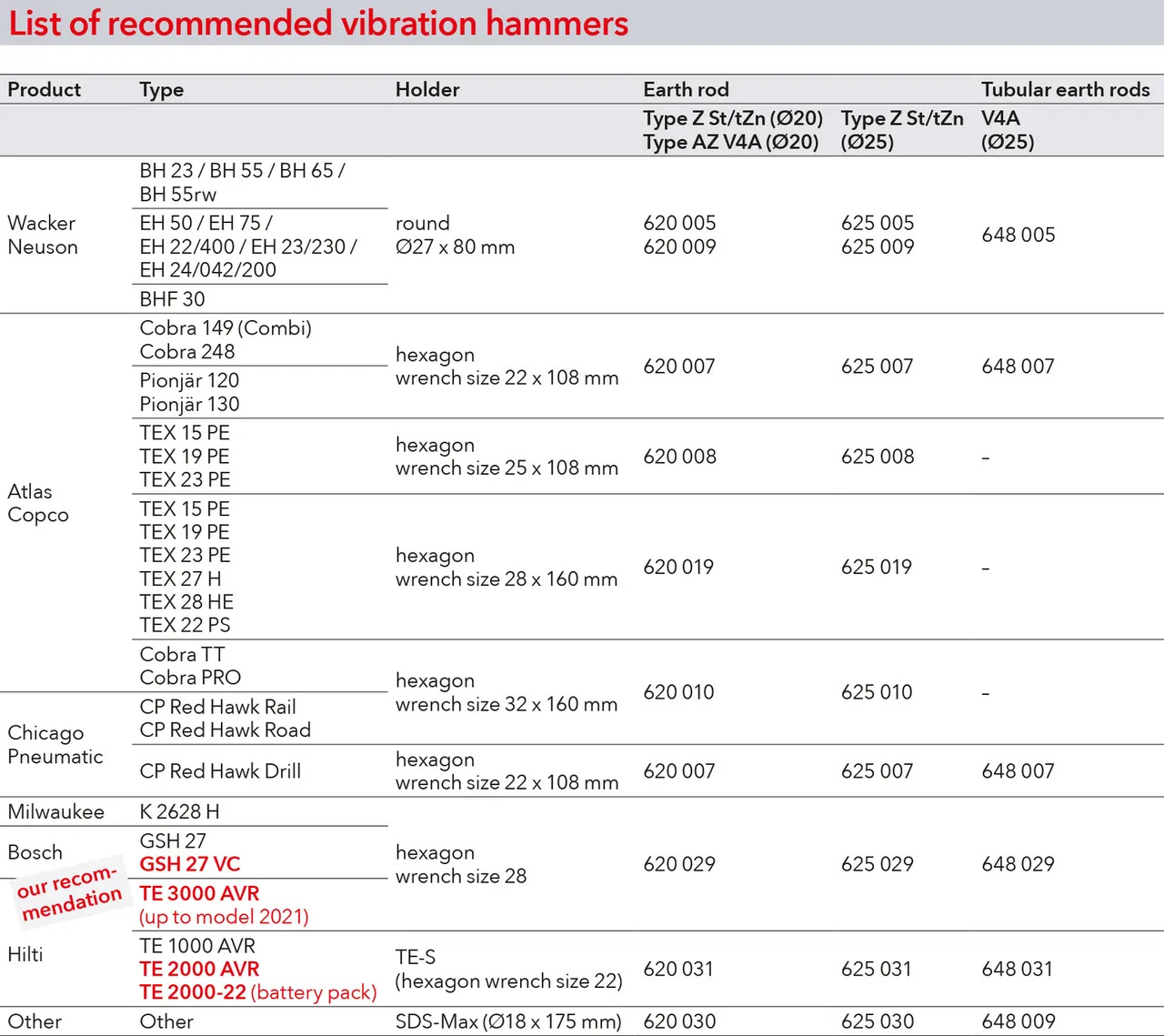

lorem ipsum — Hammerindsats til jordspyd og rør

Type Z

Med tredobbelt riflet tap.

4 Products

Part No. 620101 TE 20 1000 Z STTZN

GTIN 4013364021860, Customs tariff No. (EU): 85389099, Gross weight: 2.50 kg, PU: 6.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1000 mm
Diameter Ø: 20 mm
Kortslutningsstrøm (AC 50 Hz/DC): 7,9 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 20 1000 Z STTZN
artikelnr.: 620101
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	20 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	20 mm
Diameter (tap)	12 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 22000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Product 620101 was added to Notepad.

Go to Notepad

Product 620101 was added to the cart.

Go to Web-Shop

Part No. 620151 TE 20 1500 Z STTZN

GTIN 4013364021846, Customs tariff No. (EU): 85389099, Gross weight: 3.70 kg, PU: 6.00 Pakkestørrelse

Predecessor

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1500 mm
Diameter Ø: 20 mm
Kortslutningsstrøm (AC 50 Hz/DC): 7,9 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 20 1500 Z STTZN
artikelnr.: 620151
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	20 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	20 mm
Diameter (tap)	12 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 22000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Product 620151 was added to Notepad.

Go to Notepad

Product 620151 was added to the cart.

Go to Web-Shop

Part No. 625101 TE 25 1000 Z STTZN

GTIN 4013364021877, Customs tariff No. (EU): 85389099, Gross weight: 3.72 kg, PU: 6.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1000 mm
Diameter Ø: 25 mm
Kortslutningsstrøm (AC 50 Hz/DC): 12,3 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 25 1000 Z STTZN
artikelnr.: 625101
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	25 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	25 mm
Diameter (tap)	15 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 32000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Product 625101 was added to Notepad.

Go to Notepad

Product 625101 was added to the cart.

Go to Web-Shop

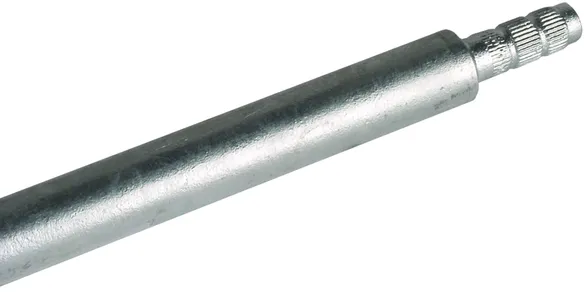

Part No. 625151 TE 25 1500 Z STTZN

GTIN 4013364021853, Customs tariff No. (EU): 85389099, Gross weight: 5.72 kg, PU: 6.00 Pakkestørrelse

Predecessor

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1500 mm
Diameter Ø: 25 mm
Kortslutningsstrøm (AC 50 Hz/DC): 12,3 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 25 1500 Z STTZN
artikelnr.: 625151
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	25 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	25 mm
Diameter (tap)	15 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 32000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Product 625151 was added to Notepad.

Go to Notepad

Product 625151 was added to the cart.

Go to Web-Shop

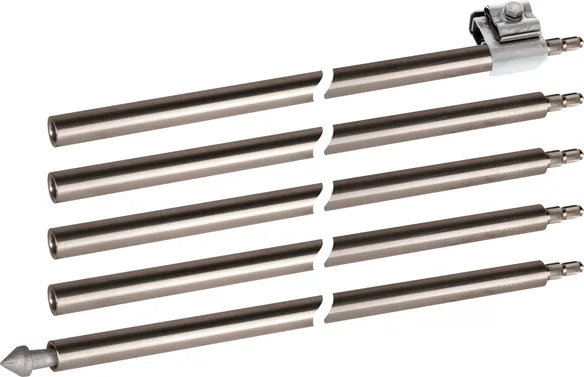

Type AZ

Med afdrejet og riflet tap.

2 Products

Part No. 620903 TE 20 1000 AZ V4A

GTIN 4013364342859, Customs tariff No. (EU): 85389099, Gross weight: 2.43 kg, PU: 6.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

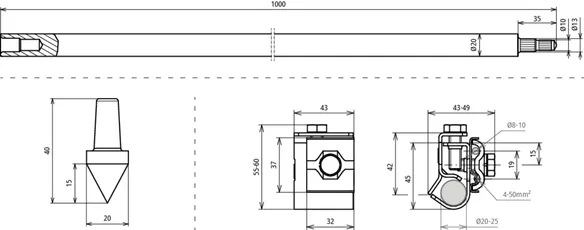

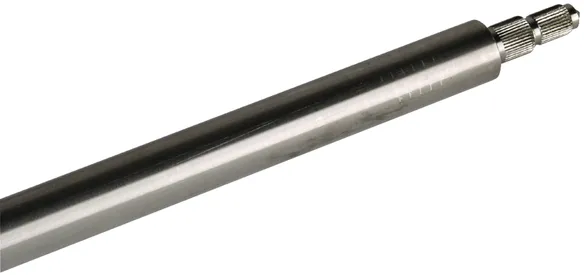

Jordspyd type AZ NIRO (V4A), længde 1000 mm
