Fastgørelsespunkt

  • For tilslutning af jordingsbøsning eller jordingsplade efter DIN 48088-2
  • Til jordsidet svejsning eller boltmontage for tilslutning af jordklemme med vingemøtrik eller -skrue
  • Tilslutningsstykke med gevindbolt M12 eller M16
  • Indvendigt gevind i M12 eller M16

Details

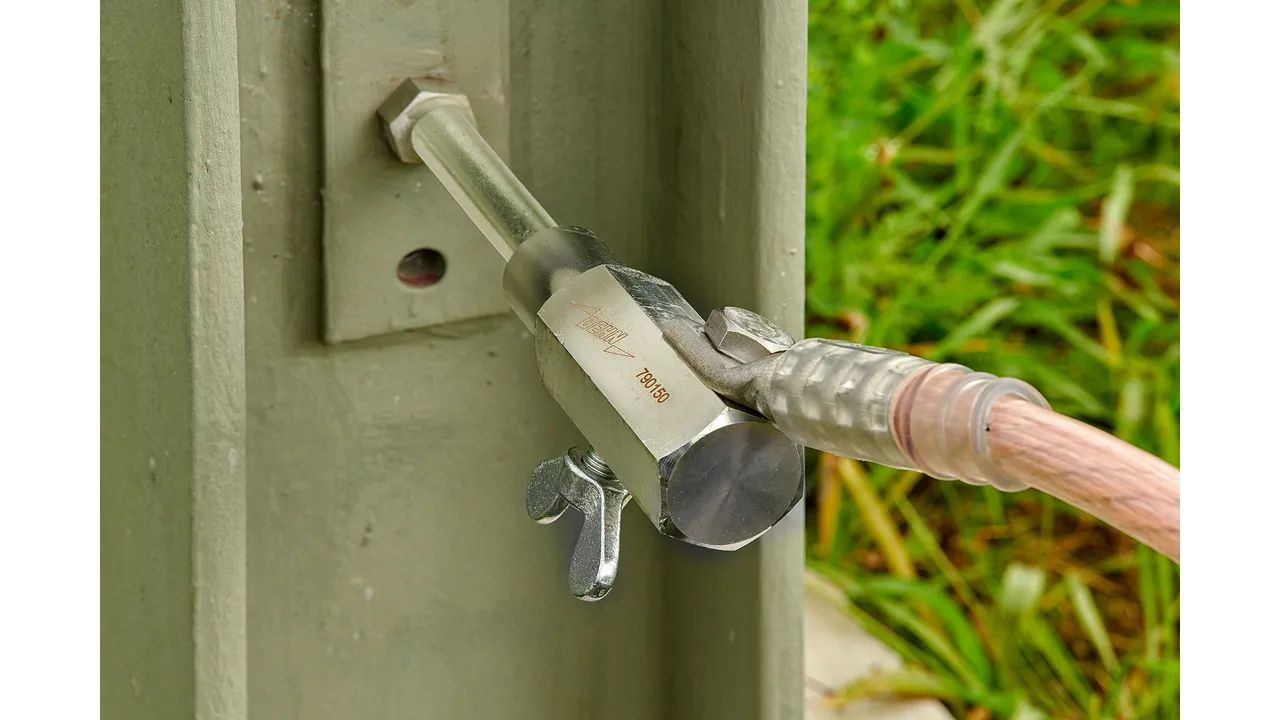

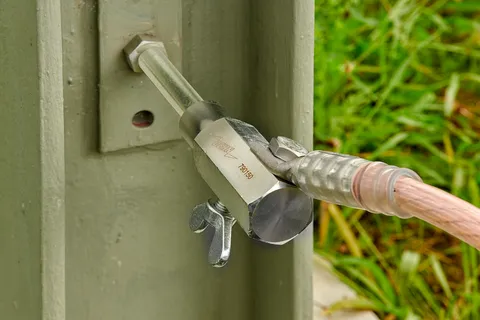

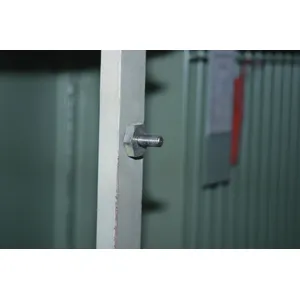

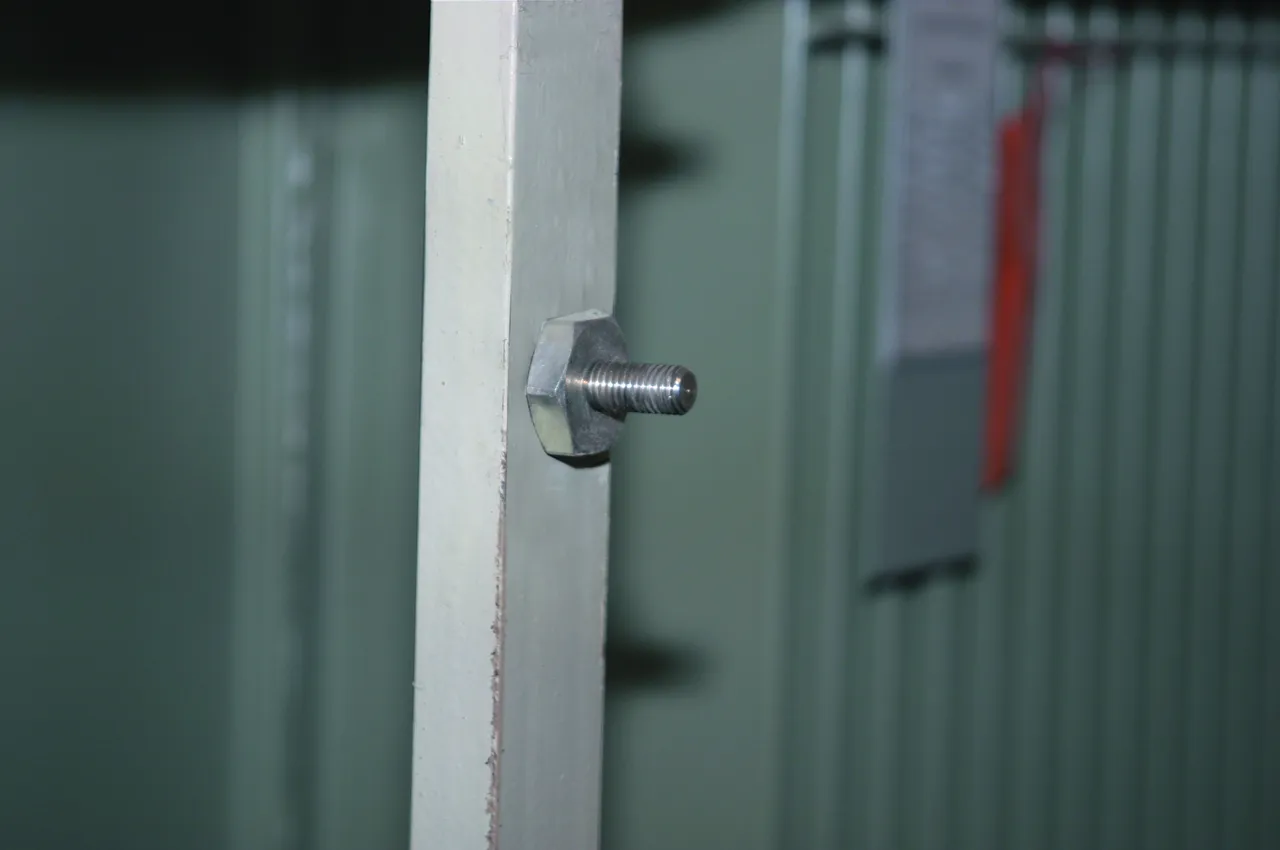

Jordingspunkt til boltmontage på jordsiden.
lorem ipsum

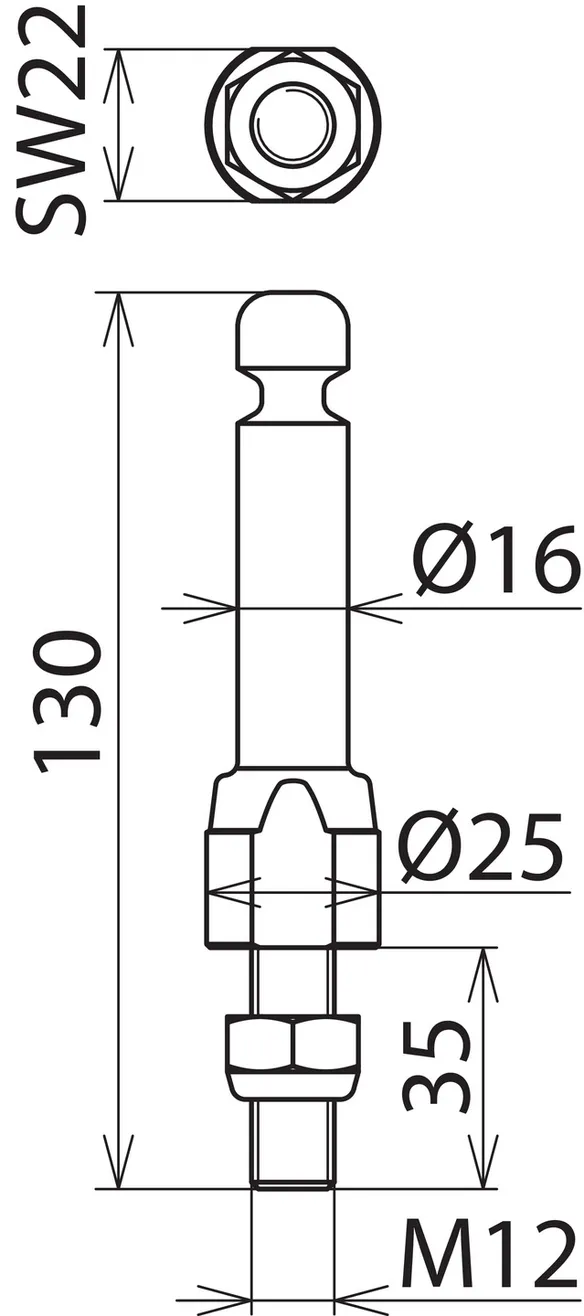

Ringkravebolt, med gevindbolt og møtrik

2 Products

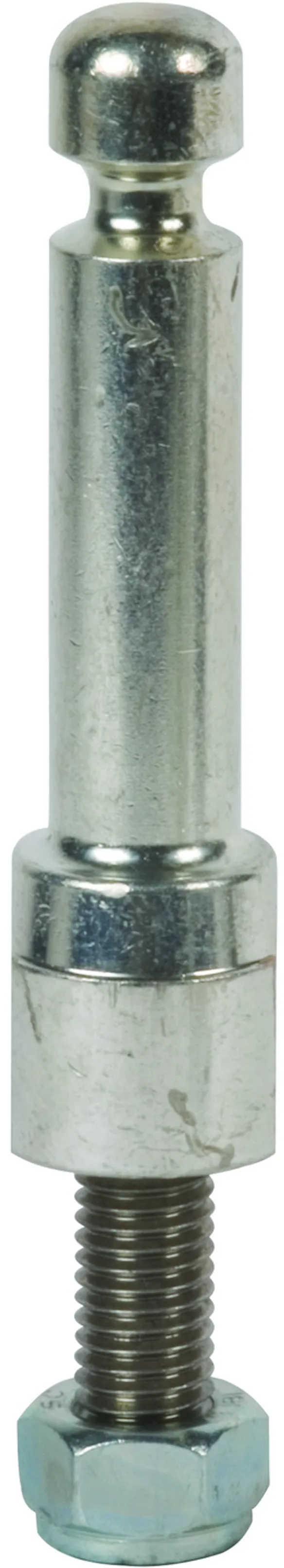

Part No. 790251 EFP 16 RN M12 35 SSM

GTIN 4013364089501, Customs tariff No. (EU): 85359000, Gross weight: 248.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M12 x 35 mm
Diameter 16 mm
Nøglevidde 22 mm
Max. ledertværsnit Cu 150 mm²
Maks. kortslutningsstrøm Ik 0,5 s 42,0*) kA
Maks. kortslutningsstrøm Ik 1 s 29,6*) kA
Materiale Messing (CuNi2Si) / gal Sn
Materiale (gevindbolt) Rustfrit A2-70
Materiale (møtrik) DIN 985-M12-8 / gal Zn
*) For jordings- og kortslutningskæder med kabellængde > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790251 was added to Notepad.

Go to Notepad

Product 790251 was added to the cart.

Go to Web-Shop

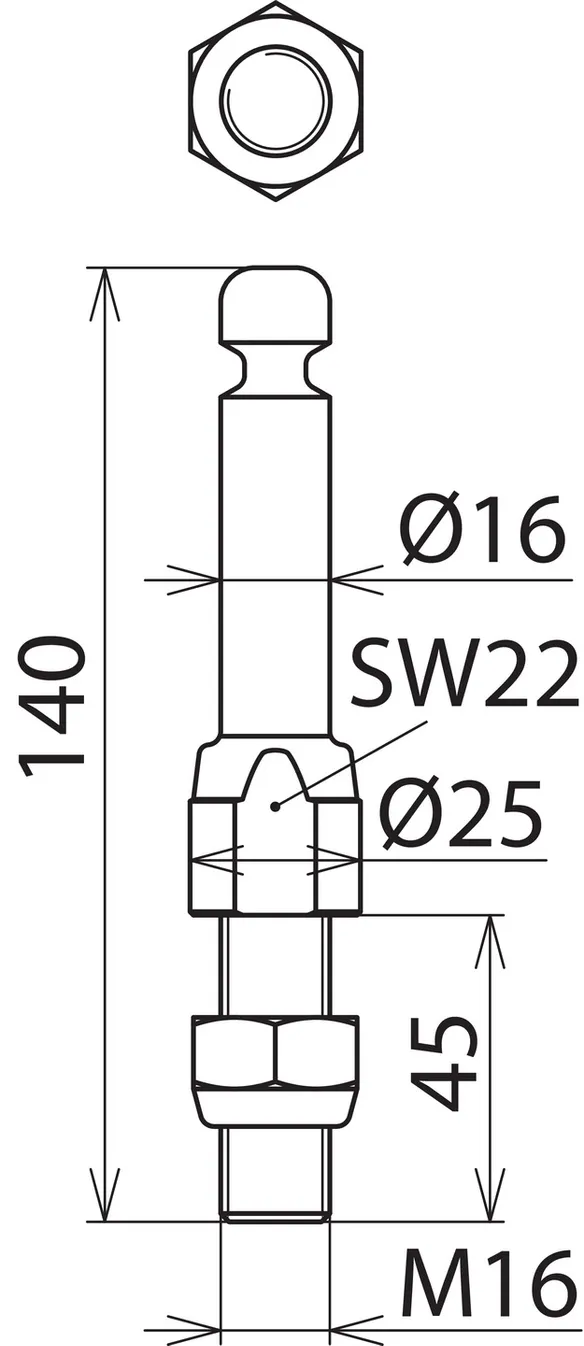

Part No. 790261 EFP 16 RN M16 45 SSM

GTIN 4013364089525, Customs tariff No. (EU): 85359000, Gross weight: 277.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M16 x 45 mm
Diameter 16 mm
Nøglevidde 22 mm
Max. ledertværsnit Cu 150 mm²
Maks. kortslutningsstrøm Ik 0,5 s 42,0*) kA
Maks. kortslutningsstrøm Ik 1 s 29,6*) kA
Materiale Messing (CuNi2Si) / gal Sn
Materiale (gevindbolt) Rustfrit A2-70
Materiale (møtrik) DIN 985-M16-8 / gal Zn
*) For jordings- og kortslutningskæder med kabellængde > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790261 was added to Notepad.

Go to Notepad

Product 790261 was added to the cart.

Go to Web-Shop

Ringkravebolt, med indvendigt gevind

2 Products

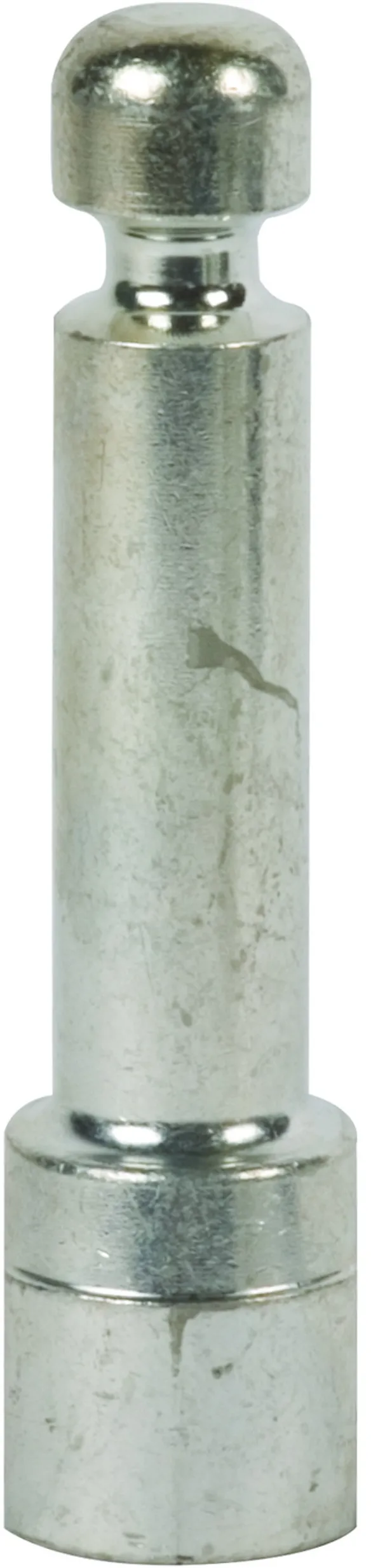

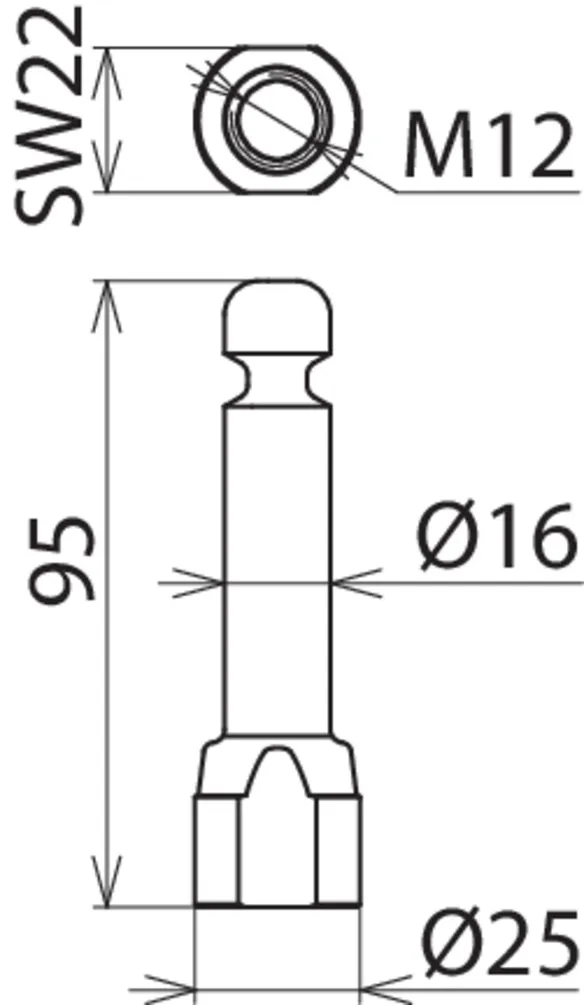

Part No. 790250 EFP 16 RN M12

GTIN 4013364089495, Customs tariff No. (EU): 85359000, Gross weight: 193.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M12
Diameter 16 mm
Nøglevidde 22 mm
Max. ledertværsnit Cu 150 mm²
Maks. kortslutningsstrøm Ik 0,5 s 42,0*) kA
Maks. kortslutningsstrøm Ik 1 s 29,6*) kA
Materiale Messing (CuNi2Si) / gal Sn
*) For jordings- og kortslutningskæder med kabellængde > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790250 was added to Notepad.

Go to Notepad

Product 790250 was added to the cart.

Go to Web-Shop

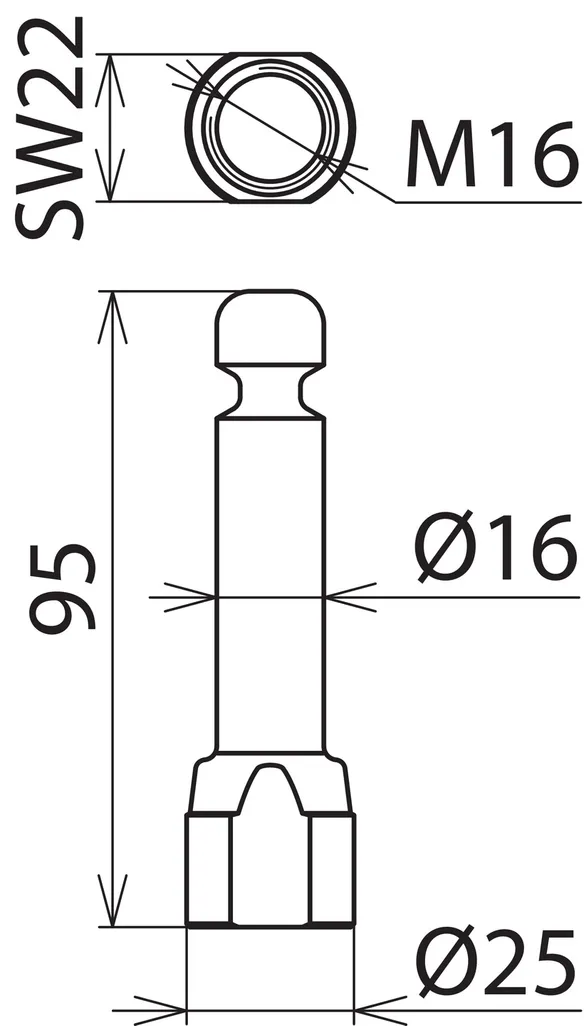

Part No. 790260 EFP 16 RN M16

GTIN 4013364089518, Customs tariff No. (EU): 85359000, Gross weight: 180.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M16
Diameter 16 mm
Nøglevidde 22 mm
Max. ledertværsnit Cu 150 mm²
Maks. kortslutningsstrøm Ik 0,5 s 42,0*) kA
Maks. kortslutningsstrøm Ik 1 s 29,6*) kA
Materiale Messing (CuNi2Si) / gal Sn
*) For jordings- og kortslutningskæder med kabellængde > 4000 mm: 26,5 kA / 0,5 s (18,7 kA / 1 s)

Product 790260 was added to Notepad.

Go to Notepad

Product 790260 was added to the cart.

Go to Web-Shop

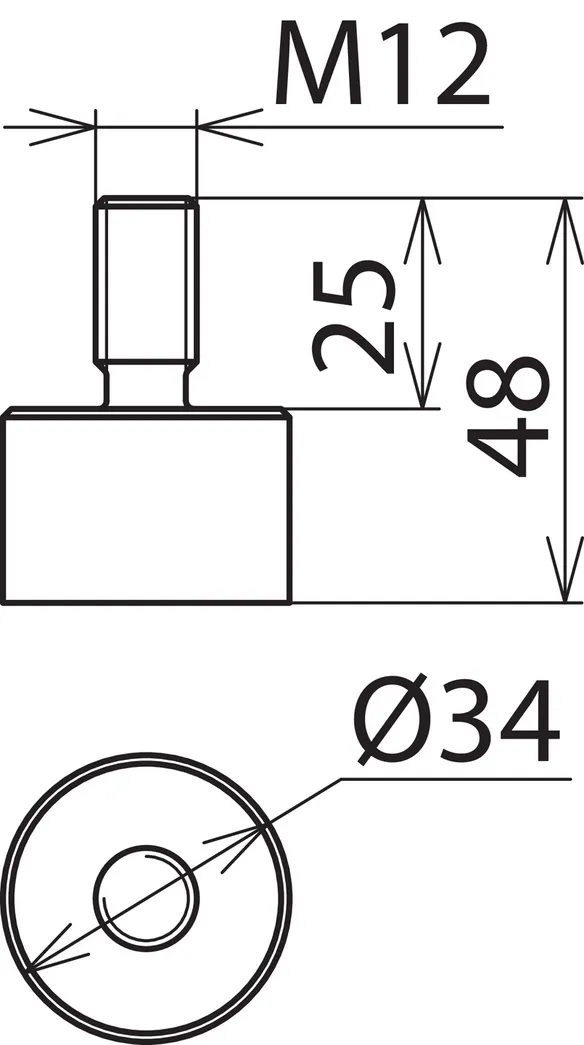

Jordtilslutningspunkt (påsvejsning), med gevindbolt

2 Products

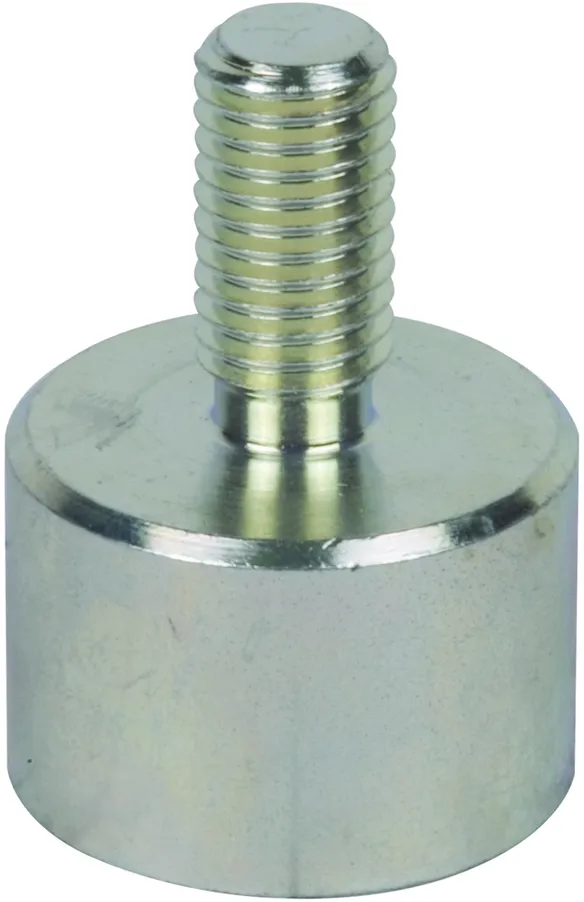

Part No. 705501 AS SCHW M12 25

GTIN 4013364003927, Customs tariff No. (EU): 85359000, Gross weight: 157.20 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M12 x 25 mm
Materiale St/gal Zn

Product 705501 was added to Notepad.

Go to Notepad

Product 705501 was added to the cart.

Go to Web-Shop

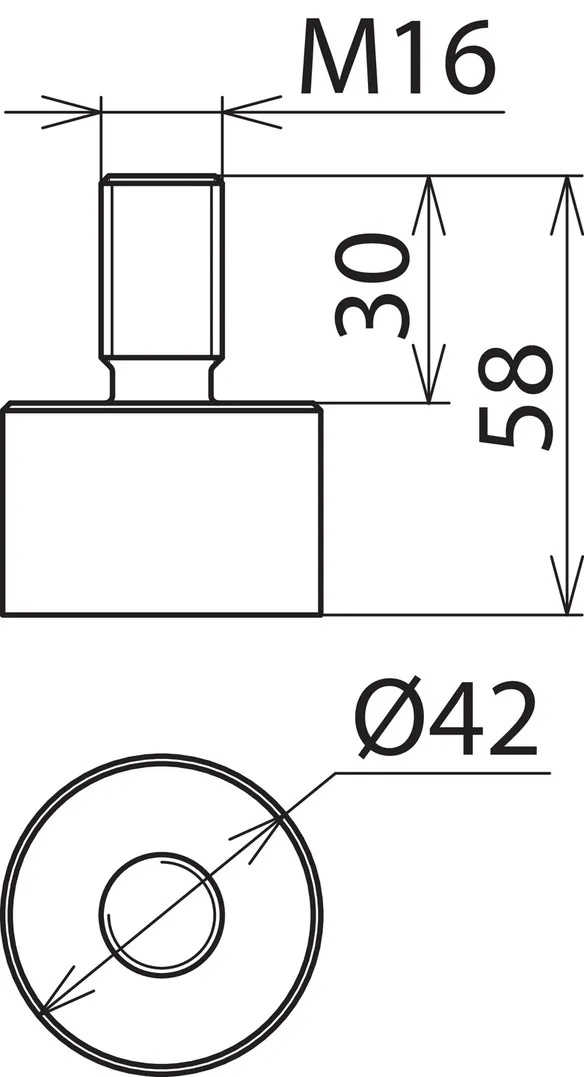

Part No. 755501 AS SCHW M16 30

GTIN 4013364003934, Customs tariff No. (EU): 85359000, Gross weight: 303.20 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M16 x 30 mm
Materiale St/gal Zn

Product 755501 was added to Notepad.

Go to Notepad

Product 755501 was added to the cart.

Go to Web-Shop

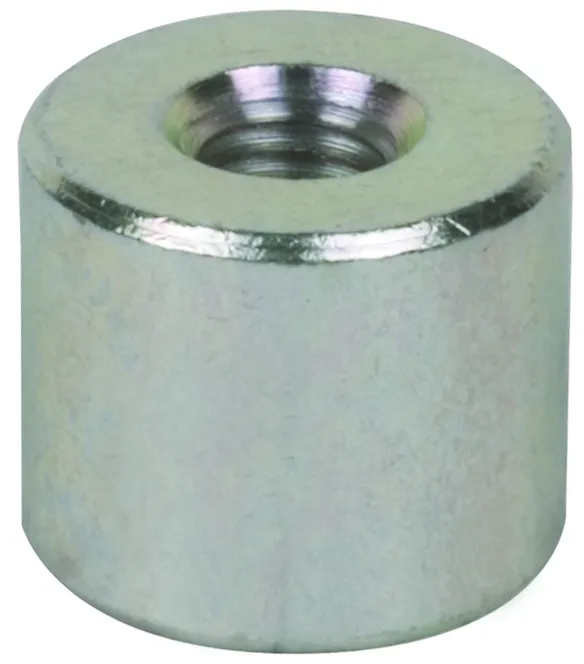

Jordtilslutningspunkt (påsvejsning), med indvendigt gevind

2 Products

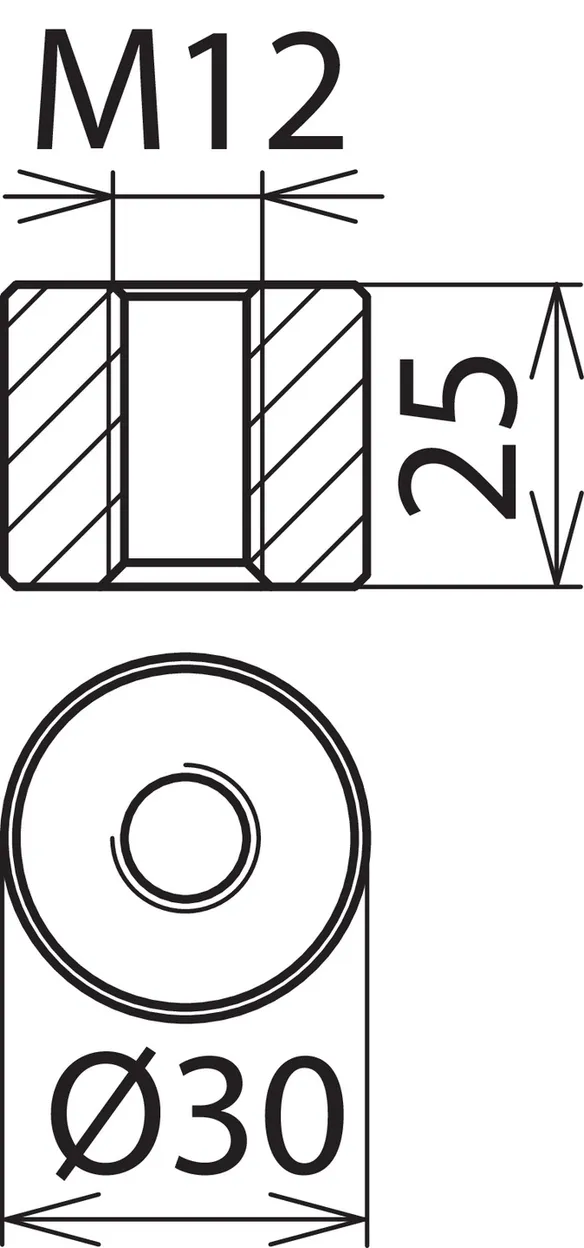

Part No. 336020 AS SCHW M12

GTIN 4013364003941, Customs tariff No. (EU): 85359000, Gross weight: 123.10 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M12
Materiale St/gal Zn

Product 336020 was added to Notepad.

Go to Notepad

Product 336020 was added to the cart.

Go to Web-Shop

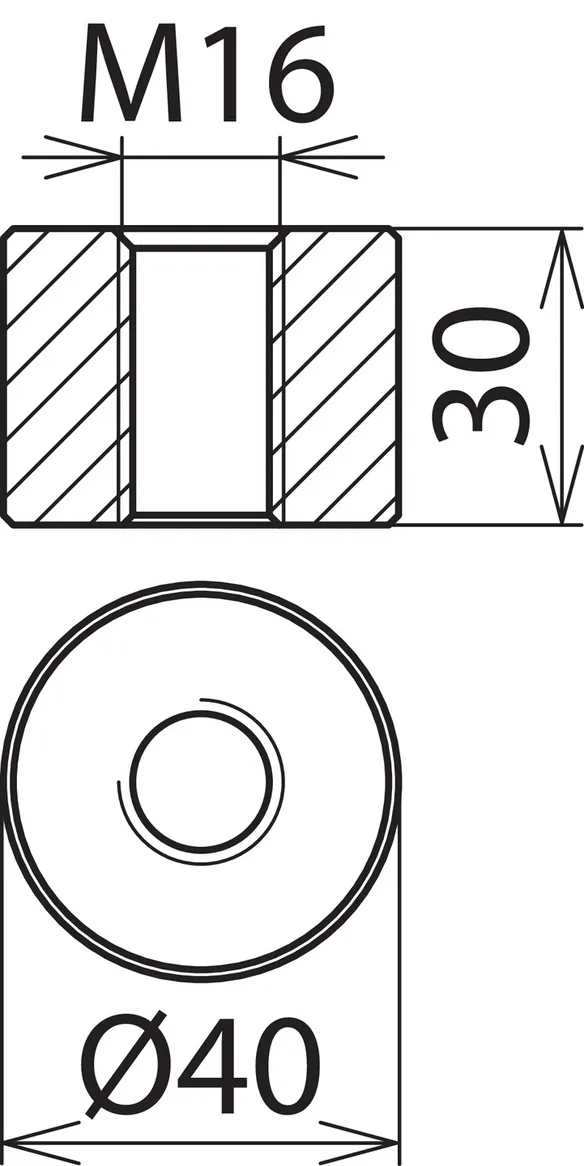

Part No. 336025 AS SCHW M16

GTIN 4013364003958, Customs tariff No. (EU): 85359000, Gross weight: 257.10 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M16
Materiale St/gal Zn

Product 336025 was added to Notepad.

Go to Notepad

Product 336025 was added to the cart.

Go to Web-Shop

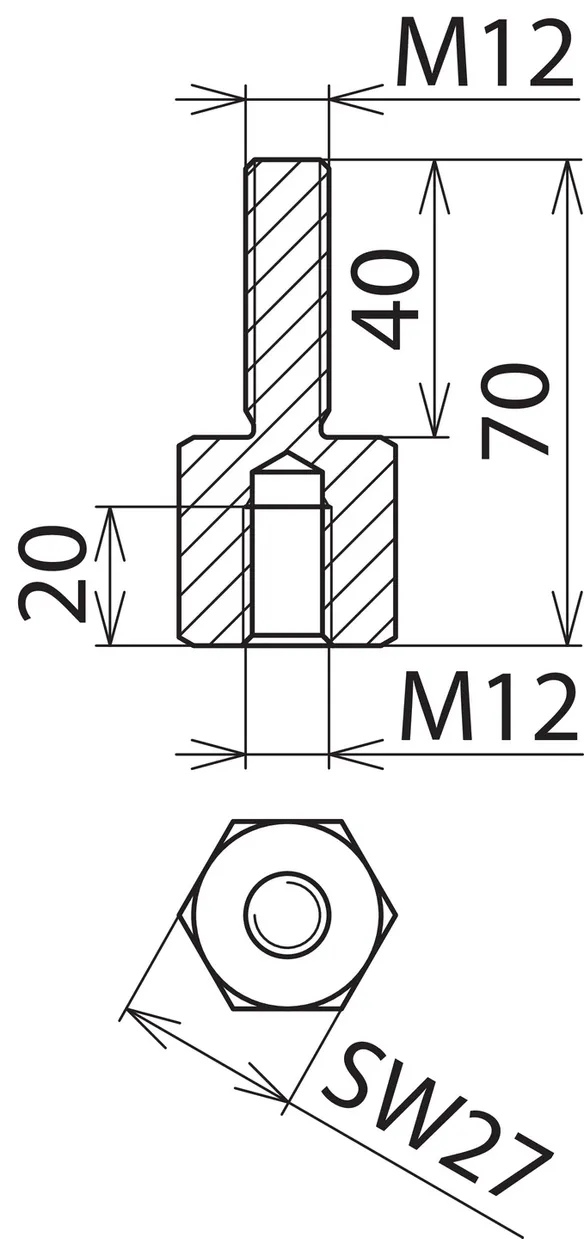

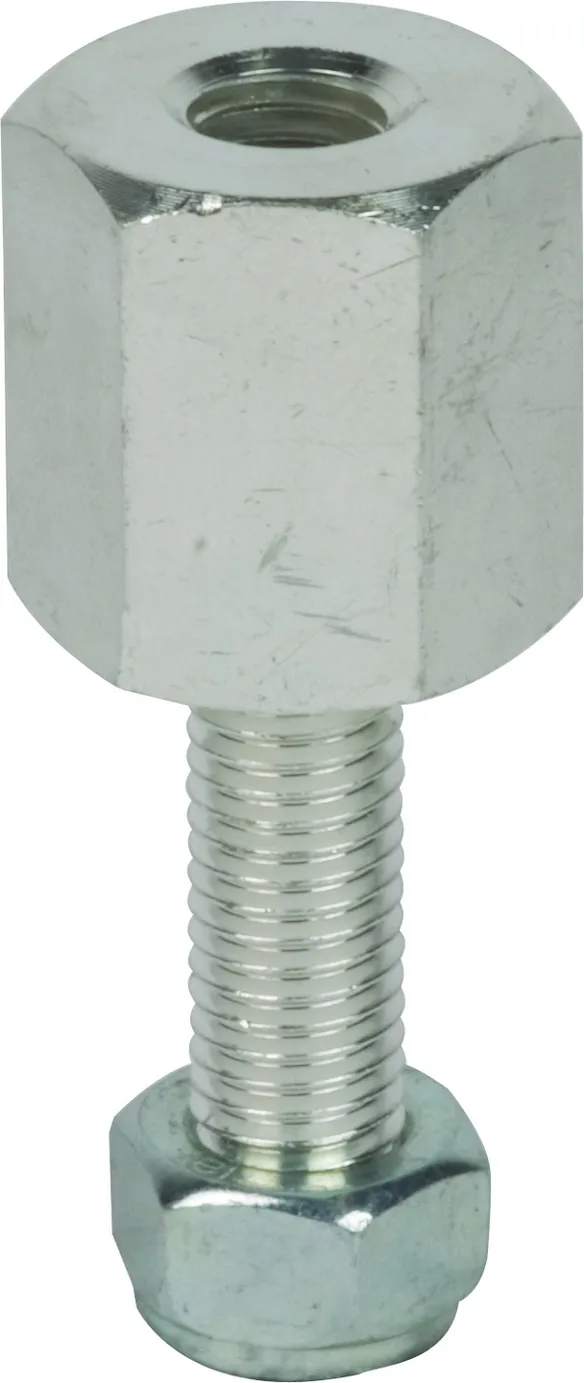

Jordtilslutningspunkt (boltmontage), med indvendigt gevind

1 Product

Part No. 705504 AS SCHR M12 M12 40

GTIN 4013364008021, Customs tariff No. (EU): 85389099, Gross weight: 183.20 g, PU: 5.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M12 / M12 x 40 mm
Nøglevidde 27 mm
Materiale Cu-legering/gal Sn

Product 705504 was added to Notepad.

Go to Notepad

Product 705504 was added to the cart.

Go to Web-Shop

Jordtilslutningspunkt (boltmontage), med gevindbolt og løs møtrik

2 Products

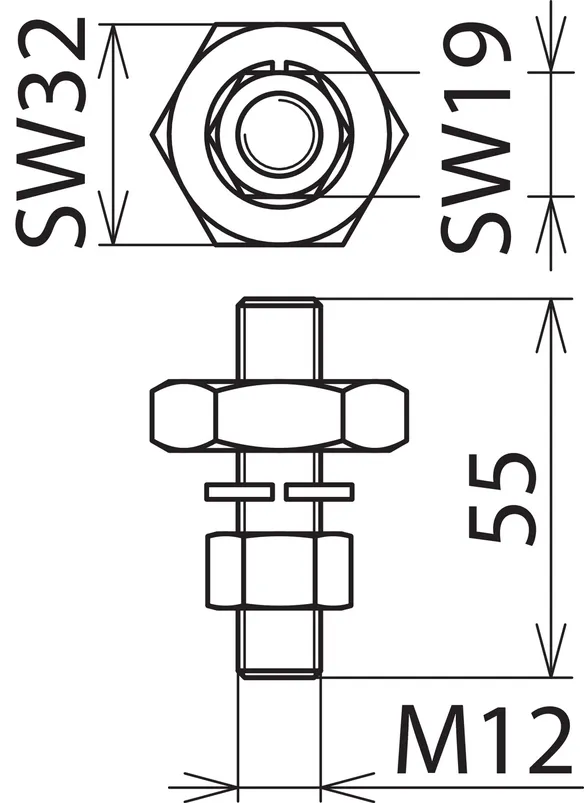

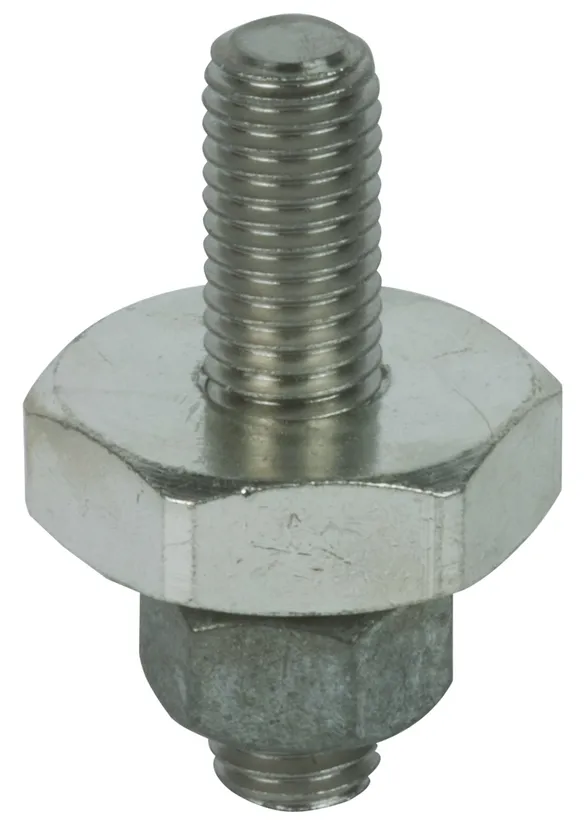

Part No. 705500 AS SCHR M12 55

GTIN 4013364000025, Customs tariff No. (EU): 85359000, Gross weight: 122.40 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M12 x 55 mm
Nøglevidde 32 mm
Materiale (gevindbolt) Rustfrit
Materiale (møtrik) Cu-legering/gal Sn / St/tZn

Product 705500 was added to Notepad.

Go to Notepad

Product 705500 was added to the cart.

Go to Web-Shop

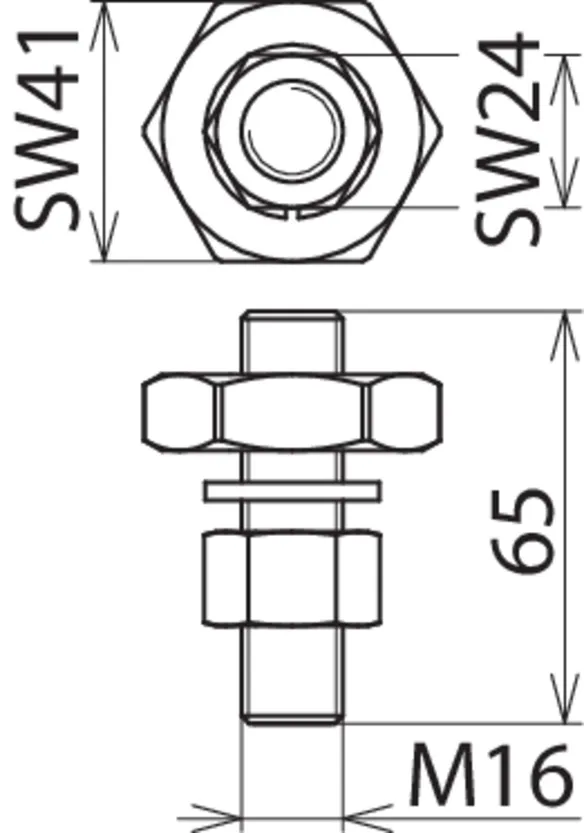

Part No. 750500 AS SCHR M16 65

GTIN 4013364000032, Customs tariff No. (EU): 85359000, Gross weight: 249.80 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M16 x 65 mm
Nøglevidde 41 mm
Materiale (gevindbolt) Rustfrit
Materiale (møtrik) Cu-legering/gal Sn / St/tZn

Product 750500 was added to Notepad.

Go to Notepad

Product 750500 was added to the cart.

Go to Web-Shop

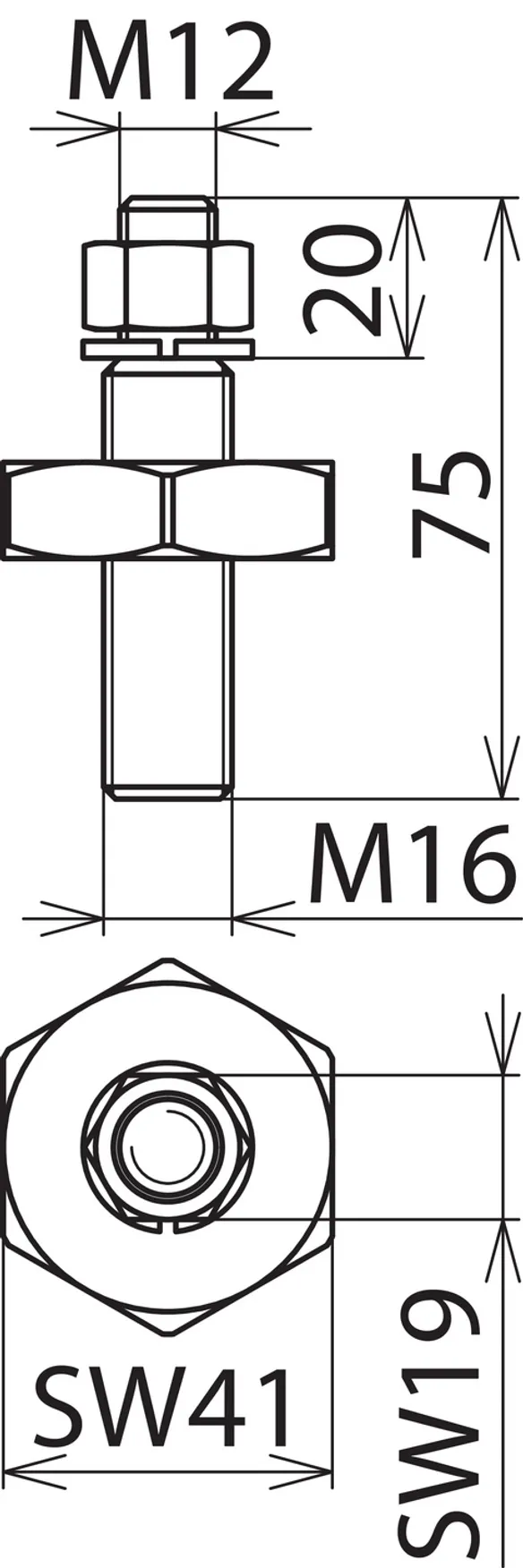

Jordtilslutningspunkt (boltmontage), med udvendigt M12- og M16-gevind

1 Product

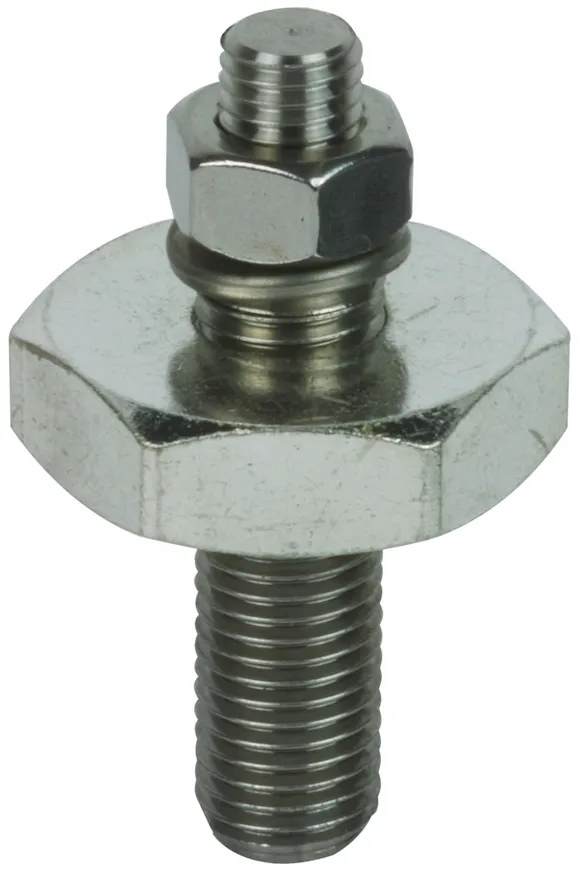

Part No. 705510 AS SCHR M16 55 M12

GTIN 4013364089587, Customs tariff No. (EU): 85359000, Gross weight: 240.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information



Technical data

Dimensioner M12 x 20 mm / M16 x 55 mm
Nøglevidde 41 mm
Materiale (gevindbolt) Rustfrit
Materiale (møtrik) Cu-legering/gal Sn

Product 705510 was added to Notepad.

Go to Notepad

Product 705510 was added to the cart.

Go to Web-Shop
