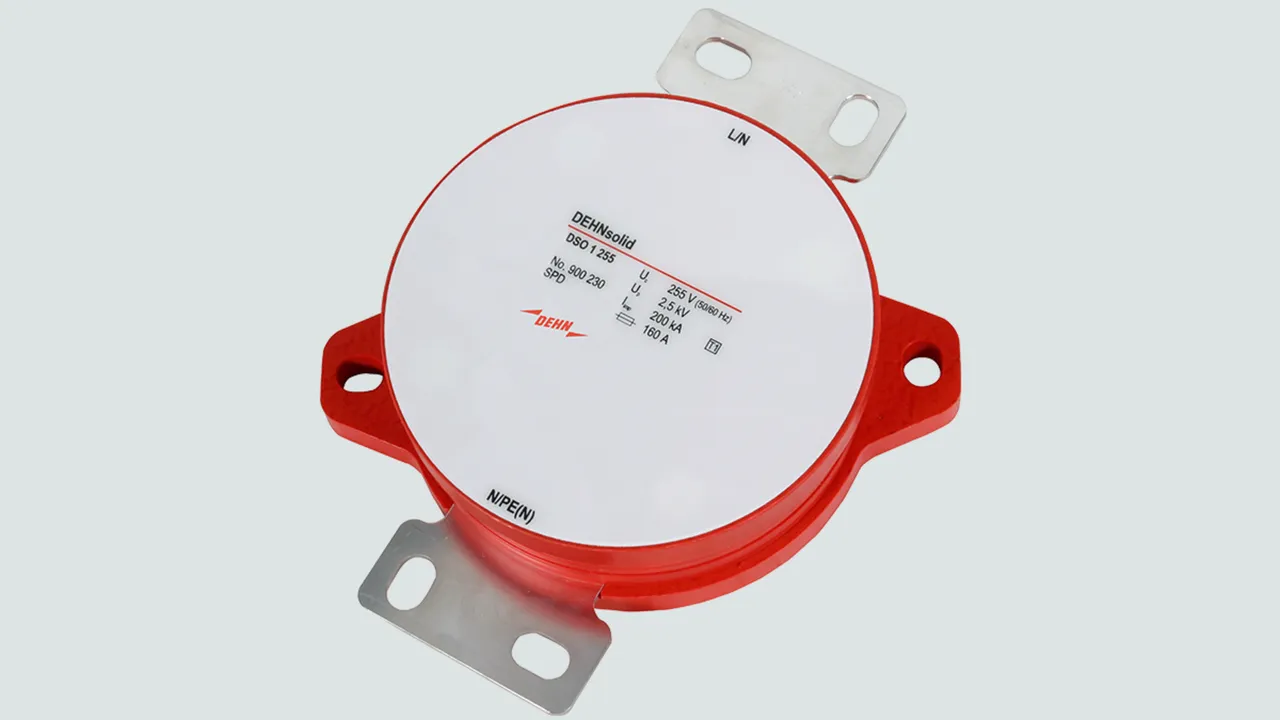

DEHNsolid

  • Koordinerbar gnistgabsbaseret lynstrømsafleder
  • Ekstremt høj lynstrømsafledeevne på op til 200 kA (10 /350)
  • Lav restspænding UP ≤ 2,5 kV
  • Særlig robust udformning til installation på samleskinne eller montageplade

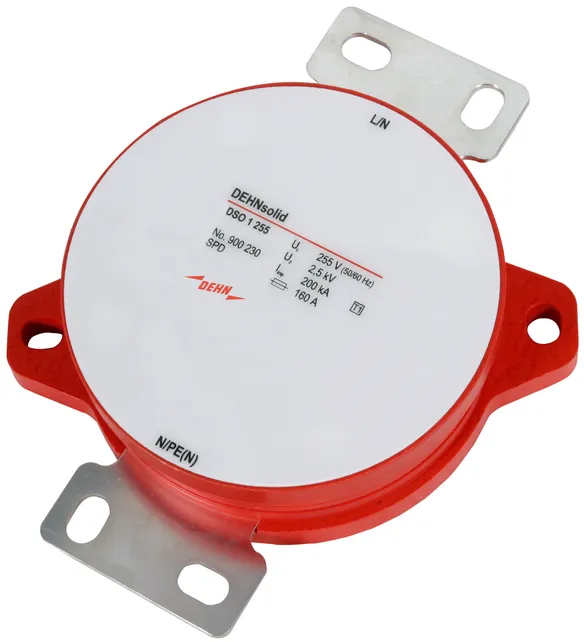

DEHNsolid 1 255

1-polet, koordinerbar lynstrømsafleder til brug i 230 / 400 V-systemer; montage på samleskinne eller montageplader.

1 Product

Part No. 900230 DSO 1 255

GTIN 4013364153783, Customs tariff No. (EU): 85363090, Gross weight: 1.67 kg, PU: 1.00 Pakkestørrelse

Images

Additional information



fabrikat: DEHN
Type: DSO 1 255
artikelnr.: 900230
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Klassificering iht. EN 61643-11/IEC 61643-11 Type 1 / klasse I
Max. driftsspænding AC (UC ) 255 V (50 / 60 Hz)
Lynstødstrøm (10/350 µs) (Iimp ) 200 kA
Restspænding (UP ) ≤ 2,5 kV
Max. overstrømsbeskyttelse på netsiden 160 A gG
