Parallelforbinder

Til forbindelse af to parallelle ledere.

Til ledere med samme diameter, med en skrue

2 Products

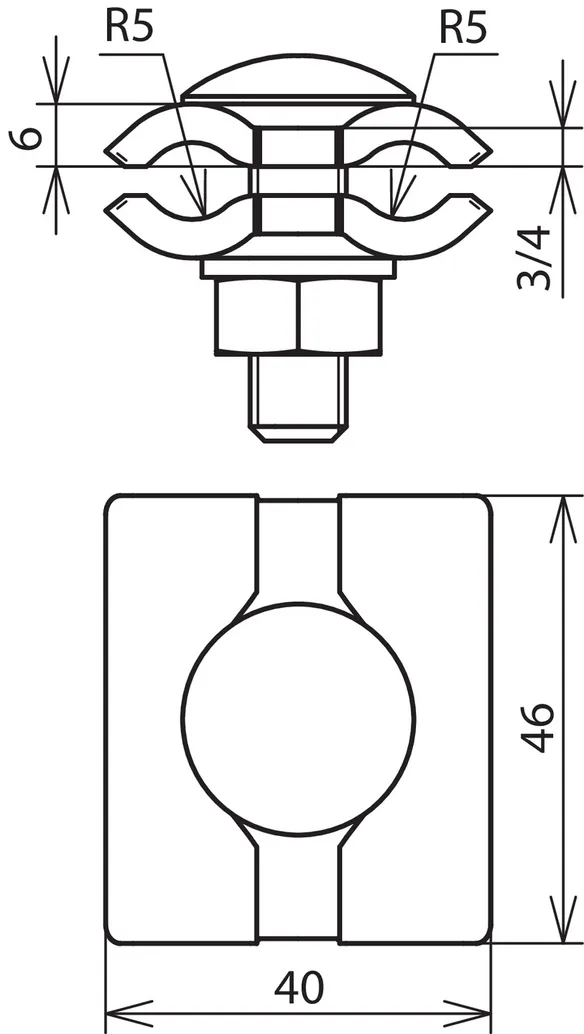

Part No. 306020 PV 7.10 FRM10X35 STTZN

GTIN 4013364096264, Customs tariff No. (EU): 85359000, Gross weight: 147.00 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale (klemme): St/tZn
Klemmeområde (rund / rund): 7-10 mm
Skrue: M10 x 35 mm
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 7.10 FRM10X35 STTZN
artikelnr.: 306020
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	St/tZn
Klemmeområde (rund / rund)	7-10 mm
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	4,0 kA
*) For detaljer se prøvecertifikat

Materiale (klemme)	St/tZn
Klemmeområde (rund / rund)	7-10 mm
Skrue	e M10 x 35 mm
Materiale (skrue / møtrik)	St/tZn
Lynstrømsbæreevne (10/350 µs)	& *⁾
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	4,0 kA
Materialetykkelse	4 mm
*) For detaljer se prøvecertifikat

Product 306020 was added to Notepad.

Go to Notepad

Product 306020 was added to the cart.

Go to Web-Shop

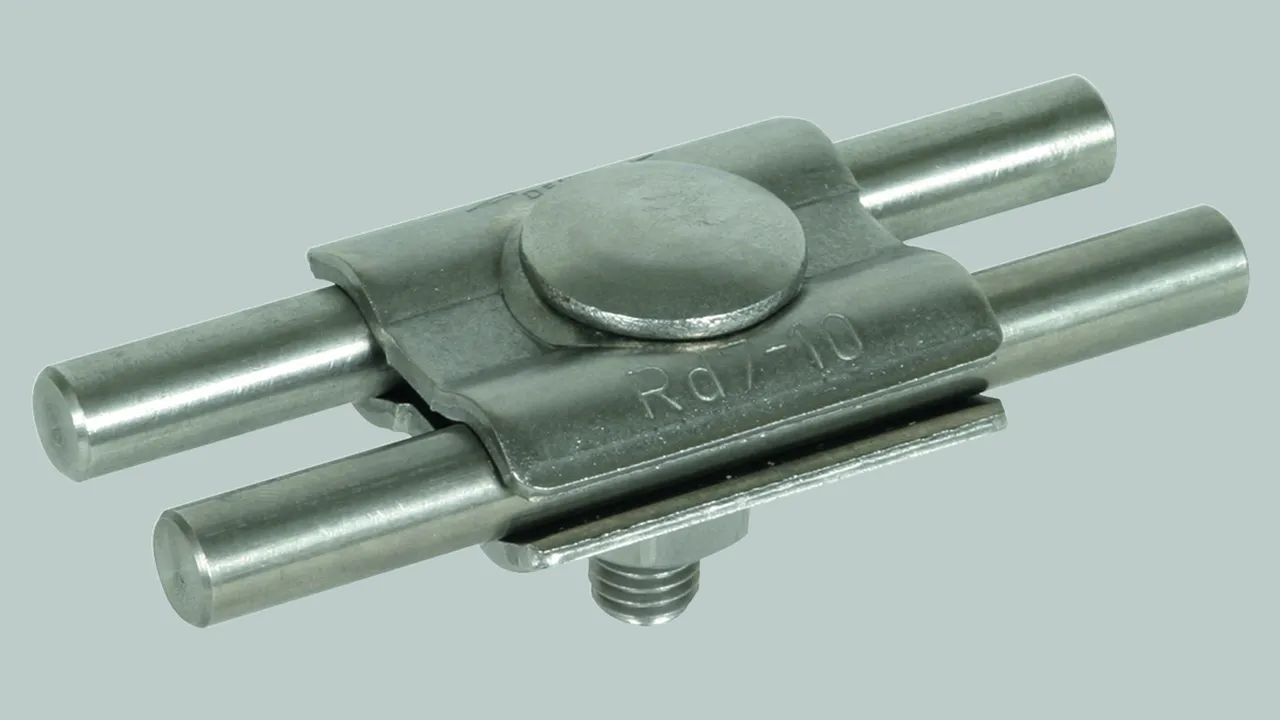

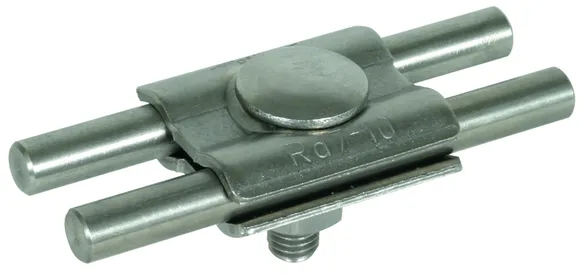

Part No. 306029 PV 7.10 FRM10X35 V4A

GTIN 4013364129467, Customs tariff No. (EU): 85359000, Gross weight: 122.00 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale (klemme): Rustfrit (V4A)
Klemmeområde (rund / rund): 7-10 mm
Klemmeområde (flertrådet / leder): 25-120 mm2
Skrue: M10 x 35 mm
Materiale-nr.: 1.4571 / 1.4404 / 1.4401
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 7.10 FRM10X35 V4A
artikelnr.: 306029
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	Rustfrit (V4A)
Klemmeområde (rund / rund)	7-10 mm
Klemmeområde (flertrådet / leder)	25-120 mm²
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2,9 kA
*) For detaljer se prøvecertifikat

Materiale (klemme)	Rustfrit (V4A)
Klemmeområde (rund / rund)	7-10 mm
Klemmeområde (flertrådet / leder)	25-120 mm²
Skrue	e M10 x 35 mm
Materiale (skrue / møtrik)	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Lynstrømsbæreevne (10/350 µs)	& *⁾
Standard	DIN EN 62561-1
Udførelse	Også til anvendelser under jord
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2,9 kA
Materialetykkelse	3 mm
*) For detaljer se prøvecertifikat

Product 306029 was added to Notepad.

Go to Notepad

Product 306029 was added to the cart.

Go to Web-Shop

Til ledere med samme diameter, med to skruer

2 Products

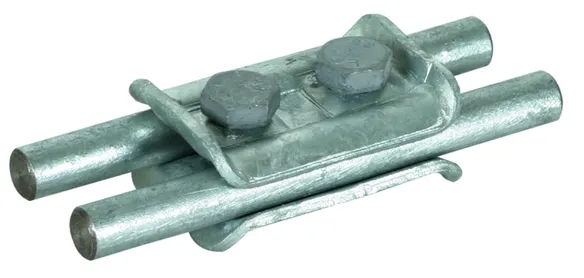

Part No. 307000 PV 7.10 SKM8X20 STTZN

GTIN 4013364024151, Customs tariff No. (EU): 85359000, Gross weight: 107.00 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

Materiale (klemme): St/tZn
Klemmeområde (rund / rund): 7-10 mm
Skrue: M8 x 20 mm
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 7.10 SKM8X20 STTZN
artikelnr.: 307000
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	St/tZn
Klemmeområde (rund / rund)	7-10 mm
Standard	DIN EN 62561-1
*) For detaljer se prøvecertifikat

Product 307000 was added to Notepad.

Go to Notepad

Product 307000 was added to the cart.

Go to Web-Shop

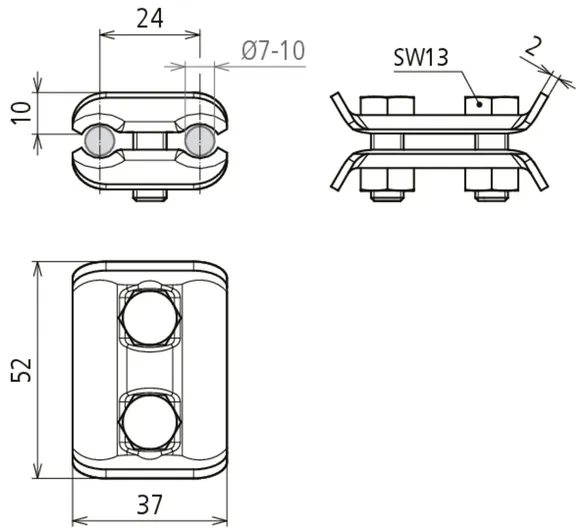

Part No. 307007 PV 7.10 SKM8X20 CU

GTIN 4013364024168, Customs tariff No. (EU): 85359000, Gross weight: 106.00 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

Materiale (klemme): Cu
Klemmeområde (rund / rund): 7-10 mm
Klemmeområde (flertrådet / leder): 16-95 mm2
Skrue: M8 x 20 mm
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 7.10 SKM8X20 CU
artikelnr.: 307007
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	Cu
Klemmeområde (rund / rund)	7-10 mm
Klemmeområde (flertrådet / leder)	16-95 mm²
Standard	DIN EN 62561-1
*) For detaljer se prøvecertifikat

Product 307007 was added to Notepad.

Go to Notepad

Product 307007 was added to the cart.

Go to Web-Shop

Til ledere med forskellig diameter, med en skrue

2 Products

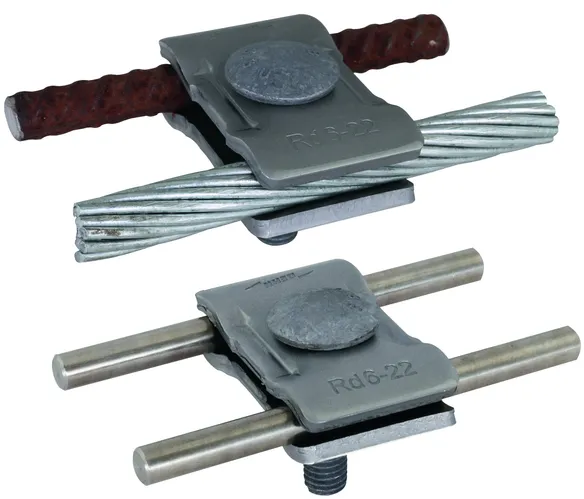

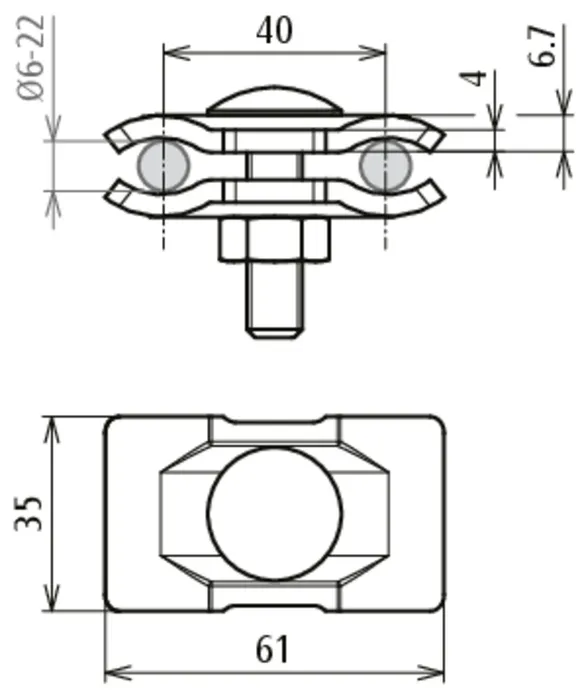

Part No. 306121 PV 6.22 FRM10X40 STBLANK

GTIN 4013364284920, Customs tariff No. (EU): 85359000, Gross weight: 163.16 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Parallelforbinder med en skrue St/blank
Parallelforbinder til forbindelse af to ledere parallelt
Materiale (klemme): St/blank
Klemmeområde (rund / rund): 6-22 / 6-22 mm
Skrue: M10 x 40 mm
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 6.22 FRM10X40 STBLANK
artikelnr.: 306121
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	St/blank
Klemmeområde (rund / rund)	6-22 / 6-22 mm
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
*) for detaljer se prøvecertifikat

Materiale (klemme)	St/blank
Klemmeområde (rund / rund)	6-22 / 6-22 mm
Skrue	e M10 x 40 mm
Materiale (skrue / møtrik)	St/tZn
Lynstrømsbæreevne (10/350 µs)	& *⁾
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
Materialetykkelse	4 mm
*) for detaljer se prøvecertifikat

Product 306121 was added to Notepad.

Go to Notepad

Product 306121 was added to the cart.

Go to Web-Shop

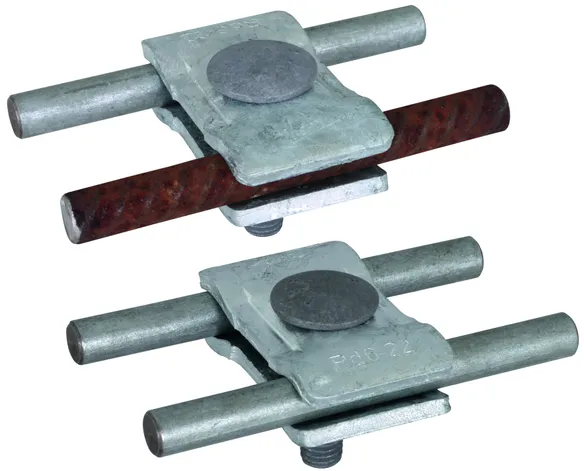

Part No. 306122 PV 6.22 FRM10X40 STTZN

GTIN 4013364284937, Customs tariff No. (EU): 85359000, Gross weight: 167.12 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Parallelforbinder med en skrue St/Zn
Parallelforbinder til forbindelse af to ledere parallelt
Materiale (klemme): St/Zn
Klemmeområde (rund / rund): 6-22 / 6-22 mm
Skrue: M10 x 40 mm
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 6.22 FRM10X40 STTZN
artikelnr.: 306122
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	St/Zn
Klemmeområde (rund / rund)	6-22 / 6-22 mm
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
*) for detaljer se prøvecertifikat

Materiale (klemme)	St/Zn
Klemmeområde (rund / rund)	6-22 / 6-22 mm
Skrue	e M10 x 40 mm
Materiale (skrue / møtrik)	St/tZn
Lynstrømsbæreevne (10/350 µs)	& *⁾
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6,1 kA
Materialetykkelse	4 mm
*) for detaljer se prøvecertifikat

Product 306122 was added to Notepad.

Go to Notepad

Product 306122 was added to the cart.

Go to Web-Shop

Til ledere med forskellig diameter, 4-10 mm

2 Products

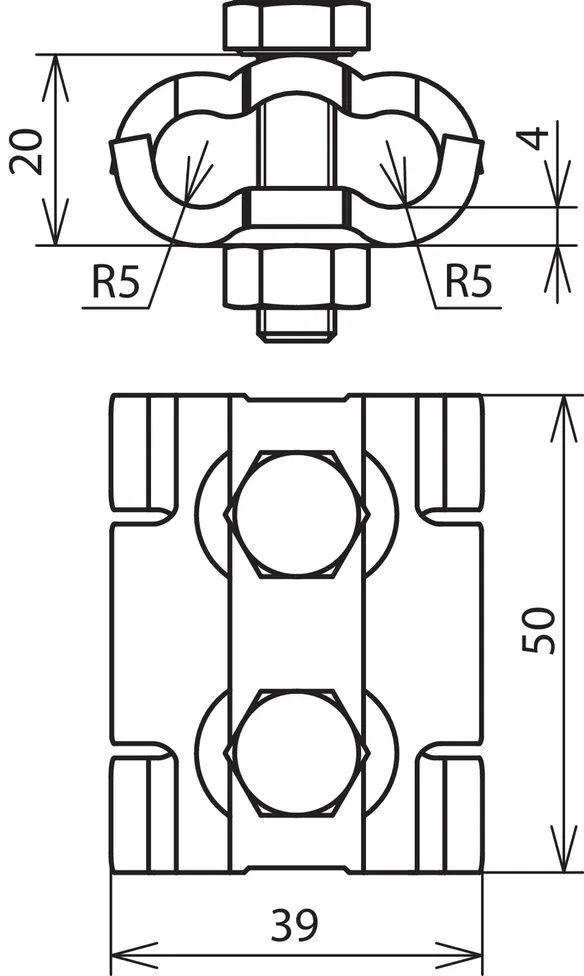

Part No. 305000 PV 4.10 SKM8X30 STTZN

GTIN 4013364041936, Customs tariff No. (EU): 85359000, Gross weight: 148.00 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale (klemme): St/tZn
Klemmeområde (rund / rund): 4-10 mm
Skrue: M8 x 30 mm
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 4.10 SKM8X30 STTZN
artikelnr.: 305000
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	St/tZn
Klemmeområde (rund / rund)	4-10 mm
Standard	DIN EN 62561-1
*) For detaljer se prøvecertifikat

Product 305000 was added to Notepad.

Go to Notepad

Product 305000 was added to the cart.

Go to Web-Shop

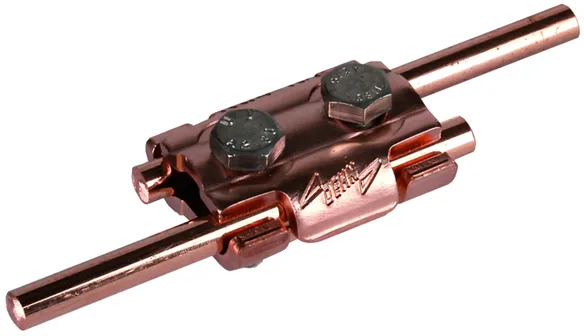

Part No. 305007 PV 4.10 SKM8X30 CU

GTIN 4013364052307, Customs tariff No. (EU): 85369095, Gross weight: 153.00 g, PU: 50.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale (klemme): Cu
Klemmeområde (rund / rund): 4-10 mm
Klemmeområde (flertrådet / leder): 10-70 mm2
Skrue: M8 x 30 mm
Materiale-nr.: 1.4571 / 1.4404 / 1.4401
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 4.10 SKM8X30 CU
artikelnr.: 305007
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	Cu
Klemmeområde (rund / rund)	4-10 mm
Klemmeområde (flertrådet / leder)	10-70 mm²
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) For detaljer se prøvecertifikat

Materiale (klemme)	Cu
Klemmeområde (rund / rund)	4-10 mm
Klemmeområde (flertrådet / leder)	10-70 mm²
Skrue	di M8 x 30 mm
Materiale (skrue / møtrik)	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Lynstrømsbæreevne (10/350 µs)	= *⁾
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) For detaljer se prøvecertifikat

Product 305007 was added to Notepad.

Go to Notepad

Product 305007 was added to the cart.

Go to Web-Shop

Til ledere med forskellig diameter, lille

Med gevind i underdelen og sekskantmøtrik M8.
Anført kortslutningsstrøm gælder for 70 mm² Cu-leder.

1 Product

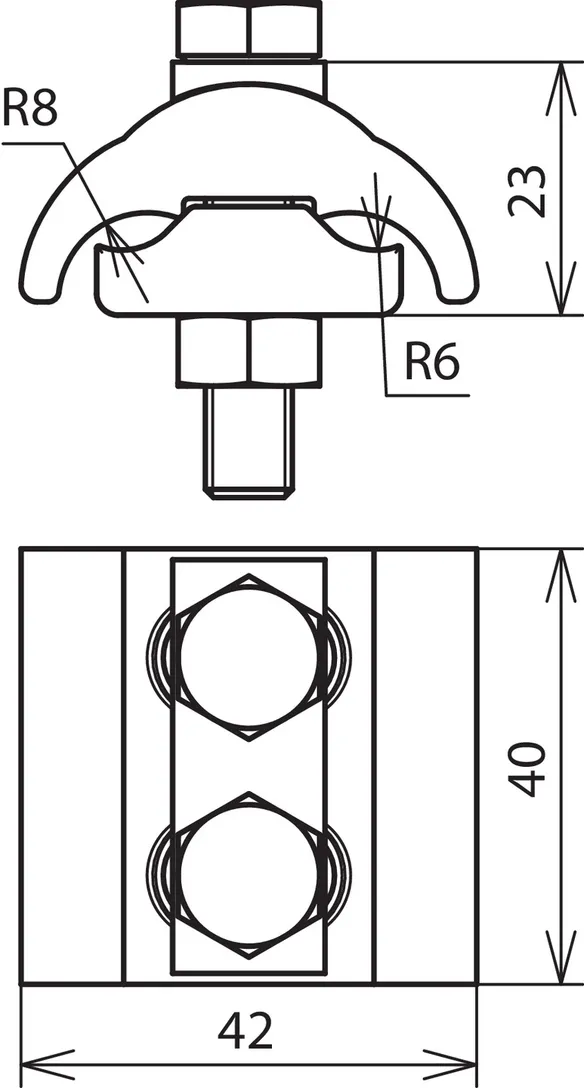

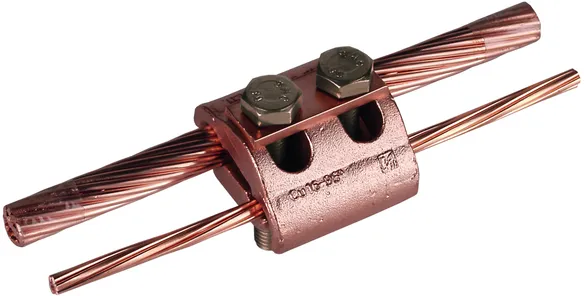

Part No. 306100 PV 5.12.5 SKM8X45 CU

GTIN 4013364024113, Customs tariff No. (EU): 85359000, Gross weight: 238.30 g, PU: 25.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale (klemme): Cu
Klemmeområde (rund / rund): 5-12,5 mm
Klemmeområde (flertrådet / leder): 16-95 mm2
Skrue: M8 x 45 mm
Materiale-nr.: 1.4571 / 1.4404 / 1.4401
Standard: DIN EN 62561-1

fabrikat: DEHN
Type: PV 5.12.5 SKM8X45 CU
artikelnr.: 306100
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	Cu
Klemmeområde (rund / rund)	5-12,5 mm
Klemmeområde (flertrådet / leder)	16-95 mm²
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) For detaljer se prøvecertifikat

Materiale (klemme)	Cu
Klemmeområde (rund / rund)	5-12,5 mm
Klemmeområde (flertrådet / leder)	16-95 mm²
Skrue	di M8 x 45 mm
Materiale (skrue / møtrik)	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Lynstrømsbæreevne (10/350 µs)	= *⁾
Standard	DIN EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) For detaljer se prøvecertifikat

Product 306100 was added to Notepad.

Go to Notepad

Product 306100 was added to the cart.

Go to Web-Shop

Til ledere med forskellig diameter, stor

Med gevind i underdelen og sekskantmøtrik M10.
Anført kortslutningsstrøm gælder for 70 mm² Cu-leder.

1 Product

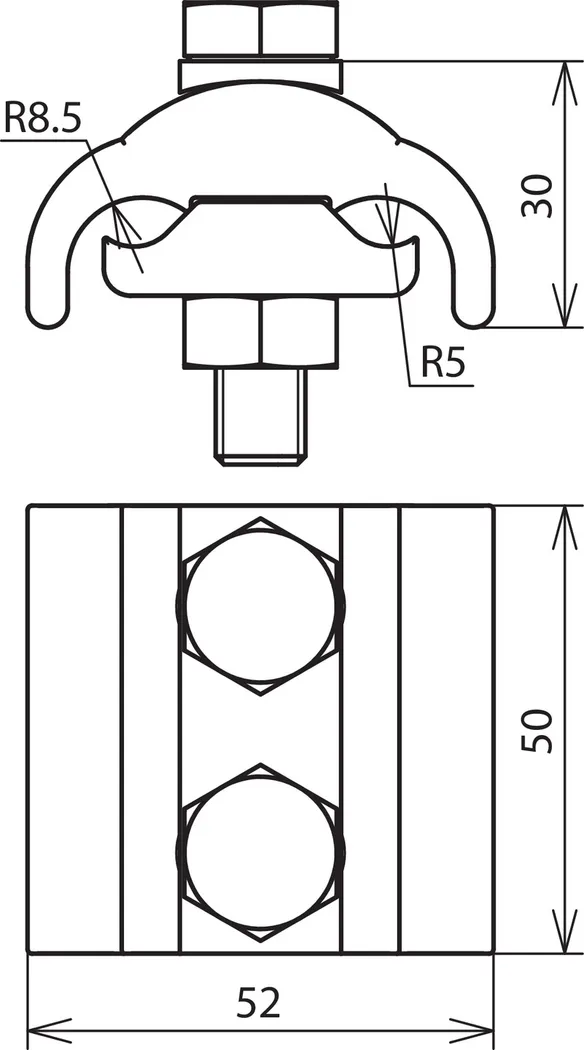

Part No. 306101 PV 5.16 SKM10X50 CU

GTIN 4013364024120, Customs tariff No. (EU): 85359000, Gross weight: 412.00 g, PU: 25.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale (klemme): Cu
Klemmeområde (rund / rund): 5-16 mm
Klemmeområde (flertrådet / leder): 16-150 mm2
Skrue: M10 x 50 mm
Materiale-nr.: 1.4571 / 1.4404 / 1.4401
Standard: DK EN 62561-1

fabrikat: DEHN
Type: PV 5.16 SKM10X50 CU
artikelnr.: 306101
eller tilsvarende

Certificates

Technical data

Materiale (klemme)	Cu
Klemmeområde (rund / rund)	5-16 mm
Klemmeområde (flertrådet / leder)	16-150 mm²
Standard	DK EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) For detaljer se prøvecertifikat

Materiale (klemme)	Cu
Klemmeområde (rund / rund)	5-16 mm
Klemmeområde (flertrådet / leder)	16-150 mm²
Skrue	di M10 x 50 mm
Materiale (skrue / møtrik)	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Lynstrømsbæreevne (10/350 µs)	= *⁾
Standard	DK EN 62561-1
Kortslutningsstrøm (AC 50 Hz / DC) (1 s; ≤ 300 °C)	13,6 kA
*) For detaljer se prøvecertifikat

Product 306101 was added to Notepad.

Go to Notepad

Product 306101 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Parallelforbinder

Til ledere med samme diameter, med en skrue

Part No. 306020 PV 7.10 FRM10X35 STTZN

Product 306020 was added to Notepad.

Product 306020 was added to the cart.

Part No. 306029 PV 7.10 FRM10X35 V4A

Product 306029 was added to Notepad.

Product 306029 was added to the cart.

Til ledere med samme diameter, med to skruer

Part No. 307000 PV 7.10 SKM8X20 STTZN

Product 307000 was added to Notepad.

Product 307000 was added to the cart.

Part No. 307007 PV 7.10 SKM8X20 CU

Product 307007 was added to Notepad.

Product 307007 was added to the cart.

Til ledere med forskellig diameter, med en skrue

Part No. 306121 PV 6.22 FRM10X40 STBLANK

Product 306121 was added to Notepad.

Product 306121 was added to the cart.

Part No. 306122 PV 6.22 FRM10X40 STTZN

Product 306122 was added to Notepad.

Product 306122 was added to the cart.

Til ledere med forskellig diameter, 4-10 mm

Part No. 305000 PV 4.10 SKM8X30 STTZN

Product 305000 was added to Notepad.

Product 305000 was added to the cart.

Part No. 305007 PV 4.10 SKM8X30 CU

Product 305007 was added to Notepad.

Product 305007 was added to the cart.

Til ledere med forskellig diameter, lille

Part No. 306100 PV 5.12.5 SKM8X45 CU

Product 306100 was added to Notepad.

Product 306100 was added to the cart.

Til ledere med forskellig diameter, stor

Part No. 306101 PV 5.16 SKM10X50 CU

Product 306101 was added to Notepad.

Product 306101 was added to the cart.

Parallelforbinder

Til ledere med samme diameter, med en skrue

Part No. 306020 PV 7.10 FRM10X35 STTZN

You are not authorized to download 306020.stp

You are not authorized to download 306020.igs

You are not authorized to download 306020.jt

You are not authorized to download 306020.dwg

You are not authorized to download 306020m_D.dxf

Product 306020 was added to Notepad.

Product 306020 was added to the cart.

Part No. 306029 PV 7.10 FRM10X35 V4A

You are not authorized to download 306020.stp

You are not authorized to download 306020.igs

You are not authorized to download 306020.jt

You are not authorized to download 306020.dwg

You are not authorized to download 306020m_D.dxf

Product 306029 was added to Notepad.

Product 306029 was added to the cart.

Til ledere med samme diameter, med to skruer

Part No. 307000 PV 7.10 SKM8X20 STTZN

You are not authorized to download 307000m_D.dxf

Product 307000 was added to Notepad.

Product 307000 was added to the cart.

Part No. 307007 PV 7.10 SKM8X20 CU

You are not authorized to download 307007m_D.dxf

Product 307007 was added to Notepad.

Product 307007 was added to the cart.

Til ledere med forskellig diameter, med en skrue

Part No. 306121 PV 6.22 FRM10X40 STBLANK

You are not authorized to download 306121.stp

You are not authorized to download 306121.igs

You are not authorized to download 306121.jt

You are not authorized to download 306121.dwg

You are not authorized to download 306121_306122m_D.dxf

Product 306121 was added to Notepad.

Product 306121 was added to the cart.

Part No. 306122 PV 6.22 FRM10X40 STTZN

You are not authorized to download 306122.stp

You are not authorized to download 306122.igs

You are not authorized to download 306122.jt

You are not authorized to download 306122.dwg

You are not authorized to download 306121_306122m_D.dxf

Product 306122 was added to Notepad.

Product 306122 was added to the cart.

Til ledere med forskellig diameter, 4-10 mm

Part No. 305000 PV 4.10 SKM8X30 STTZN

You are not authorized to download 305000.stp

You are not authorized to download 305000.igs

You are not authorized to download 305000.jt

You are not authorized to download 305000.dwg

You are not authorized to download 305000m_D.dxf

Product 305000 was added to Notepad.

Product 305000 was added to the cart.

Part No. 305007 PV 4.10 SKM8X30 CU

You are not authorized to download 305000.stp

You are not authorized to download 305000.igs

You are not authorized to download 305000.jt

You are not authorized to download 305000.dwg

You are not authorized to download 305000m_D.dxf

Product 305007 was added to Notepad.

Product 305007 was added to the cart.

Til ledere med forskellig diameter, lille

Part No. 306100 PV 5.12.5 SKM8X45 CU

You are not authorized to download 306100.stp

You are not authorized to download 306100.igs

You are not authorized to download 306100.jt

You are not authorized to download 306100.dwg

You are not authorized to download 306100m_D.dxf

Product 306100 was added to Notepad.

Product 306100 was added to the cart.

Til ledere med forskellig diameter, stor

Part No. 306101 PV 5.16 SKM10X50 CU

You are not authorized to download 306101.stp

You are not authorized to download 306101.igs

You are not authorized to download 306101.jt

You are not authorized to download 306101.dwg

You are not authorized to download 306101m_D.dxf

Product 306101 was added to Notepad.

Product 306101 was added to the cart.
