V NH / VA NH

  • Afleder til brug i NH-sikringsholder størrelse 00 og 1
  • Zinkoxidvaristor med overvågningsenhed, afbryder og integreret for-sikring (VA NH... med yderligere gnistgab i række)
  • Energetisk koordinerbar med andre afledere i Red/Line-serien
  • Fejlvisning ved aktivering af signalstift

Details

lorem ipsum
lorem ipsum

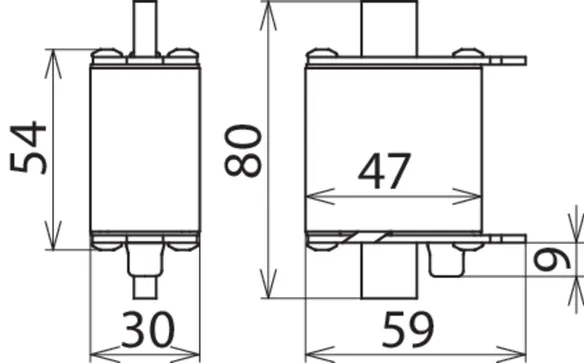

V NH00 (FM)

Varistorbaseret overspændingsafleder med integreret for-sikring til brug i NH00-sikringsholdere, kan fås med speciel signalstift til fjernmelding.

2 Products

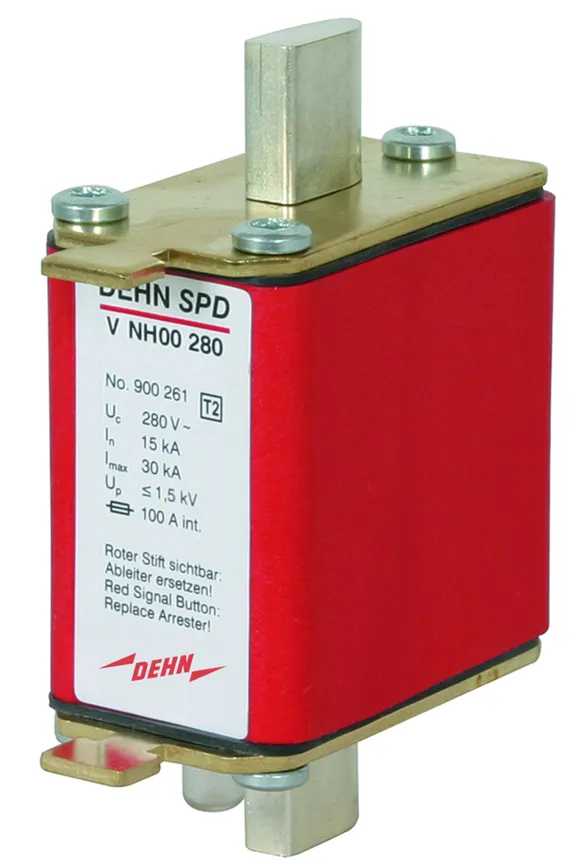

Part No. 900261 V NH00 280

GTIN 4013364094352, Customs tariff No. (EU): 85363030, Gross weight: 191.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

V NH00 280 surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level at 15 kA (8/20): < 1.5 kV
Nominal discharge current: 15 kA (8/20)
Max. discharge current: 30 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

fabrikat: DEHN
Type: V NH00 280
artikelnr.: 900261
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Afleder efter EN 61643-11 / IEC 61643-11 Type 2 / klasse II
Max. driftsspænding AC (UC ) 280 V (50 / 60 Hz)
Max. afledestødstrøm (8/20 µs) (Imax ) 30 kA
Restspænding (UP ) ≤ 1,5 kV
Max. overstrømsbeskyttelse på netsiden Ikke nødvendig

Product 900261 was added to Notepad.

Go to Notepad

Product 900261 was added to the cart.

Go to Web-Shop

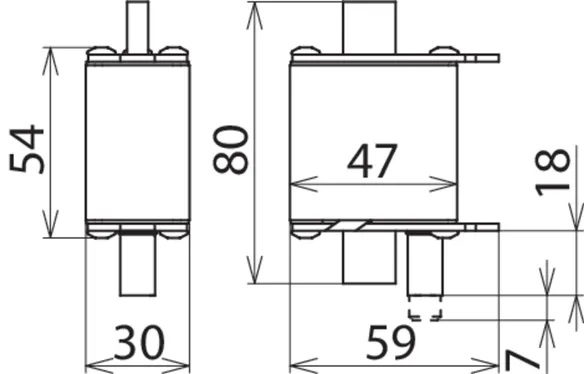

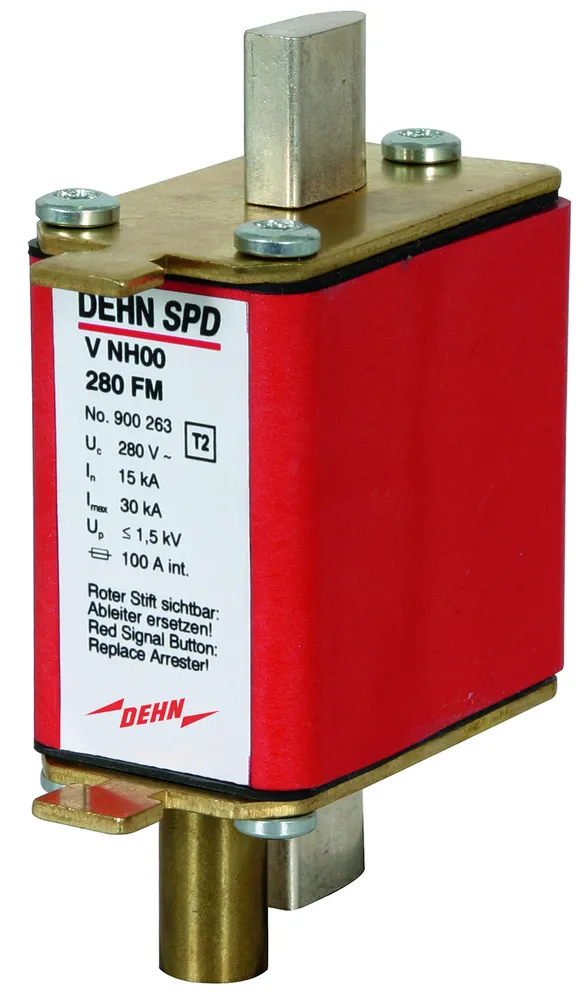

Part No. 900263 V NH00 280 FM

GTIN 4013364094369, Customs tariff No. (EU): 85363030, Gross weight: 208.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

V NH00 280 FM surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
With tripping indicator for remote signalling
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level at 15 kA (8/20): < 1.5 kV
Nominal discharge current: 15 kA (8/20)
Max. discharge current: 30 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

fabrikat: DEHN
Type: V NH00 280 FM
artikelnr.: 900263
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Afleder efter EN 61643-11 / IEC 61643-11 Type 2 / klasse II
Max. driftsspænding AC (UC ) 280 V (50 / 60 Hz)
Max. afledestødstrøm (8/20 µs) (Imax ) 30 kA
Restspænding (UP ) ≤ 1,5 kV
Max. overstrømsbeskyttelse på netsiden Ikke nødvendig
Signalstift til fjernmelding Udløsevej 7 mm

Product 900263 was added to Notepad.

Go to Notepad

Product 900263 was added to the cart.

Go to Web-Shop

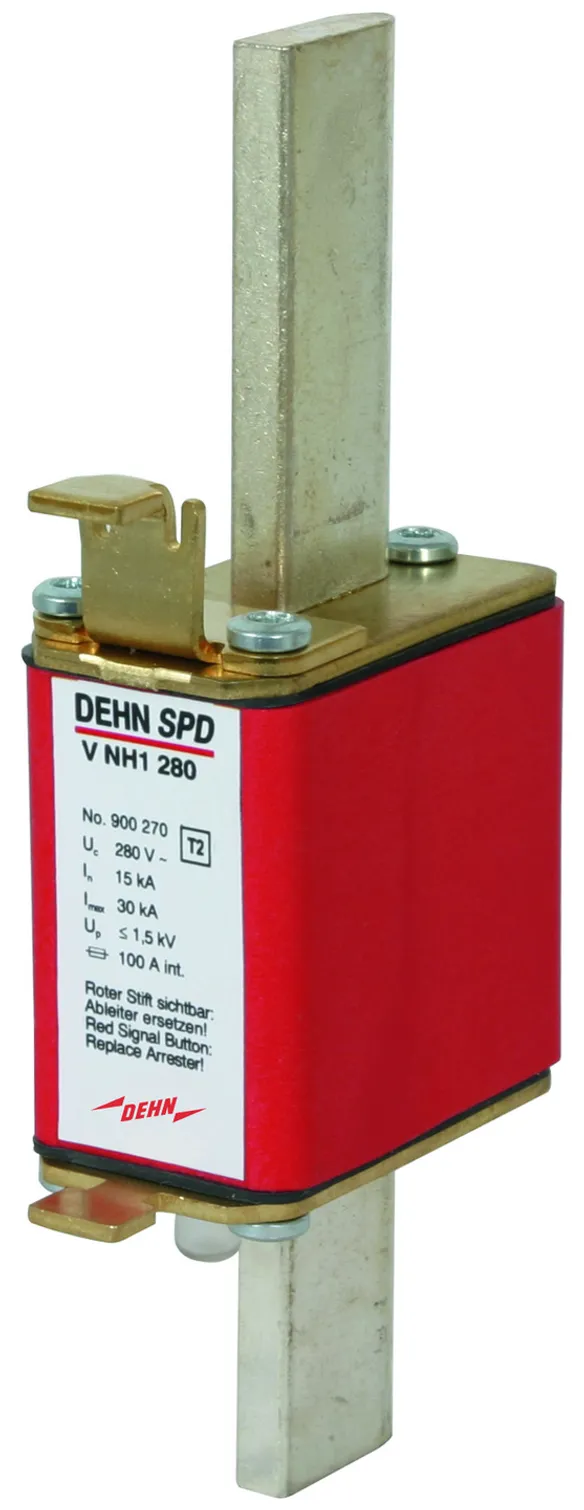

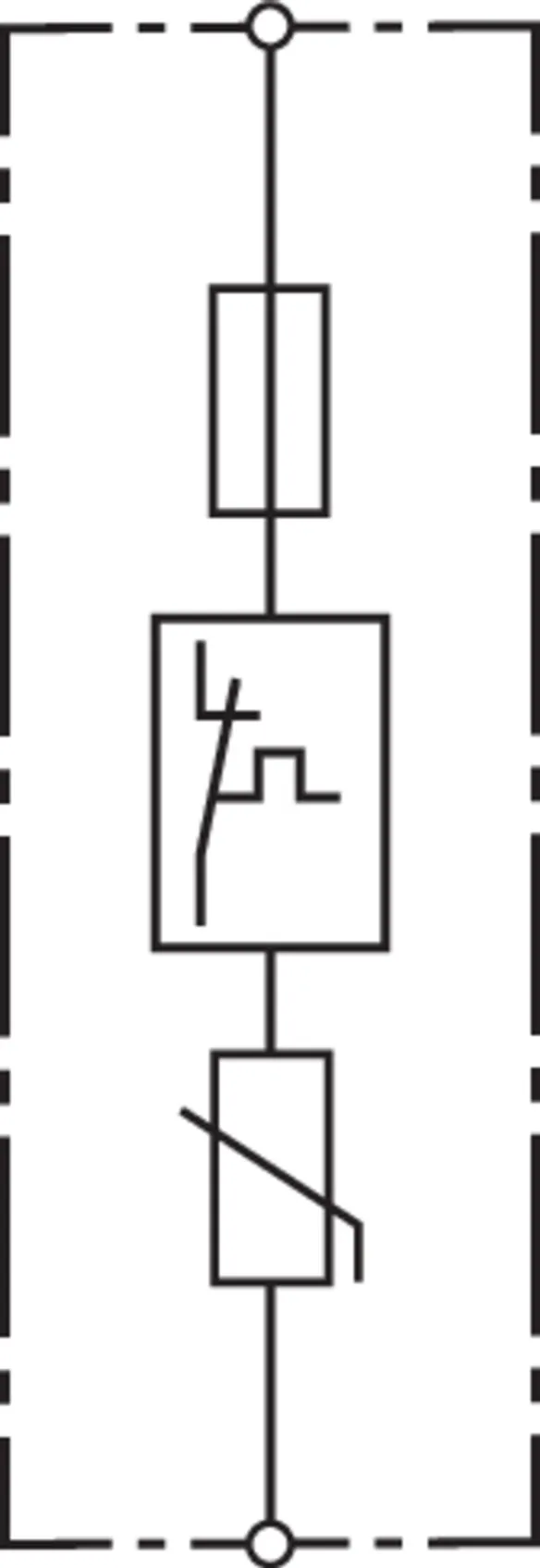

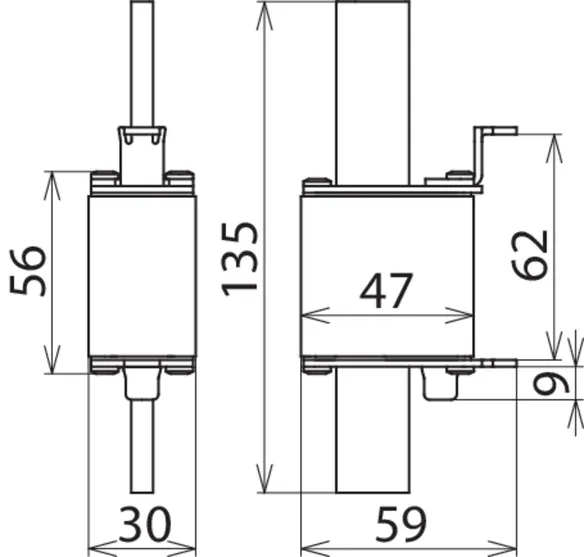

V NH1

Varistorbaseret overspændingsafleder med integreret for-sikring til brug i NH-sikringsholder, størrelse 1.

1 Product

Part No. 900270 V NH1 280

GTIN 4013364106703, Customs tariff No. (EU): 85363030, Gross weight: 243.10 g, PU: 1.00 Pakkestørrelse

Predecessor

Images

Additional information

V NH1 280 surge arrester
Single-pole surge arrester
for use in NH1 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level at 15 kA (8/20): < 1.5 kV
Nominal discharge current: 15 kA (8/20)
Max. discharge current: 30 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH1 fuse holders; EN 50022

fabrikat: DEHN
Type: V NH1 280
artikelnr.: 900270
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Afleder efter EN 61643-11 / IEC 61643-11 Type 2 / klasse II
Max. driftsspænding AC (UC ) 280 V (50 / 60 Hz)
Max. afledestødstrøm (8/20 µs) (Imax ) 30 kA
Restspænding (UP ) ≤ 1,5 kV
Max. overstrømsbeskyttelse på netsiden Ikke nødvendig

Product 900270 was added to Notepad.

Go to Notepad

Product 900270 was added to the cart.

Go to Web-Shop

VA NH00 (FM)

Varistor- og gnistgabsbaseret overspændingsafleder med integreret for-sikring til brug i NH00-sikringsholdere, kan fås med speciel signalstift til fjernmelding.

2 Products

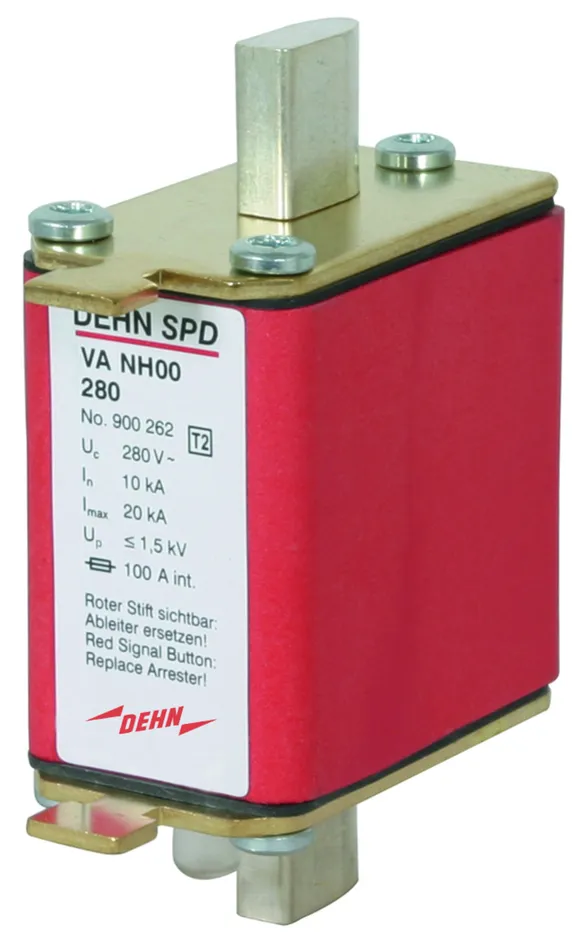

Part No. 900262 VA NH00 280

GTIN 4013364072572, Customs tariff No. (EU): 85363030, Gross weight: 192.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

VA NH00 280 surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level <= 1.5 kV
Nominal discharge current: 10 kA (8/20)
Max. discharge current: 20 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

fabrikat: DEHN
Type: VA NH00 280
artikelnr.: 900262
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Afleder efter EN 61643-11 / IEC 61643-11 Type 2 / klasse II
Max. driftsspænding AC (UC ) 280 V (50 / 60 Hz)
Max. afledestødstrøm (8/20 µs) (Imax ) 20 kA
Restspænding (UP ) ≤ 1,5 kV
Max. overstrømsbeskyttelse på netsiden Ikke nødvendig

Product 900262 was added to Notepad.

Go to Notepad

Product 900262 was added to the cart.

Go to Web-Shop

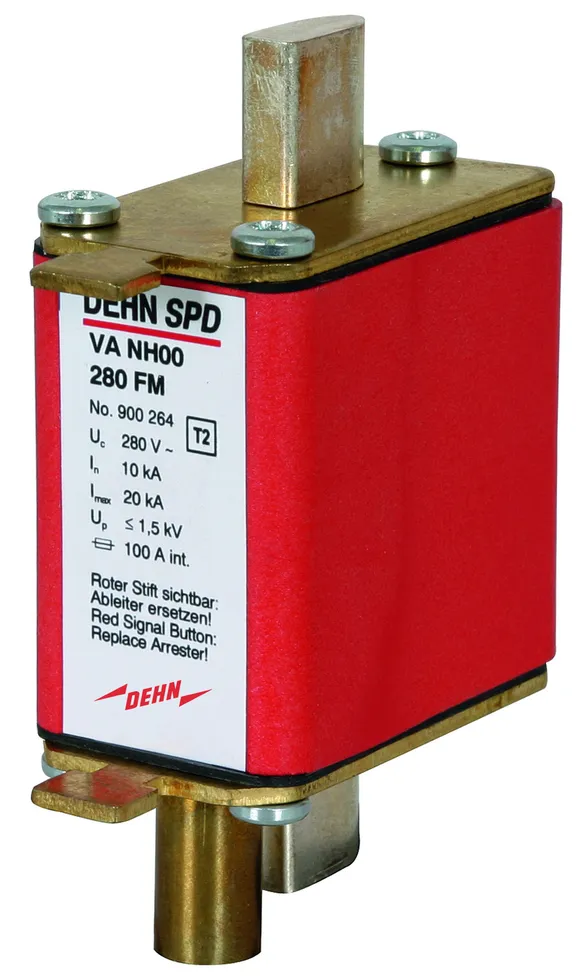

Part No. 900264 VA NH00 280 FM

GTIN 4013364073661, Customs tariff No. (EU): 85363030, Gross weight: 170.90 g, PU: 1.00 Pakkestørrelse

Images

Additional information

VA NH00 280 FM surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
With tripping indicator for remote signalling
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA (8/20)
Max. discharge current: 20 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

fabrikat: DEHN
Type: VA NH00 280 FM
artikelnr.: 900264
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Afleder efter EN 61643-11 / IEC 61643-11 Type 2 / klasse II
Max. driftsspænding AC (UC ) 280 V (50 / 60 Hz)
Max. afledestødstrøm (8/20 µs) (Imax ) 20 kA
Restspænding (UP ) ≤ 1,5 kV
Max. overstrømsbeskyttelse på netsiden Ikke nødvendig
Signalstift til fjernmelding Udløsevej 7 mm

Product 900264 was added to Notepad.

Go to Notepad

Product 900264 was added to the cart.

Go to Web-Shop

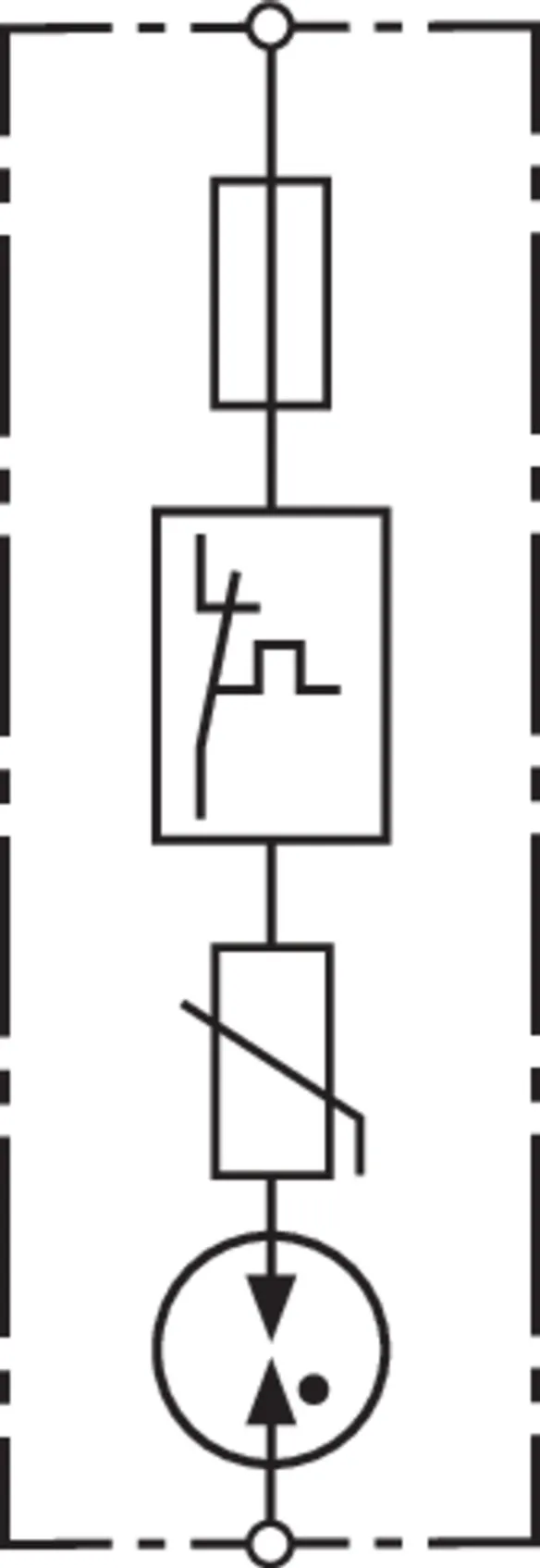

VA NH1

Varistor- og gnistgabsbaseret overspændingsafleder med integreret for-sikring til brug i NH-sikringsholder, størrelse 1.

1 Product

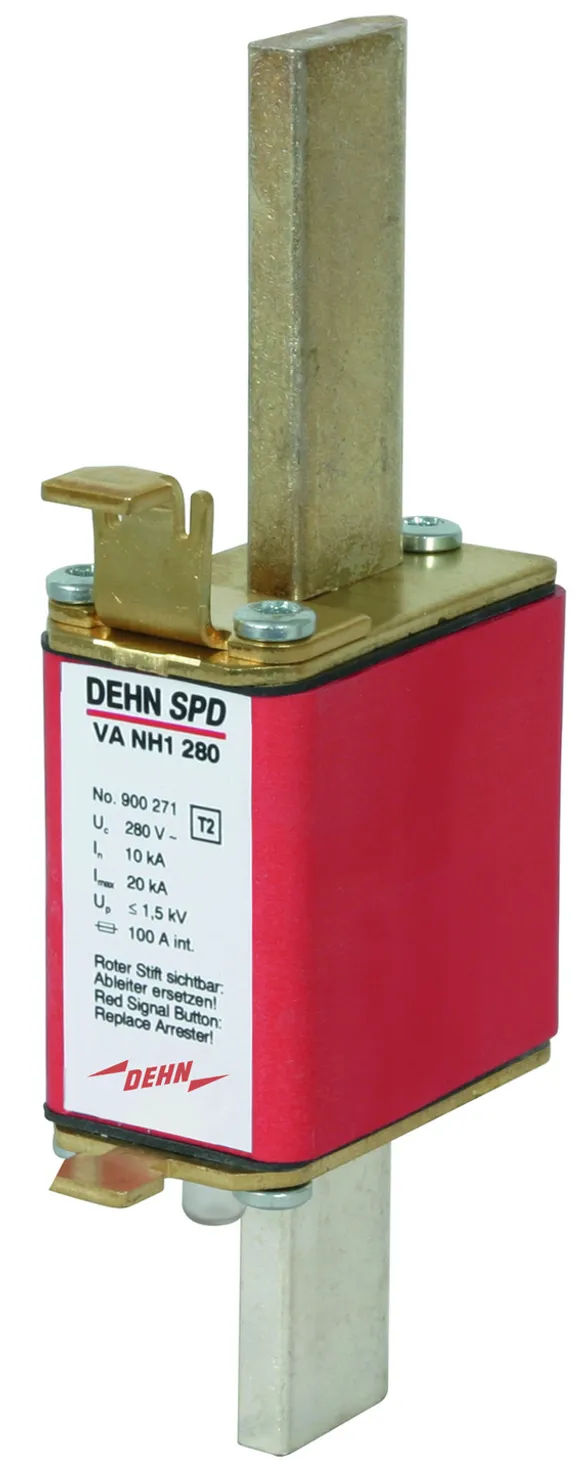

Part No. 900271 VA NH1 280

GTIN 4013364106710, Customs tariff No. (EU): 85363030, Gross weight: 243.50 g, PU: 1.00 Pakkestørrelse

Predecessor

Images

Additional information

VA NH1 280 surge arrester
Single-pole surge arrester
for use in NH1 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level: < 1.5 kV
Nominal discharge current: 10 kA (8/20)
Max. discharge current: 20 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH1 fuse holders

fabrikat: DEHN
Type: VA NH1 280
artikelnr.: 900271
eller tilsvarende

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

Afleder efter EN 61643-11 / IEC 61643-11 Type 2 / klasse II
Max. driftsspænding AC (UC ) 280 V (50 / 60 Hz)
Max. afledestødstrøm (8/20 µs) (Imax ) 20 kA
Restspænding (UP ) ≤ 1,5 kV
Max. overstrømsbeskyttelse på netsiden Ikke nødvendig

Product 900271 was added to Notepad.

Go to Notepad

Product 900271 was added to the cart.

Go to Web-Shop
