DEHNbloc Maxi

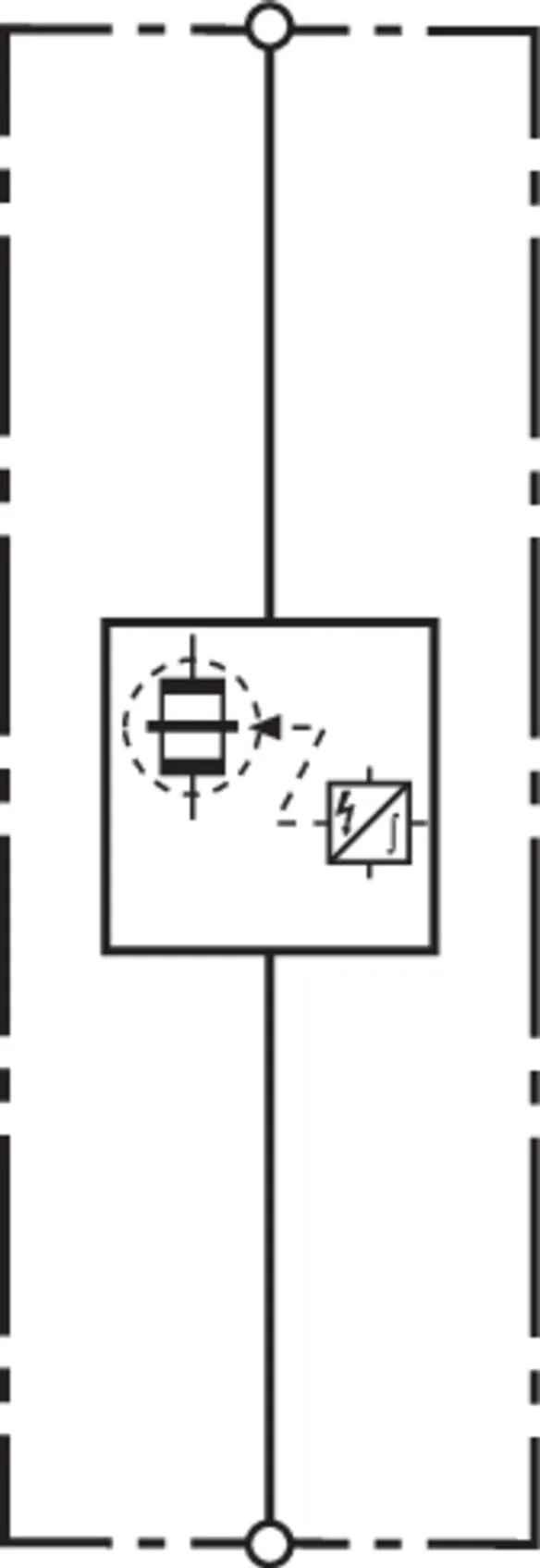

  • Helkapslet RADAX-Flow-gnistgab med høj følgestrømsbegrænsning
  • Selektiv med 35 A gL/gG-sikring op til 50 kAeff kortslutningsstrøm
  • Høj lynstrømsafledeevne
  • Direkte koordinerbar med overspændingsbeskyttelse DEHNguard... f.eks V(A) NH ... uden ekstra mellemkobling

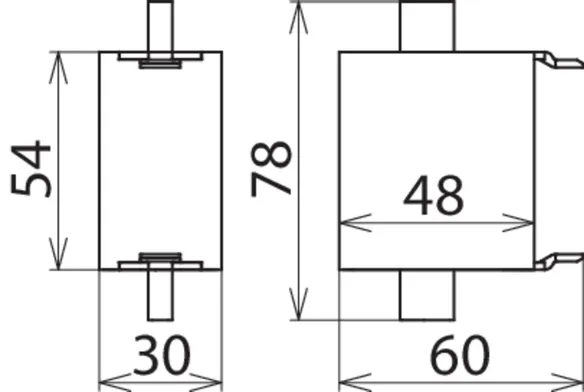

  • NH-udformning, størrelse 00
  • Lav restspænding

Details

lorem ipsum

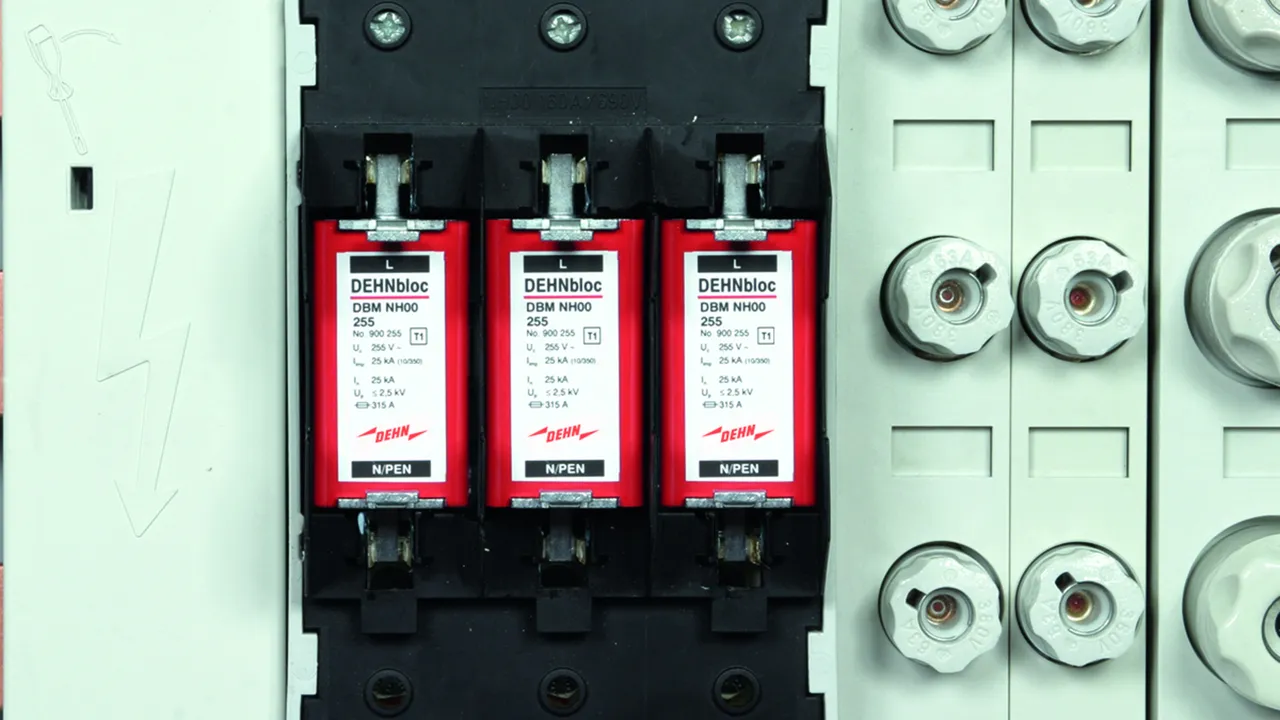

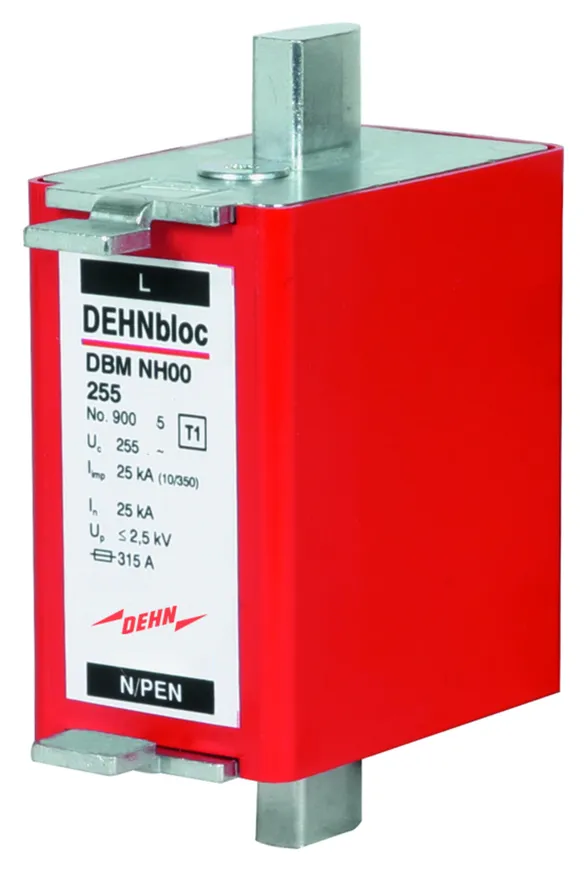

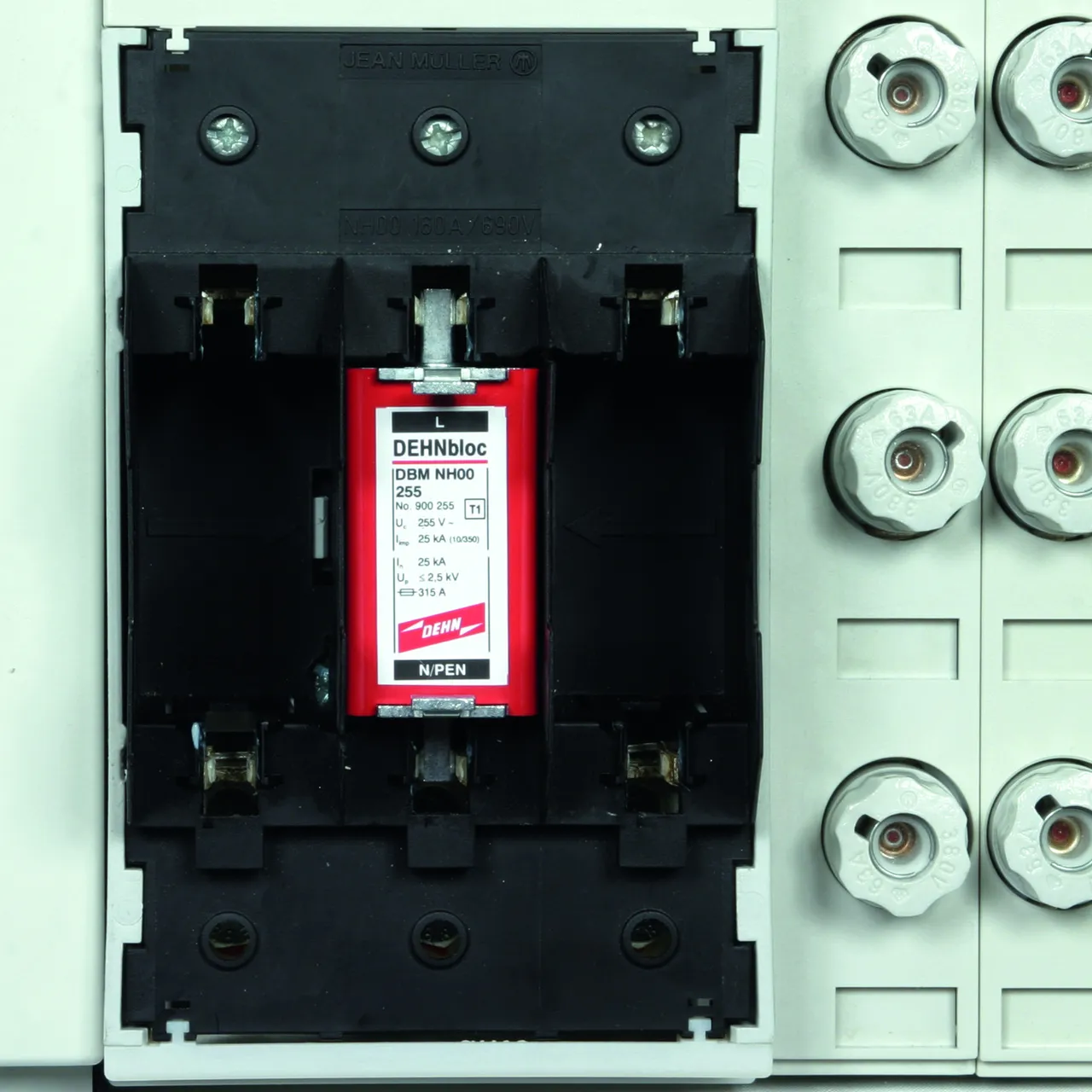

DEHNbloc Maxi NH00 255

1-polet, koordinerbar lynstrømsafleder i NH-udformning, størrelse 00 for 230 / 400 V TN-C- og TN-S-systemer.

1 Product

Part No. 900255 DBM NH00 255

GTIN 4013364125773, Customs tariff No. (EU): 85363090, Gross weight: 208.00 g, PU: 1.00 Pakkestørrelse

Predecessor

Images

Additional information



fabrikat: DEHN
Type: DBM NH00 255
artikelnr.: 900255
eller tilsvarende

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Afleder efter EN 61643-11 / IEC 61643-11 Type 1 / klasse I
Max. driftsspænding AC (UC ) 255 V (50 / 60 Hz)
Lynstødstrøm (10/350 µs) (Iimp ) 25 kA
Restspænding (UP ) ≤ 2,5 kV
Max. for-sikring (L) op til IK = 50 kAeff 315 A gG
