Beskyttelsesmoduler for DEHNventil modular

Høj afledeevne pga. kraftigt slukkegnistgab
Maksimal driftssikkerhed pga. RADAX-flow-følgestrømsbegrænsing

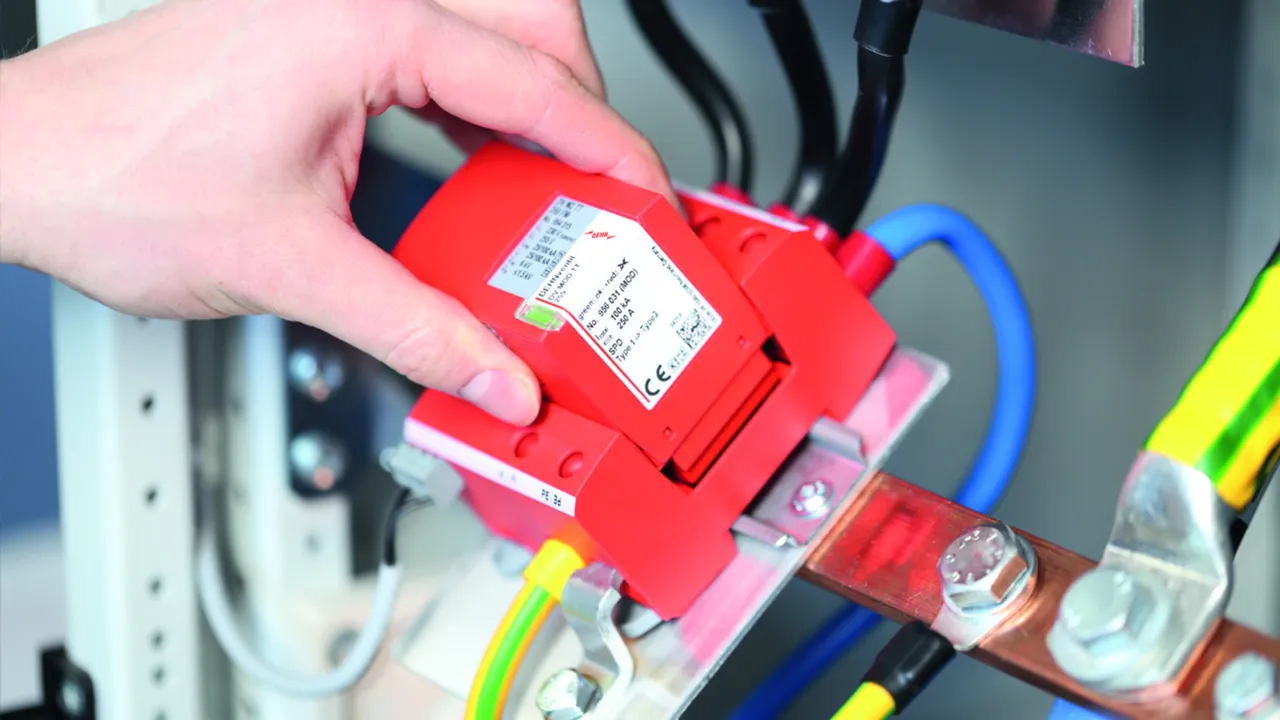

Beskyttelsesmoduler skiftes let uden værktøj ved at trykke på beskyttelsesmodulets udløseknapper
Funktions-/fejlvisning ved rød/grøn markering
Det stikbare beskyttelsesmodul kan udskiftes uden at frakoble netspændingen eller fjerne tavleafdækningen

I flerpolede beskyttelseskredse anbefales total udskiftning af samtlige beskyttelsesmoduler, hvis et enkelt udfalder.

Details

RAC-gnistgabsbaseret beskyttelsesmodul

5 Products

Part No. 956030 DV MOD TNC 255

GTIN 4013364510609, Customs tariff No. (EU): 85363090, Gross weight: 269.21 g, PU: 1.00 Pakkestørrelse

Predecessor

Images

Additional information

CAD files

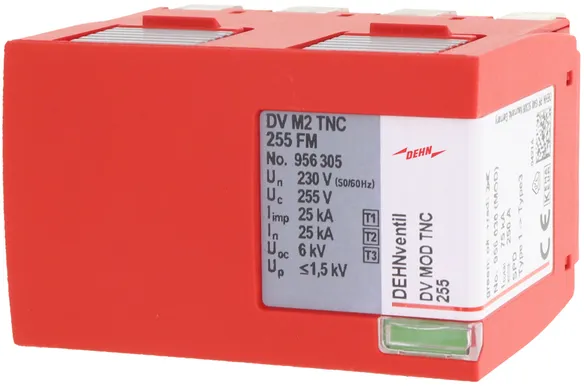

Gnistgabsbaseret beskyttelsesmodul DV MOD TNC 255
Net-gnistgabsbaseret beskyttelsesmodul til type 1- + type 2- + type 3-
afledere i Red/Line-produktserien iht. EN 61643-11
Højtydende RAC-gnistgab
Fejlvisning med grøn-rød
markering i rude
Maks. driftsspænding 255 V AC
Lynstødstrøm: 75 kA
Certificeret iht. VDE, KEMA

fabrikat: DEHN
Type: DV MOD TNC 255
artikelnr.: 956030
eller tilsvarende

Certificates

Technical data

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	75 kA

Product 956030 was added to Notepad.

Go to Notepad

Product 956030 was added to the cart.

Go to Web-Shop

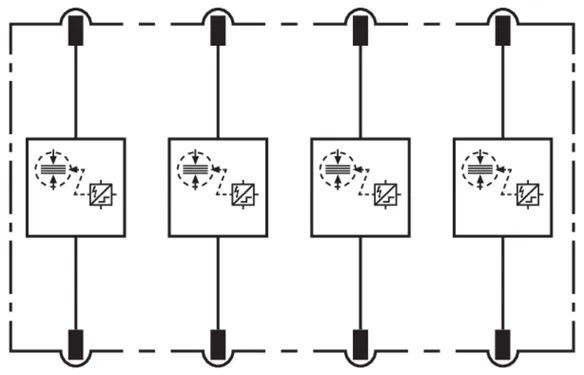

Part No. 956040 DV MOD TNS 255

GTIN 4013364510593, Customs tariff No. (EU): 85363090, Gross weight: 333.70 g, PU: 1.00 Pakkestørrelse

Predecessor

Images

Additional information

CAD files

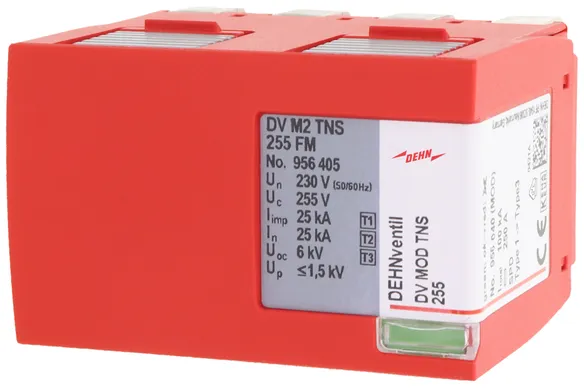

Gnistgabsbaseret beskyttelsesmodul DV MOD TNS 255
Net-gnistgabsbaseret beskyttelsesmodul til type 1- + type 2- + type 3-
afledere i Red/Line-produktserien iht. EN 61643-11
Højtydende RAC-gnistgab
Fejlvisning med grøn-rød
markering i rude
Maks. driftsspænding 255 V AC
Lynstødstrøm: 100 kA
Certificeret iht. VDE, KEMA

fabrikat: DEHN
Type: DV MOD TNS 255
artikelnr.: 956040
eller tilsvarende

Certificates

Technical data

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	100 kA

Product 956040 was added to Notepad.

Go to Notepad

Product 956040 was added to the cart.

Go to Web-Shop

Part No. 956031 DV MOD TT 255

GTIN 4013364410275, Customs tariff No. (EU): 85363090, Gross weight: 346.83 g, PU: 1.00 Pakkestørrelse

Images

Additional information

CAD files

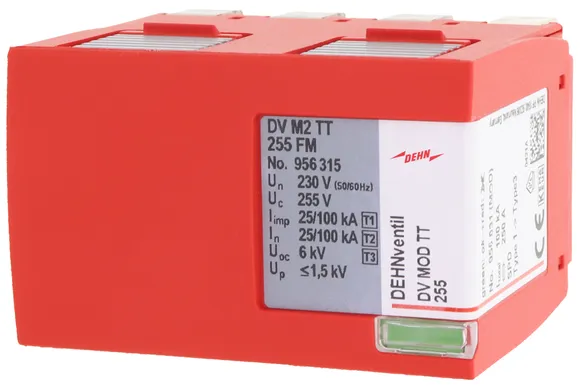

Gnistgabsbaseret beskyttelsesmodul DV MOD TT 255
Net-gnistgabsbaseret beskyttelsesmodul til type 1- + type 2- + type 3-
afledere i Red/Line-produktserien iht. EN 61643-11
Højtydende RAC-gnistgab
Fejlvisning med grøn-rød
markering i rude
Maks. driftsspænding 255 V AC
Lynstødstrøm: 100 kA
Certificeret iht. VDE, KEMA

fabrikat: DEHN
Type: DV MOD TT 255
artikelnr.: 956031
eller tilsvarende

Technical data

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	100 kA

Product 956031 was added to Notepad.

Go to Notepad

Product 956031 was added to the cart.

Go to Web-Shop

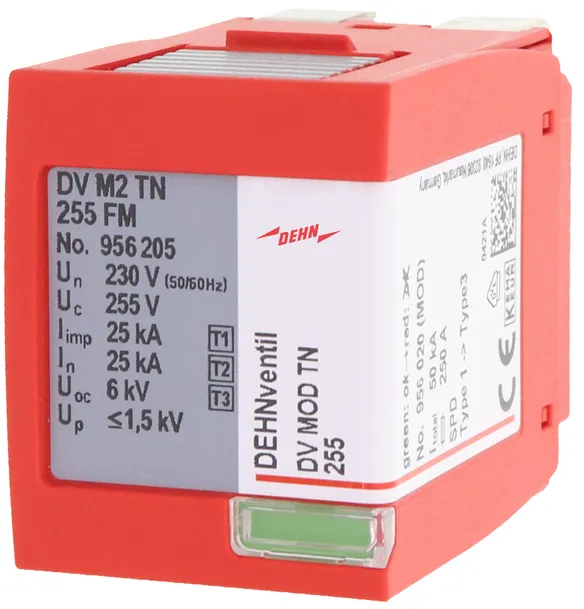

Part No. 956020 DV MOD TN 255

GTIN 4013364510616, Customs tariff No. (EU): 85363090, Gross weight: 173.30 g, PU: 1.00 Pakkestørrelse

Predecessor

Images

Additional information

CAD files

Gnistgabsbaseret beskyttelsesmodul DV MOD TN 255
Net-gnistgabsbaseret beskyttelsesmodul til type 1- + type 2- + type 3-
afledere i Red/Line-produktserien iht. EN 61643-11
Højtydende RAC-gnistgab
Fejlvisning med grøn-rød
markering i rude
Maks. driftsspænding 255 V AC
Lynstødstrøm: 50 kA
Certificeret iht. VDE, KEMA

fabrikat: DEHN
Type: DV MOD TN 255
artikelnr.: 956020
eller tilsvarende

Certificates

Technical data

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	50 kA

Product 956020 was added to Notepad.

Go to Notepad

Product 956020 was added to the cart.

Go to Web-Shop

Part No. 956011 DV MOD TT 2P 255

GTIN 4013364400887, Customs tariff No. (EU): 85363090, Gross weight: 191.83 g, PU: 1.00 Pakkestørrelse

Images

Additional information

CAD files

Gnistgabsbaseret beskyttelsesmodul DV MOD TT 2P 255
Net-gnistgabsbaseret beskyttelsesmodul til type 1- + type 2- + type 3-
afledere i Red/Line-produktserien iht. EN 61643-11
Højtydende RAC-gnistgab
Fejlvisning med grøn-rød
markering i rude
Maks. driftsspænding 255 V AC
Lynimpulsstrøm: 50 kAeff (prosp.)
Certificeret iht. VDE, KEMA

fabrikat: DEHN
Type: DV MOD TT 2P 255
artikelnr.: 956011
eller tilsvarende

Technical data

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	25 kA

Product 956011 was added to Notepad.

Go to Notepad

Product 956011 was added to the cart.

Go to Web-Shop

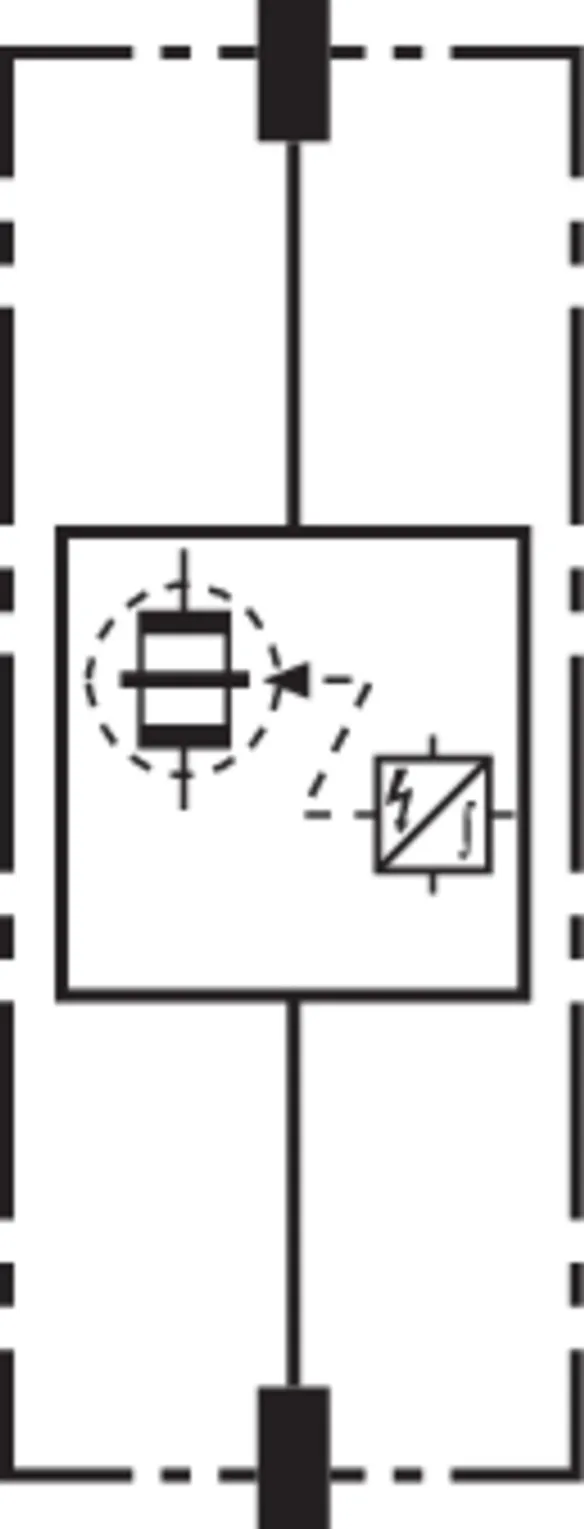

Gnistgabsbaseret beskyttelsesmodul

Gnistgabsbaseret beskyttelsesmodul til DEHNventil M ...

1 Product

Part No. 951001 DV MOD 255

GTIN 4013364108066, Customs tariff No. (EU): 85363090, Gross weight: 204.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

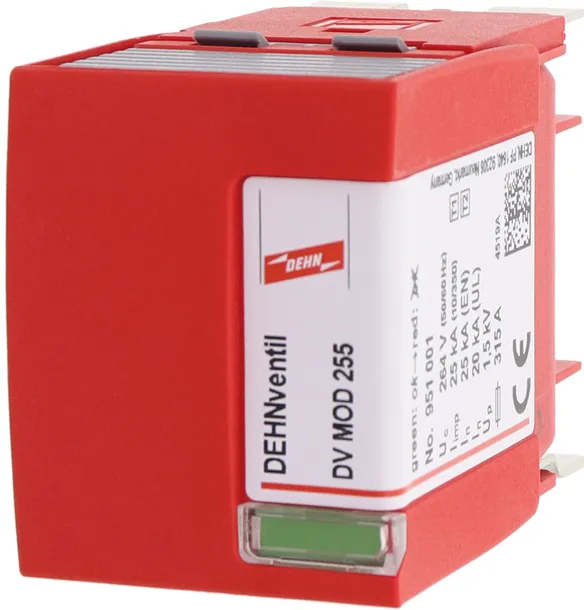

Gnistgabsbaseret beskyttelsesmodul DV MOD 255
Net-gnistgabsbaseret beskyttelsesmodul til type 1 + type 2
afledere i Red/Line-produktserien iht. EN 61643-11
Højtydende slukkegnistgab
Fejlvisning med grøn-rød
markering i rude
Maks. driftsspænding 264 V AC
Lynstødstrøm: 25 kA

fabrikat: DEHN
Type: DV MOD 255
artikelnr.: 951001
eller tilsvarende

Certificates

Technical data

Max. driftsspænding AC (U_C )	264 V
Lynstødstrøm (10/350 µs) (I_imp )	25 kA

Product 951001 was added to Notepad.

Go to Notepad

Product 951001 was added to the cart.

Go to Web-Shop

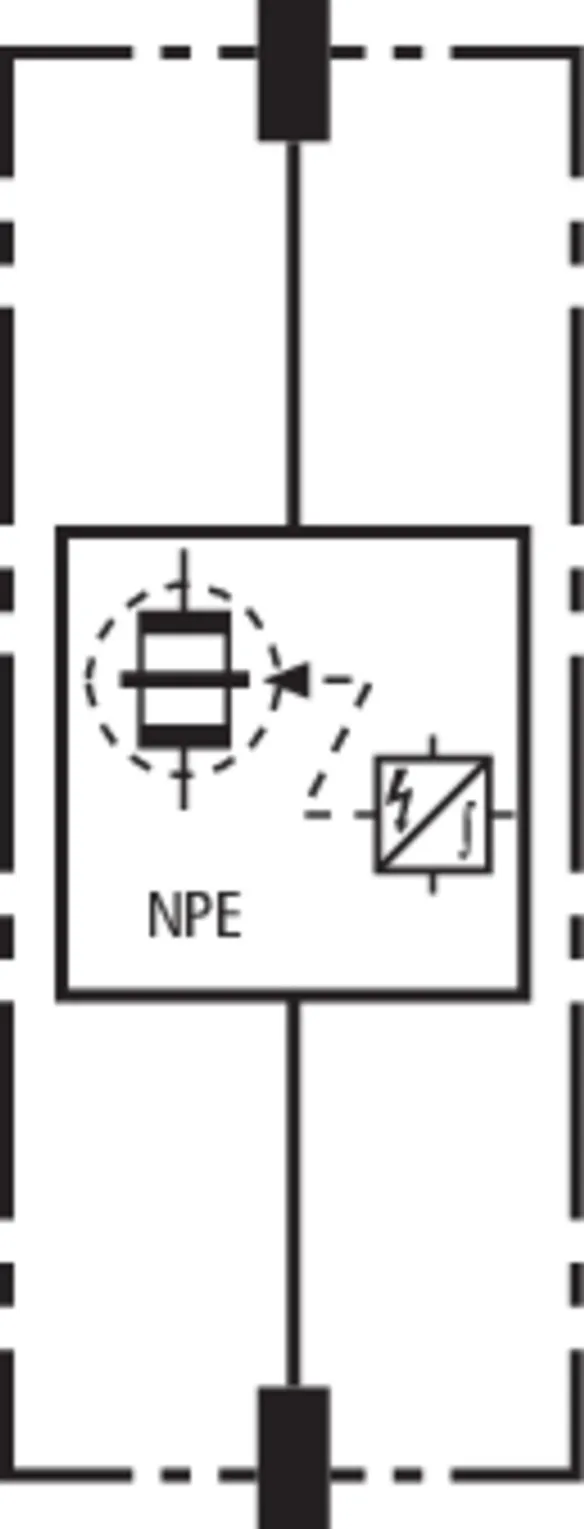

N-PE Gnistgabsbaseret beskyttelsesmodul

N-PE gnistgabsbaseret beskyttelsesmodul til DEHNventil M ... med "... + 1"-kobling

2 Products

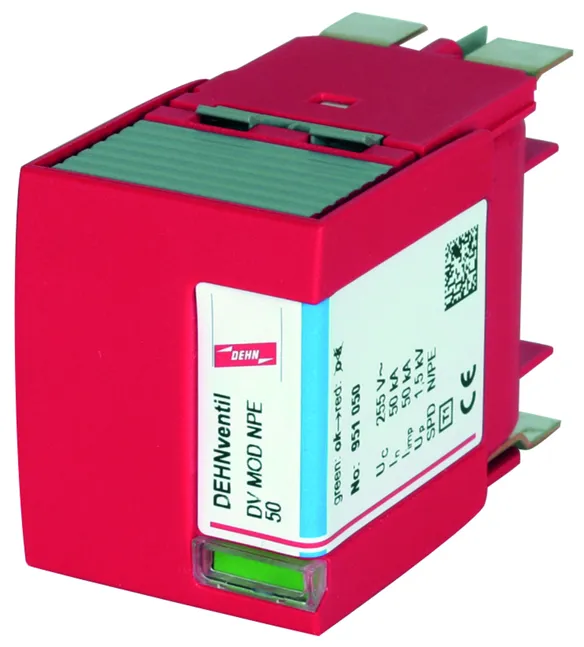

Part No. 951050 DV MOD NPE 50

GTIN 4013364108073, Customs tariff No. (EU): 85363030, Gross weight: 182.60 g, PU: 1.00 Pakkestørrelse

Images

Additional information

fabrikat: DEHN
Type: DV MOD NPE 50
artikelnr.: 951050
eller tilsvarende

Certificates

Technical data

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	50 kA

Product 951050 was added to Notepad.

Go to Notepad

Product 951050 was added to the cart.

Go to Web-Shop

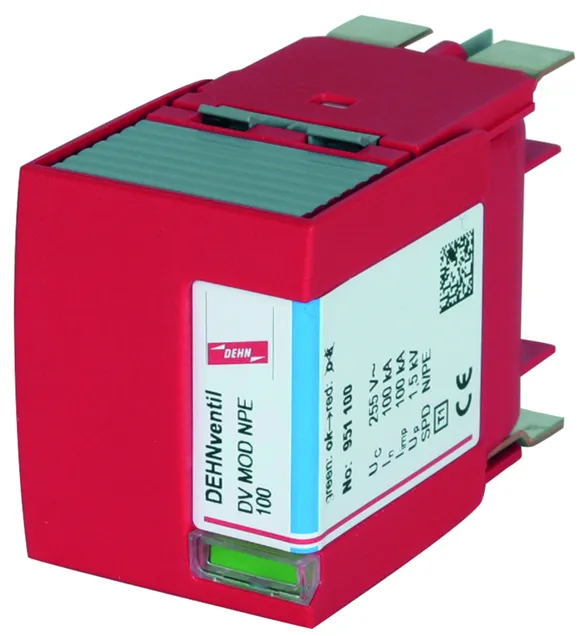

Part No. 951100 DV MOD NPE 100

GTIN 4013364108080, Customs tariff No. (EU): 85363030, Gross weight: 183.00 g, PU: 1.00 Pakkestørrelse

Images

Additional information

fabrikat: DEHN
Type: DV MOD NPE 100
artikelnr.: 951100
eller tilsvarende

Certificates

Technical data

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	100 kA

Product 951100 was added to Notepad.

Go to Notepad

Product 951100 was added to the cart.

Go to Web-Shop

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	75 kA
Specifik energi (W/R)	156,25 kJ/ohm
Følgestrømsslukkeevne [L-N] AC (I_fi )	50 kA_eff
Følgestrømsbegrænsning / selektivitet	Selektiv med 32 A gG sikring up til 50 kA_eff(prosp.)
Kortslutningsmodstand [L-N]/[N-PE] (I_SCCR )	50 kA_eff

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	100 kA
Specifik energi (W/R)	156,25 kJ/ohm
Følgestrømsslukkeevne [L-N] AC (I_fi )	50 kA_eff
Følgestrømsbegrænsning / selektivitet	Selektiv med 32 A gG sikring up til 50 kA_eff(prosp.)
Kortslutningsmodstand [L-N]/[N-PE] (I_SCCR )	50 kA_eff

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	100 kA
Specifik energi (W/R)	156,25 kJ/ohm
Følgestrømsslukkeevne [L-N] AC (I_fi )	50 kA_eff
Følgestrømsbegrænsning / selektivitet	Selektiv med 32 A gG sikring up til 50 kA_eff(prosp.)
Kortslutningsmodstand [L-N]/[N-PE] (I_SCCR )	50 kA_eff / 100 A_eff

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	50 kA
Specifik energi (W/R)	156,25 kJ/ohm
Følgestrømsslukkeevne [L-N] AC (I_fi )	50 kA_eff
Følgestrømsbegrænsning / selektivitet	Selektiv med 32 A gG sikring up til 50 kA_eff(prosp.)
Kortslutningsmodstand [L-N]/[N-PE] (I_SCCR )	50 kA_eff

Max. driftsspænding AC (U_C )	255 V
Lynstødstrøm (10/350 µs) (I_imp )	25 kA
Specifik energi (W/R)	156,25 kJ/ohm
Følgestrømsslukkeevne [L-N] AC (I_fi )	50 kA_eff
Følgestrømsbegrænsning / selektivitet	Selektiv med 32 A gG sikring up til 50 kA_eff(prosp.)
Kortslutningsmodstand [L-N]/[N-PE] (I_SCCR )	50 kA_eff / 100 A_eff

Results for products (0)

Results for content (0)

Beskyttelsesmoduler for DEHNventil modular

Details

RAC-gnistgabsbaseret beskyttelsesmodul

Part No. 956030 DV MOD TNC 255

Product 956030 was added to Notepad.

Product 956030 was added to the cart.

Part No. 956040 DV MOD TNS 255

Product 956040 was added to Notepad.

Product 956040 was added to the cart.

Part No. 956031 DV MOD TT 255

Product 956031 was added to Notepad.

Product 956031 was added to the cart.

Part No. 956020 DV MOD TN 255

Product 956020 was added to Notepad.

Product 956020 was added to the cart.

Part No. 956011 DV MOD TT 2P 255

Product 956011 was added to Notepad.

Product 956011 was added to the cart.

Gnistgabsbaseret beskyttelsesmodul

Part No. 951001 DV MOD 255

Product 951001 was added to Notepad.

Product 951001 was added to the cart.

N-PE Gnistgabsbaseret beskyttelsesmodul

Part No. 951050 DV MOD NPE 50

Product 951050 was added to Notepad.

Product 951050 was added to the cart.

Part No. 951100 DV MOD NPE 100

Product 951100 was added to Notepad.

Product 951100 was added to the cart.

Beskyttelsesmoduler for DEHNventil modular

Details

RAC-gnistgabsbaseret beskyttelsesmodul

Part No. 956030 DV MOD TNC 255

You are not authorized to download 954030.stp

You are not authorized to download 954030.iges

You are not authorized to download 954030.jt

You are not authorized to download 954030.dwg

You are not authorized to download 954030m_D.dxf

Product 956030 was added to Notepad.

Product 956030 was added to the cart.

Part No. 956040 DV MOD TNS 255

You are not authorized to download 954031_954040.stp

You are not authorized to download 954031_954040.iges

You are not authorized to download 954031_954040.jt

You are not authorized to download 954031_954040.dwg

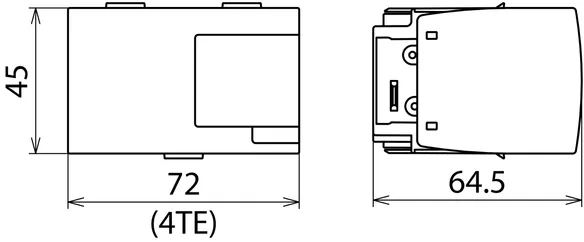

You are not authorized to download 954031+040m_D.dxf

Product 956040 was added to Notepad.

Product 956040 was added to the cart.

Part No. 956031 DV MOD TT 255

You are not authorized to download 954031_954040.stp

You are not authorized to download 954031_954040.iges

You are not authorized to download 954031_954040.jt

You are not authorized to download 954031_954040.dwg

You are not authorized to download 954031+040m_D.dxf

Product 956031 was added to Notepad.

Product 956031 was added to the cart.

Part No. 956020 DV MOD TN 255

You are not authorized to download 954011_954020.stp

You are not authorized to download 954011_954020.iges

You are not authorized to download 954011_954020.jt

You are not authorized to download 954011_954020.dwg

You are not authorized to download 954011_954020m_D.dxf

Product 956020 was added to Notepad.

Product 956020 was added to the cart.

Part No. 956011 DV MOD TT 2P 255

You are not authorized to download 954011_954020.stp

You are not authorized to download 954011_954020.iges

You are not authorized to download 954011_954020.jt

You are not authorized to download 954011_954020.dwg

You are not authorized to download 954011_954020m_D.dxf

Product 956011 was added to Notepad.

Product 956011 was added to the cart.

Gnistgabsbaseret beskyttelsesmodul

Part No. 951001 DV MOD 255

You are not authorized to download 951001m_E.dxf

Product 951001 was added to Notepad.

Product 951001 was added to the cart.

N-PE Gnistgabsbaseret beskyttelsesmodul

Part No. 951050 DV MOD NPE 50

You are not authorized to download 951001m_E.dxf

Product 951050 was added to Notepad.

Product 951050 was added to the cart.

Part No. 951100 DV MOD NPE 100

You are not authorized to download 951001m_E.dxf

Product 951100 was added to Notepad.

Product 951100 was added to the cart.
