DEHNguard M, ... S 和 DEHNgap C S 保护模块

  • 采用大通流量氧化锌压敏电阻/间隙，高放电能力
  • 使用动态热脱扣装置，可靠性高
  • 与Red/Line系列的其他产品能量协调
  • 工作状态/故障在监视视窗中指示

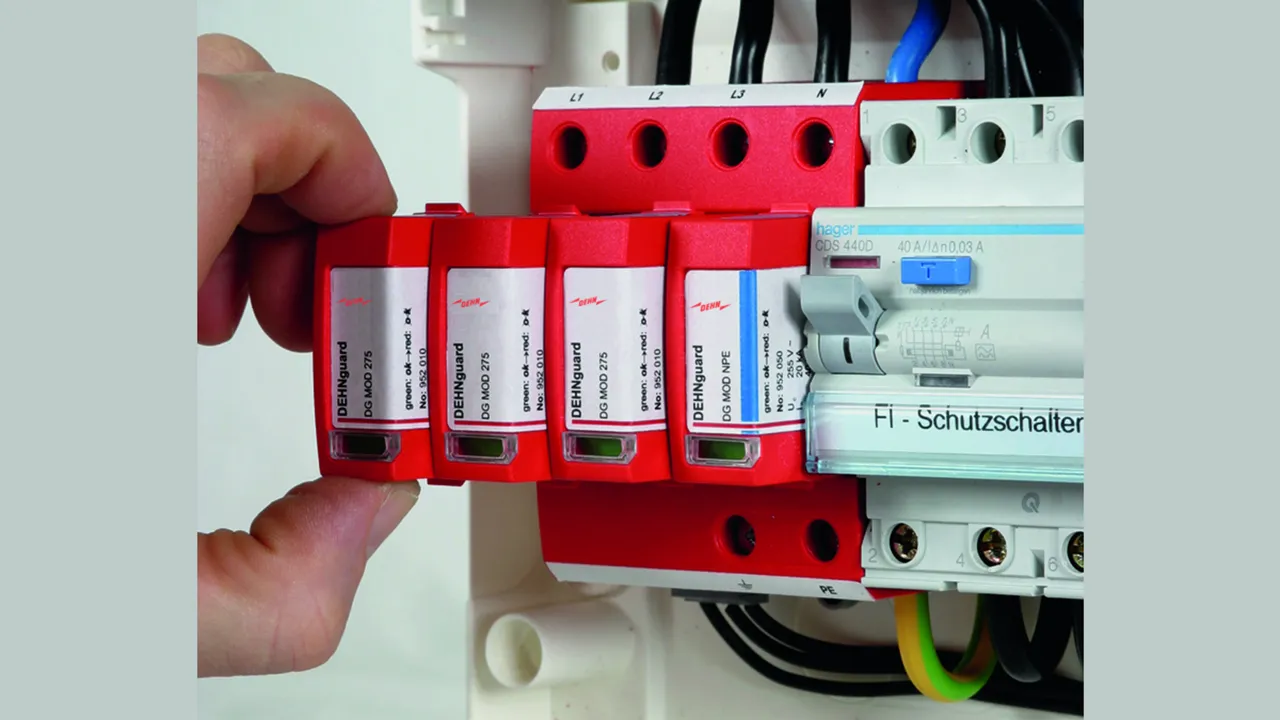

  • 使用模块释放按钮更换保护模块，无需工具
  • 在更换插入式保护模块时，无需去掉配电板盖板和断电
  • 依据EN60068-2 通过振动和冲击测试

DEHNguard M ACI 组合开关/间隙型保护模块

2 Products

Part No. 952024 DG MOD ACI 275

GTIN 4013364377356, Customs tariff No. (EU): 853630, Gross weight: 55.00 g, PU: 1.00 件

Images

Additional information

DG MOD ACI 275 组合开关/间隙型保护模块
DEHNguard M ACI 可插拔模块
依据EN 61643-11，2级SPD
交流最大持续工作电压：275 V
标称放电电流：20 kA
故障指示

制造商： DEHN
型号: DG MOD ACI 275
货号: 952024
其他类似产品

Certificates



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
交流最大持续工作电压 (UC ) 275 V

Product 952024 was added to Notepad.

Go to Notepad

Product 952024 was added to the cart.

Go to Web-Shop

Part No. 952028 DG MOD ACI 385

GTIN 4013364387843, Customs tariff No. (EU): 853630, Gross weight: 66.00 g, PU: 1.00 件

Images

Additional information

DG MOD ACI 385 组合开关/间隙型保护模块
DEHNguard M ACI 可插拔模块
依据EN 61643-11，2级SPD
交流最大持续工作电压：385 V
标称放电电流：20 kA
故障指示

制造商： DEHN
型号: DG MOD ACI 385
货号: 952028
其他类似产品



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
交流最大持续工作电压 (UC ) 385 V

Product 952028 was added to Notepad.

Go to Notepad

Product 952028 was added to the cart.

Go to Web-Shop

DEHNguard M ACI 间隙型保护模块

1 Product

Part No. 952022 DG MOD A NPE

GTIN 4013364376533, Customs tariff No. (EU): 853630, Gross weight: 46.00 g, PU: 1.00 件

Images

Additional information

DG MOD A NPE 间隙型保护模块
DEHNguard M ACI 可插拔模块
依据EN 61643-11，2级SPD
交流最大持续工作电压：255 V
标称放电电流：20 kA
故障指示

制造商： DEHN
型号: DG MOD A NPE
货号: 952022
其他类似产品

Certificates



ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm² Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 255 V

Product 952022 was added to Notepad.

Go to Notepad

Product 952022 was added to the cart.

Go to Web-Shop

DEHNguard M CI 压敏电阻型保护模块

1 Product

Part No. 952020 DG MOD CI 275

GTIN 4013364127784, Customs tariff No. (EU): 853630, Gross weight: 59.30 g, PU: 1.00 件

Images

Additional information

DG MOD CI 275 压敏电阻型保护模块
用于DEHNguard M CI的可插拔模块
依据EN 61643-11，2级
交流最大持续工作电压：275 V
标称放电电流：12.5 kA
故障指示

制造商： DEHN
型号: DG MOD CI 275
货号: 952020
其他类似产品

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
最大放电电流 (8/20 μs) (Imax ) 25 kA
交流最大持续工作电压 (UC ) 275 V

Product 952020 was added to Notepad.

Go to Notepad

Product 952020 was added to the cart.

Go to Web-Shop

DEHNguard SE CI ... 压敏电阻型保护模块

2 Products

Part No. 952926 DG MOD E CI 440

GTIN 4013364322646, Customs tariff No. (EU): 853630, Gross weight: 83.00 g, PU: 1.00 件

Images

Additional information

DG MOD E CI 440 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard SE CI 的可插拔保护模块
交流最大持续工作电压：440 V
标称放电电流：12.5 kA
故障指示

制造商： DEHN
型号: DG MOD E CI 440
货号: 952926
其他类似产品

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
交流最大持续工作电压 (UC ) 440 V
压敏电阻额定电压 (Umov ) 440 V

Product 952926 was added to Notepad.

Go to Notepad

Product 952926 was added to the cart.

Go to Web-Shop

Part No. 952927 DG MOD E CI WE 440

GTIN 4013364322653, Customs tariff No. (EU): 853630, Gross weight: 82.00 g, PU: 1.00 件

Images

Additional information

DG MOD E CI WE 440压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard SE CI的可插拔模块
交流最大持续工作电压：440 V
压敏电阻额定电压：750 V
标称放电电流：12.5 kA
故障指示

制造商： DEHN
型号: DG MOD E CI WE 440
货号: 952927
其他类似产品

Certificates



Circuit Interruption

The backup fuse is already integrated here. This means: reduced space requirement, lower installation costs, faster wiring, and shorter connecting cables. This concept can be found in the product ranges DEHNvenCI, DEHNbloc Maxi S, DEHNguard ... CI and V(A) NH...

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
交流最大持续工作电压 (UC ) 440 V
压敏电阻额定电压 (Umov ) 750 V

Product 952927 was added to Notepad.

Go to Notepad

Product 952927 was added to the cart.

Go to Web-Shop

DEHNguard M 和 DEHNguard S 压敏电阻型保护模块

8 Products

Part No. 952018 DG MOD 48

GTIN 4013364119482, Customs tariff No. (EU): 853630, Gross weight: 43.50 g, PU: 1.00 件

Images

Additional information

DG MOD 48 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 48 V 交流 / 60 V 直流
标称放电电流： 7.5 kA
故障指示

制造商： DEHN
型号: DG MOD 48
货号: 952018
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 7,5 kA
最大放电电流 (8/20 μs) (Imax ) 25 kA
交流最大持续工作电压 (UC ) 48 V

Product 952018 was added to Notepad.

Go to Notepad

Product 952018 was added to the cart.

Go to Web-Shop

Part No. 952011 DG MOD 75

GTIN 4013364109773, Customs tariff No. (EU): 853630, Gross weight: 39.30 g, PU: 1.00 件

Images

Additional information

DG MOD 75 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 75 V 交流 / 100 V 直流
标称放电电流： 10 kA
故障指示

制造商： DEHN
型号: DG MOD 75
货号: 952011
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 10 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 75 V

Product 952011 was added to Notepad.

Go to Notepad

Product 952011 was added to the cart.

Go to Web-Shop

Part No. 952012 DG MOD 150

GTIN 4013364109780, Customs tariff No. (EU): 853630, Gross weight: 42.23 g, PU: 1.00 件

Images

Additional information

DG MOD 150 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 150 V 交流 / 200 V 直流
标称放电电流： 15 kA
故障指示

制造商： DEHN
型号: DG MOD 150
货号: 952012
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 15 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 150 V

Product 952012 was added to Notepad.

Go to Notepad

Product 952012 was added to the cart.

Go to Web-Shop

Part No. 952010 DG MOD 275

GTIN 4013364108356, Customs tariff No. (EU): 853630, Gross weight: 49.80 g, PU: 1.00 件

Images

Additional information

DG MOD 275压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 275 V 交流 / 350 V 直流
标称放电电流： 20 kA
故障指示

制造商： DEHN
型号: DG MOD 275
货号: 952010
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 275 V

Product 952010 was added to Notepad.

Go to Notepad

Product 952010 was added to the cart.

Go to Web-Shop

Part No. 952013 DG MOD 320

GTIN 4013364109797, Customs tariff No. (EU): 853630, Gross weight: 52.50 g, PU: 1.00 件

Images

Additional information

DG MOD 320 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 320 V 交流 / 420 V 直流
标称放电电流： 20 kA
故障指示

制造商： DEHN
型号: DG MOD 320
货号: 952013
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 320 V

Product 952013 was added to Notepad.

Go to Notepad

Product 952013 was added to the cart.

Go to Web-Shop

Part No. 952014 DG MOD 385

GTIN 4013364108363, Customs tariff No. (EU): 853630, Gross weight: 56.80 g, PU: 1.00 件

Images

Additional information

DG MOD 385 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 385 V 交流 / 500 V 直流
标称放电电流： 20 kA
故障指示

制造商： DEHN
型号: DG MOD 385
货号: 952014
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 385 V

Product 952014 was added to Notepad.

Go to Notepad

Product 952014 was added to the cart.

Go to Web-Shop

Part No. 952015 DG MOD 440

GTIN 4013364109803, Customs tariff No. (EU): 853630, Gross weight: 60.00 g, PU: 1.00 件

Images

Additional information

DG MOD 440 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 440 V 交流 / 585 V 直流
标称放电电流： 20 kA
故障指示

制造商： DEHN
型号: DG MOD 440
货号: 952015
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 440 V

Product 952015 was added to Notepad.

Go to Notepad

Product 952015 was added to the cart.

Go to Web-Shop

Part No. 952016 DG MOD 600

GTIN 4013364109810, Customs tariff No. (EU): 853630, Gross weight: 70.60 g, PU: 1.00 件

Images

Additional information

DG MOD 600 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 600 V 交流 / 600 V 直流
标称放电电流： 15 kA
故障指示

制造商： DEHN
型号: DG MOD 600
货号: 952016
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 15 kA
最大放电电流 (8/20 μs) (Imax ) 30 kA
交流最大持续工作电压 (UC ) 600 V

Product 952016 was added to Notepad.

Go to Notepad

Product 952016 was added to the cart.

Go to Web-Shop

DEHNguard M (S) WE 压敏电阻型保护模块

1 Product

Part No. 952017 DG MOD 750

GTIN 4013364113329, Customs tariff No. (EU): 853630, Gross weight: 69.70 g, PU: 1.00 件

Images

Additional information

DG MOD 750 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S WE 600 (FM) 和 DG M WE 600 (FM) 的可插拔模块
高通流量压敏电阻
最大持续工作电压： 600 V 交流 / 600 V 直流
压敏电阻额定电压： 750 V 交流
标称放电电流： 15 kA
故障指示

制造商： DEHN
型号: DG MOD 750
货号: 952017
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 15 kA
最大放电电流 (8/20 μs) (Imax ) 25 kA
交流最大持续工作电压 (UC ) 600 V
压敏电阻额定电压 (Umov ) 750 V

Product 952017 was added to Notepad.

Go to Notepad

Product 952017 was added to the cart.

Go to Web-Shop

DEHNguard M ACI 间隙型N-PE保护模块

两极和四极DEHNguard DG M TT (2P) ACI ... 的间隙型N-PE保护模块。

1 Product

Part No. 952083 DG MOD H A NPE

GTIN 4013364376540, Customs tariff No. (EU): 853630, Gross weight: 55.00 g, PU: 1.00 件

Images

Additional information

DG MOD H A NPE 间隙型N-PE保护模块
DEHNguard DG M TT (2P) ACI ... 间隙型N-PE可插拔模块
依据EN 61643-11，2级SPD
交流最大持续工作电压：255 V
标称放电电流：80 kA
故障指示

制造商： DEHN
型号: DG MOD H A NPE
货号: 952083
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 80 kA
最大放电电流 (8/20 μs) (Imax ) 120 kA
交流最大持续工作电压 (UC ) 275 V

Product 952083 was added to Notepad.

Go to Notepad

Product 952083 was added to the cart.

Go to Web-Shop

DEHNguard M H TT ... 间隙型N-PE保护模块

1 Product

Part No. 952081 DG MOD H NPE

GTIN 4013364318182, Customs tariff No. (EU): 853630, Gross weight: 44.50 g, PU: 1.00 件

Images

Additional information

DG MOD H NPE 间隙型N-PE保护模块
依据EN 61643-11，用于红线系列2级N-PE电涌保护器
DEHNguard M H TT ... 间隙型N-PE可插拔模块
交流最大持续工作电压： 255 V
标称放电电流： 80 kA
最大放电电流： 120 kA
故障指示

制造商： DEHN
型号: DG MOD H NPE
货号: 952081
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 80 kA
最大放电电流 (8/20 μs) (Imax ) 120 kA
交流最大持续工作电压 (UC ) 255 V

Product 952081 was added to Notepad.

Go to Notepad

Product 952081 was added to the cart.

Go to Web-Shop

DEHNguard M TT ... 间隙型N-PE保护模块

1 Product

Part No. 952050 DG MOD NPE

GTIN 4013364108370, Customs tariff No. (EU): 853630, Gross weight: 44.50 g, PU: 1.00 件

Images

Additional information

DG MOD NPE 间隙型N-PE保护模块
依据EN 61643-11，用于红线系列2级N-PE电涌保护器
DEHNguard M TT ... 间隙型N-PE可插拔模块
交流最大持续工作电压： 255 V
标称放电电流： 20 kA
最大放电电流： 40 kA
故障指示

制造商： DEHN
型号: DG MOD NPE
货号: 952050
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 255 V

Product 952050 was added to Notepad.

Go to Notepad

Product 952050 was added to the cart.

Go to Web-Shop

DEHNgap C S 间隙型N-PE保护模块

1 Product

Part No. 952060 DGP C MOD

GTIN 4013364108387, Customs tariff No. (EU): 853630, Gross weight: 44.00 g, PU: 1.00 件

Images

Additional information

DGP C MOD 间隙型N-PE保护模块
依据EN 61643-11，用于红线系列2级N-PE电涌保护器
单极DEHNguard C S ... 间隙型N-PE可插拔模块
交流最大持续工作电压： 255 V
标称放电电流： 20kA
最大放电电流： 40kA
故障指示

制造商： DEHN
型号: DGP C MOD
货号: 952060
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 255 V

Product 952060 was added to Notepad.

Go to Notepad

Product 952060 was added to the cart.

Go to Web-Shop

DEHNguard S ... VA 压敏电阻串联间隙型保护模块

3 Products

Part No. 952025 DG MOD 75 VA

GTIN 4013364127357, Customs tariff No. (EU): 853630, Gross weight: 41.00 g, PU: 1.00 件

Images

Additional information

DG MOD 75 VA 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... VA的可插拔模块
最大持续工作电压： 75 V 交流 / 100 V 直流
标称放电电流： 10 kA
故障指示

制造商： DEHN
型号: DG MOD 75 VA
货号: 952025
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 10 kA
最大放电电流 (8/20 μs) (Imax ) 20 kA
交流最大持续工作电压 (UC ) 75 V
直流最大持续工作电压 (UC ) 100 V

Product 952025 was added to Notepad.

Go to Notepad

Product 952025 was added to the cart.

Go to Web-Shop

Part No. 952027 DG MOD 275 VA

GTIN 4013364127364, Customs tariff No. (EU): 853630, Gross weight: 47.00 g, PU: 1.00 件

Images

Additional information

DG MOD 275 VA 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... VA的可插拔模块
最大持续工作电压： 275 V 交流 / 350 V 直流
标称放电电流： 10 kA
故障指示

制造商： DEHN
型号: DG MOD 275 VA
货号: 952027
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 10 kA
最大放电电流 (8/20 μs) (Imax ) 20 kA
交流最大持续工作电压 (UC ) 275 V
直流最大持续工作电压 (UC ) 350 V

Product 952027 was added to Notepad.

Go to Notepad

Product 952027 was added to the cart.

Go to Web-Shop

Part No. 952029 DG MOD 385 VA

GTIN 4013364127371, Customs tariff No. (EU): 853630, Gross weight: 51.00 g, PU: 1.00 件

Images

Additional information

DG MOD 385 VA 压敏电阻型保护模块
依据EN 61643-11，用于红线系列2级SPD
DEHNguard S ... VA的可插拔模块
最大持续工作电压： 385 V 交流 / 500 V 直流
标称放电电流： 10 kA
故障指示

制造商： DEHN
型号: DG MOD 385 VA
货号: 952029
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 10 kA
最大放电电流 (8/20 μs) (Imax ) 20 kA
交流最大持续工作电压 (UC ) 385 V
直流最大持续工作电压 (UC ) 500 V

Product 952029 was added to Notepad.

Go to Notepad

Product 952029 was added to the cart.

Go to Web-Shop

DEHNguard M YPV 压敏电阻型保护模块

2 Products

Part No. 952048 DG MOD H PV 600

GTIN 4013364327733, Customs tariff No. (EU): 853630, Gross weight: 61.20 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD H PV 600
用于 DEHNguard M YPV 的可插拔保护模块
符合 EN 61643-31
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
最大持续工作电压：585 V dc
标称放电电流：20 kA
故障指示

制造商： DEHN
型号: DG MOD H PV 600
货号: 952048
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
直流最大持续工作电压 (UC ) 600 V

Product 952048 was added to Notepad.

Go to Notepad

Product 952048 was added to the cart.

Go to Web-Shop

Part No. 952049 DG MOD H PV 750

GTIN 4013364327740, Customs tariff No. (EU): 853630, Gross weight: 70.60 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD H PV 750
用于 DEHNguard M YPV 的可插拔保护模块
符合 EN 61643-31
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
最大持续工作电压：750 V dc
标称放电电流：15 kA
故障指示

制造商： DEHN
型号: DG MOD H PV 750
货号: 952049
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 15 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
直流最大持续工作电压 (UC ) 750 V

Product 952049 was added to Notepad.

Go to Notepad

Product 952049 was added to the cart.

Go to Web-Shop

DEHNguard M YPV SCI 和 DEHNguard S PV SCI 压敏电阻型保护模块

3 Products

Part No. 952055 DG MOD PV SCI 75

GTIN 4013364136700, Customs tariff No. (EU): 853630, Gross weight: 43.40 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD PV SCI 75
用于 DEHNguard M (Y)PV SCI 的可插拔保护模块
符合 EN 50539-11
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
集成脱离和短路装置
最大持续工作电压：75 V dc
适合最高 Ucpv <= 150 V 的光伏系统
总放电电流：40 kA
故障指示

制造商： DEHN
型号: DG MOD PV SCI 75
货号: 952055
其他类似产品

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

标称放电电流 (8/20 μs) (In ) 10 kA
最大放电电流 (8/20 μs) (Imax ) 20 kA
直流最大持续工作电压 (UC ) 75 V

Product 952055 was added to Notepad.

Go to Notepad

Product 952055 was added to the cart.

Go to Web-Shop

Part No. 952051 DG MOD PV SCI 500

GTIN 4013364126442, Customs tariff No. (EU): 853630, Gross weight: 56.15 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD PV SCI 500
用于 DEHNguard M (Y)PV SCI 的可插拔保护模块
符合 EN 61643-31
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
集成脱离和短路装置
最大持续工作电压：500 V dc
适合最高 Ucpv <= 1000 V 的光伏系统
总放电电流：40 kA
故障指示

制造商： DEHN
型号: DG MOD PV SCI 500
货号: 952051
其他类似产品

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
最大放电电流 (8/20 μs) (Imax ) 25 kA
直流最大持续工作电压 (UC ) 500 V

Product 952051 was added to Notepad.

Go to Notepad

Product 952051 was added to the cart.

Go to Web-Shop

Part No. 952054 DG MOD PV SCI 600

GTIN 4013364127975, Customs tariff No. (EU): 853630, Gross weight: 58.80 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD PV SCI 600
用于 DEHNguard M (Y)PV SCI 的可插拔保护模块
符合 EN 61643-31
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
集成脱离和短路装置
最大持续工作电压：600 V dc
最大光伏电压：<= 1200 V dc
总放电电流：30 kA
故障指示

制造商： DEHN
型号: DG MOD PV SCI 600
货号: 952054
其他类似产品

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
最大放电电流 (8/20 μs) (Imax ) 25 kA
直流最大持续工作电压 (UC ) 600 V

Product 952054 was added to Notepad.

Go to Notepad

Product 952054 was added to the cart.

Go to Web-Shop

压敏电阻型保护模块 DEHNguard M YPV 和 DEHNguard S PV

3 Products

Part No. 952045 DG MOD PV 75

GTIN 4013364141827, Customs tariff No. (EU): 853630, Gross weight: 40.20 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD PV 75
适合 DEHNguard
M YPV SCI 和 S PV SCI 的可插拔保护模块
符合 EN 50539-11
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
最大持续工作电压：75 V dc
标称放电电流：10 kA
故障指示

制造商： DEHN
型号: DG MOD PV 75
货号: 952045
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 10 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
直流最大持续工作电压 (UC ) 75 V

Product 952045 was added to Notepad.

Go to Notepad

Product 952045 was added to the cart.

Go to Web-Shop

Part No. 952041 DG MOD PV 500

GTIN 4013364141841, Customs tariff No. (EU): 853630, Gross weight: 60.19 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD PV 500
适合 DEHNguard
M YPV SCI 和 S PV SCI 的可插拔保护模块
符合 EN 61643-31
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
最大持续工作电压：500 V dc
标称放电电流：20 kA
故障指示

制造商： DEHN
型号: DG MOD PV 500
货号: 952041
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
直流最大持续工作电压 (UC ) 500 V

Product 952041 was added to Notepad.

Go to Notepad

Product 952041 was added to the cart.

Go to Web-Shop

Part No. 952044 DG MOD PV 600

GTIN 4013364141858, Customs tariff No. (EU): 853630, Gross weight: 69.49 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD PV 600
适合 DEHNguard
M YPV SCI 和 S PV SCI 的可插拔保护模块
符合 EN 61643-31
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
最大持续工作电压：600 V dc
标称放电电流：15 kA
故障指示

制造商： DEHN
型号: DG MOD PV 600
货号: 952044
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 15 kA
最大放电电流 (8/20 μs) (Imax ) 30 kA
直流最大持续工作电压 (UC ) 600 V

Product 952044 was added to Notepad.

Go to Notepad

Product 952044 was added to the cart.

Go to Web-Shop

DEHNguard ME YPV SCI 和 DEHNguard SE PV SCI 压敏电阻型保护模块

1 Product

Part No. 952056 DG MOD E PV SCI 750

GTIN 4013364149106, Customs tariff No. (EU): 853630, Gross weight: 82.70 g, PU: 1.00 件

Images

Additional information

压敏电阻型保护模块 DG MOD E PV SCI 750
适合 DEHNguard
ME YPV SCI 和 SE PV SCI 的压敏电阻型保护模块
符合 EN 50539-11
标准的 Red/Line 产品系列 2 型电涌保护器等级
高性能压敏电阻技术
最大持续工作电压：750 V DC
标称放电电流：12.5 kA
故障指示

制造商： DEHN
型号: DG MOD E PV SCI 750
货号: 952056
其他类似产品

Certificates



SCI-Technology

The patented SCI technology with active arc extinction allows to actively, quickly and safely extinguish a possible switching arc in case of overload. The PV fuse integrated in the short-circuit path trips immediately after the arc has been extinguished, thus ensuring safe electrical isolation (interruption). Consequently, all PV arresters from DEHN combine surge protection, fire protection and personal protection in a single device

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
最大放电电流 (8/20 μs) (Imax ) 25 kA
直流最大持续工作电压 (UC ) 750 V

Product 952056 was added to Notepad.

Go to Notepad

Product 952056 was added to the cart.

Go to Web-Shop

DEHNguard SE H ... 压敏电阻型保护模块

2 Products

Part No. 952908 DG MOD E H 1000

GTIN 4013364264526, Customs tariff No. (EU): 853630, Gross weight: 123.00 g, PU: 1.00 件

Images

Additional information

DG MOD E H 1000 压敏电阻型保护模块
DEHNguard SE H 1000 FM的可插拔保护模块
依据EN 61643-11，2级SPD
高通流量压敏电阻技术
交流最大持续工作电压：1000 V
标称放电电流：20 kA
故障指示

制造商： DEHN
型号: DG MOD E H 1000
货号: 952908
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 20 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 1000 V

Product 952908 was added to Notepad.

Go to Notepad

Product 952908 was added to the cart.

Go to Web-Shop

Part No. 952918 DG MOD E H 1000 VA

GTIN 4013364308336, Customs tariff No. (EU): 853630, Gross weight: 130.00 g, PU: 1.00 件

Images

Additional information

DG MOD E 1000 VA 压敏电阻型保护模块
DEHNguard SE H 1000 VA FM的可插拔保护模块
依据EN 61643-11，2级SPD
高通流量压敏电阻技术
交流最大持续工作电压：1000 V
标称放电电流：15 kA
故障指示

制造商： DEHN
型号: DG MOD E H 1000 VA
货号: 952918
其他类似产品

Certificates



Technical data

标称放电电流 (8/20 μs) (In ) 15 kA
最大放电电流 (8/20 μs) (Imax ) 40 kA
交流最大持续工作电压 (UC ) 1000 V

Product 952918 was added to Notepad.

Go to Notepad

Product 952918 was added to the cart.

Go to Web-Shop

DEHNguard SE DC 压敏电阻型保护模块

4 Products

Part No. 972010 DG MOD E DC 60

GTIN 4013364158672, Customs tariff No. (EU): 853630, Gross weight: 65.00 g, PU: 1.00 件

Images

Additional information

DG MOD E DC 60 压敏电阻型保护模块
DEHNguard SE DC ... (FM) 的可插拔保护模块
依据EN 61643-11，2级SPD
高通流量压敏电阻技术
特别适用于直流电路
直流最大持续工作电压： 60 V
标称放电电流： 12.5 kA
故障指示

制造商： DEHN
型号: DG MOD E DC 60
货号: 972010
其他类似产品



Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
直流最大持续工作电压 (UC ) 60 V

Product 972010 was added to Notepad.

Go to Notepad

Product 972010 was added to the cart.

Go to Web-Shop

Part No. 972020 DG MOD E DC 242

GTIN 4013364158702, Customs tariff No. (EU): 853630, Gross weight: 75.00 g, PU: 1.00 件

Images

Additional information

DG MOD E DC 242 压敏电阻型保护模块
DEHNguard SE DC ... (FM) 的可插拔保护模块
依据EN 61643-11，2级SPD
高通流量压敏电阻技术
特别适用于直流电路
直流最大持续工作电压： 242 V
标称放电电流： 12.5 kA
故障指示

制造商： DEHN
型号: DG MOD E DC 242
货号: 972020
其他类似产品

Certificates



Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
直流最大持续工作电压 (UC ) 242 V

Product 972020 was added to Notepad.

Go to Notepad

Product 972020 was added to the cart.

Go to Web-Shop

Part No. 972030 DG MOD E DC 550

GTIN 4013364158719, Customs tariff No. (EU): 853630, Gross weight: 89.00 g, PU: 1.00 件

Images

Additional information

DG MOD E DC 550 压敏电阻型保护模块
DEHNguard SE DC ... (FM) 的可插拔保护模块
依据EN 61643-11，2级SPD
高通流量压敏电阻技术
特别适用于直流电路
直流最大持续工作电压： 550 V
标称放电电流： 12.5 kA
故障指示

制造商： DEHN
型号: DG MOD E DC 550
货号: 972030
其他类似产品

Certificates



Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
直流最大持续工作电压 (UC ) 550 V

Product 972030 was added to Notepad.

Go to Notepad

Product 972030 was added to the cart.

Go to Web-Shop

Part No. 972040 DG MOD E DC 900

GTIN 4013364158764, Customs tariff No. (EU): 853630, Gross weight: 95.00 g, PU: 1.00 件

Images

Additional information

DG MOD E DC 900 压敏电阻型保护模块
DEHNguard SE DC ... (FM) 的可插拔保护模块
依据EN 61643-11，2级SPD
高通流量压敏电阻技术
特别适用于直流电路
直流最大持续工作电压： 900 V
标称放电电流： 12.5 kA
故障指示

制造商： DEHN
型号: DG MOD E DC 900
货号: 972040
其他类似产品

Certificates



Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

标称放电电流 (8/20 μs) (In ) 12.5 kA
直流最大持续工作电压 (UC ) 900 V

Product 972040 was added to Notepad.

Go to Notepad

Product 972040 was added to the cart.

Go to Web-Shop
back to top
