DEHNbloc Maxi 440 / 760

  • 火花间隙型雷电流保护器
  • 密闭、无外喷气体的火花间隙
  • 通过“RADAX-Flow”技术，实现了强大的续流抑制及续流遮断能力
  • 与电涌保护器DEHNguard能量协调，无需连接额外线缆
  • 工作状态/故障以绿-红标记在监视窗口中指示

Details

lorem ipsum

DEHNbloc Maxi 1 440 (FM)

能量协调单极雷电流保护器，用于400 / 690 V系统；FM版本带遥信端子。

2 Products

Part No. 961140 DBM 1 440

GTIN 4013364116269, Customs tariff No. (EU): 853630, Gross weight: 592.00 g, PU: 1.00 件

Predecessor

Images

Additional information

DEHNbloc Maxi 1 440 是一款能量协调的雷电流保护器
能量协调型单极雷电流保护器，2模宽度
依据EN 61643-11，1级SPD
火花间隙技术，并有续流抑制能力
故障指示
交流最大持续工作电压：440 V
电压保护水平： ≤ 2.5 kV
雷电冲击电流(10/350)： 35 kA
续流遮断能力：50 kArms
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DBM 1 440
货号: 961140
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
交流最大持续工作电压 (UC ) 440 V
雷电冲击电流(10/350 μs) (Iimp ) 35 kA
电压保护水平 (UP ) ≤ 2.5 kV
IK = 50 kArms (ta ≤0.2 s)时，最大后备熔丝 (L) 500 A gG
IK = 50 kArms (ta ≤ 5 s)时，最大后备熔丝 (L) 250 A gG
认证 UL, CSA

Product 961140 was added to Notepad.

Go to Notepad

Product 961140 was added to the cart.

Go to Web-Shop

Part No. 961145 DBM 1 440 FM

GTIN 4013364116276, Customs tariff No. (EU): 853630, Gross weight: 601.60 g, PU: 1.00 件

Predecessor

Images

Additional information

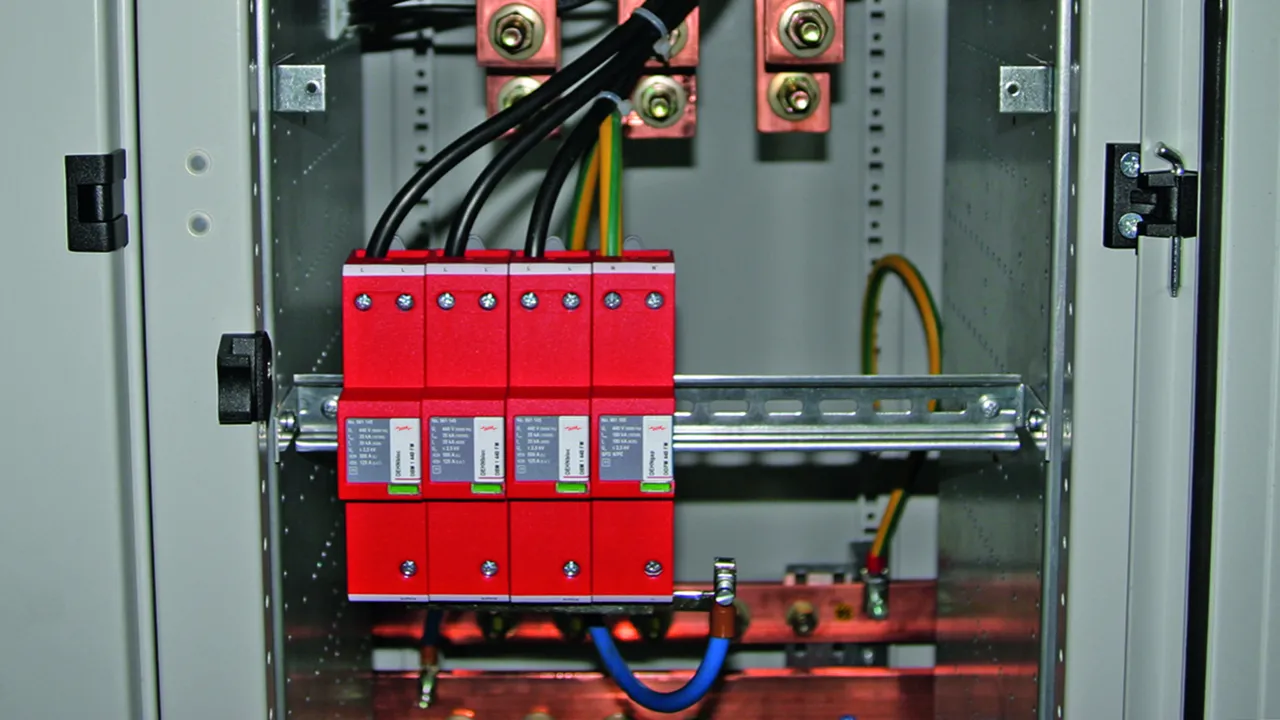

DEHNbloc Maxi 1 440 FM 是一款能量协调的雷电流保护器
能量协调型单极雷电流保护器，2模宽度
依据EN 61643-11，1级SPD
带遥信端子
火花间隙技术，并有续流抑制能力
故障指示
交流最大持续工作电压：440 V
电压保护水平： ≤ 2.5 kV
雷电冲击电流(10/350)： 35 kA
续流遮断能力：50 kArms
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DBM 1 440 FM
货号: 961145
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
交流最大持续工作电压 (UC ) 440 V
雷电冲击电流(10/350 μs) (Iimp ) 35 kA
电压保护水平 (UP ) ≤ 2.5 kV
IK = 50 kArms (ta ≤0.2 s)时，最大后备熔丝 (L) 500 A gG
IK = 50 kArms (ta ≤ 5 s)时，最大后备熔丝 (L) 250 A gG
认证 UL, CSA
遥信触点类型 浮动切换触点

Product 961145 was added to Notepad.

Go to Notepad

Product 961145 was added to the cart.

Go to Web-Shop

DEHNbloc Maxi 1 760 FM

能量协调单极雷电流保护器，用于690V系统 , 带遥信端子（浮动切换触点）。

1 Product

Part No. 961175 DBM 1 760 FM

GTIN 4013364116283, Customs tariff No. (EU): 853630, Gross weight: 589.80 g, PU: 1.00 件

Images

Additional information

DEHNbloc Maxi 1 760 FM 是一款能量协调的雷电流保护器
能量协调型单极雷电流保护器，2模宽度
依据EN 61643-11，1级SPD
带遥信端子
火花间隙技术，并有续流抑制能力
故障指示
交流最大持续工作电压：760 V
电压保护水平： ≤ 4 kV
雷电冲击电流(10/350)： 25 kA
续流遮断能力：25 kArms
依据IEC 62305-4可与其它DEHN红线产品能量协调使用

制造商： DEHN
型号: DBM 1 760 FM
货号: 961175
其他类似产品

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

SPD依据EN 61643-11/...IEC 61643-11 1级 / I级
交流最大持续工作电压 (UC ) 760 V
雷电冲击电流(10/350 μs) (Iimp ) 25 kA
电压保护水平 (UP ) ≤ 4 kV
IK = 25 kArms (ta ≤5 s)时，最大后备熔丝 (L) 250 A gG
认证 UL, CSA
遥信触点类型 浮动切换触点
