Compact DIN Rail Mounted SPDs

The compact BLITZDUCTORconnect combined arresters are universal, space-saving and functionally optimised protective devices for measuring and control circuits as well as bus systems. The products of the BLITZDUCTOR VT series feature application-optimised protection components for process and automation technology, the DEHNvario series includes products for protecting security systems.

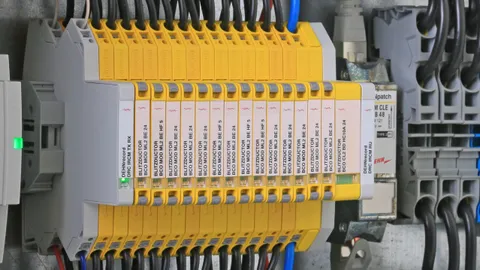

BLITZDUCTORconnect – Compact

  • Combined lightning current and surge arrester with a compact design and integrated visual status indication
  • Push-in connection technology
  • Intrinsically safe version for use in hazardous areas

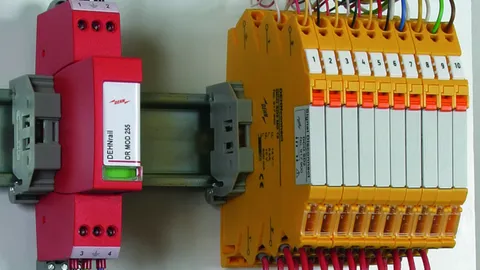

DEHNconnect SD2

Two-pole terminal block of 6 mm width with cage clamp terminal. Earthing via DIN rail or terminal. Signal circuits can be disconnected by removing the disconnection module.

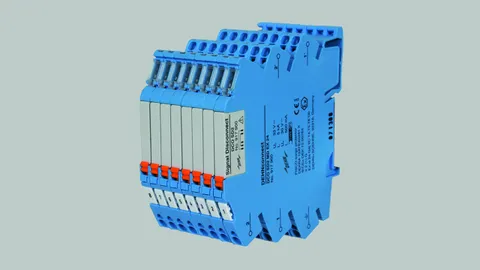

DEHNconnect SD2 Ex (i)

Two-pole terminal block of 6 mm width with cage clamp terminal for protecting intrinsically safe measuring circuits and bus systems. Earthing via DIN rail or terminal. Signal circuits can be isolated by removing the disconnection module.

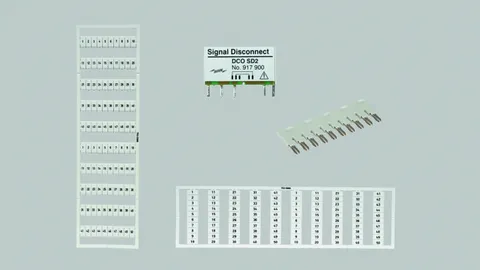

Accessories for DEHNconnect SD2

DEHNvario

Compact combined arrester for protecting electroacoustic systems (e.g. voice alarm systems, loudspeaker systems).

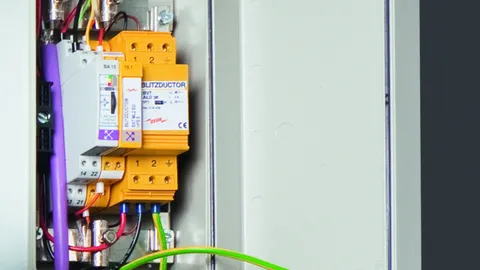

BLITZDUCTOR VT

Compact DIN rail mounted protection for devices with screw terminals for stranded conductors
