Vezetőtartók és kiegészítők lapostetős / fémtetős szereléshez

Roof Conductor Holder

1 Product

Part No. 253239 DLH ZS 20 23 V2A 8.5KG KT D240 ULP

GTIN 4013364159853, Customs tariff No. (EU): 85389099, Gross weight: 8.70 kg, PU: 1.00 db.

Images

Additional information

Roof conductor holder for installing HVI light Conductors, StSt
Roof conductor holder with two-screw cleat for installing HVI Conductors on flat roofs.
For use with a concrete block and support plate.
Total weight: approx. 8.6 kg
Material of conductor holder: StSt
Conductor support Rd: 20 / 23 mm

Gyártó: DEHN
Típus: DLH ZS 20 23 V2A 8.5KG KT D240 ULP
Cikksz.: 253239
vagy egyenértékű.

Certificates



Technical data

Material of conductor holder StSt
Conductor support Rd 20 / 23 mm

Product 253239 was added to Notepad.

Go to Notepad

Product 253239 was added to the cart.

Go to Web-Shop

Roof Conductor Holder for Standing Seam

1 Product

Part No. 202852 DLH SF ZS 20 23 V2A

GTIN 4013364354159, Customs tariff No. (EU): 85389099, Gross weight: 157.80 g, PU: 25.00 db.

Images

Additional information

Roof conductor holder for metal roof for HVI Conductor
Roof conductor holder with slotted two-screw cleat for installing the
HVI Conductor on metal roofs with standing seam
Material (roof conductor holder): StSt
Material (conductor holder): StSt
Clamping range: 0.7-8 mm
Conductor support Rd: 20 / 23 mm
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH SF ZS 20 23 V2A
Cikksz.: 202852
vagy egyenértékű.

Certificates



Technical data

Material (roof conductor holder) StSt
Material (conductor holder) StSt
Clamping range 0.7-8 mm
Conductor support Rd 20 / 23 mm
Standard EN 62561-4

Product 202852 was added to Notepad.

Go to Notepad

Product 202852 was added to the cart.

Go to Web-Shop

Spacer with EB Element for HVI light Conductor (length of variable adjustment range 350-900 mm)

1 Product

Part No. 105460 DIDH PAE 17 D16 750 AL V2A

GTIN 4013364381513, Customs tariff No. (EU): 85389099, Gross weight: 577.40 g, PU: 1.00 db.

Images

Additional information

Spacer with EB element length 750mm
Spacer for implementing the variable
adjustment range of the HVI light Conductor
With MV clamp for connection of
Rd 16 mm / Rd 8-10 mm.
Concrete base (Part No. 102 010, weight 17 kg) and
support plate (Part No. 102 050) must be ordered
separately.
Material (spacer): Al
Lenght of spacer : 750 mm
Conductor support Rd: 17 mm
Material (conductor holder): StSt
Clamping range Rd MV clamp: 8-10 / 16 mm
Material (clamp): Al
Length of variable adjustment range: 350-900 mm
Max. gust wind speed (1 base 17 kg each; l = 900 mm): 111 km/h
Max. gust wind speed (2 bases 17 kg each; l = 900 mm): 159 km/h

Gyártó: DEHN
Típus: DIDH PAE 17 D16 750 AL V2A
Cikksz.: 105460
vagy egyenértékű.

Certificates



Technical data

Material (spacer) Al
Lenght of spacer 750 mm
Conductor support Rd 17 mm
Material (conductor holder) StSt
Clamping range Rd MV clamp 8-10 / 16 mm
Material (clamp) Al
Length of variable adjustment range 350-900 mm
Max. gust wind speed (1 base 17 kg each; l = 900 mm) 111 km/h
Max. gust wind speed (2 bases 17 kg each; l = 900 mm) 159 km/h

Product 105460 was added to Notepad.

Go to Notepad

Product 105460 was added to the cart.

Go to Web-Shop

Concrete Base

1 Product

Part No. 102340 BES 17KG KT16 ULP D337 SET

GTIN 4013364105119, Customs tariff No. (EU): 68109100, Gross weight: 17.82 kg, PU: 54.00 db.

Images

Additional information

Wedged concrete base and adapted support plate
Wedged concrete base and adapted base plate
for air-termination rods for protection of roof superstructures on flat roofs or for installing spacers of the DEHNiso spacer programme for e.g. the sealing end of the HVI conductor, adjusting range of the HVI conductor light or for isolated ring conductors
Weather- and frost-proof
UV stabilised
Total weight: 17 kg
Support: wedge mounting Ø16 mm
Diameter Ø: 337 mm
Material: concrete (C45/55)
Material of wedge: StSt

Gyártó: DEHN
Típus: BES 17KG KT16 ULP D337 SET
Cikksz.: 102340
vagy egyenértékű.

Certificates



Technical data

Total weight 17 kg
Support wedge mounting Ø16 mm
Diameter Ø 337 mm
Material concrete (C45/55)
Material of wedge StSt

Product 102340 was added to Notepad.

Go to Notepad

Product 102340 was added to the cart.

Go to Web-Shop

Roof Conductor Holder

1 Product

Part No. 253229 DLH ZS 20 23 V2A 4.7KG BES180 GP300 K

GTIN 4013364159846, Customs tariff No. (EU): 85389099, Gross weight: 4.89 kg, PU: 1.00 db.

Images

Additional information

Roof conductor holder for installing HVI light Conductors, StSt
Roof conductor holder with two-screw cleat for installing HVI Conductors
on flat roofs. For use with a concrete block and support plate.
Total weight: approx. 4.7 kg
Material of conductor holder: StSt
Conductor support Rd: 20 / 23 mm

Gyártó: DEHN
Típus: DLH ZS 20 23 V2A 4.7KG BES180 GP300 K
Cikksz.: 253229
vagy egyenértékű.

Certificates



Technical data

Material of conductor holder StSt
Conductor support Rd 20 / 23 mm

Product 253229 was added to Notepad.

Go to Notepad

Product 253229 was added to the cart.

Go to Web-Shop

Support Plate

1 Product

Part No. 253300 GP B10 H60 D300 KS GR

GTIN 4013364129771, Customs tariff No. (EU): 85389099, Gross weight: 196.67 g, PU: 24.00 db.

Images

Additional information

Support plate
Separate support plate
For reception (socket) of the spacer bar and for protecting
the roofing sheets below the concrete block
DEHNGEPRUEFT: Nem
Diameter Ø: 300 mm
Diameter Ø of lock bush: 10 mm
Height: 60 mm
Material: plastic

Gyártó: DEHN
Típus: GP B10 H60 D300 KS GR
Cikksz.: 253300
vagy egyenértékű.



Technical data

Diameter Ø 300 mm
Diameter Ø of lock bush 10 mm
Height 60 mm
Material plastic
Colour grey ●

Product 253300 was added to Notepad.

Go to Notepad

Product 253300 was added to the cart.

Go to Web-Shop

Support Plate

1 Product

Part No. 102050 ULP KS D370 SW

GTIN 4013364045996, Customs tariff No. (EU): 39269097, Gross weight: 217.00 g, PU: 1.00 db.

Images

Additional information

Support plate for protecting roofing sheets, large
Support plate for protection of the roofing sheets
underneath the concrete base
DEHNGEPRUEFT: Nem
Outside diameter Ø : 370 mm
Inside diameter Ø : 360 mm
Material: EVA
Colour: black ●

Gyártó: DEHN
Típus: ULP KS D370 SW
Cikksz.: 102050
vagy egyenértékű.



Technical data

Outside diameter Ø 370 mm
Inside diameter Ø 360 mm
Material EVA
Colour black ●

Product 102050 was added to Notepad.

Go to Notepad

Product 102050 was added to the cart.

Go to Web-Shop

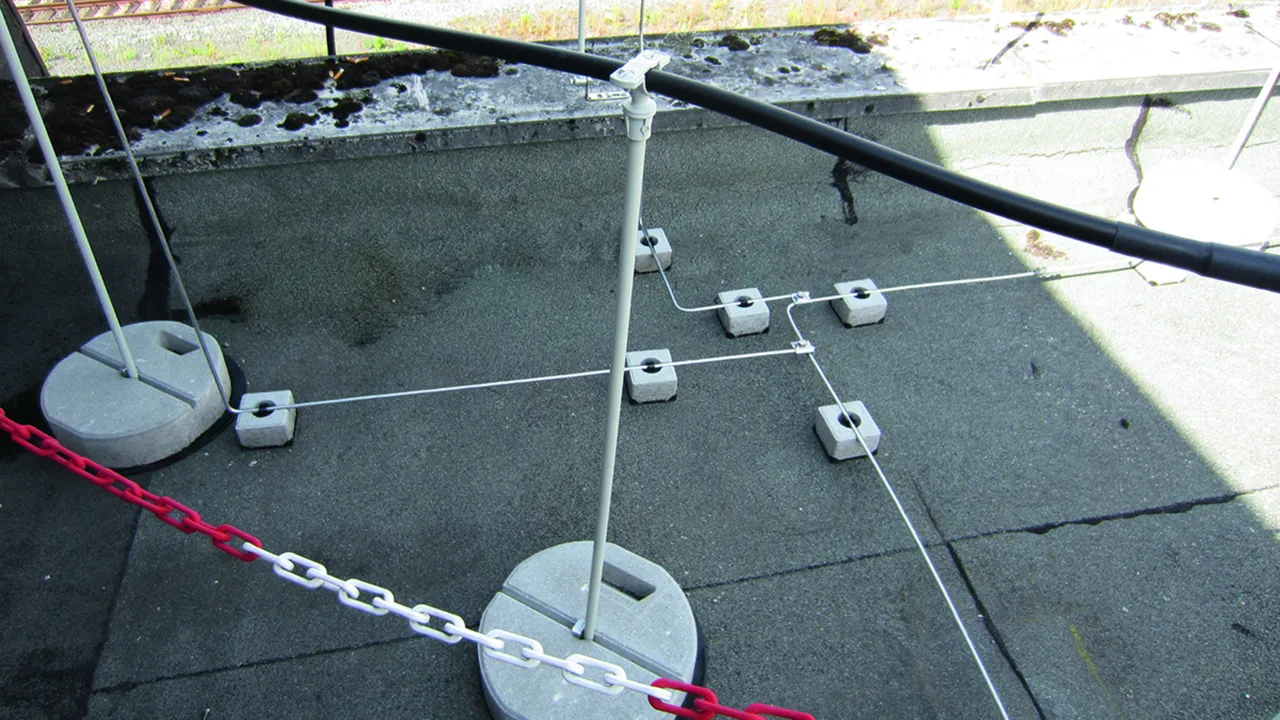

Roof Conductor Holder for Flat Roofs

1 Product

Part No. 253015 DLH FB 8 LO 100X100X70

GTIN 4013364022201, Customs tariff No. (EU): 68109100, Gross weight: 1.05 kg, PU: 10.00 db.

Images

Additional information

Conductor holder of type FB (loose) for flat roofs
Roof conductor holder for flat roofs for fixing round conductors on flat roofs
With one conductor support type FB
Made of frost-resistant concrete and weather-proof plastic, UV-stabilised
Plastic and concrete parts can be recycled separately
DEHNGEPRUEFT: Nem
Conductor routing: loose
Material of conductor holder: plastic
Conductor support Rd: 8 mm
Block: concrete (C35/45)
Weight: 1 kg

Gyártó: DEHN
Típus: DLH FB 8 LO 100X100X70
Cikksz.: 253015
vagy egyenértékű.



Technical data

Conductor routing loose
Material of conductor holder plastic
Conductor support Rd 8 mm
Block concrete (C35/45)
Weight 1 kg

Product 253015 was added to Notepad.

Go to Notepad

Product 253015 was added to the cart.

Go to Web-Shop

Roof Conductor Holder for Clamping Seam (e.g. RIB-ROOF Speed 500 from Zambelli)

1 Product

Part No. 202851 DLH KF ZS 20 23 V2A

GTIN 4013364354142, Customs tariff No. (EU): 85389099, Gross weight: 212.40 g, PU: 25.00 db.

Images

Additional information

Roof conductor holder for metal roof for HVI Conductor
Roof conductor holder with slotted two-screw cleat for installing the HVI Conductor
on metal roofs with clamping seam
Material (roof conductor holder): StSt
Material (conductor holder): StSt
Clamping range: approx. 18 / 22 mm
Conductor support Rd: 20 / 23 mm
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH KF ZS 20 23 V2A
Cikksz.: 202851
vagy egyenértékű.

Certificates



Technical data

Material (roof conductor holder) StSt
Material (conductor holder) StSt
Clamping range approx. 18 / 22 mm
Conductor support Rd 20 / 23 mm
Standard EN 62561-4

Product 202851 was added to Notepad.

Go to Notepad

Product 202851 was added to the cart.

Go to Web-Shop

Concrete Block

1 Product

Part No. 253301 BES 4.6KG SB10 180X180X70

GTIN 4013364129788, Customs tariff No. (EU): 68109100, Gross weight: 4.60 kg, PU: 24.00 db.

Images

Additional information

Concrete block
Separate concrete block
For stabilisation the base plate with inserted spacer rod
DEHNGEPRUEFT: Nem
Type : square, open form
Material: concrete (C35/45)
Dimensions: 180 x 180 x 70 mm

Gyártó: DEHN
Típus: BES 4.6KG SB10 180X180X70
Cikksz.: 253301
vagy egyenértékű.



Technical data

Material concrete (C35/45)
Dimensions 180 x 180 x 70 mm

Product 253301 was added to Notepad.

Go to Notepad

Product 253301 was added to the cart.

Go to Web-Shop

Roof Conductor Holder with Connection Lug

1 Product

Part No. 202853 DLH AL ZS 20 23 V2A

GTIN 4013364354166, Customs tariff No. (EU): 85389099, Gross weight: 113.00 g, PU: 25.00 db.

Images

Additional information

Roof conductor holder for metal roof for HVI Conductor
Roof conductor holder with slotted two-screw cleat and Z-shaped connection lug
for installing the HVI Conductor on metal roofs
Material (roof conductor holder): StSt
Material (conductor holder): StSt
Fixing: [4x] Ø5.2 / [2x] Ø6.5 mm
Conductor support Rd: 20 / 23 mm
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH AL ZS 20 23 V2A
Cikksz.: 202853
vagy egyenértékű.

Certificates



Technical data

Material (roof conductor holder) StSt
Material (conductor holder) StSt
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Conductor support Rd 20 / 23 mm
Standard EN 62561-4

Product 202853 was added to Notepad.

Go to Notepad

Product 202853 was added to the cart.

Go to Web-Shop

Spacers for HVI light Conductor

2 Products

Part No. 106852 DH ZS 20 D16 500 GFK PA

GTIN 4013364119307, Customs tariff No. (EU): 85389099, Gross weight: 229.00 g, PU: 1.00 db.

Images

Additional information

Spacer for HVI light Conductor, GRP
Spacer for HVI light Conductor for the sealing end or adjusting range of the HVI light Conductor
e.g. to be mounted in a wedged concrete base
Spacer bar (insulating clearance) made of glass-fibre reinforced plastic (GRP), Ø16 mm,
Material factor km = 0.7
Light grey colour, UV stabilised
The spacers are dimensioned according to Eurocode
DEHNGEPRUEFT: Nem
Material of conductor holder / adapter: PA
Length: 500 mm
Insulating clearance: 475 mm
Conductor support Rd: 20 mm
Thread: M8
Max. gust wind speed (1x block 17 kg, holder distance 1000 mm): 151 km/h

Gyártó: DEHN
Típus: DH ZS 20 D16 500 GFK PA
Cikksz.: 106852
vagy egyenértékű.



Technical data

Material of spacer GRP
Material of conductor holder / adapter PA
Length (l1) 500 mm
Conductor support Rd 20 mm
Thread M8
Max. gust wind speed (1x block 17 kg, holder distance 1000 mm) 151 km/h

Product 106852 was added to Notepad.

Go to Notepad

Product 106852 was added to the cart.

Go to Web-Shop

Part No. 106812 DH ZS 20 D16 1000 GFK PA

GTIN 4013364104907, Customs tariff No. (EU): 85389099, Gross weight: 435.10 g, PU: 1.00 db.

Images

Additional information

Spacer for HVI light Conductor, GRP
Spacer for HVI light Conductor for the sealing end or adjusting range of the HVI light Conductor
e.g. to be mounted in a wedged concrete base
Spacer bar (insulating clearance) made of glass-fibre reinforced plastic (GRP), Ø16 mm,
Material factor km = 0.7
Light grey colour, UV stabilised
The spacers are dimensioned according to Eurocode
DEHNGEPRUEFT: Nem
Material of conductor holder / adapter: PA
Length: 1000 mm
Insulating clearance: 975 mm
Conductor support Rd: 20 mm
Thread: M8
Max. gust wind speed (1x block 17 kg, holder distance 1000 mm): 98 km/h

Gyártó: DEHN
Típus: DH ZS 20 D16 1000 GFK PA
Cikksz.: 106812
vagy egyenértékű.



Technical data

Material of spacer GRP
Material of conductor holder / adapter PA
Length (l1) 1000 mm
Conductor support Rd 20 mm
Thread M8
Max. gust wind speed (1x block 17 kg, holder distance 1000 mm) 98 km/h

Product 106812 was added to Notepad.

Go to Notepad

Product 106812 was added to the cart.

Go to Web-Shop

Concrete Base

1 Product

Part No. 102010 BES 17KG KT16 D337 SET

GTIN 4013364057814, Customs tariff No. (EU): 68109100, Gross weight: 17.62 kg, PU: 54.00 db.

Images

Additional information

Wedged concrete base
Wedged concrete base for air-termination rods or self-supporting air-termination rods with tripod for protection of roof superstructures on flat roofs, or for installing spacers of the DEHNiso spacer programme for e.g. the sealing end of the HVI Conductor, the adjusting range of the HVI light Conductor or for isolated ring conductors
Stackable, weather and frost-proof
DEHNGEPRUEFT: Nem
Weight: 17 kg
Support: wedge mounting Ø16 mm
Diameter Ø: 337 mm
Material: concrete (C45/55)
Material of wedge / adapter: StSt

Gyártó: DEHN
Típus: BES 17KG KT16 D337 SET
Cikksz.: 102010
vagy egyenértékű.

Certificates



Technical data

Weight 17 kg
Support wedge mounting Ø16 mm
Diameter Ø 337 mm
Material concrete (C45/55)
Material of wedge / adapter StSt

Product 102010 was added to Notepad.

Go to Notepad

Product 102010 was added to the cart.

Go to Web-Shop

Conductor Holder

1 Product

Part No. 253289 LH ZS 20 23 DS10 L75 V2A

GTIN 4013364159860, Customs tariff No. (EU): 85389099, Gross weight: 94.00 g, PU: 1.00 db.

Images

Additional information


Conductor holder with two-screw cleat for
installing HVI Conductors on flat roofs.
Material: StSt
Conductor support Rd: 20 / 23 mm
Height of conductor holder: 87 mm
Bolt: Ø10 mm (push-fit)

Gyártó: DEHN
Típus: LH ZS 20 23 DS10 L75 V2A
Cikksz.: 253289
vagy egyenértékű.

Certificates



Technical data

Material StSt
Conductor support Rd 20 / 23 mm
Height of conductor holder 87 mm
Bolt Ø10 mm (push-fit)

Product 253289 was added to Notepad.

Go to Notepad

Product 253289 was added to the cart.

Go to Web-Shop

Support Plate

1 Product

Part No. 102060 ULP KS D280 SW

GTIN 4013364094987, Customs tariff No. (EU): 39269097, Gross weight: 139.90 g, PU: 1.00 db.

Images

Additional information

Small support plate for protecting roofing sheets
Support plate for protection of the roofing sheets underneath the concrete base
DEHNGEPRUEFT: Nem
Outside diameter Ø : 280 mm
Inside diameter Ø : 270 mm
Material : EVA
Colour: black ●

Gyártó: DEHN
Típus: ULP KS D280 SW
Cikksz.: 102060
vagy egyenértékű.



Technical data

Outside diameter Ø 280 mm
Inside diameter Ø 270 mm
Material EVA
Colour black ●

Product 102060 was added to Notepad.

Go to Notepad

Product 102060 was added to the cart.

Go to Web-Shop

Adapter for Installation of the HVI light Conductor / HVI Conductor on Flat Roofs

1 Product

Part No. 253026 RLA 20 FB K SW

GTIN 4013364100169, Customs tariff No. (EU): 39269097, Gross weight: 9.50 g, PU: 50.00 db.

Images

Additional information

Adapter for installing HVI Conductors on flat roofs
Adapter for installing the HVI Conductor on flat roofs or also for the HVI light Conductor
to be snapped on roof conductor holder Type FB (Part No. 253 015)

DEHNGEPRUEFT: Nem
Colour: black ●
Conductor support Rd: 20 mm

Gyártó: DEHN
Típus: RLA 20 FB K SW
Cikksz.: 253026
vagy egyenértékű.



Technical data

Material plastic
Colour black ●
Conductor support Rd 20 mm

Product 253026 was added to Notepad.

Go to Notepad

Product 253026 was added to the cart.

Go to Web-Shop

Concrete Base

1 Product

Part No. 102075 BES 8.5KG KT10 16 D240 SET

GTIN 4013364094215, Customs tariff No. (EU): 68109100, Gross weight: 8.46 kg, PU: 120.00 db.

Images

Additional information

Wedged concrete base
Concrete base
for protection of small-sized roof superstructures on flat roofs with an air-termination rod length 1 m, e.g. Part No. 101 001, or for installing spacers of the DEHNiso spacer programme for e.g. isolated ring conductors

DEHNGEPRUEFT: Nem
Total weight: 8.5 kg
Diameter Ø: 240 mm
Material: concrete (C45/55)
Material of wedge / adapter: StSt

Gyártó: DEHN
Típus: BES 8.5KG KT10 16 D240 SET
Cikksz.: 102075
vagy egyenértékű.

Certificates



Technical data

Total weight 8.5 kg
Diameter Ø 240 mm
Material concrete (C45/55)
Material of wedge / adapter StSt

Product 102075 was added to Notepad.

Go to Notepad

Product 102075 was added to the cart.

Go to Web-Shop

Conductor Holder

1 Product

Part No. 253279 LH ZS 20 23 KT D16 L85 V2A

GTIN 4013364159877, Customs tariff No. (EU): 85389099, Gross weight: 182.00 g, PU: 1.00 db.

Images

Additional information

Conductor holder StSt for installing the HVI light Conductor
Conductor holder with two-screw cleat for installing
the HVI Conductor on flat roofs.
Material: StSt
Conductor support Rd: 20 / 23 mm
Height of conductor holder: 125 mm
Bolt: Ø16 mm (wedge-fit)

Gyártó: DEHN
Típus: LH ZS 20 23 KT D16 L85 V2A
Cikksz.: 253279
vagy egyenértékű.

Certificates



Technical data

Material StSt
Conductor support Rd 20 / 23 mm
Height of conductor holder 125 mm
Bolt Ø16 mm (wedge-fit)

Product 253279 was added to Notepad.

Go to Notepad

Product 253279 was added to the cart.

Go to Web-Shop

Roof Conductor Holders for Round Standing Seam

1 Product

Part No. 202850 DLH RSF ZS 20 23 V2A

GTIN 4013364354135, Customs tariff No. (EU): 85389099, Gross weight: 205.40 g, PU: 25.00 db.

Images

Additional information

Roof conductor holder for installing the HVI Conductor on metal roofs
Roof conductor holder with two-screw conductor clamp for installing the HVI Conductor
on metal roofs with round standing seam
Material (roof conductor holder): StSt
Material (conductor holder): StSt
Clamping range: Ø20-25 mm
Conductor support Rd: 20 / 23 mm
Standard: EN 62561-4

Gyártó: DEHN
Típus: DLH RSF ZS 20 23 V2A
Cikksz.: 202850
vagy egyenértékű.

Certificates



Technical data

Material (roof conductor holder) StSt
Material (conductor holder) StSt
Clamping range Ø20-25 mm
Conductor support Rd 20 / 23 mm
Standard EN 62561-4

Product 202850 was added to Notepad.

Go to Notepad

Product 202850 was added to the cart.

Go to Web-Shop
back to top
