Modules de protection pour DEHNsecure

  • Technologie d'éclateurs à air approprié pour l'utilisation dans les circuits DC
  • Indication optique de fonctionnement/de défaut grâce à un voyant mécanique vert/rouge

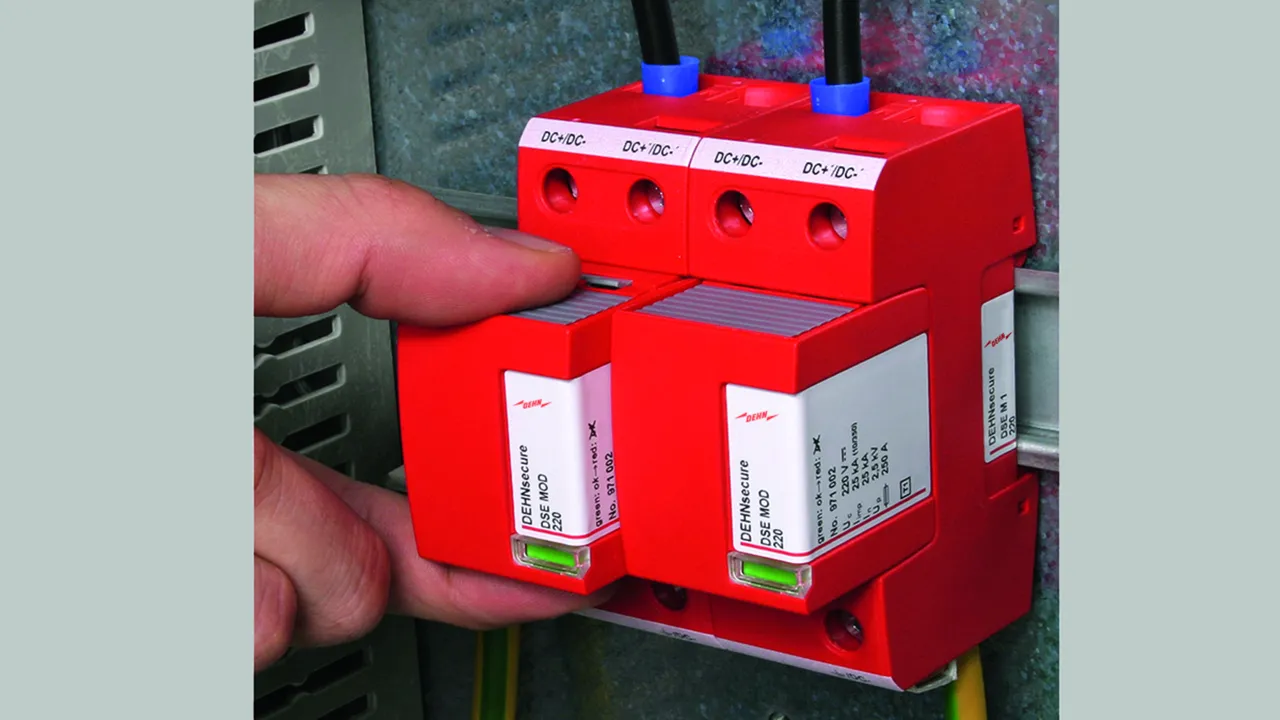

  • Remplacement simple et sans outillage du module de protection grâce au système de verrouillage avec touche de déverrouillage

Module de protection avec éclateur à air DSE M

Module de protection avec éclateur à air

3 Products

Part No. 971001 DSE MOD 60

GTIN 4013364138605, Customs tariff No. (EU): 85363090, Gross weight: 151.00 g, PU: 1.00 pièce(s)

Images

Additional information



produit : DEHN
Type: DSE MOD 60
Référence: 971001
ou équivalent

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Tension max. de régime permanent DC (UC ) 60 V
Courant de choc de décharge (10/350 µs) (Iimp ) 25 kA

Product 971001 was added to Notepad.

Go to Notepad

Product 971001 was added to the cart.

Go to Web-Shop

Part No. 971002 DSE MOD 220

GTIN 4013364133655, Customs tariff No. (EU): 85363090, Gross weight: 118.20 g, PU: 1.00 pièce(s)

Images

Additional information



produit : DEHN
Type: DSE MOD 220
Référence: 971002
ou équivalent

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Tension max. de régime permanent DC (UC ) 220 V
Courant de choc de décharge (10/350 µs) (Iimp ) 25 kA

Product 971002 was added to Notepad.

Go to Notepad

Product 971002 was added to the cart.

Go to Web-Shop

Part No. 971003 DSE MOD 242

GTIN 4013364144491, Customs tariff No. (EU): 85363090, Gross weight: 120.50 g, PU: 1.00 pièce(s)

Images

Additional information



produit : DEHN
Type: DSE MOD 242
Référence: 971003
ou équivalent

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Tension max. de régime permanent DC (UC ) 242 V
Courant de choc de décharge (10/350 µs) (Iimp ) 25 kA

Product 971003 was added to Notepad.

Go to Notepad

Product 971003 was added to the cart.

Go to Web-Shop

Module de protection avec éclateur à air DSE PE

Module de protection avec éclateur à air

1 Product

Part No. 971010 DSE MOD PE 60

GTIN 4013364138636, Customs tariff No. (EU): 85363090, Gross weight: 183.00 g, PU: 1.00 pièce(s)

Images

Additional information



produit : DEHN
Type: DSE MOD PE 60
Référence: 971010
ou équivalent

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Tension max. de régime permanent DC (UC ) 60 V
Courant de choc de décharge (10/350 µs) (Iimp ) 50 kA

Product 971010 was added to Notepad.

Go to Notepad

Product 971010 was added to the cart.

Go to Web-Shop

DSE MOD 60

Module de protection à éclateur

1 Product

Part No. 971004 DSE MOD NG 2P 60

GTIN 4013364489530, Customs tariff No. (EU): 85363090, Gross weight: 252.00 g, PU: 1.00 pièce(s)

Images

Additional information

Module de protection à éclateur DSE MOD NG 2P 60
pour le parafoudre unipolaire coordonné
type 1 DSE NG 2P 60 FM
de la gamme de produits Red/Line
selon EN 61643-11
Spécialement destiné aux circuits DC
technologie à éclateur à air adaptée
Indication de défaut
Tension continue maximale : 60 V DC
Courant de foudre : 50 kA
Résistance aux courts-circuits avec maximum côté réseau
Protection contre les surintensités DC : 10 kA

produit : DEHN
Type: DSE MOD NG 2P 60
Référence: 971004
ou équivalent



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Tension max. de régime permanent DC (UC ) 60 V
Courant de choc de décharge (10/350 µs) (Iimp ) 25 kA

Product 971004 was added to Notepad.

Go to Notepad

Product 971004 was added to the cart.

Go to Web-Shop
